384 Channel GNSS RTK RECEIVER CHC M5 RTK GPS Base and Rover for Geodetic Survey
- Category: >>>
- Supplier: Shenzhen Pengjin Technology Co. Ltd.
Share on (1270097374):
Product Overview
Description

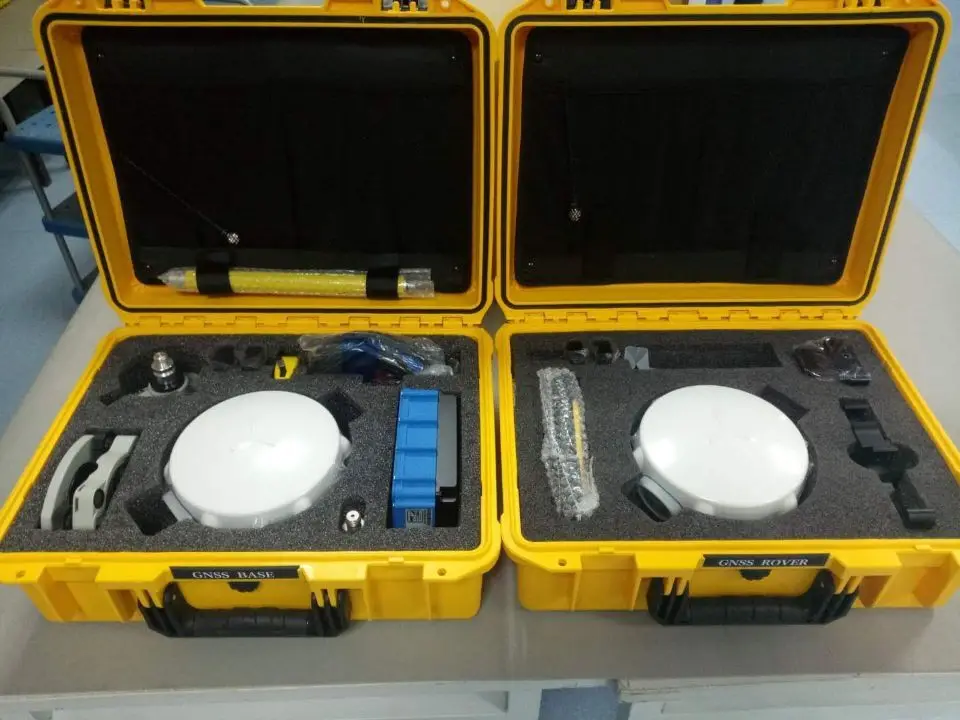

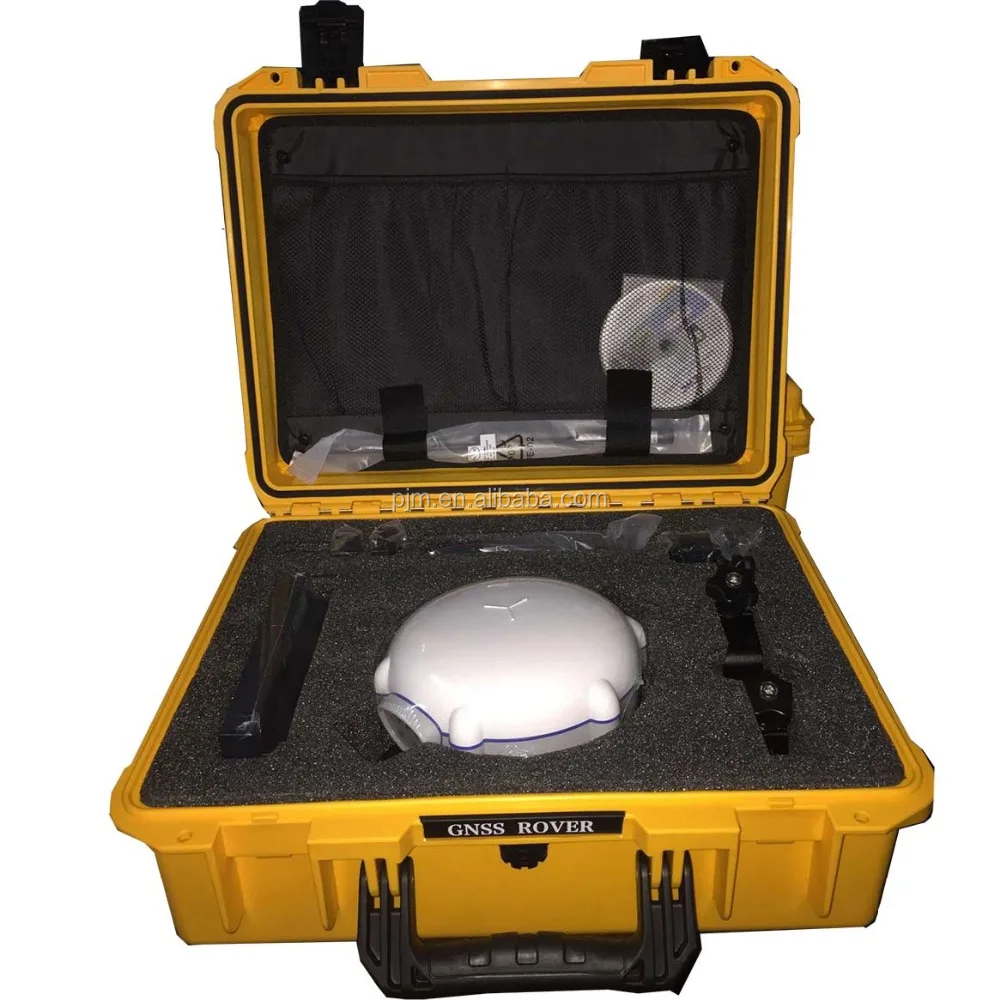

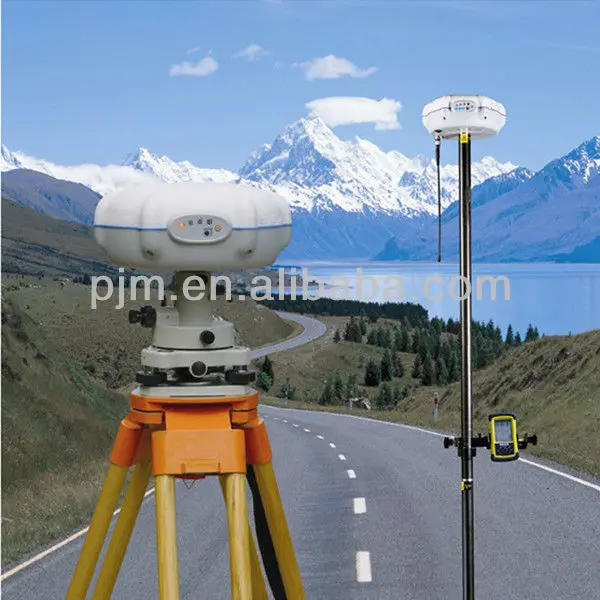

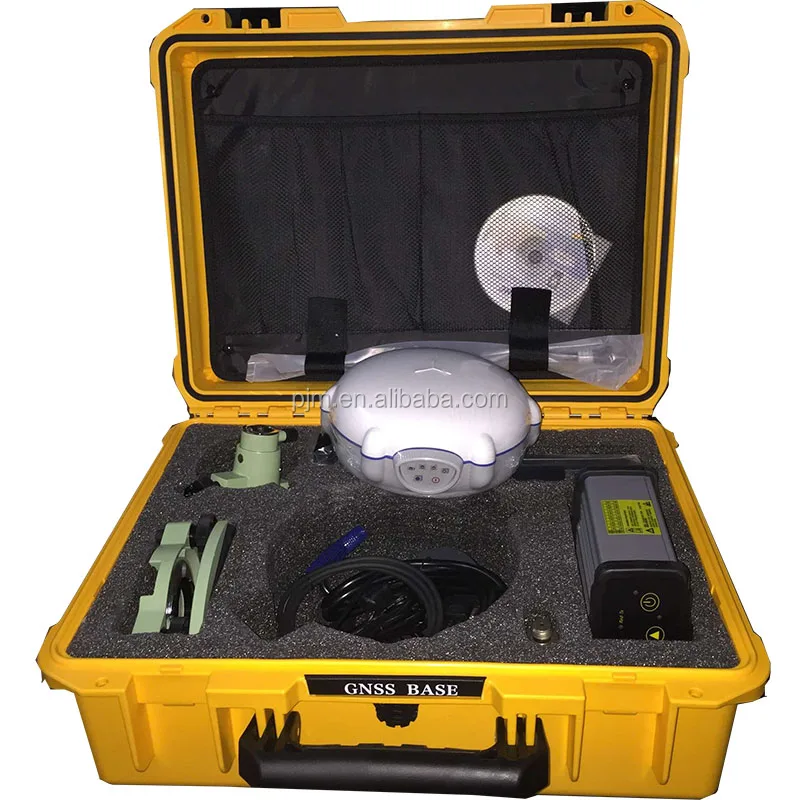

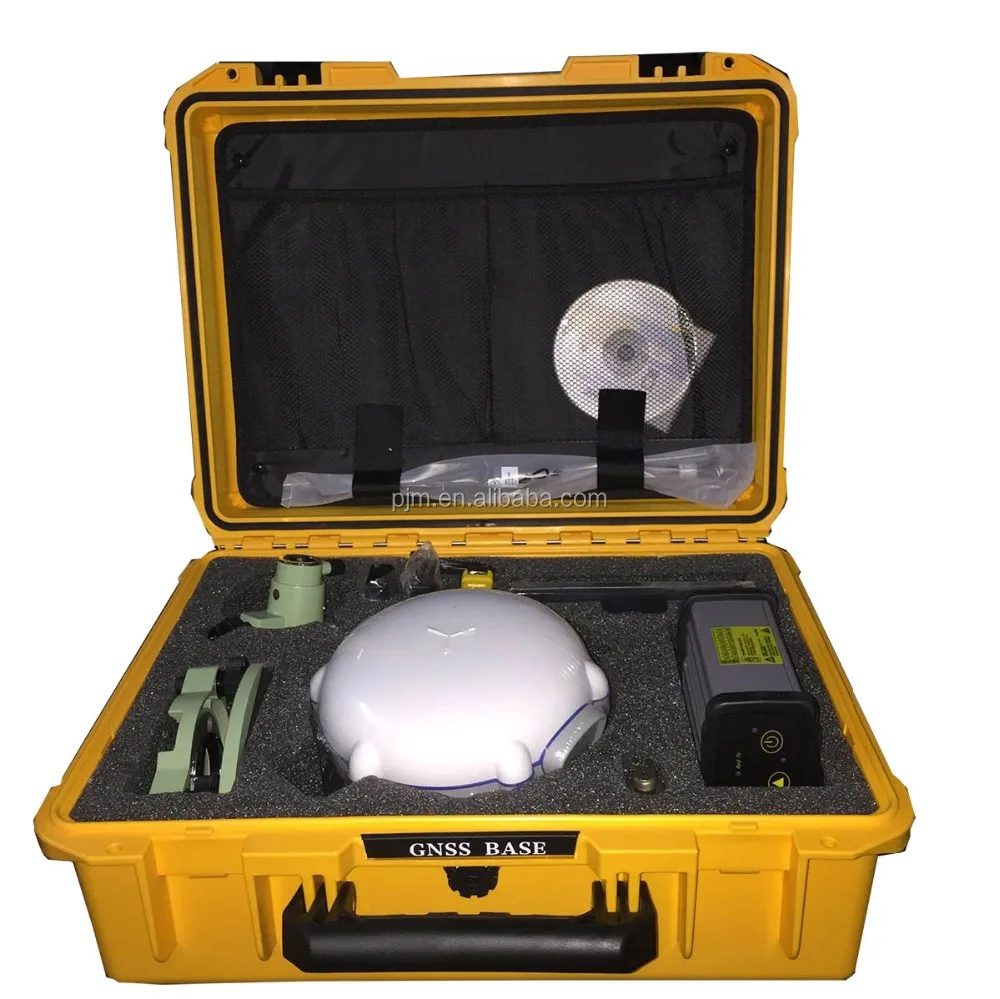

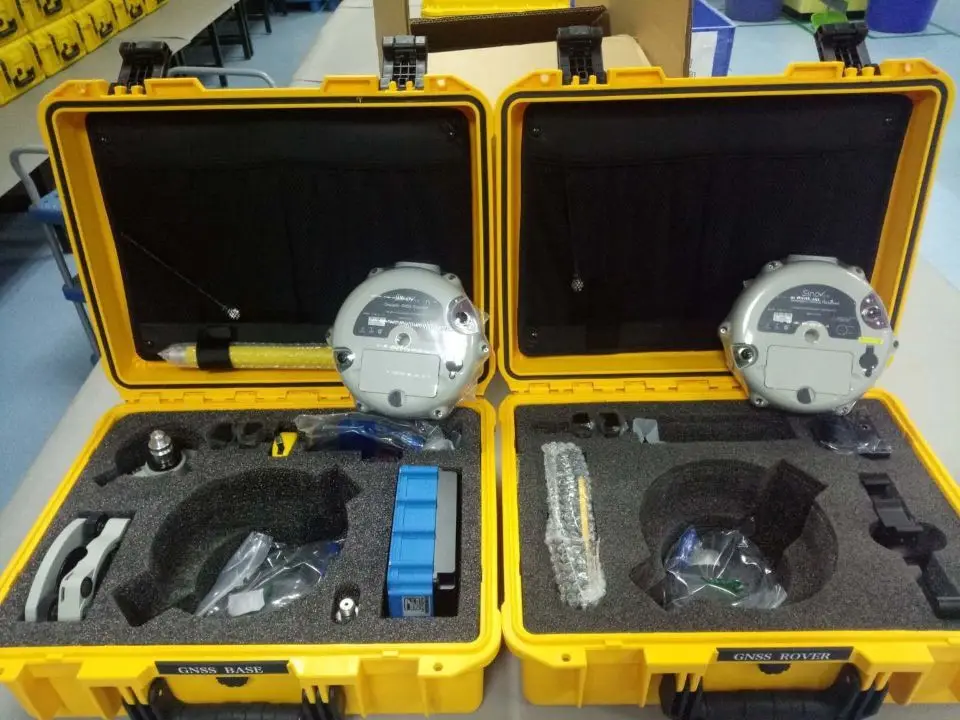

384-Channel GNSS RTK RECEIVER CHC M5 RTK GPS Base and Rover for Geodetic Survey
Features:
1. 384 channels multi satellite tracking supports GPS, Glonass, BDS to gurrantee RTK data accurate and reliable;
2. Perfect compatible with Android based field surveying software Landstar 7,compatible with a wide range of survey instruments and accessories;
3. Integrates a built-in GNSS core, multi satellite antenna, bluetooth communication, RX UHF data link and network modules;

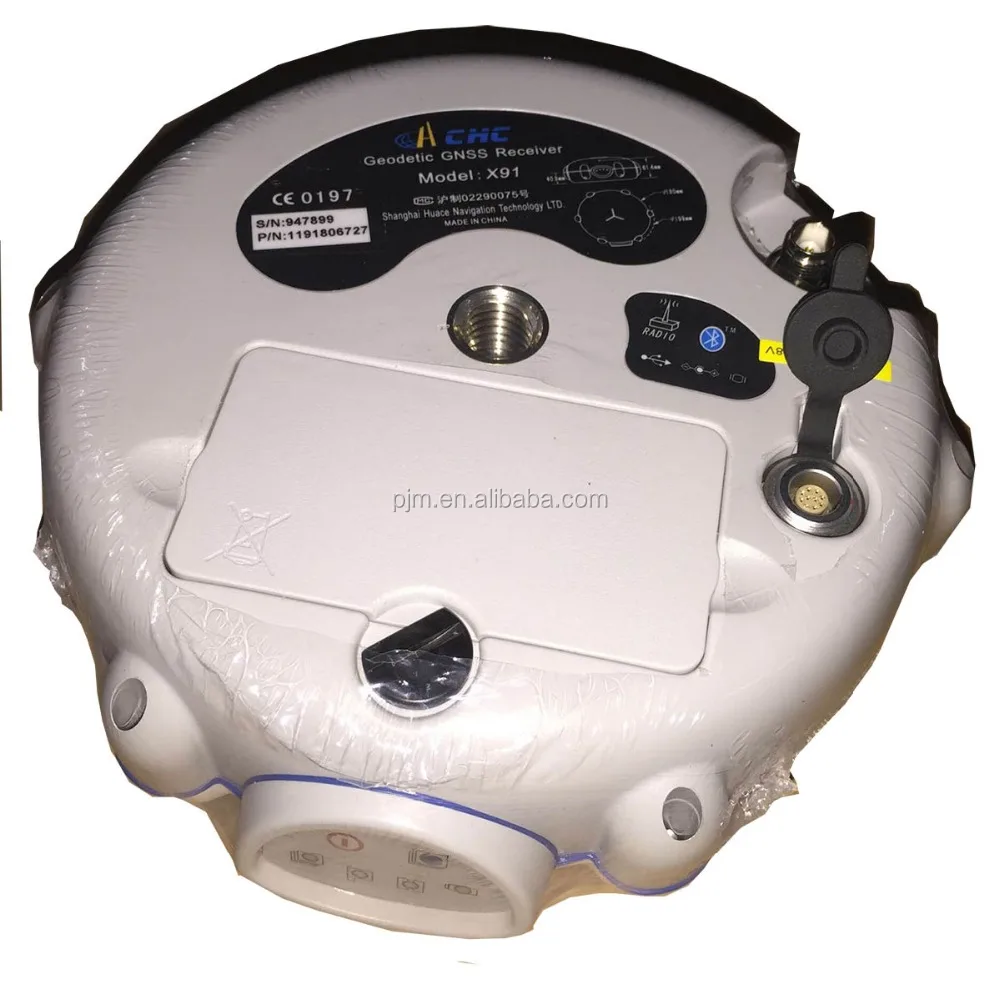

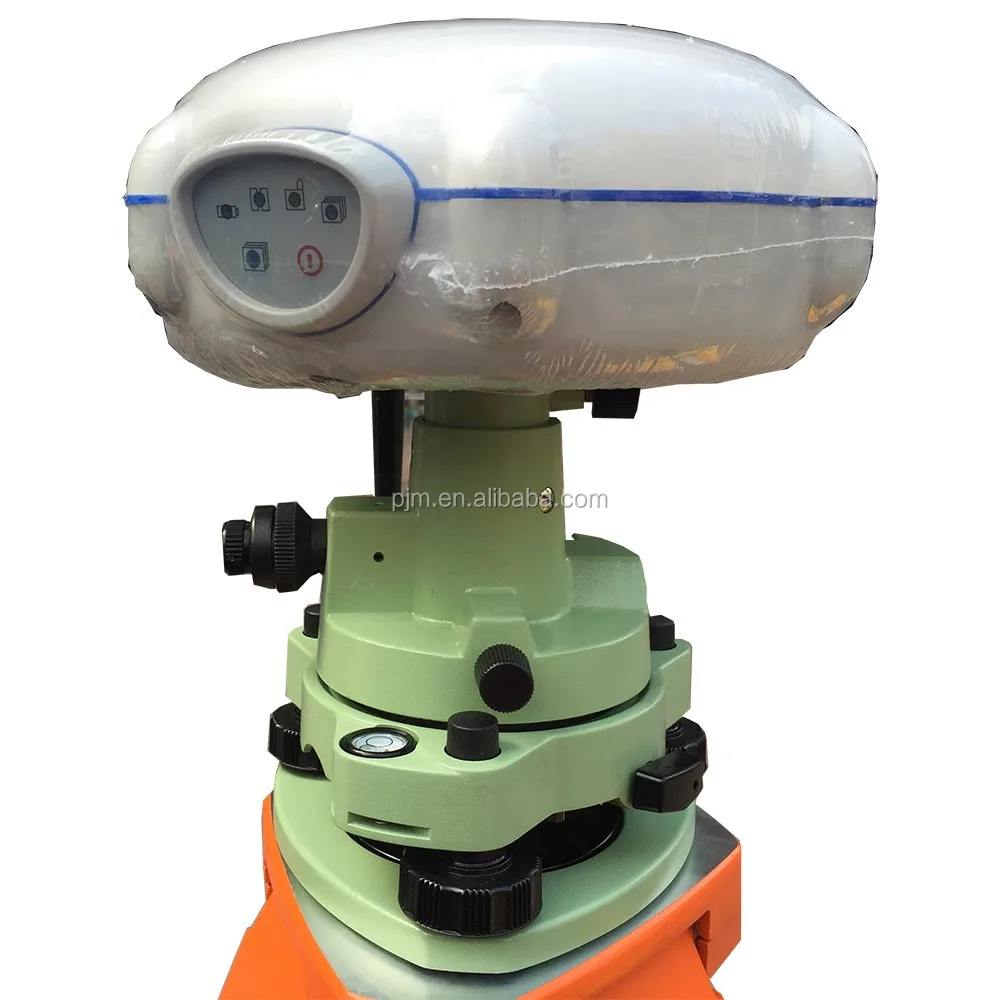

The M5 GNSS receiver from Sinov leverages the latest GNSS
technology by integrating 384 channels with the ability to track GPS, GLONASS and Beidou and field software dedicated to topographic and construction surveying. The M5 series is one of the most cost effective GNSS receiver selected by large number of surveyors for its outstanding performances and reliability.
Outstanding RTK Performances
The M5 offers greater performances with proven and innovative GNSS functionality. The future proof multiconstellation tracking
feature increases availability in obstructed sky conditions such as construction sites in urban areas while securing RTK accuracy.
A Selection of Field Surveying Software
LandStar 7 combines advanced functionality and an intuitive user interface. LandStar 7 is a complete data collection system for real time RTK GPS.
Compact and rugged
The M5 innovative design integrates a builtin GNSS core, multi constellation antenna, Bluetooth® communication and optional UHF datalink and GSM/GPRS modules in one single receiver.
Exceptional Performances to Price Ratio
Sinov M5 GNSS receiver brings extremely affordable highend GNSS RTK solution to surveyors without the conventional cost associated.
| Tech Specifications: |
| 1. Accuracies: |
| Real Time Kinematics (RTK) : |
| Horizontal: 10mm +1ppm RMS |
| Vertical: 15mm + 1ppm RMS |
| Initialization time: <10s |
| Initialization reliability: typical >99.9% |
| Post Processing Static : |
| Horizontal: 8mm+1ppm RMS |
| Vertical: 10mm+2ppm RMS |
| Communications: |
| 1 RS232 serial port; |
| 1 high-speed USB; |
| Integrated GSM/GPRS modem; |
| Integrated Bluetooth ® class 2; |
| Radio modem external Tx DL6 : 1W-28W adjustable; |
| Radio modem internal Rx: 450 - 470MHz; |
| Protocols: |
| RTCM2.x, RTCM3.x, CMR |
| NMEA0183, HCN outputs for GPS raw data |
| Data storage : 4GB internal memory ; GPS mounts a USB external hard drive; |
| Physical: |
| Size (H×D): 84mm×179mm (3.3in x 7.0 in) |
| Weight: 1.4 Kg with battery (49 OZ) |
| Working Temperature: -30 °C to +60 °C |
| Storage Temperature: -40 °C to +70°C |
| Humidity: 100% condensation |
| Dustproof: IP67 |
| Waterproof : protected from temporary immersion to depth of 1 meter, floating. |
| Shock : survive a 2 meters drop onto concrete |
Hot Sale
Company Information
FAQ
1.Q: Are you a factory or trading company?
A:We are manufacturer for PJK branded geodetic mapping equipments, such like totla station, theodolite, auto level, and others, you can refer to our company website to check the product category. And we also reselling for other branded survey instruments, such like trimble, sokkia, topcon, and so on;
2.Q:How does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality controlling from the very beginning to the very end. Each Instruments shall fully inspected and calibrated by professional technician.
3.Q: How about the warranty?
A: Most of the instruments offered with one year warranty, is only against the factory manufacturing defects.
4.Q:How about the repair service?
A: We shall provide at least 3-5 years technical supporting, as long as the spare parts is available in manufacturer side.
5.Q: What kinds of the payment can I pay with?
A: T/T, western union. Paypal, L/C(for big order) before delivery;
6.Q:Company Location?
A:We are located in Shenzhen downtown area, near by Huanqiangbei electronic world, and it’s close to HONGKONG and GUANGZHOU within 35mins metro.
7.Q: Is products demo or training available?
A:Yes, we have professional pilot for UAV drone demo, and also have skillful engineer for other survey equipment demo training.
