Galvanized Plate Manual Bending Machine Pneumatic MS Sheet Bending Machine
$1,100.00-2,800.00
tdf air duct forming machine for ventilation purpose
- Category: >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (1270176154):
Product Overview
Description
MACHINE DESCRIPTION

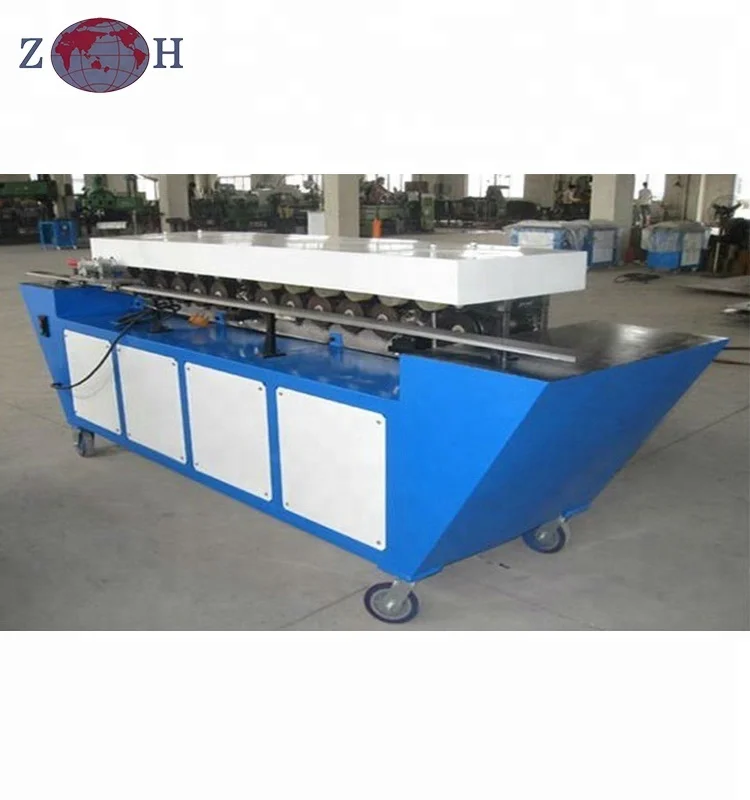

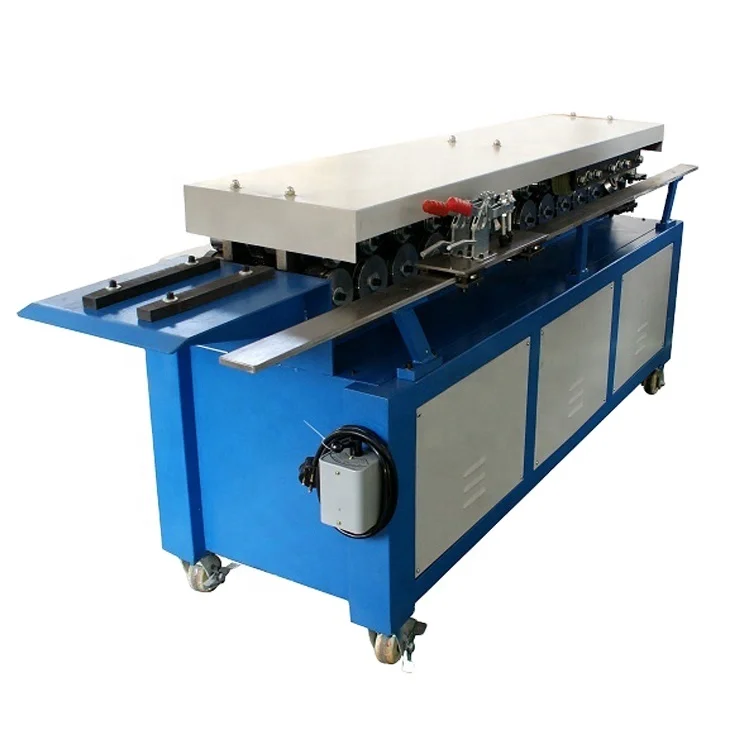

TDF flange making machine is used to form the TDF flange for square duct connection, specially for large-scale, standardized And automatic production.Both flanges and L-shaped clamp can be produced synchronously.Material feeding automatically while sheets processed.All rollers and bearings adopt excellent steel processed by advanced heat treatment technology(quenching),which enhances wear-resistance for the machine.14 Groups of rollers form a stable and beautiful shape Pressure bearings are being used to avoid the side wear.
MAIN FEATURES
-- Electric control

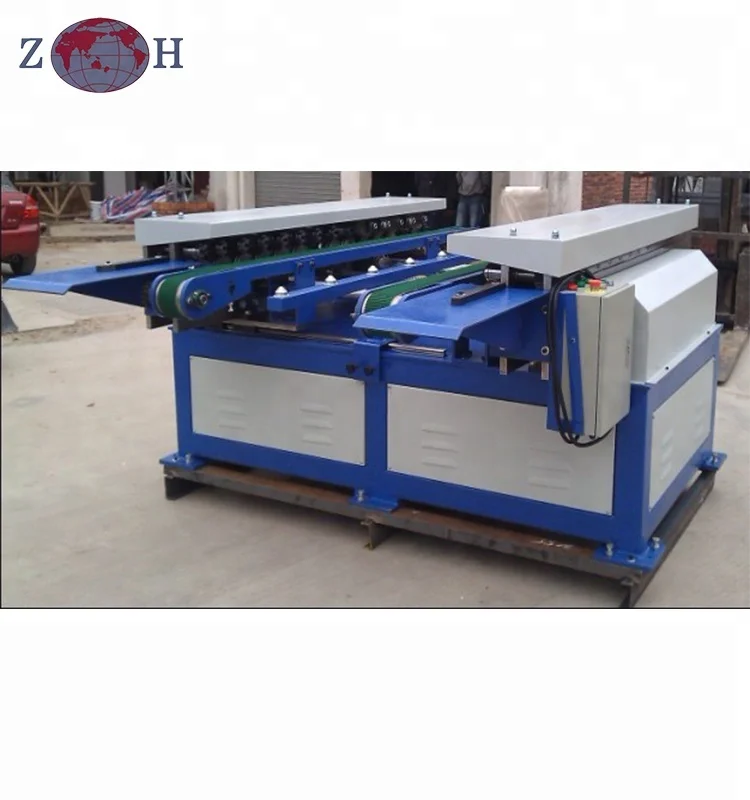

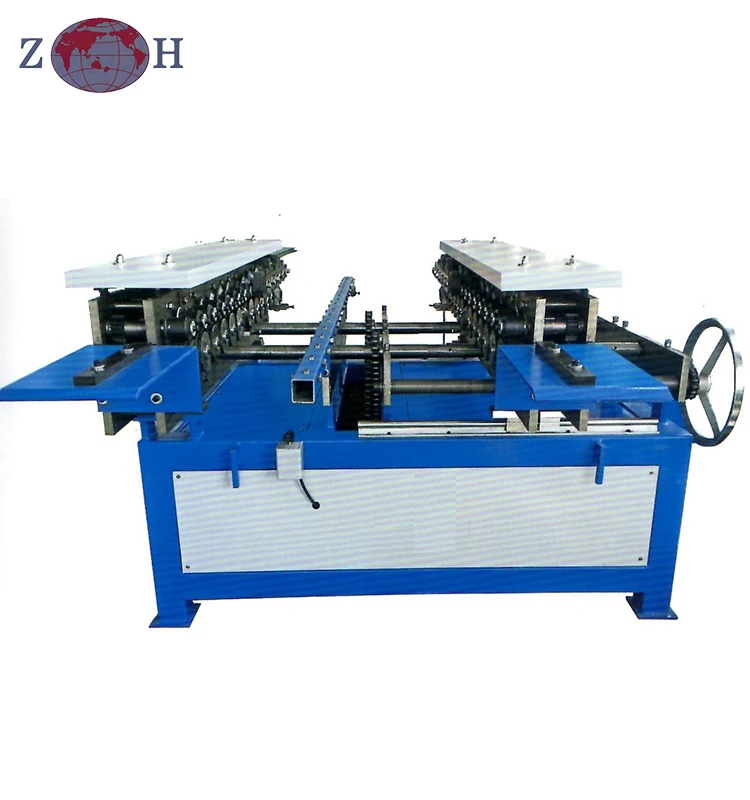

-- Can be double working stations, linked together
-- Easy to operate
-- Can be double working stations, linked together
-- Easy to operate
MACHINE SPECIFICATION
No. | Item | Data |
1 | Raw material | Galvanized steel |
2 | Material thickness | 0.5~1.2mm |
3 | Main motor power | 3kW |
4 | Dimension ( L x W x H) | 2500 x 640 x 1200mm |
5 | Weight | About 1000kg |
6 | Control type | Electric control |

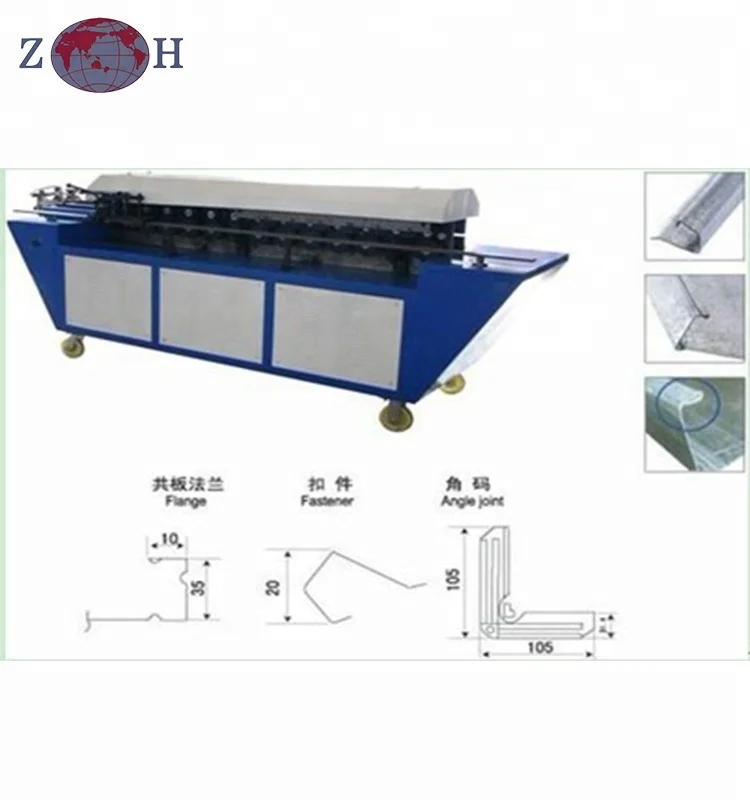

7 | Size of A in the above profile | 35 +/- 0.5mm |
8 | Size of L in the above profile | 500-1350mm (manual fast adjustable) |
9 | Weight | About 2200kg |
