Factory Offer Access Control 13.56MHz Long Range RFID Gate Reader
- Category: >>>
- Supplier: Shenzhen Ruifan Electronics Co. Ltd.
Share on (1270179022):
Product Overview
Description

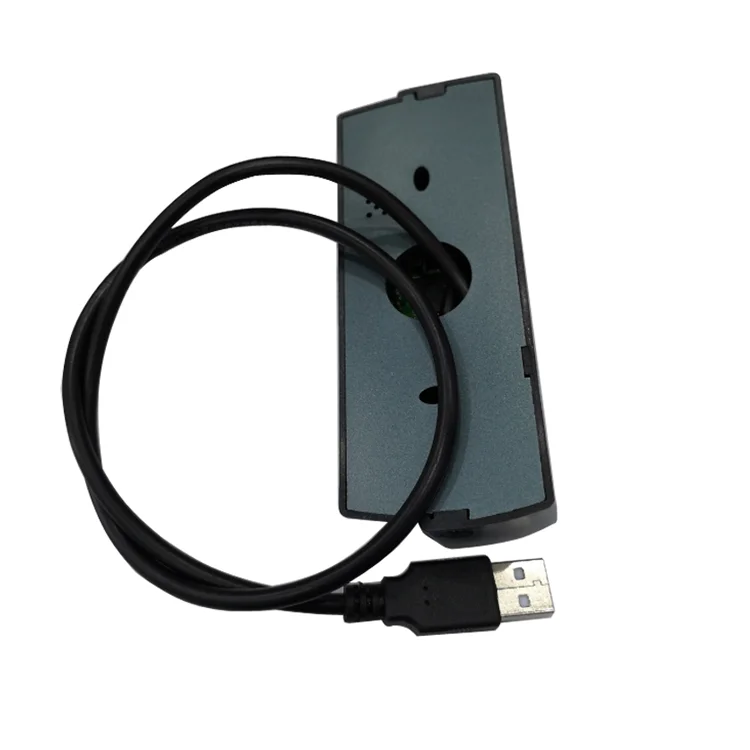

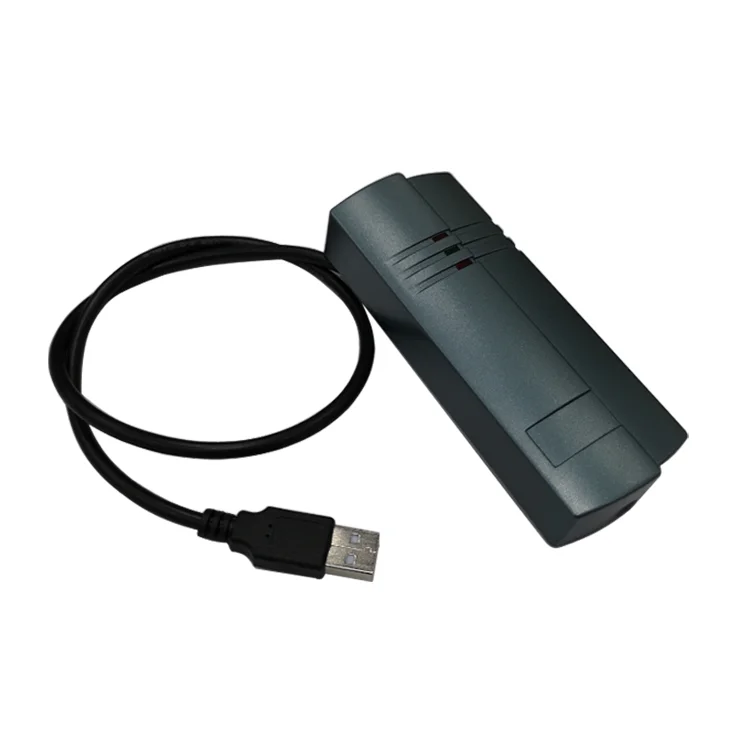

Factory Offer Access Control 13.56MHz Long Range RFID Gate Reader
Our Main Products
RFID PRODUCTS
Please feel free to ask for our catalog if you have any interests:
Product Description
Introduction
The RF-6530 RFID Reader is a read only reader for access control, it can be 125KHz or 13.56MHz as your demand, output format can be Weigand 26/34; RS232; RS485 , popular used in enterprises access control management, housing management etc.
Specification
Factory Offer Access Control 13.56MHz Long Range RFID Gate Reader | |
Working Frequency | 125KHz or 13.56MHz |
Working voltage | DC12V(±30%) |
Working current | <100 mA |
Identifying speed | < 0.1s |
Read distance | 2-5cm |
Working temperature | -20~ +60 Celsius degree |
Operating humidity | 10-90%RH |
Output format | Wiegand26/34; RS232;RS485 |
Promote | LED (red/green), buzzer |

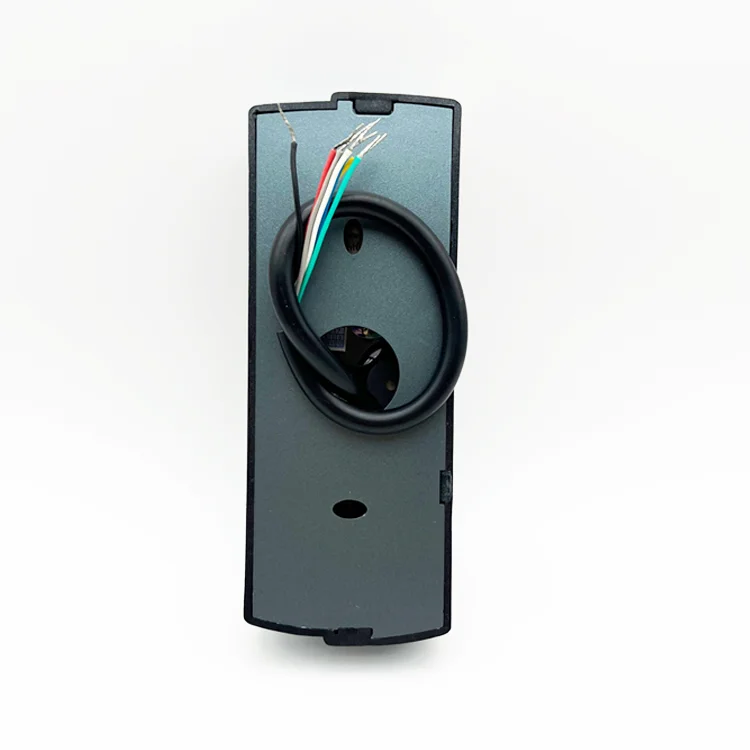

Cable function:
• Red: Power 12V positive wire
• Black: Power ground
• Green: WGDATA0/TXD/R+
• White: WGDATA1/RXD/R-
• Blue: LED
• Yellow: BUZZ
• Grey: WG26/34 switchover
Applications
- Identification
- Access control, pc access
- Offline ticketing
- Customizing cards
- Payment
