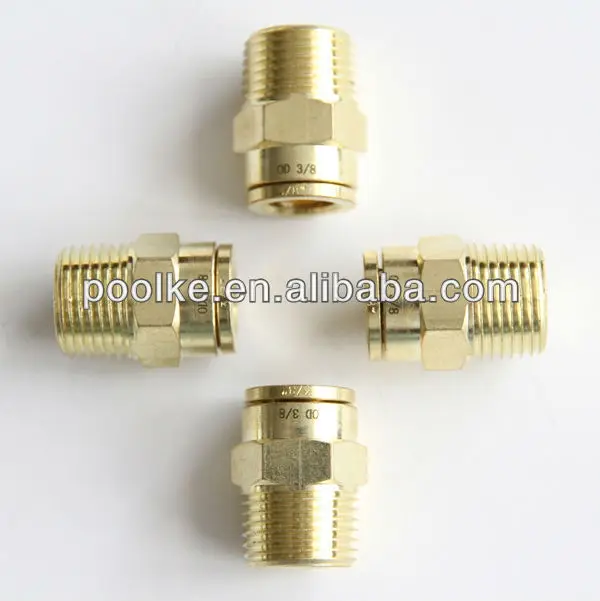

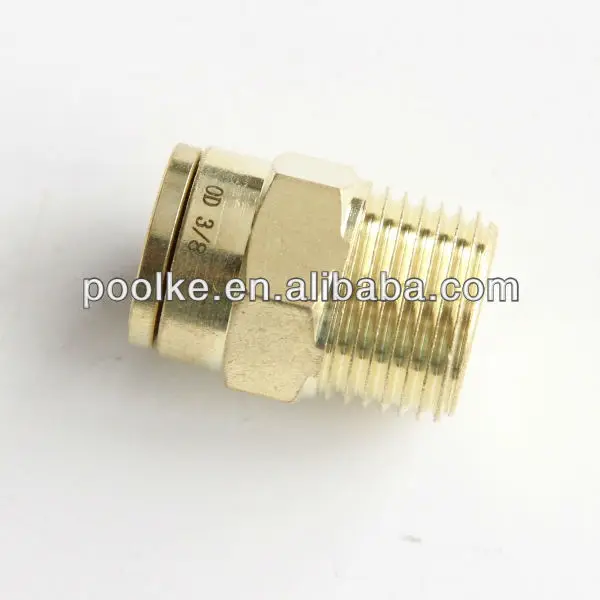

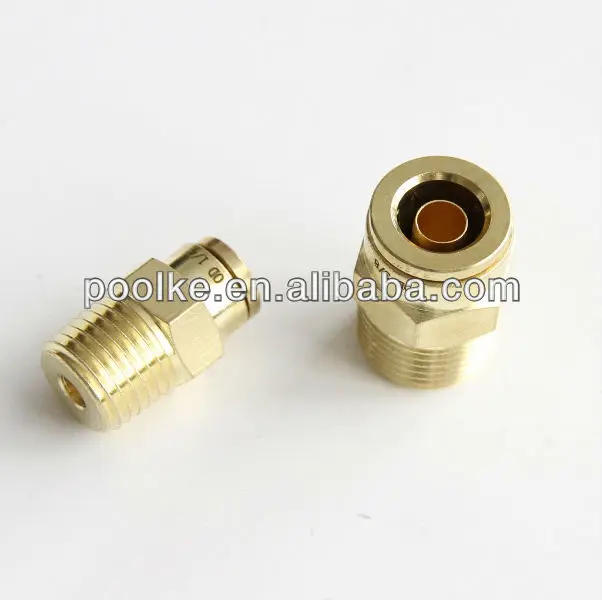

DOT push in fittings (DOT C)

PART NO.

Thread

Tube O.D.*I.D.

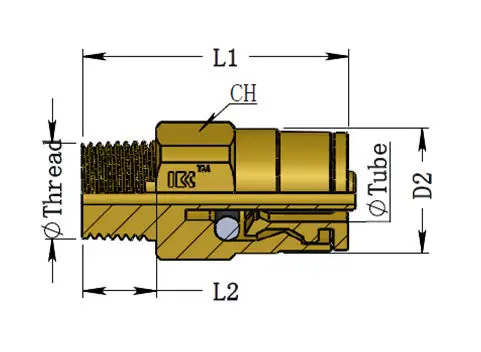

D2

L1

L2

CH

DOT-C-06-R01

R1/8

6*4

11.7

20.5

7.5

12

DOT-C-06-R02

R1/4

6*4

11.7

21

11

14

DOT-C-08-R01

R1/8

8*6

13.7

24.5

7.5

14

DOT-C-08-R02

R1/4

8*6

13.7

23

11

14

DOT-C-08-R03

R3/8

8*6

13.7

22

11.5

17

DOT-C-10-R02

R1/4

10*8

16.3

28.5

11

17

DOT-C-10-R03

R3/8

10*8

16.3

25.5

11.5

17

DOT-C-10-R04

R1/2

10*8

16.3

26.5

14

22

DOT-C-12-R02

R1/4

12*10

18.3

27

11

19

DOT-C-12-R03

R3/8

12*10

18.3

31.5

11.5

19

DOT-C-12-R04

R1/2

12*10

18.3

27

14

22

DOT-C-IN02-N01

NPT1/8

6.35*4.3

11.7

23.5

8

12

DOT-C-IN02-N02

NPT1/4

6.35*4.3

11.7

26.5

12

14

DOT-C-IN02-N03

NPT3/8

6.35*4.3

11.7

27

12

19

DOT-C-IN03-N01

NPT1/8

9.52*6.38

16.3

30

8

17

DOT-C-IN03-N02

NPT1/4

9.52*6.38

16.3

34

12

17

DOT-C-IN03-N03

NPT3/8

9.52*6.38

16.3

29

12

19

DOT-C-IN04-N02

NPT1/4

12.7*9.55

18.3

33

12

19

DOT-C-IN04-N03

NPT3/8

12.7*9.55

18.3

31.5

12

19

DOT-C-IN04-N04

NPT1/2

12.7*9.55

18.3

30

15.5

22
