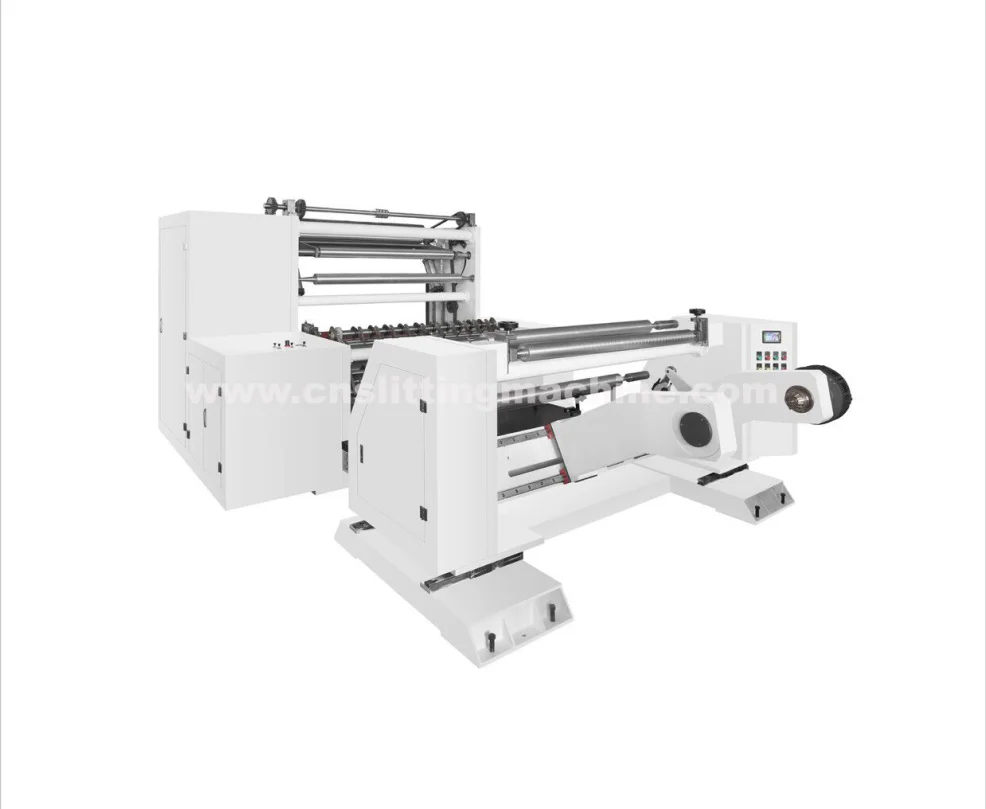

Craft Paper Slitting Machine (ZTM A)
- Category: >>>
- Supplier: Ruian Xincheng Zhongtai Packaging Machinery Co. Ltd.
Share on (1272080549):
Product Overview
Description
Product Description
ZTM-A Craft Paper Slitting Machine
1.The machine is mainly used to slit stick paper, craff paper and other kinds of paper
2.Entire machine is controlled by PLC, man-machine interface, screen touch operation
3.Unwinding part adopts imported pneumatic brake control, the rolling diameter is automatically calculated by PLC, to achieve
constant tension control.
4.Traction control is driven by a vector variable frequency motor, to achieve constant linear velocity control, and effectively
cut off interactant tension between rewind and unwind
5.Rewinding part uses the vector frequency conversion motor, to drive magnetic powder clutch, realized by the PLC automatic
cliameter counting auto tension control.
6.Unwinding parts adopts hydraulic power feed, which can save much labour force and shorten time.
7.Auto meter presetting, EPC error correction device is positive to assure the accuracy.
8.The feature of machine is stability, secunlty, efficient.,etc
1.The machine is mainly used to slit stick paper, craff paper and other kinds of paper
2.Entire machine is controlled by PLC, man-machine interface, screen touch operation
3.Unwinding part adopts imported pneumatic brake control, the rolling diameter is automatically calculated by PLC, to achieve
constant tension control.
4.Traction control is driven by a vector variable frequency motor, to achieve constant linear velocity control, and effectively
cut off interactant tension between rewind and unwind
5.Rewinding part uses the vector frequency conversion motor, to drive magnetic powder clutch, realized by the PLC automatic
cliameter counting auto tension control.
6.Unwinding parts adopts hydraulic power feed, which can save much labour force and shorten time.
7.Auto meter presetting, EPC error correction device is positive to assure the accuracy.
8.The feature of machine is stability, secunlty, efficient.,etc
Products Description
Max. width of roller | 1300mm/1600mm |
Max. diameter of raw material | 1200mm |
Max. diameter of rewinding | 800-1000mm |
Speed of machine | 16-350m/min |
Total power | 20KW |
Overall dimensions | 2600×4000×1750mm |
Weight of machine | 3500KG |
Total power | 12KW |
Weight | 4500Kg |
overall dimension (L X W X H) | 2000mm x 4200mm x 1840mm |
