Product Overview

Description

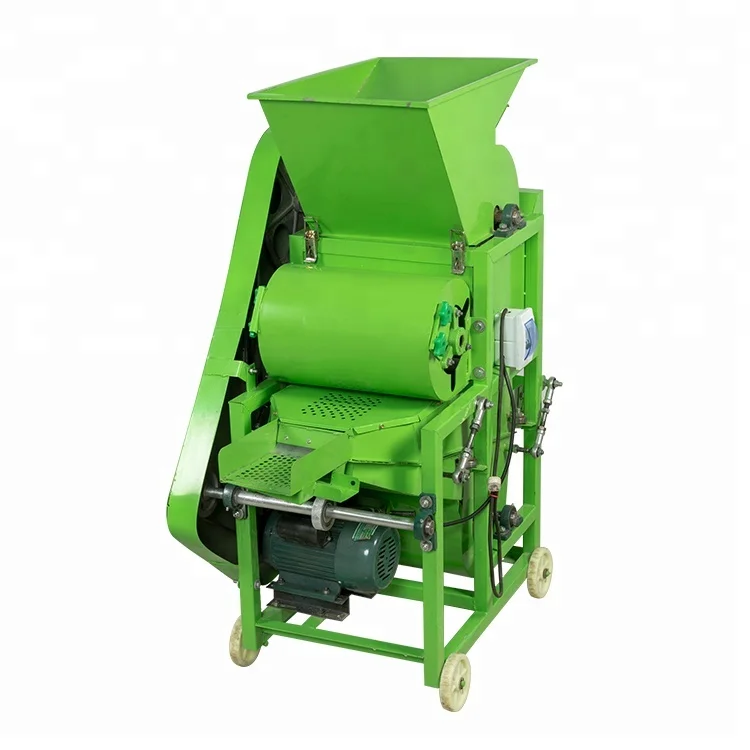

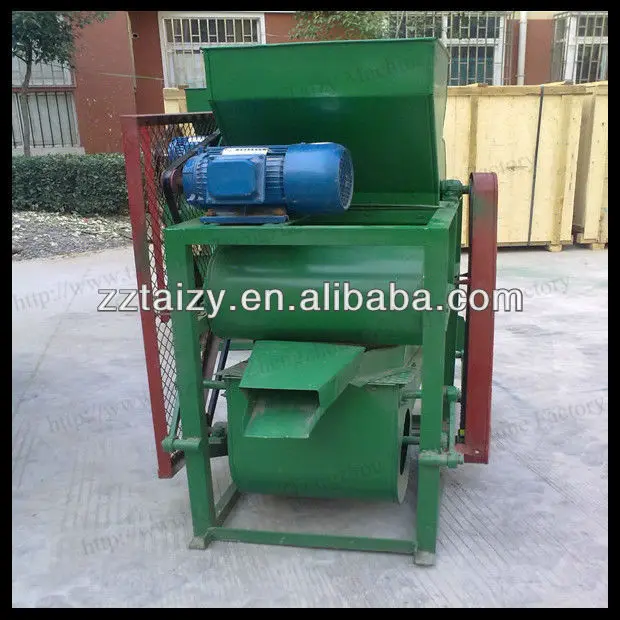

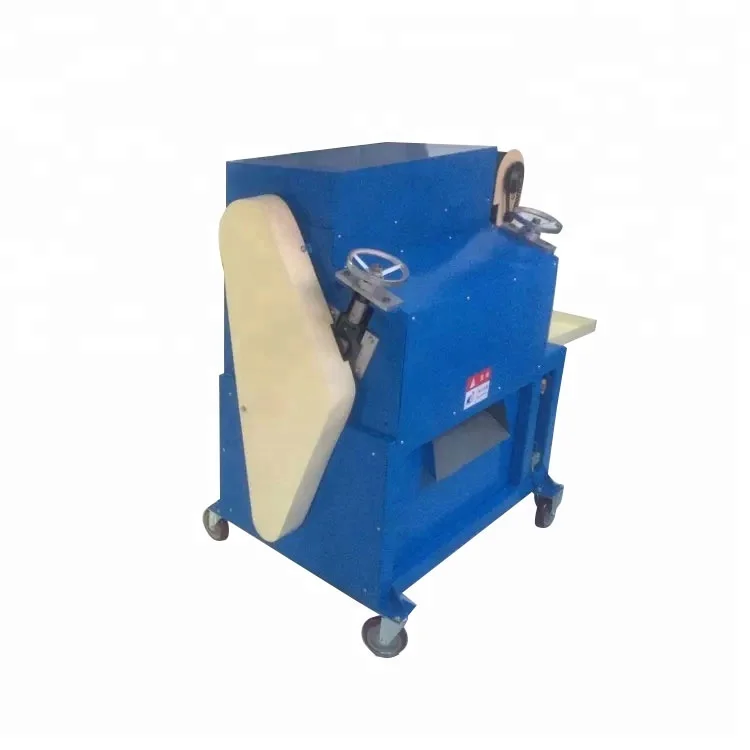

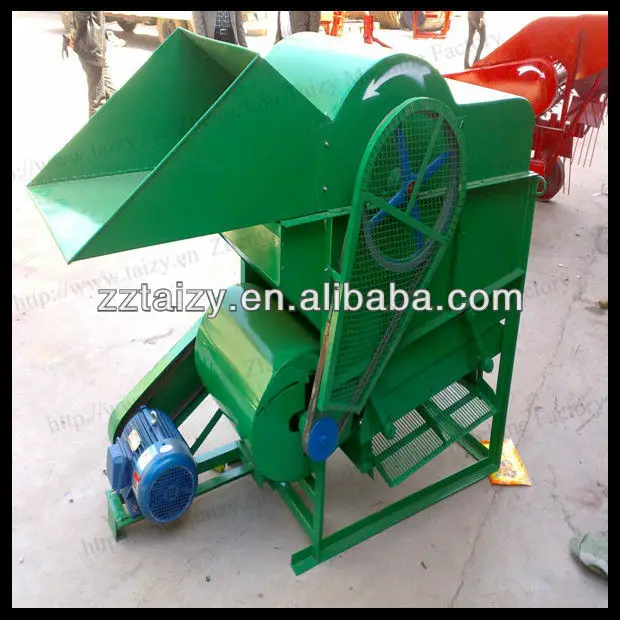

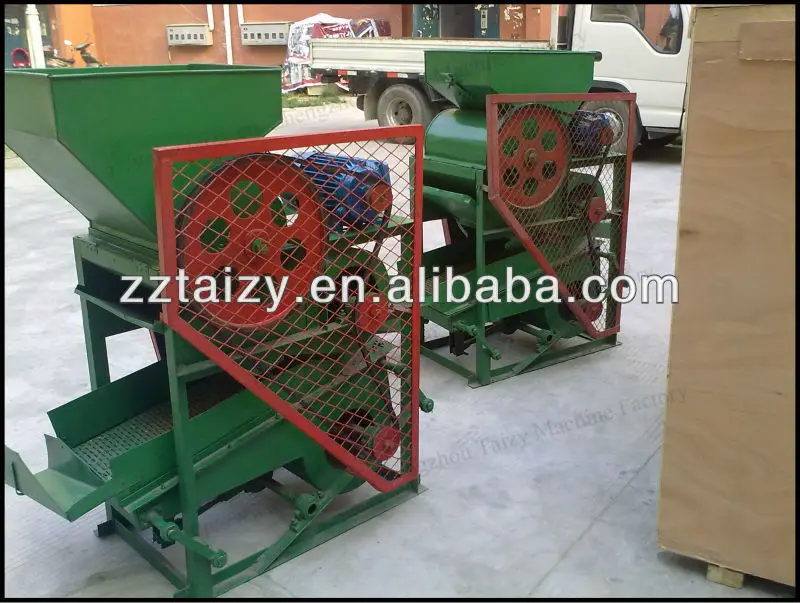

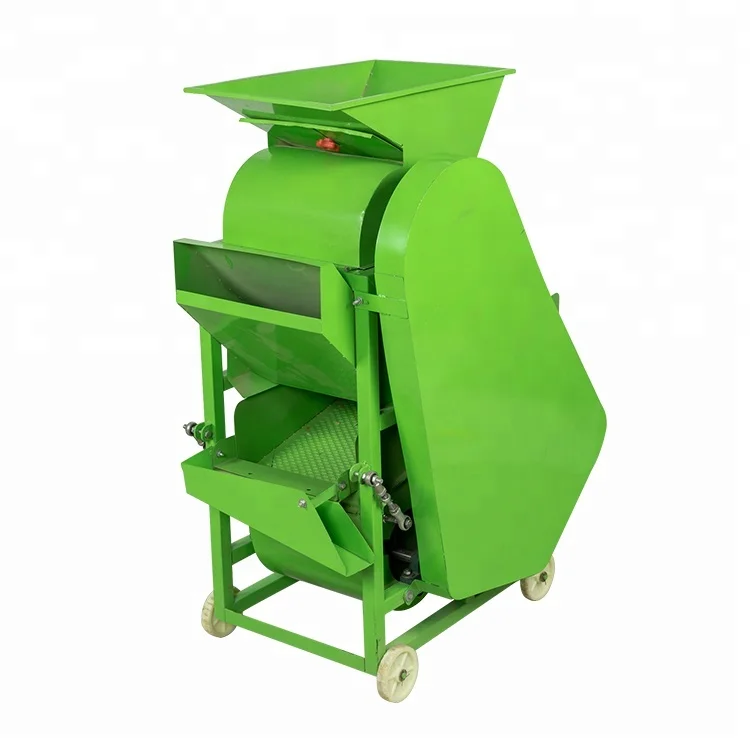

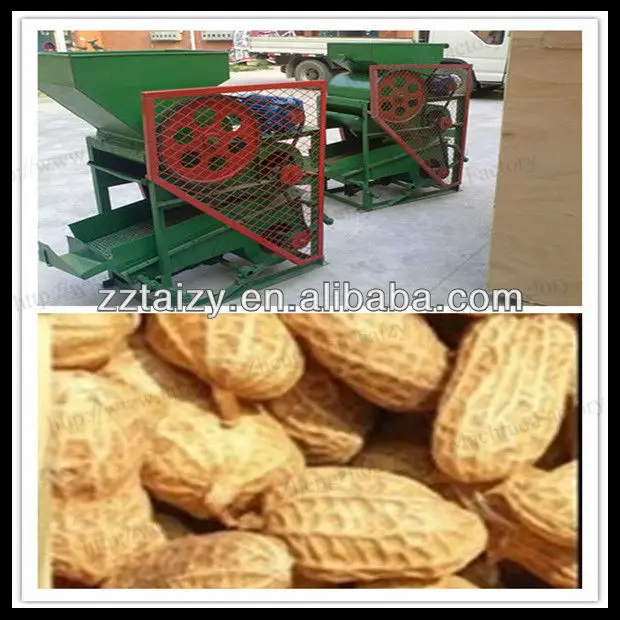

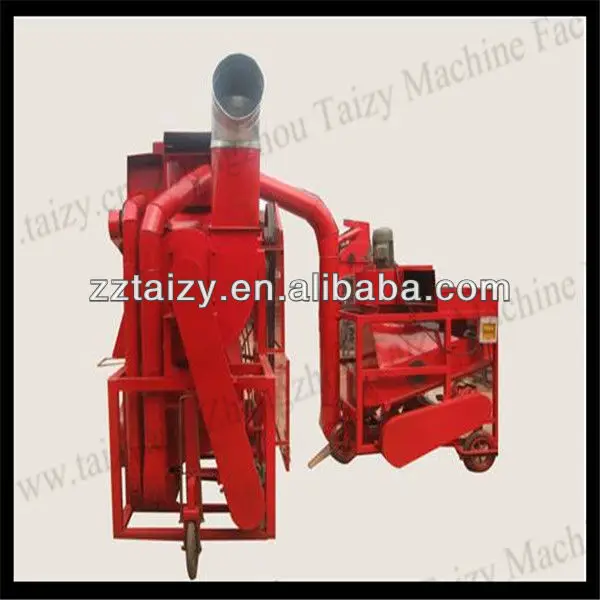

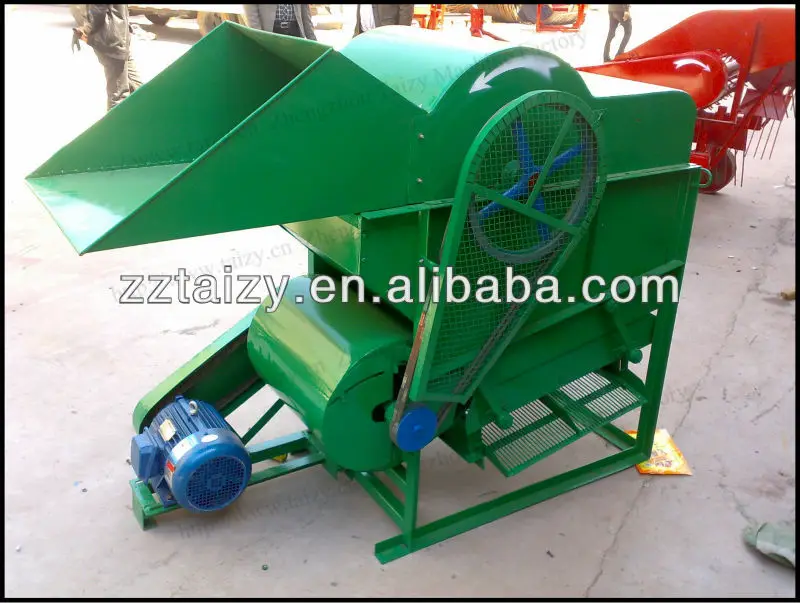

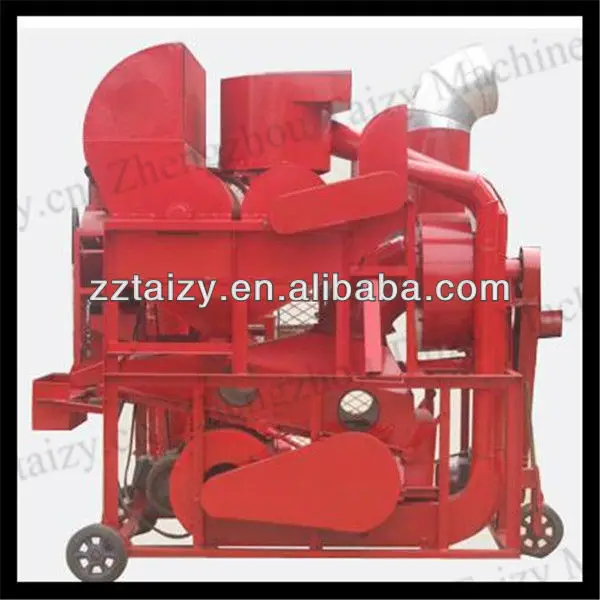

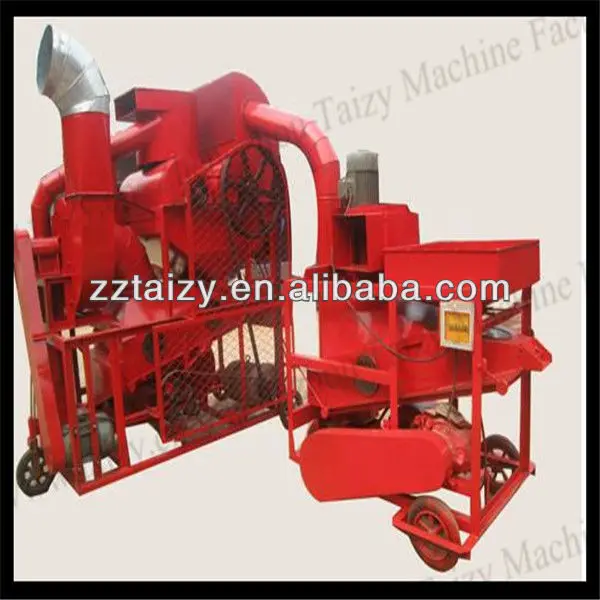

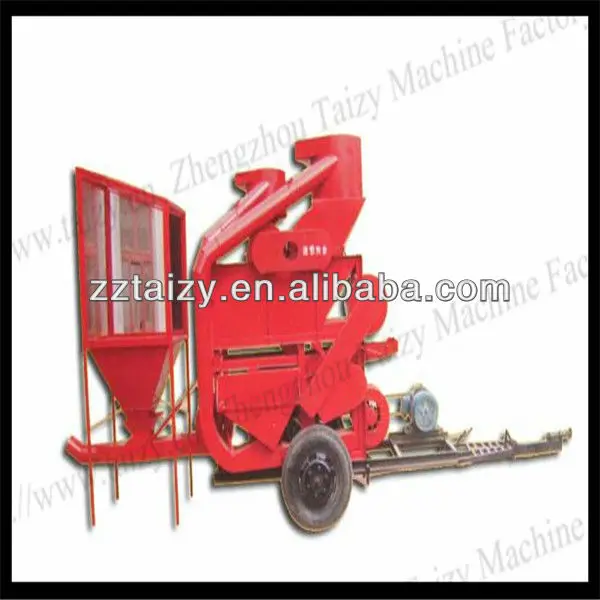

Groundnut husk removing machine

Introduction:



All of our peanut shelling machines have reliable quality, excellent performance, high shelling ratio, low cracking ratio, clean sorting, good color and low impurity.

The performance indicator is much better than the national standard, the shelled nut produced by our peanut



Features of Groundnut Sheller:



1. it has the features of compact structure,beautiful shape; reliable operation and convenient maintenance.
2. The seeds can be used for food or the raw materials for the oil plant; the shell could be pelleted as fuel.
3. it could be used for shelling most kinds of peanuts.



Working principles of Groundnut Sheller:



Power after starting, the spindle drive the parallel bars clicked under screen and amid the peanut shells rub them and strip off,
then the below screen hole squeeze out the peanut and the shell, finally sorting out the shell and the kernel by the fan.





Technical Parameters



Model	TZ400B	TZ800C	TZ1500C	TZ3000C	TZ3300	TZ1600	TZ-5X-3	TZ3000D
Capacity (kg/h)	≥400	800	≥1500	≥3000	≥3300	≥1600	≥3000	≥3000
Shelling Ratio	≥95%	≥98%	≥98%	≥98%	≥98%	≥98%	≥98%	≥98%
Crushing Ratio	≤5%	≤4%	≤4%	≤4%	≤3%	≤3%	≤5%	≤4%
Loss Ratio	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%
Clean Ratio	≥95.5%	≥97.5%	≥99%	≥99%	≥99%	≥99%	≥99%	≥99%
Power (kw)	2- 2.2	4- 4	4- 7.5	4-15	6-7.5	6-5.5/ 2-4	2-7.5/ 6-7.5	2-7.5/ 6-7.5
Operators	1 ~ 2	2 ~ 3	3 ~ 5	3 ~ 5	2 ~ 3	2 ~ 3	2 ~ 4	2 ~ 4
Total Weight (kg)	137	385	775	1030	1315	760	1080	1080
Dimensions (mm)	1200*660*1240	1520*1060*1660	1960*1250*2170	2150*2060*2650	3000*1400*3240	2530*1100*2790	2540*1360*3000	2540*1360*3000
