Product Overview

Description

Ceramisite sand oil proppant plant

1.Introduction of Ceramisite sand oil proppant plant

Ceramisite sand oil proppant plantis the main equipment for claiming cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc.

The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.

It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.

Through the technical renovations, the rotary kiln claiming system equipment has adopted the advanced hydraulic thrust roller device,and the other national advanced technologies.

2.Features of Ceramisite sand oil proppant plant

Ceramisite sand oil proppant plantis used for calcinating high standard cement in cement factories, but also widely used in metallurgy, construction and chemical industry.

The rotary kiln produced by our factory has strong structure, smooth operation, and high quality products. Besides, we provide our customers with advanced and efficient shaft preheater and five stage cyclone preheater.

3.Application of Ceramisite sand oil proppant plant

Ceramisite sand oil proppant plant belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.

Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry; for calcimine of calotte and aluminum hydroxide in aluminum manufacturer; for claiming of chrome sand ore and chrome powder ore in chemical plant.

4.Technical parameters of Ceramisite sand oil proppant plant

Specification	Capacity(t/d)	Kiln obliquity (%)	Bearing quantity	Kiln rotation speed(r/min)		Main driving (r/min)
						Motor				Reductor
				Main driving	Auxiliary driving	Type	Rated power (KW)	Speed adjustment range (r/min)	Rated voltage (v)	Type	Speed ratio
Φ2.5×40	180	3.5	3	0.98-2.94	0.036	YCT315-4B	45	132-1320	380	ZS145-1-I	49.63
Φ2.5×60	168	3.5	4	0.516-1.549	0.036	YCT355-4B	75	440-1320	380	ZS165-7-II	99.96
Φ3×48	700	3.5	3	0.726-3.63	0.1375	ZSN4-280-091B	110	200-1000	440	ZSY450-35-V	30.794
Φ3×60		3.5	4	0.492-1.476	0.034	YCT355-4B	75	440-1320	380	ZL165-7-I	99.96
Φ3×100.94	450	4	4	0.3-1.503	0.275	ZSN4-250-21B	90	100-1000	440	NZS995-90-VI-L	90
Φ3.2×46	1000	3.5	3	0.36-3.57	0.108	ZSN4-280-091B	160	100-1000	440	NZS995-40VIBR	40
Φ3.2×52	1200	3.5	3	0.343-2.34	0.102	ZSN4-280-21B	125	100-1000	440	ZSY1110-71BLVI	71.54
Φ3.3×50	1300	3.5	3	0.676-3.38	0.106	ZSN4-280-091B	160	200-1000	440	NZS1110-40VI	40
Φ3.3×52	1300	3.5	3	0.266-2.66	0.0838	ZSN4-280-11B	125	100-1000	440	NZS995-40VIBR	40

5.Our factory Raw material Test Plant of Ceramisite sand oil proppant plant

Before place the plant, you can send your raw material to us, the test will be done.

6.Our factory Production of Ceramisite sand oil proppant plant

7.Our factory delivery of Ceramisite sand oil proppant plant

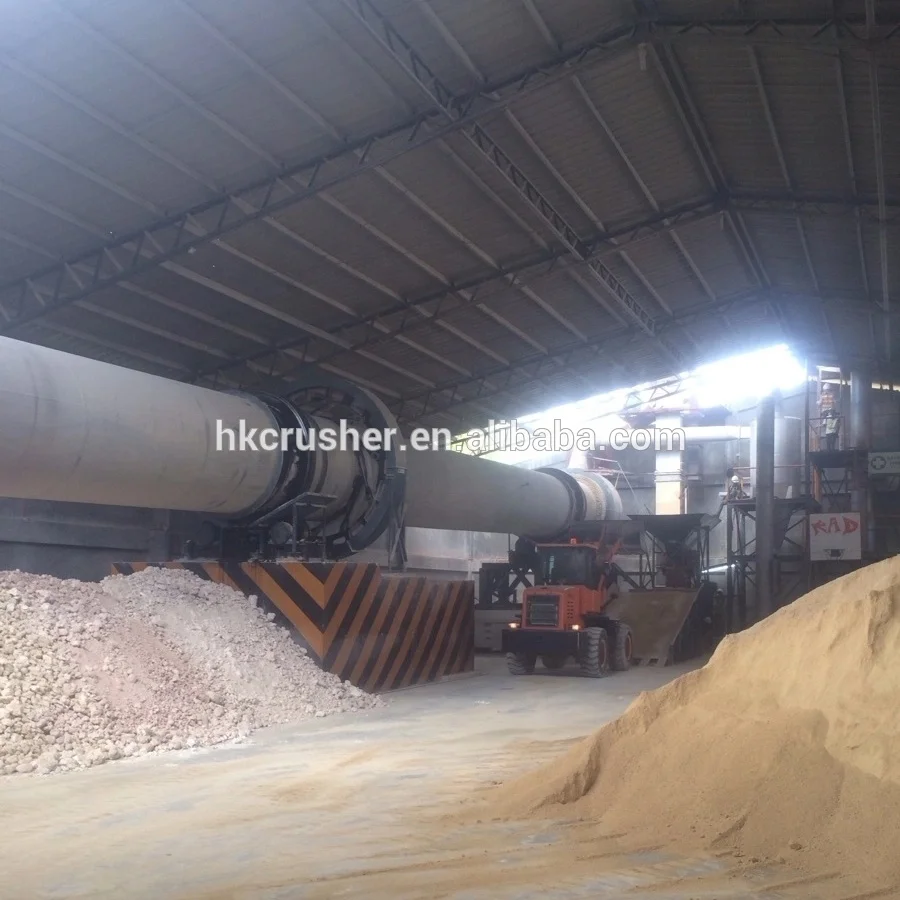

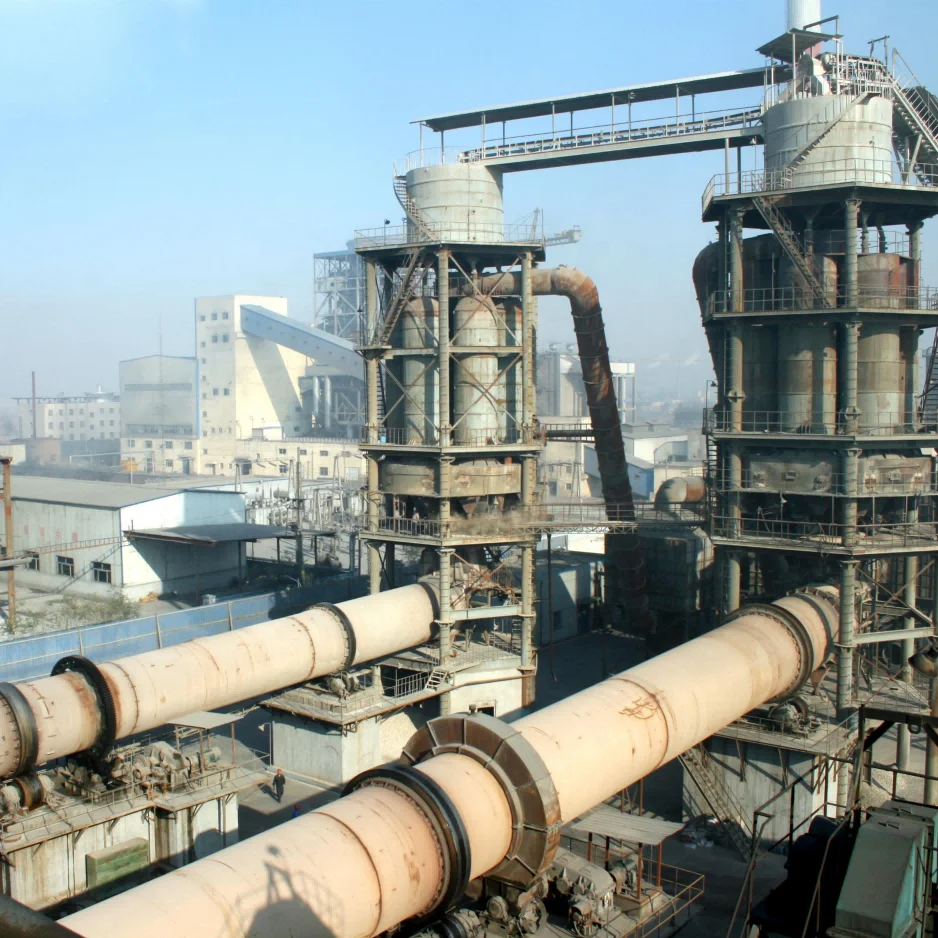

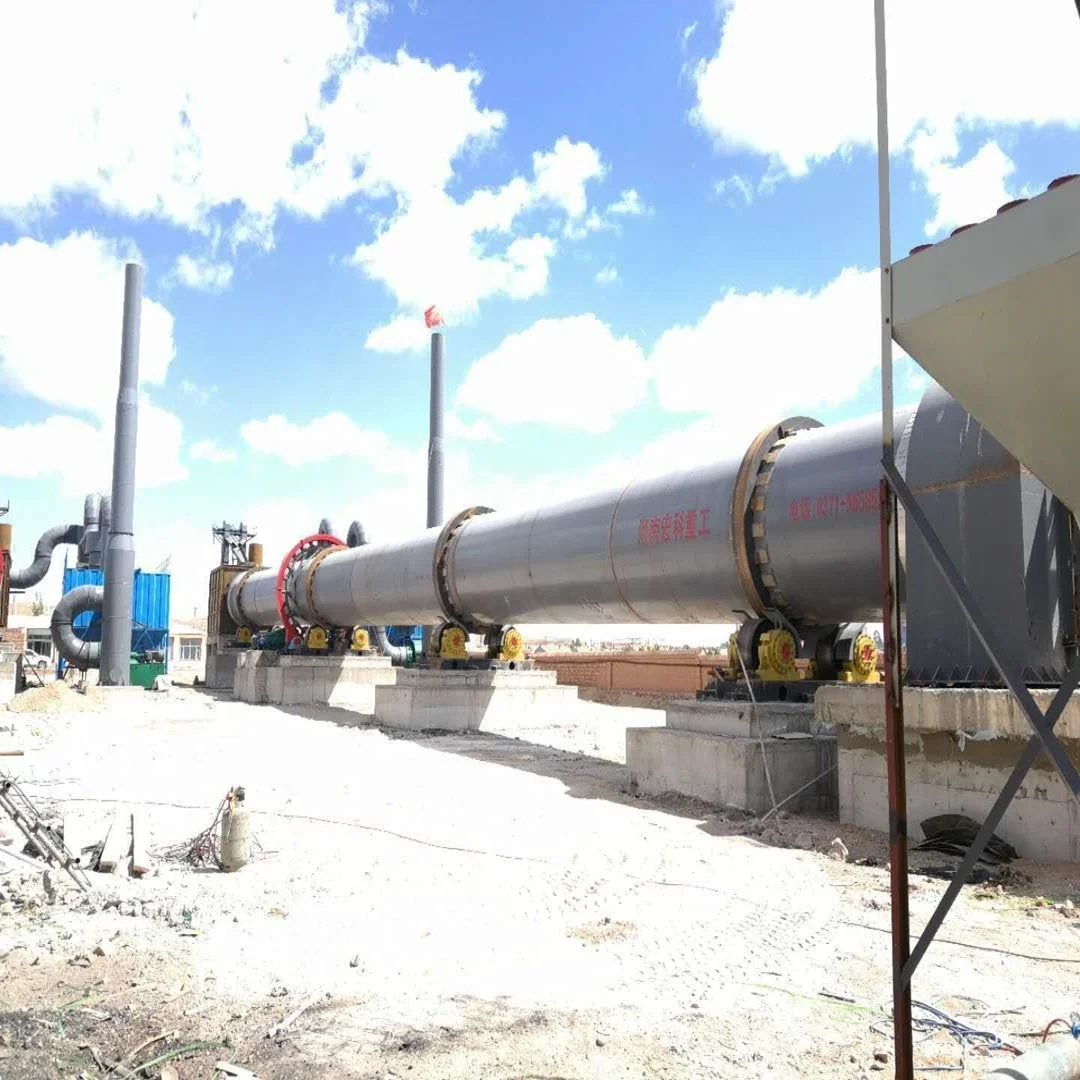

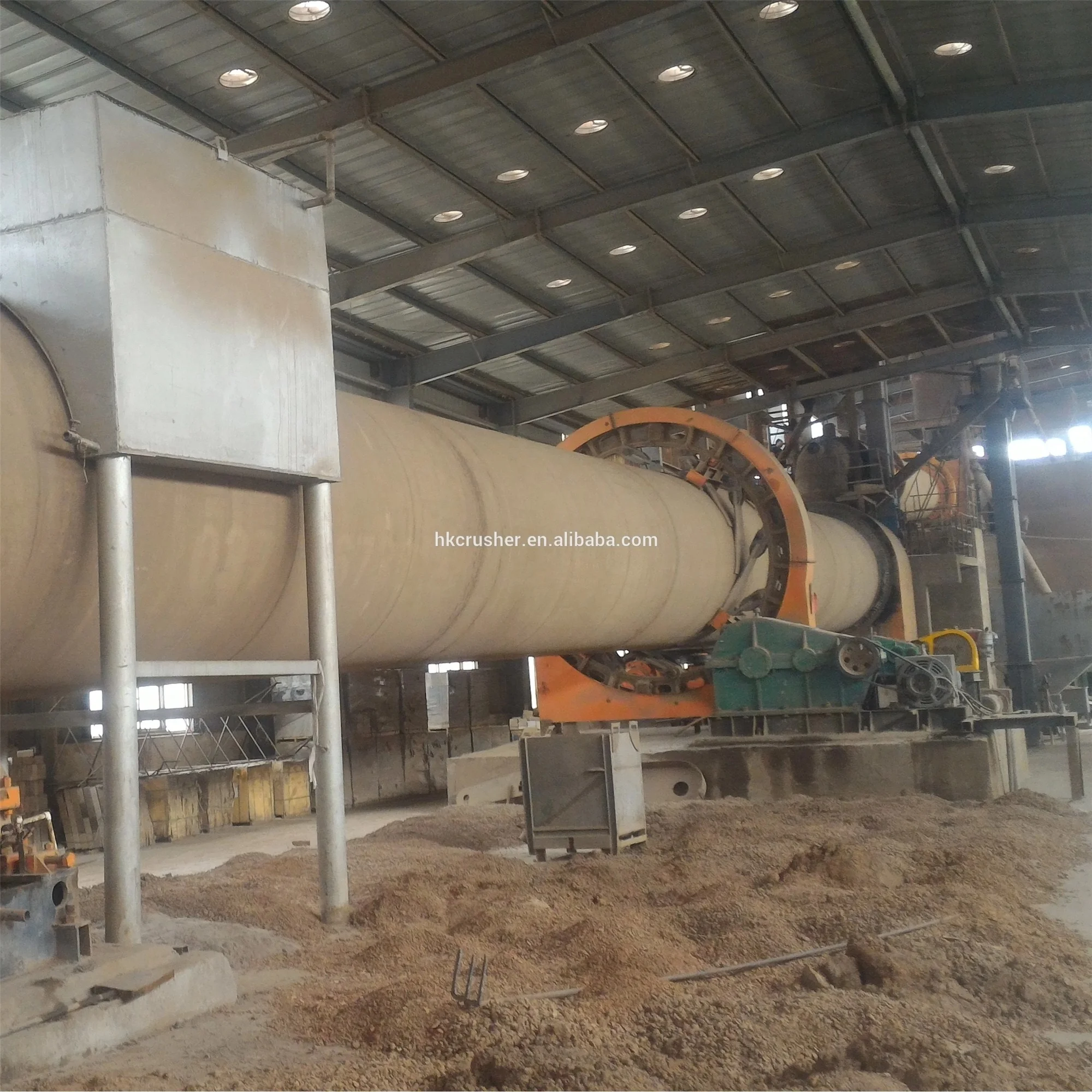

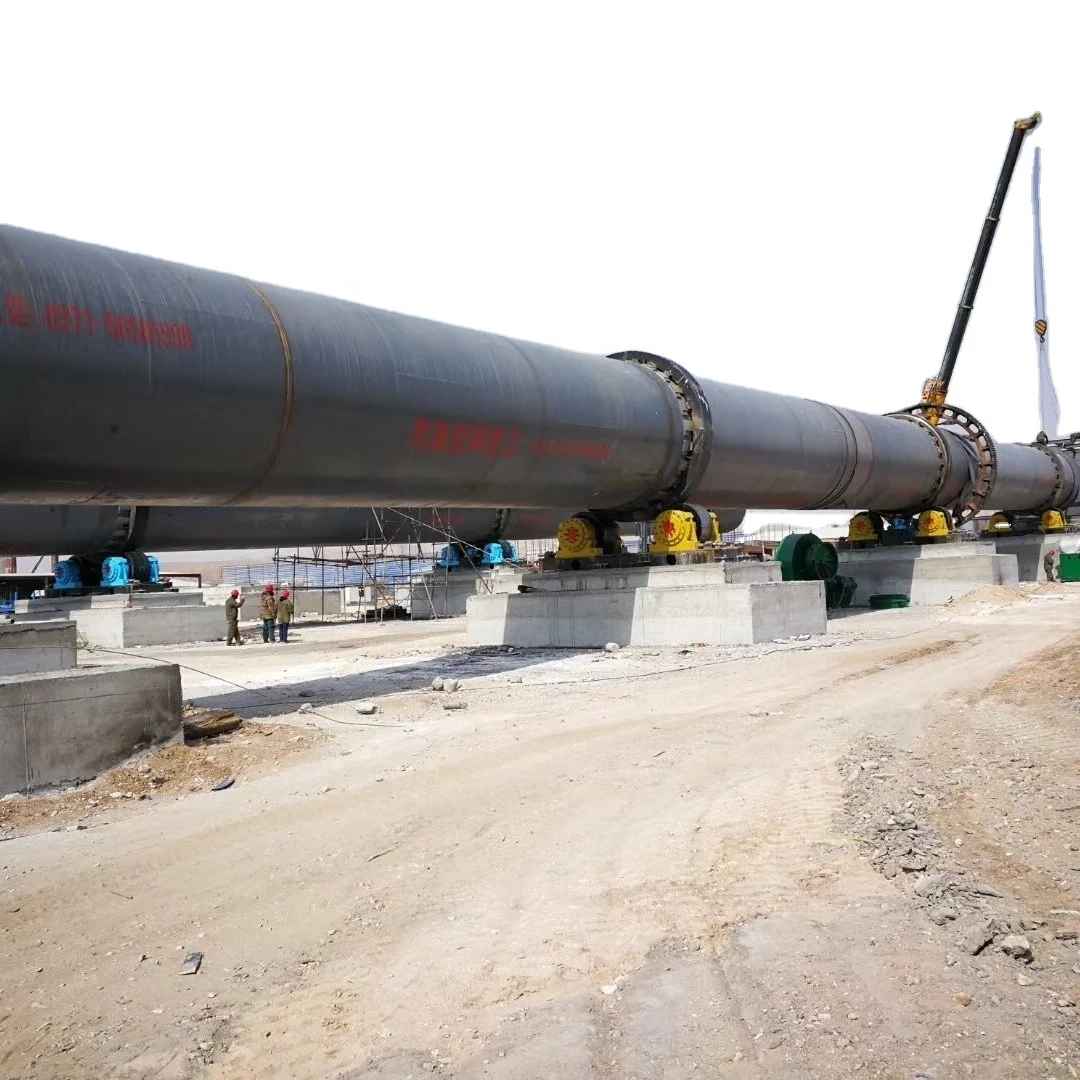

8.Working Sites for Ceramisite sand oil proppant plant
