Float Glass Specification

Product Overview

Description

Float Glass



Clear Float Glass is distortion-free, precision flat and transparent glass. It is made of molten glass which flows through tweel to tin bath and then to lehr. While floating through the molten tin, the glass under the works of gravity and surface tension becomes smooth and flat at both sides.



Tinted Glass is produced by the float process with the addition of small quantities of metal oxides to color the normal clear glass mix. This coloration is achieved through adding metal oxides at the smelting stage.



Ultra Clear Float Glass could also be named as low iron glass. It has the features of high light transmittance and high transparency. The product is glittering and translucent, nobler and elegance, and also be called crystal prince in glass family.





Characteristics



1. Flat and smooth surface.



2. Excellent light transmittance, optical performance.



3. Resistant to acid, alkaline and corrosion.



4. Easy to be cut, bent, insulated, tempered, coated and laminated.







-Windows and doors in architecture

-Facades and curtain walls

-Decorations

-Refrigerator shelves

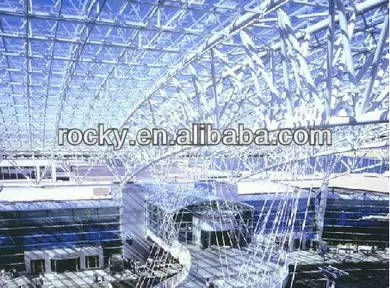

-Skylights

-Railings

-Escalators

-Shower enclosures

-Table tops and furniture

-Swimming pools

-Green house

Thickness	Visible Light Transmittance tv(%)	Visible Light Reflectance  pv(%)	Direct Solar Transmittance  te(%)	Direct Solar Reflectance   pe(%)	Total solar energy transmittance     g(%)
2mm	90.69	8.30	87.22	7.90	84.70
3mm	90.25	8.30	85.09	7.70	83.00
4mm	89.82	8.30	83.04	7.60	82.40
5mm	89.39	8.20	81.07	7.40	81.50
6mm	88.96	8.20	79.17	7.30	78.10
8mm	88.31	8.10	76.51	7.10	74.70
10mm	87.47	8.10	73.61	6.90	69.80
12mm	86.25	8.00	68.53	6.60	64.00





Colors and Sizes

Color	clear, ultra clear ,euro bronze, golden bronze, euro grey,dark grey,dark blue, lake blue, ocean blue, french green(F-green),dark green,pink,golden,etc.
Thickness	2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Max Size	3660*9000mm,3300*15000mm
Normal Sizes	914×1220mm,  1500×2000mm, 1524×2134mm,1650x2140mm,  1830x1220mm, 1650×2200mm, 1830×2440mm, 2140×3300mm, 2140×3660mm, 2440×3300mm, 2440×3660mm, 2800×3660mm,etc.





Quality standards



GB11614, Chinese standard

EN 572.2, European standard

ASTNC 1036-5, American standard

BS 952, British standard



Factory

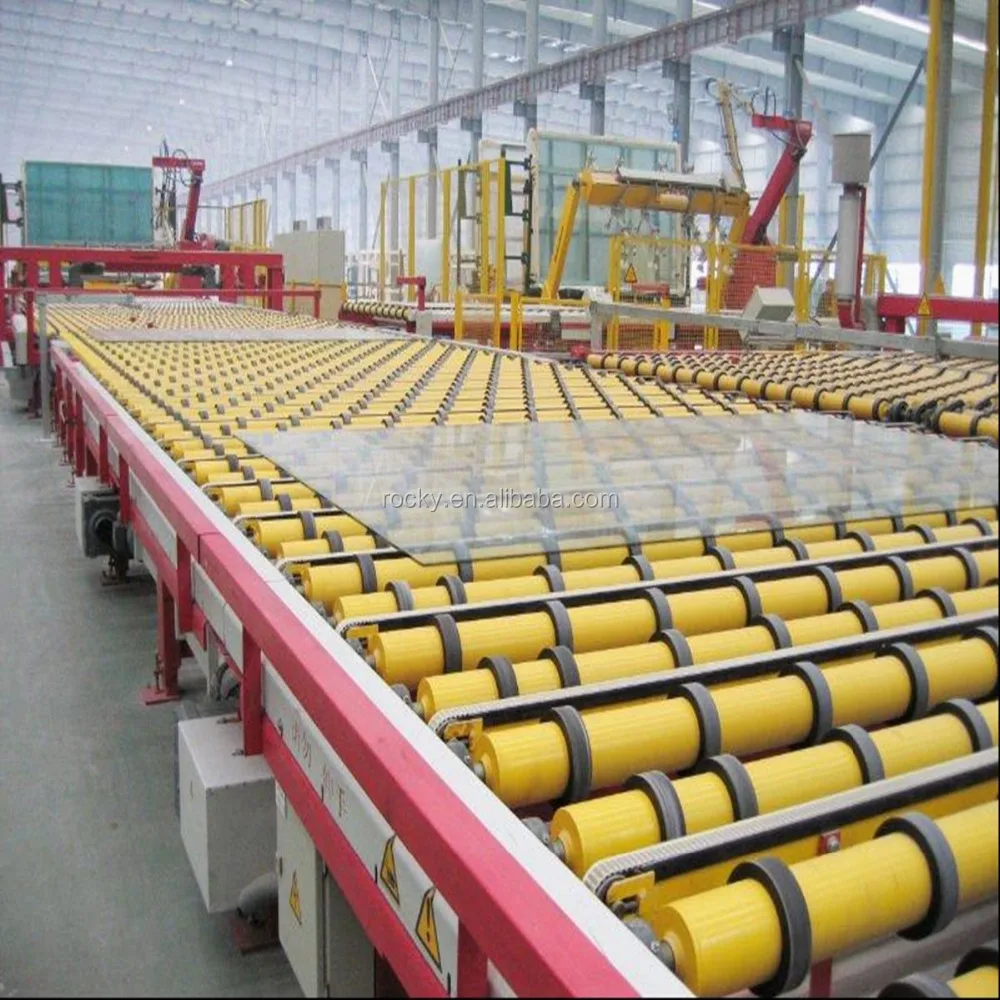

Float Glass Production Line

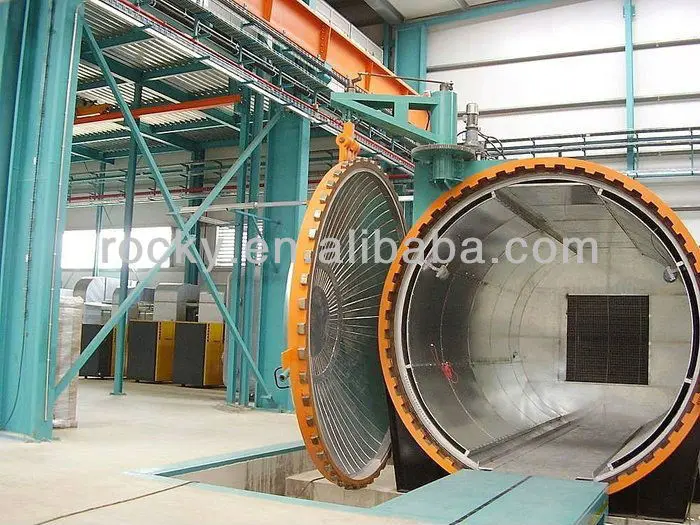

Autoclaves

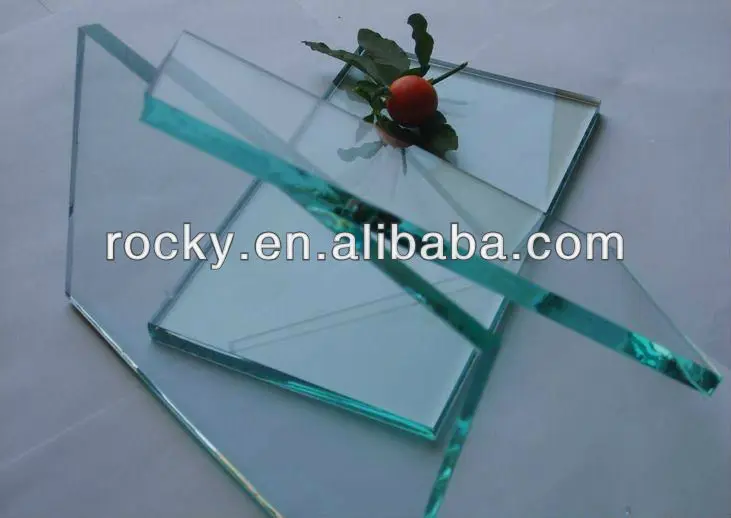

Clear Float Glass

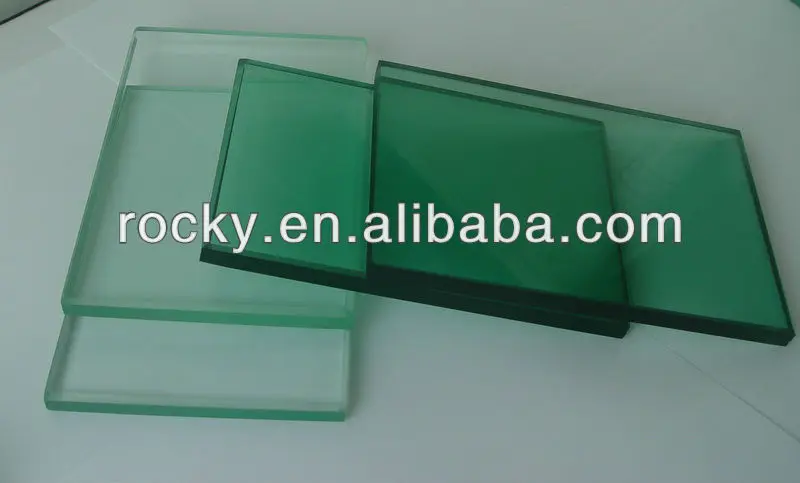

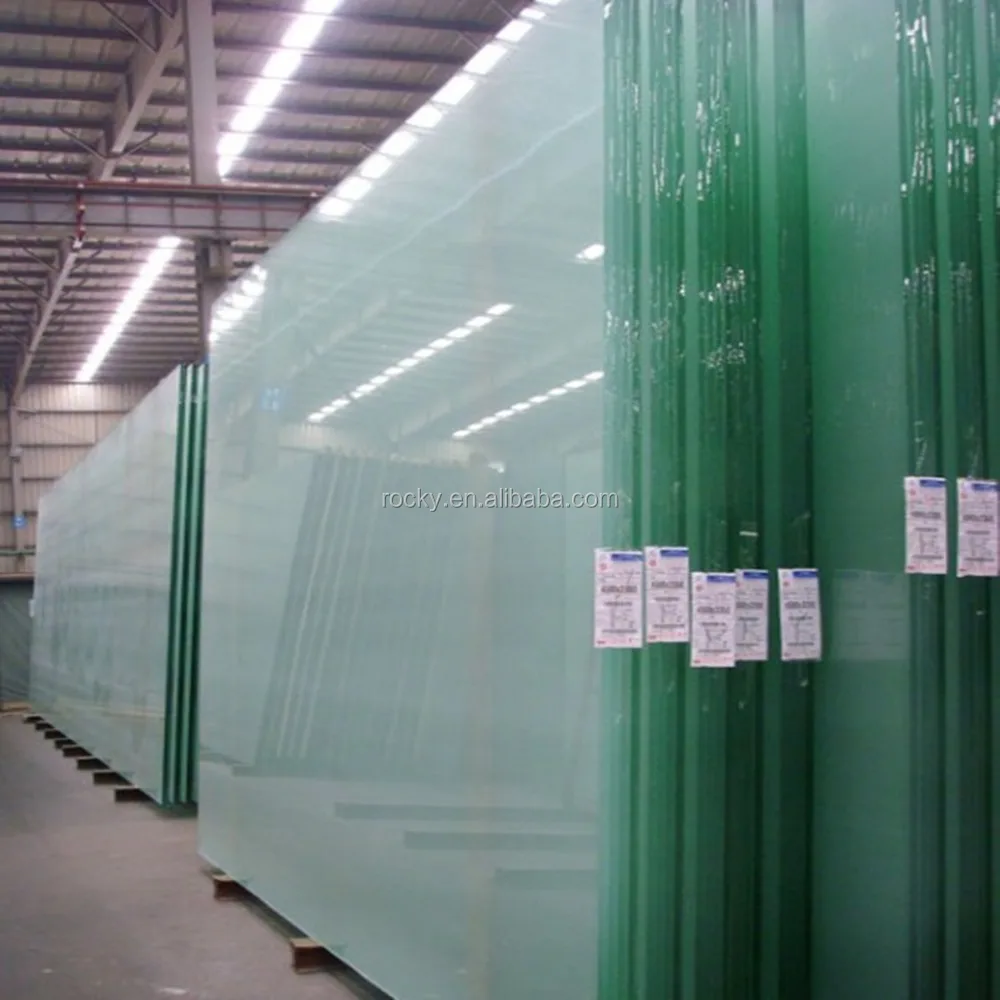

Clear and Green Float Glass

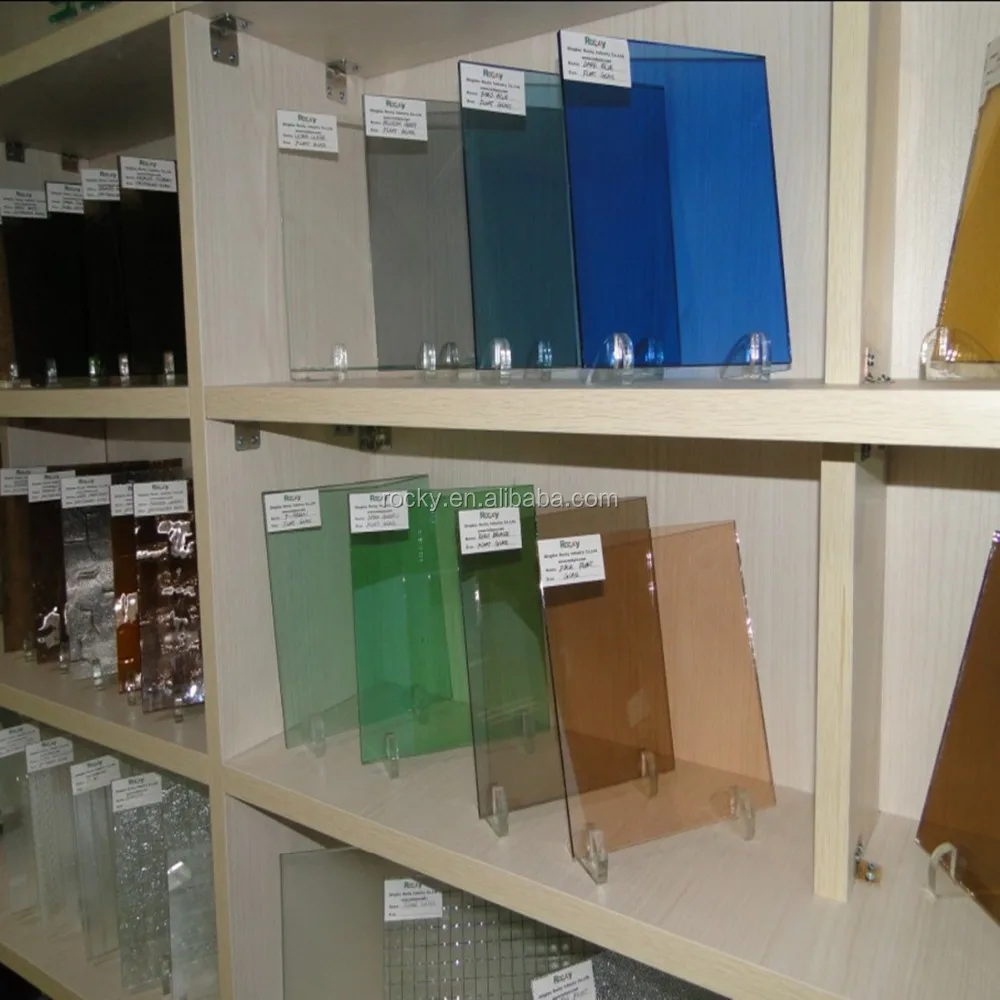

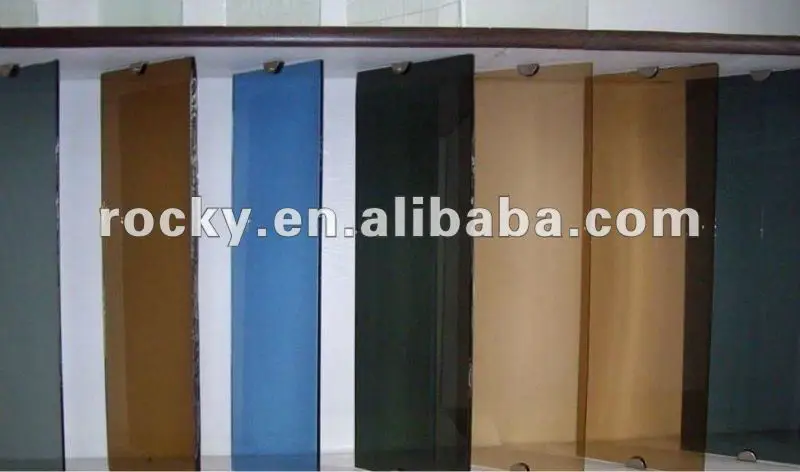

Tinted Float Glass

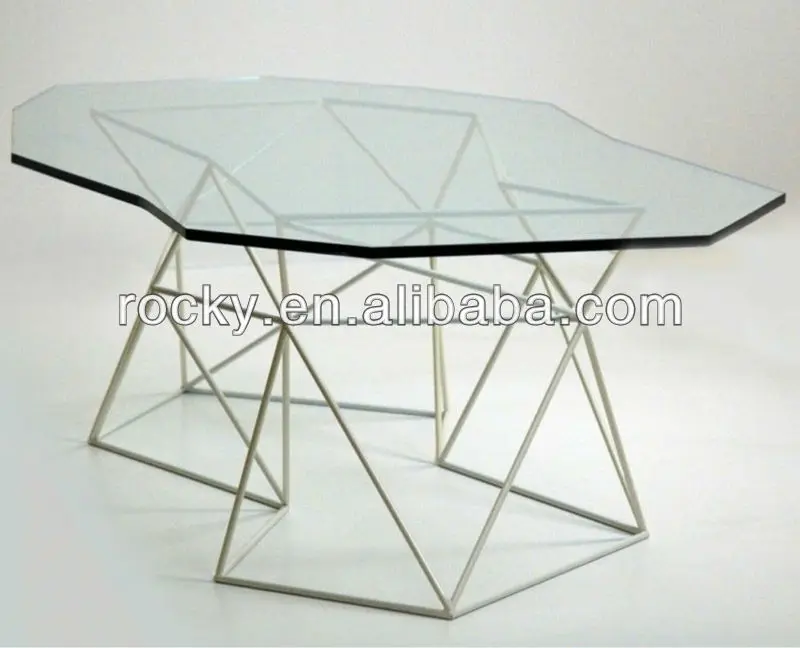

Float Glass Table Top

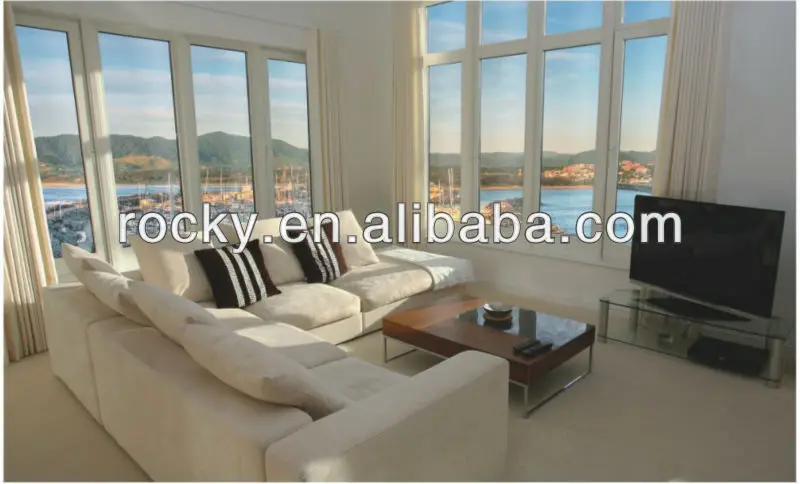

Float Glass Windows

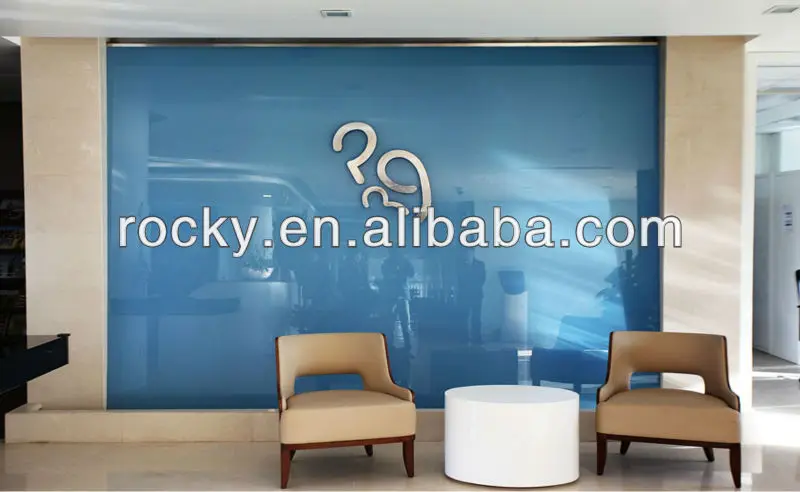

Indoor Use

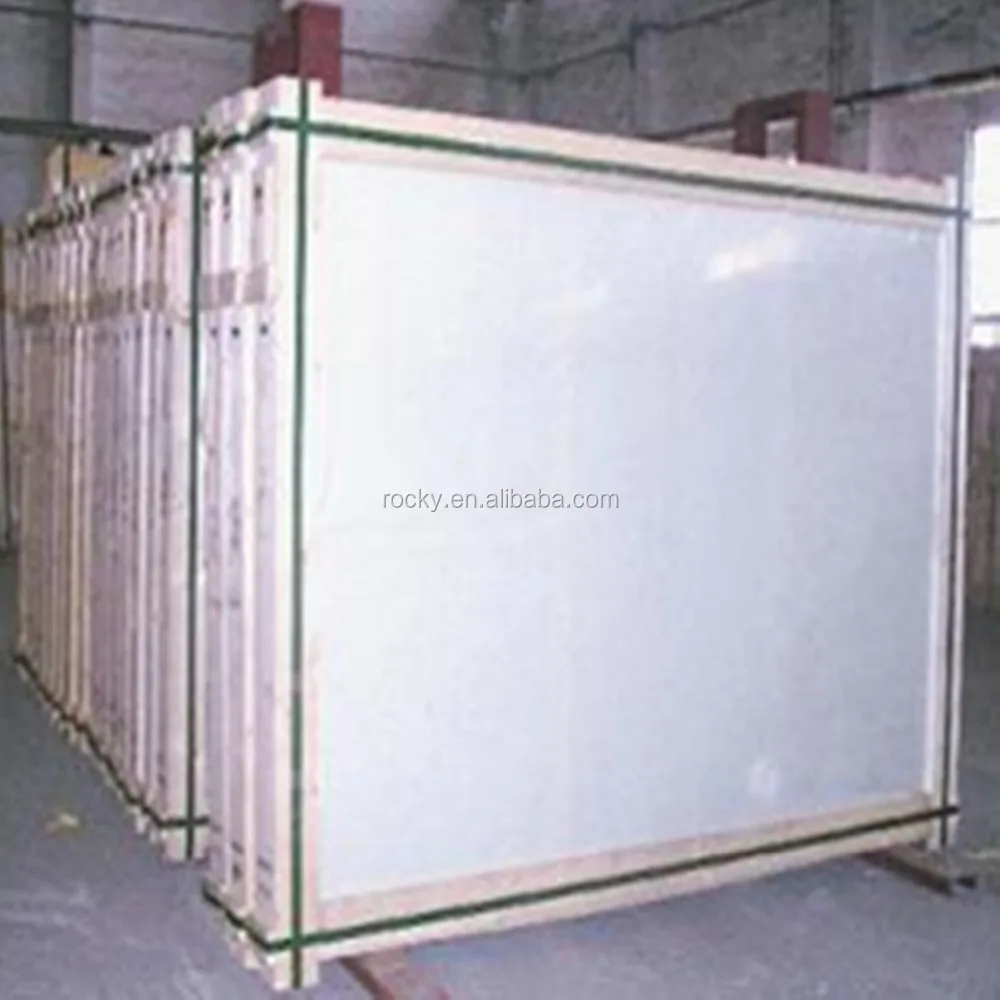

Packing Details



Company and Technology
