MF,UF ultrafiltration ceramic membrane filter element for filtration,separation,purification and clarification

Product Overview

Description

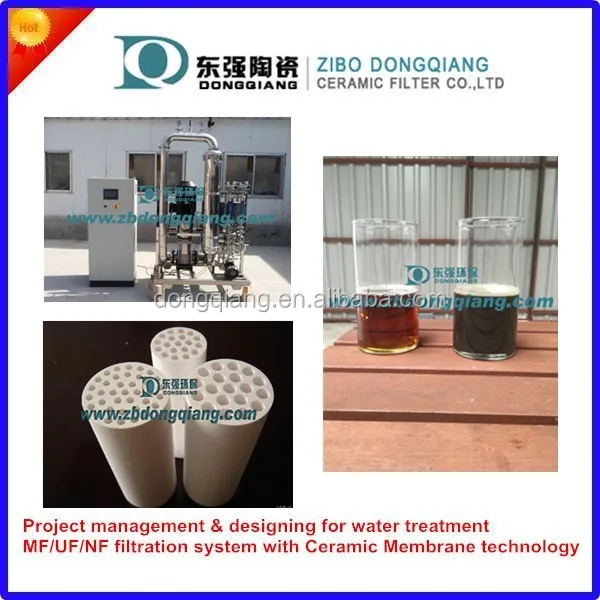

1:System Components:

Membrane module(membrane,ss housing),feed tank,centrifugal pump,flow/pressure /temperature meter,electric control panel,valves and pipes;



 Type of module(number of membranes/housing) : 1,3,7,12,19,37,61,91,138,241

 Length of membrane:                   250-1200mm

 Outer diameter of membrane:            12/25/30/40/52/60mm



 Material of body: SS304,SS316L,Titanium,FRPP,MSRL;

 Material of seals: EPDM;Fluoro Rubber;Silicon;



2: Filtration mode: cross flow filtration;

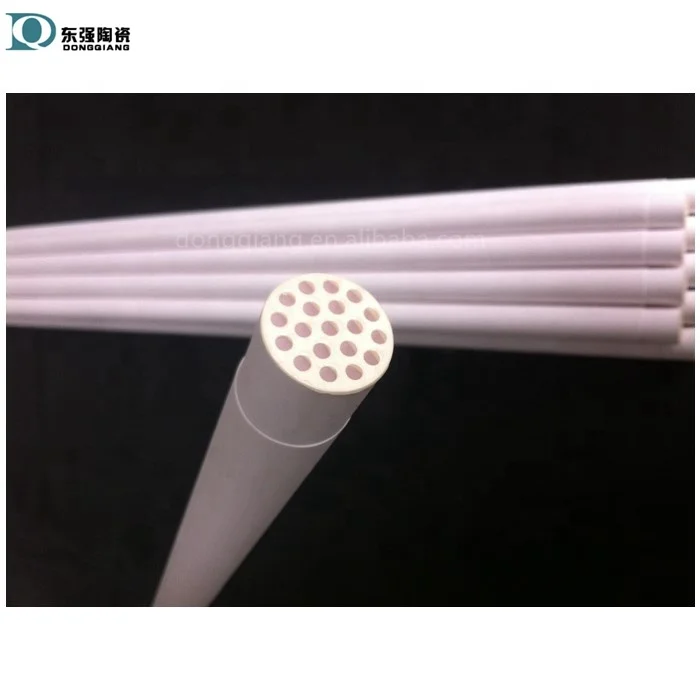

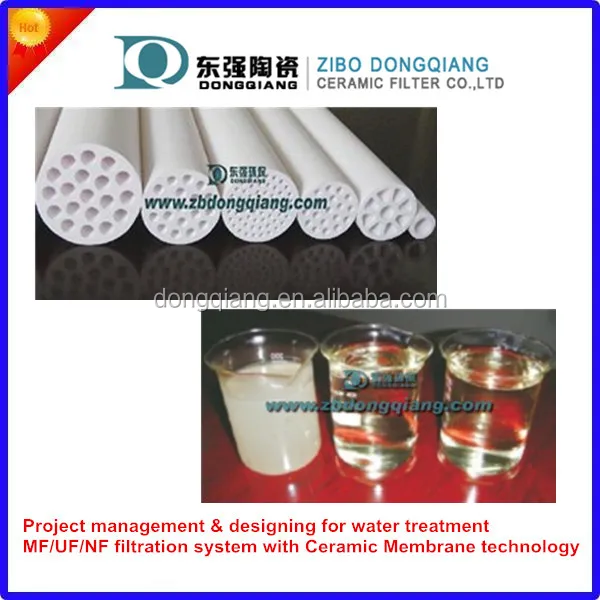

3:Properties of ceramic membrane:

Support material:	α-alumina
Pore sizes:	UF: 2,5,10,15,20,30,50nm
	MF: 100,200,500,800,1200nm
Membrane material:	Zirconia,Titania,Alumina
Length of membrane:	250-1200mm(special length upon customer's request)
Outer diamater:	12/25/30/40/52/60mm
Working pressure:	Normal: 0.1-0.4MPa  Max.: ≤1.0MPa
Burst pressure:	≥9.0MPa
Working temperature:	5-150℃
PH range:	0-14



 4:Specification of membranes:





5: Ceramic Membrane Compared with traditional filtration system

    Compared with such tradition filter like frame filter,press filter, centrifugal filter, DE Filter and

    polymeric membrane filter, ceramic membrane has many unique advantages.

   1).Excellent resistance to acid, alkaline and oxidation chemicals.

   2).Good solvent stability, high thermal stability.

  3).Fine separability with narrow pore size distribution.

  4).Extremely long working life compared with polymeric membrane.

  5).Easy to be cleaned and sanitized with back flushing.

  6).High mechanical strength,good abrasive resistance.



6:Applications:

 Filtration,clarification,purification and concentration.

(especially for filtration of food and beverage industries,chemical and petrochemical industries,biochemical and pharmaceutical industries.)

7:Typical Applications:
1) Biochemical and Pharmaceutical Industries: Clarification and purification of the fermentation products as well as purification or separation of product slurries;
2) Environmental applications: Waste Water clarification and separation;
3) Food and Beverage Industry: Microfiltration of milk, clarification of fruit juice and separation of soyabean protein;
4) Highly useful for various filtration applications in the Petro-Chemical Industry;
5) Other fields: Reclamation of nano powders, filtration of acid/alkali containing liquids.





*For more detailed information,pls contact us.
