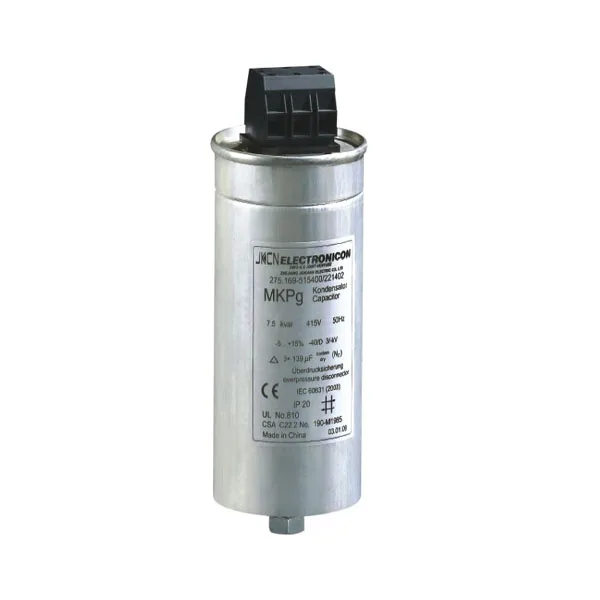

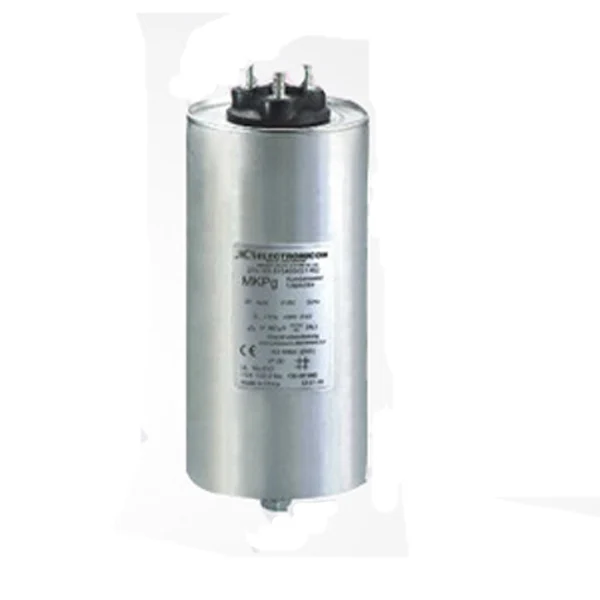

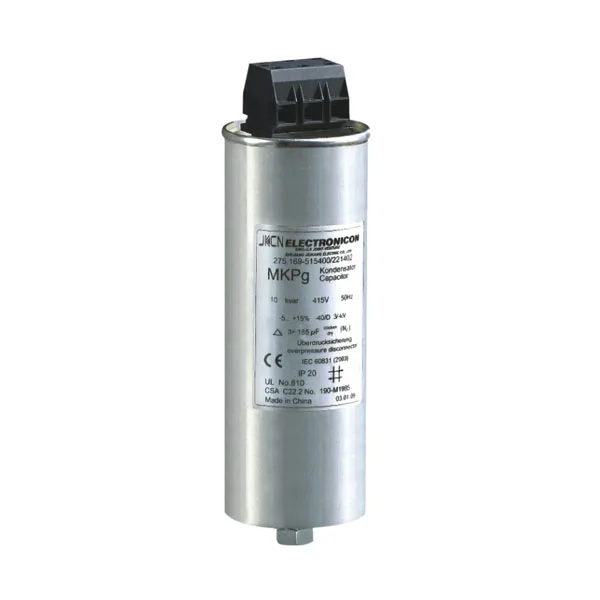

Power Factor Capacitor(Cylindrical Type)

General Description

JKCN  Brand bgmj self-healing type low voltage shunt cylindrical power factor capacitor banks , made of the advanced metallized film, is produced strictly in accordance with the National Standard and IEC Standard by the introduced advanced foreign techniques and equipment. The device is mainly suitable for low voltage electric net work to improve power factor, reduce reactive loss, and better the voltage quality.

Main Features

1. Small volume and light weight: It is only 1/4 and 1/5 of the weight and volume of the outdated products respectively.

2. Low loss: With the actual loss less than 0.1%, the capacitor, itself, has low consumption of energy, little radiation, low temperature rise, long service life, and good energy, conservation feecet.

3. Excellent self -healing performance: When a part of the inolation is fed through due to the over voltage, it is capable of self-heaing so as to continue the normal operation, therefore there liability is in proved greatly.

4. Safety: Equipped with self-discharging resistant and safety devices inside, it is safe and reliable.

5. Without oil leakage: In order to avoid oil leakage during operation so as to protect the environment, it employs the microrystlline wax as the Impregnant , which remains solid atordinary temperature and has a drip melting point higher than70°C

Scope of Application

The product complies with IEC 30-1998 standard for 20 kvar low voltage cylindrical capacitor .

Place for installation: Indoor

Ambient temperature: -40°C~+45°C

Capacity error: -5%~+10%

Withstand voltage: Withstanding 700VAC for 2~5s between terminals

and 3000VAC for 10s between the whole terminals and the outer casing

Loss rate: below 0.12%

Allowable over voltage for 20 kvar low voltage cylindrical capacitor :

Below the rated voltage of 110% (Within 8 hours every 24 hours)

Below the rated voltage of 115% (Within 8 minutes every 24 hours)

Below the rated voltage of 120% (Within 5 minutes and less than two time evert month)

Below the rated voltage of 130% (Within 1 minute and less than two time evert month)

Allowable over current: Below the rated voltage of 130%

Insulating impedance: All terminals and the outer casing are above 300MΩ (500VDC for one minute)

Internal discharge resistance: The internal protector reduces the voltage to below 75V in three mins.

Company Introction

1. More than 20 years' production experience in capacitors-- our company was establised in 1993.

2. A wide range of products, including motor running capacitor, fan capacitor, low voltage shunt capacitor,  float switch , contactor for switching capacitor , reactive power compensation installation etc.

3. A good image: first class automaatic rolling machines, advanced production environment, and advanced production technology etc.

4. Certification: passed the ISO9001 quality management system certificate, ISO14000 environment management system, CBB series capacitors have attained CQC, CE, Roh and UL certificates; low voltage reactive power compensation device have got CCC certificate.
