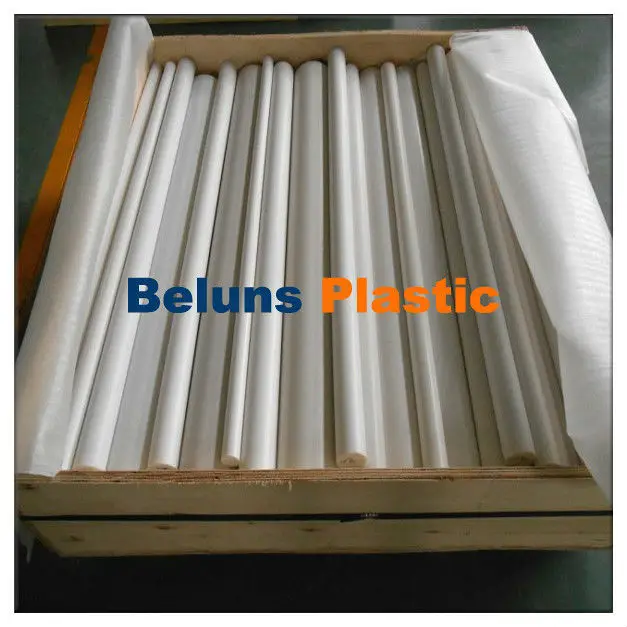

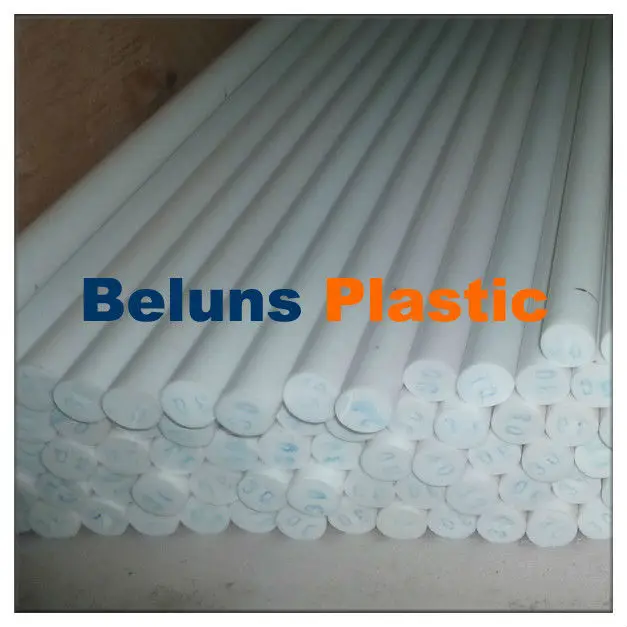

PTFE Round Bars / PTFE Rod

Product Overview

Description

PTFE Rods and PTFE Round Bars

PTFE Rod (PTFE Round Bar) is available in both virgin grades and reprocessed (mechanical) for less demanding applications. Surf Technologies extrudes rod in all standard sizes from 1/8th inch diameter up to 4 inches in diameter. Rod is inventoried in twelve foot lengths so it can be cut into six foot lengths (UPS shipping) or less, as ordered. PTFE rod is generally used as machining stock for all kinds of chemical, electrical and mechanical components where the outstanding performance characteristics of PTFE are required. Various fillers are available to modify the properties of PTFE to meet application requirements. Fluoro-Plastics stocks huge inventories so that same day shipment of most standard sizes is available.

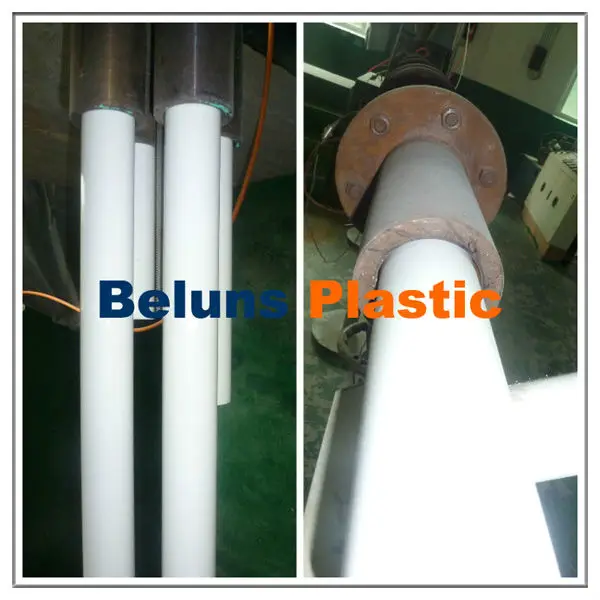

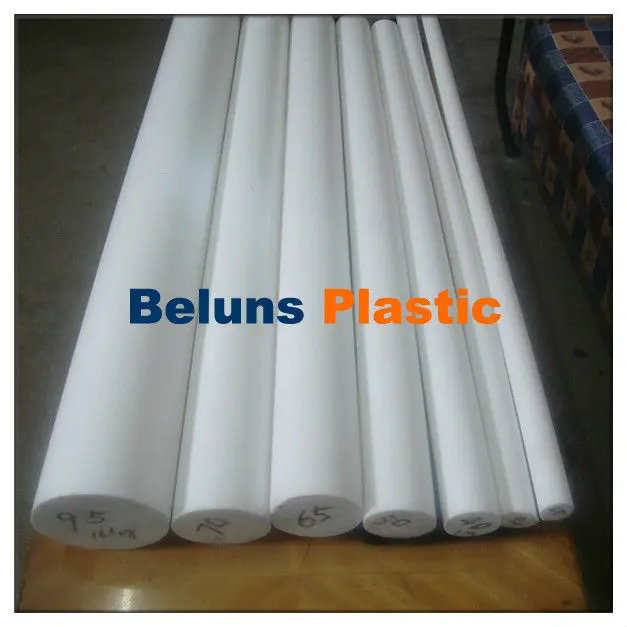

Extruded High Quality PTFE Rod Diameter



Dia(mm)	Dia(mm)	Dia(mm)	Dia(mm)
3	60	140	280
4	65	145	290
5	70	150	300
6	75	160	320
8	80	170	340
10	85	180	350
15	90	190	360
20	95	200	380
25	100	210	400
30	105	220	-
35	110	230	-
40	120	240	-
45	125	250	-
50	130	260	-
55	135	270	-

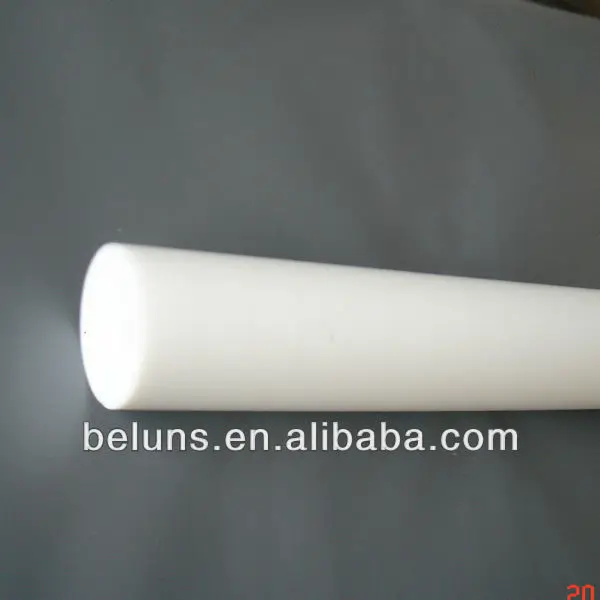

PTFE Rod (Extruded) Standard Sizes:  Dia:3mm upto 400mm, and the length 300mm, 500mm, 1000mm, 2000mm, 3000mm other sizes available and custom cut to size available. Available Fills: Glass, Carbon, Graphite, Bronze





100% Virgin PTFE Rods Technology Datas

Properties	Unit	Result
Apparent density	g/cm3	2.10~2.30
Tensile strength(min)	Mpa	≥25
Uitimate elongation(min)	%	≥200
Working Temp	°C	-180~260
Melting point	°C	327
Produce Max. Temp	°C	385
Hardness Rockwell		M65



























PTFE Round Bars







Products can be used at the following fields





Pls contact us freely if you have any requirements
