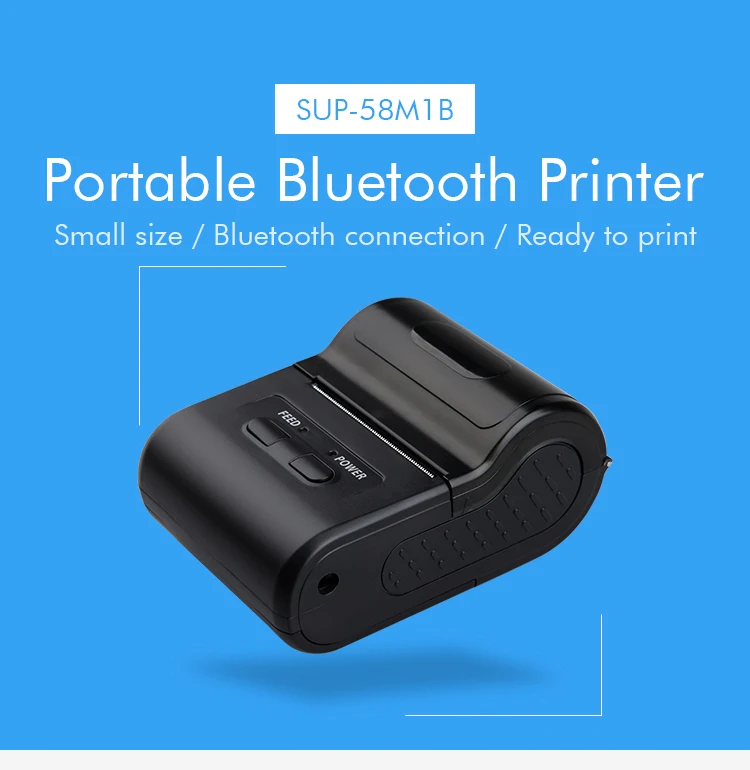

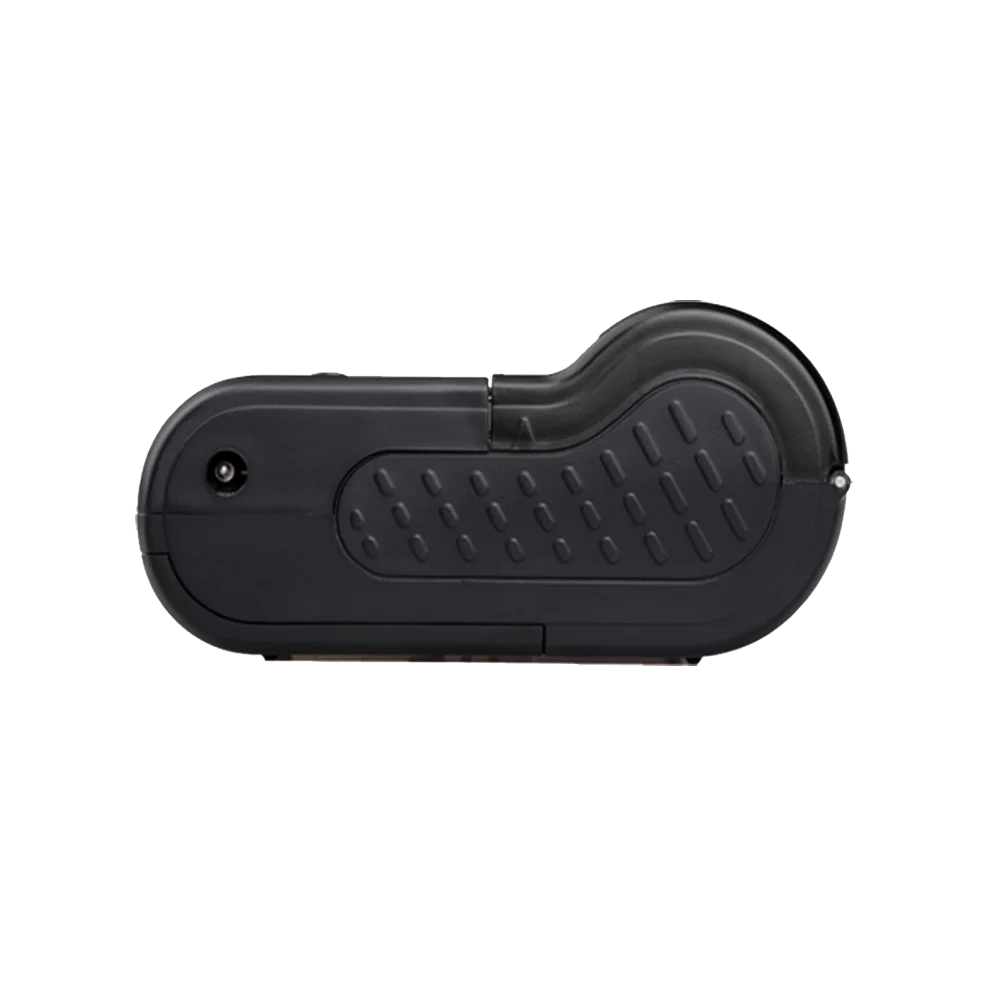

Fashion mini portable printer for ticket bluetooth card reader printer SUP58M1

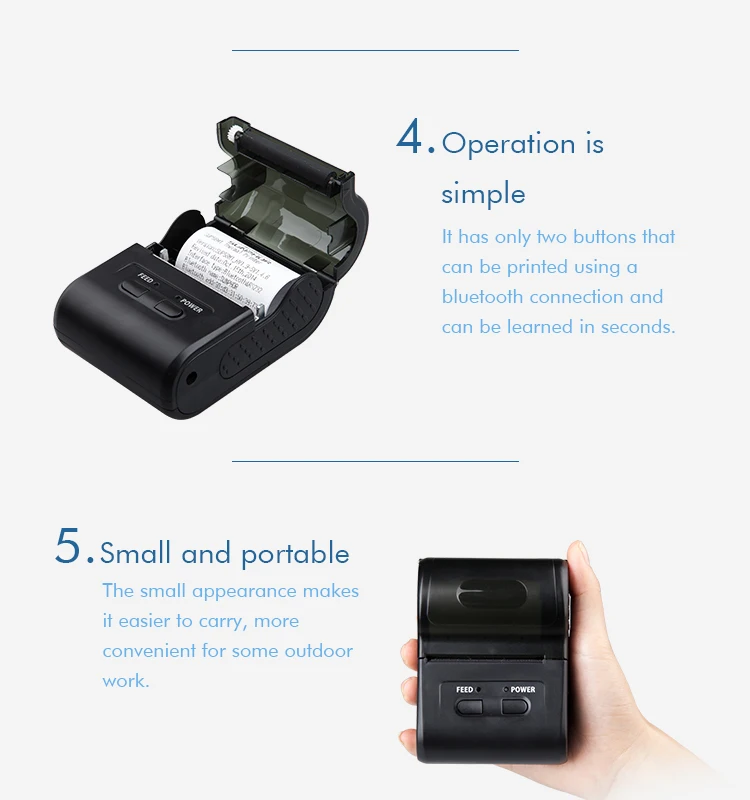

bluetooth card reader printer has
rechargeble battery

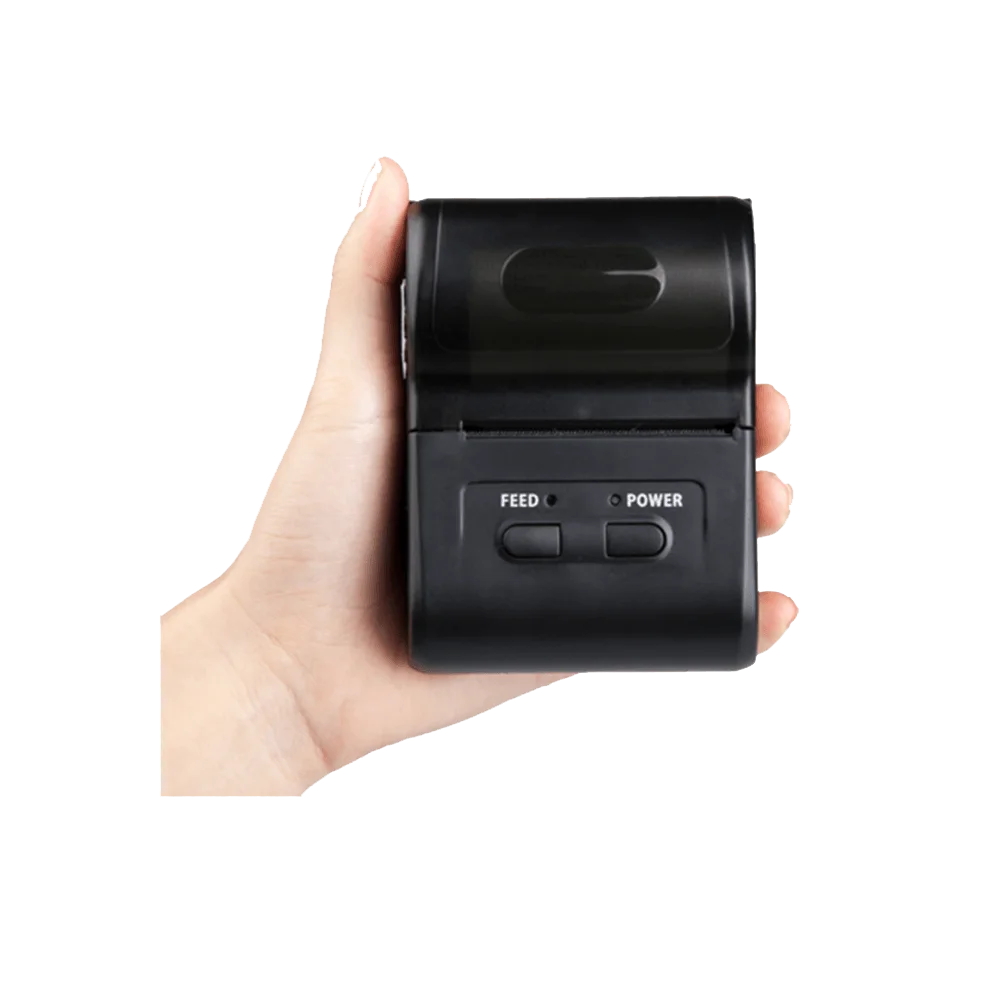

Light Weight, Easy to carry
Low cost, High-quality thermal printing
Low-noise, high-speed

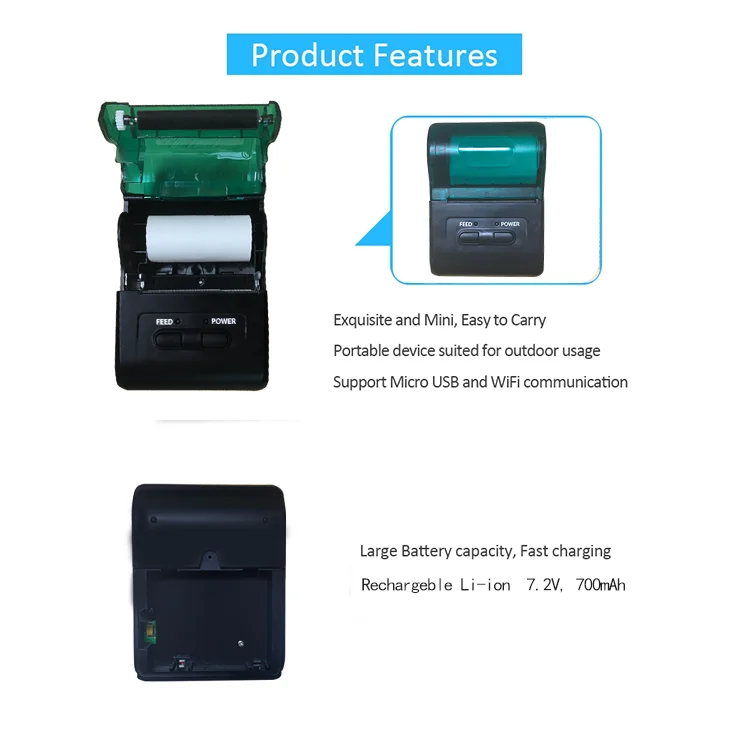

Feature:

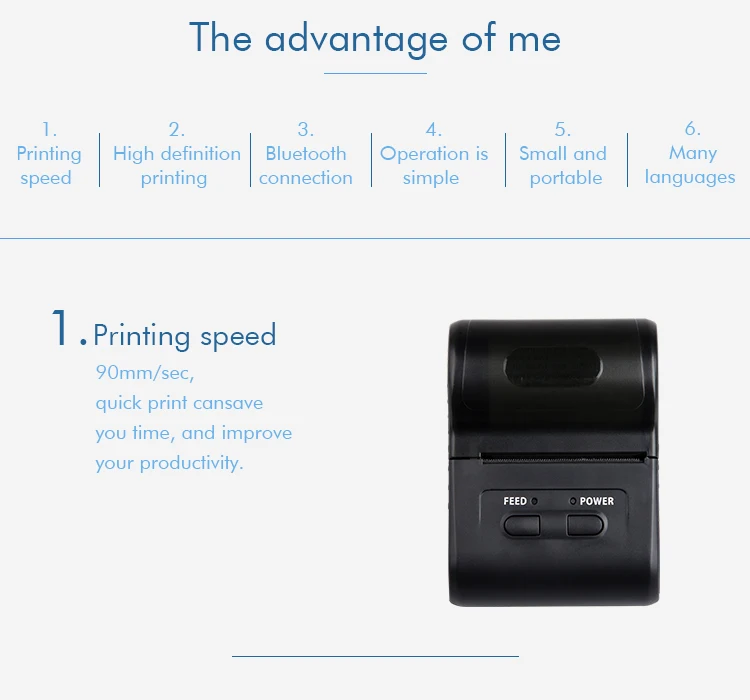

High printing performance(100mm/sec)
It is widely used in ticket / receipt printing application, such as: mobile POS / retail; hospitality; parking citations ; deliveries ; onboard transportation ; warehouse / logistics ; utility billing / meter reading.
ISO9001:2000-certified factory spans 2700 square meter and is equipped with SMT and assembly lines, New POS and printer terminals to match the latest trends developed by 10 R&D engineers, one million printer terminal annually produced by 120 employees, Quality controlled by 12-member QC staff with at least three years of experience. Everyone from SUNPHOR is ready to provide professional services for you. Contact us to learn more.
Parameter Details

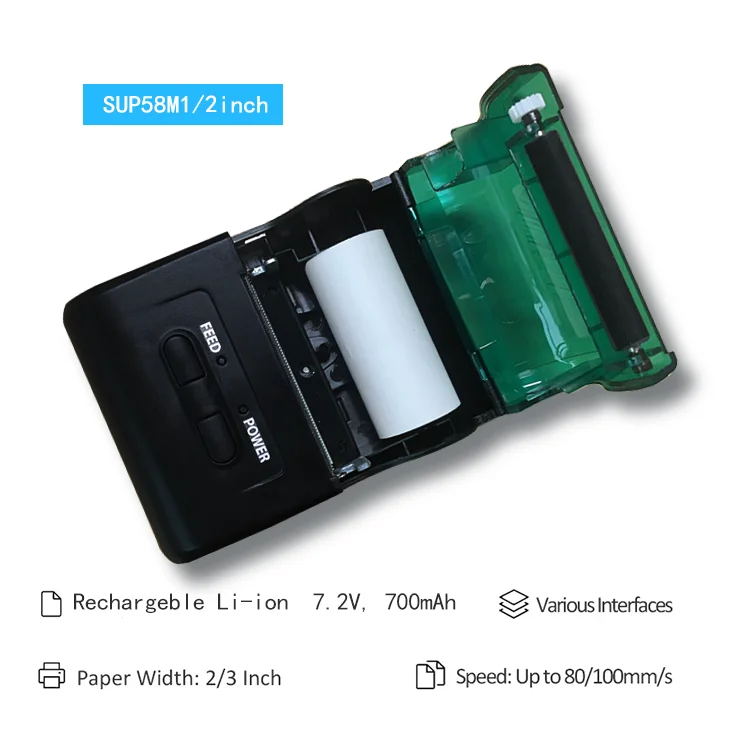

Model | SUP58M1-B | |
Name | Mini Bluetooth Printer | |
Dimensions | 7.8*10.5*4.8cm (W*L*H) | |
Printing | Method | Direct Thermal |
Speed | MAX 100mm/sec | |

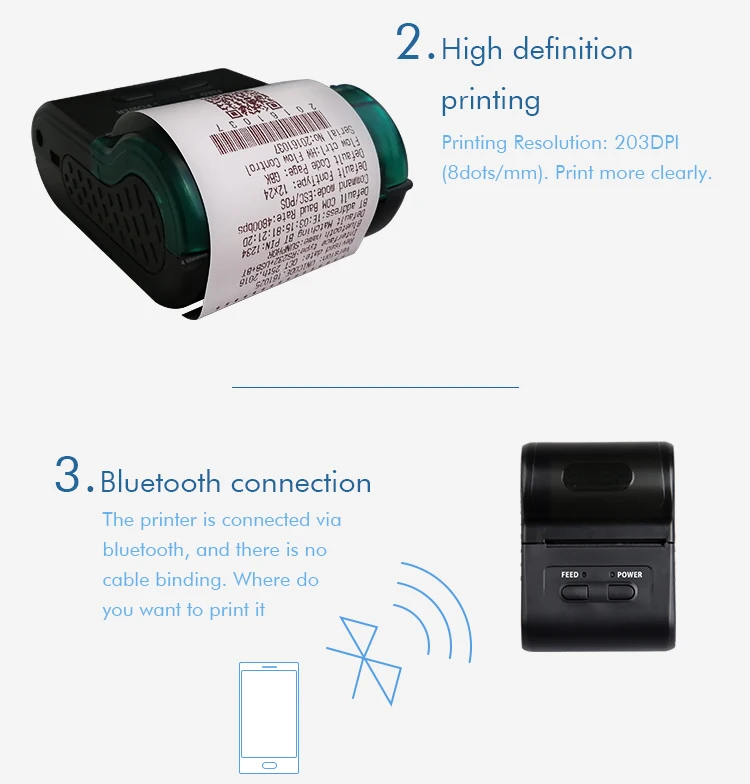

Resolution | 203DPI(8dot/mm) | |
Width | 58mm | |
Font A(12x24) | 32 columns | |
Character Per Line | Fond B(8x16) | 48 columns |
Type | Thermal Paper | |
Paper | Width | 57.5mm |
Thichness | 0.065mm-0.086mm | |
Roll Diameter | Max 45mm | |
Inner Diameter | 12.5±0.5mm | |
Reliability | TPH Life | 100km |
Print Mechanism | JinXin-628MCL101 | |
Interface | Bluetooth or RS232 connectivity | |
Battery | 7.2V , 700mAh | |
Download LOGO printing | Support, save two logo into printer | |
Baut Rate Adjustment | Setting By factory, 9600-115200bps | |
Barcode | EAN-8,EAN-13,Code 39,Code 93,Code 128, ITF,UPC-A,Codabar | |

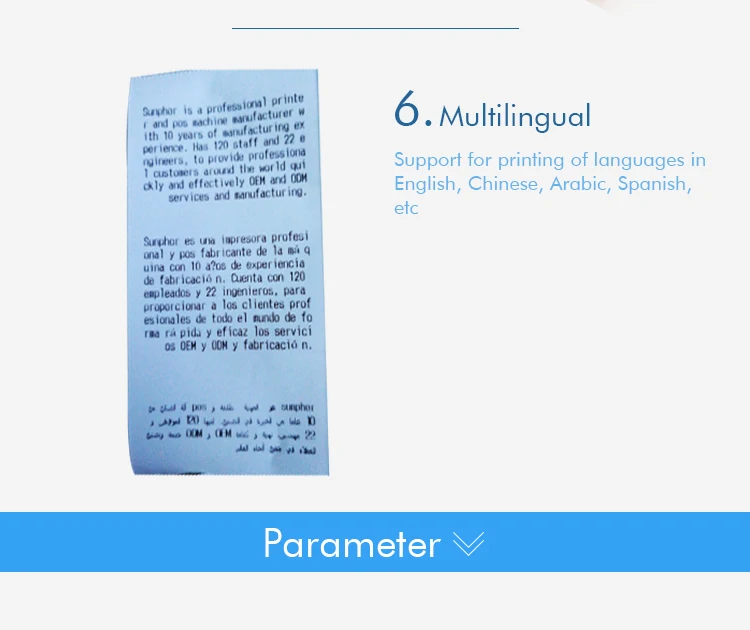

Language | multi-Languages | |
Emulation | ESC/POS/STAR command | |
Driver | None,But provide Program Munal to support Javer mobile,WinCE iphone,Android,Windows Mobile | |
Sensor | Paper End Sensor,Black Mark Sensor,Cover Open Mark Sensor | |
Electricize | Print and charge at the same time | |
Certification | CE,FCC,ISO9000,RoHS | |
Android SDK | Provide | |
Box Package | size:17*13*8cm, weight: 357g | |
Carton | 50pcs/CTN, | |
Warranty period | 24 months | |

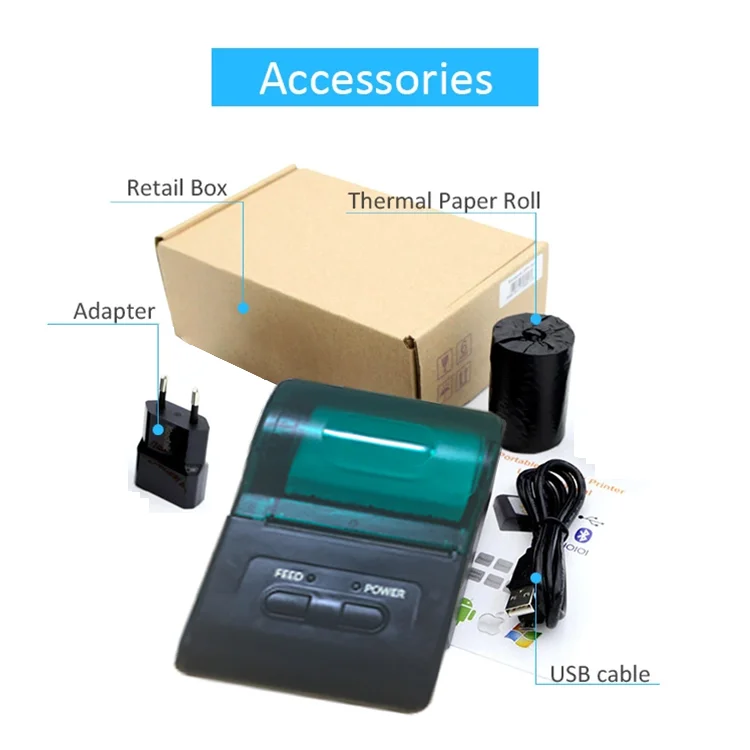

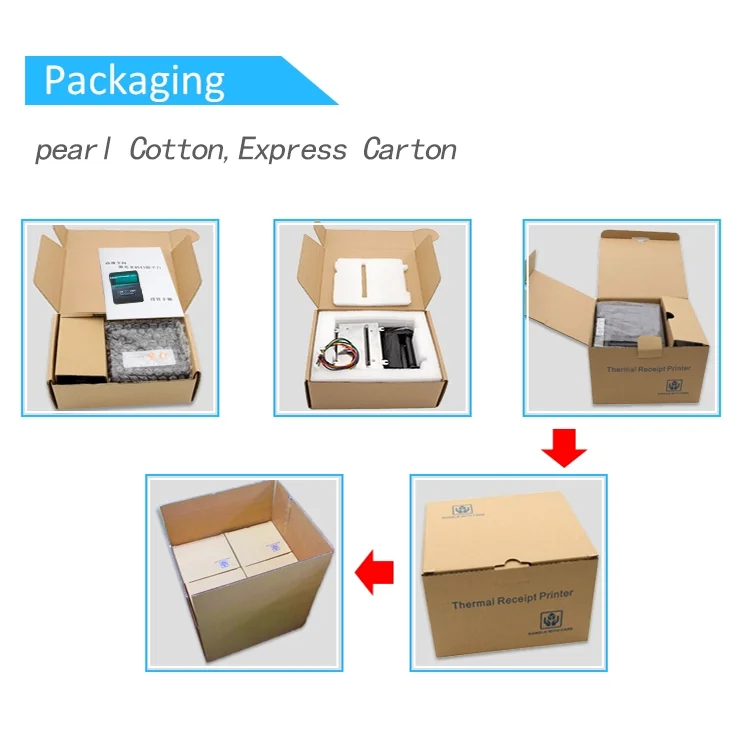

Standard packaging
By DHL/ FEDEX/ UPS/ TNT/ AIR/ SEA ,etc.any way according to your convenience
Quality Control and market----------------------------------------------------------------------------------------------------
1. Certifications:
ISO9001,ISO1004, CE, FCC, ROHS,CB,CCC
2. QC Staff:
12 QC employees with more 5 years experience will guard our products quality before goods are sending out. Meanwhile our 10 engineers is ready to provide momentarily the most professional technology and customization for you. That is why we always stay ahead of the competitors.
3. Material:
Bluetooth module imported from USA are with high reliability and long life.,
4. Market
USA, Canada, Bolivia,Ecudor, Colombia, Argentina, Brazil, Chile, Russia,
Australia,China,Romania,France,Germany,Ghana,Morocco,South Africa,Argeria,Vietnam,Philippines,Thailand
5. Customers Parts of Examples
Russia:800-1000pcs SUP80230C pos printers every month,50 pcs SUP-SPOS502 pos machine every month.
Mongolia:120pcs SUP80230C pos printer every month,20pcs Spos502 pos machine every month
USA:1200pcs SUP58M1 mini thermal printer every month
U.K:200pcs SUP58M1 bluetooth printer every month.
Romania:200-280 pcs thermal printers and 50pcs POS machine and 100pcs label printer every month.
Vietnam:100pcs printers and 20 pcs POS machine every month.
Iran:200pcs printers and 50pcs POS machine every month.
Customers Examples pictures:
Warranty and Services: --------------------------------------------------------------------------------------------------------
Provide ODM or OEM services, if purchased from sunphor, conforms to the manufacturer’s specifications and will be free from defects in workmanship and materials for a period of 2 years (24 months) from the date of original purchase.
A Sunphor service technician will provide telephone or email diagnostic service to determine whether the device requires service. If service is needed, Sunphor will, at its option, exchange the spare parts without charge for parts or labor. If Sunphor authorizes an exchange for the defective unit, Sunphor will ship a replacement spare parts to you with your next order, and the broken device or spare parts don’t need to be sent back to sunphor company.
