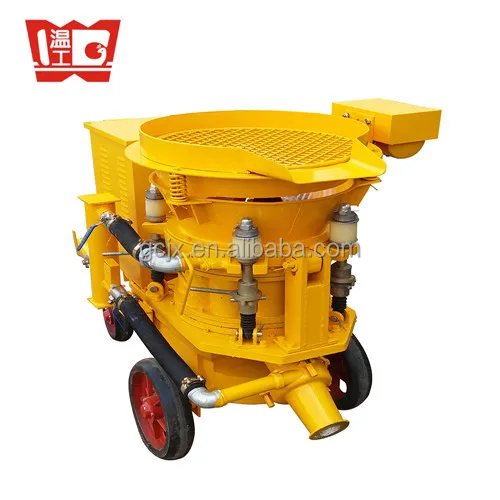

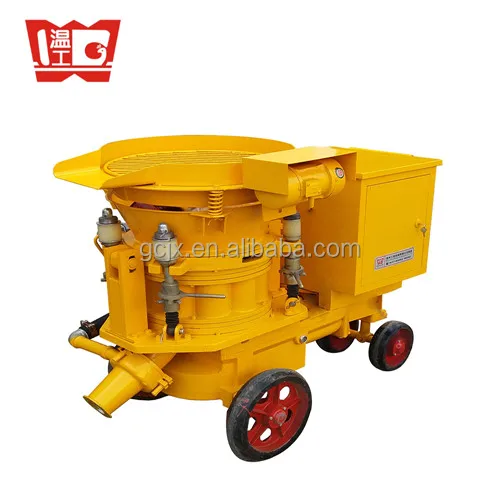

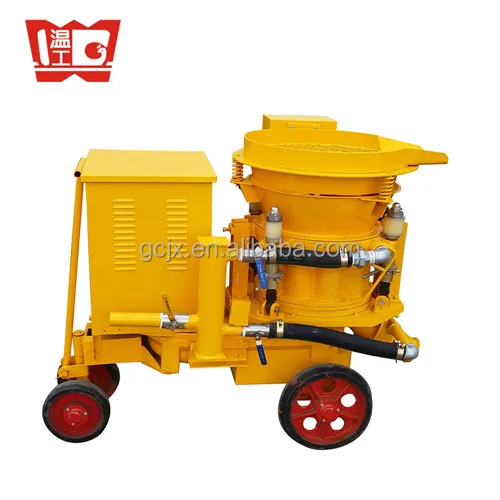

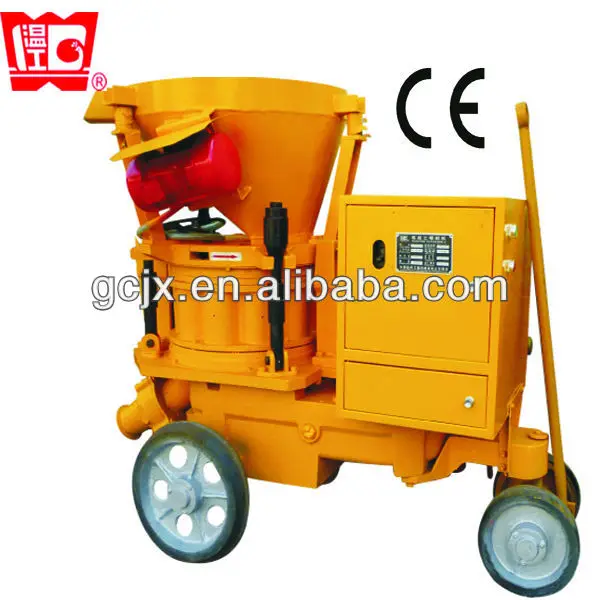

ISO9001:2008 CE Aliva small shotcrete machine
- Category: >>>
- Supplier: Wenzhou Engineering Machinery Co. Ltd.
Share on (1277051565):
Product Overview
Description

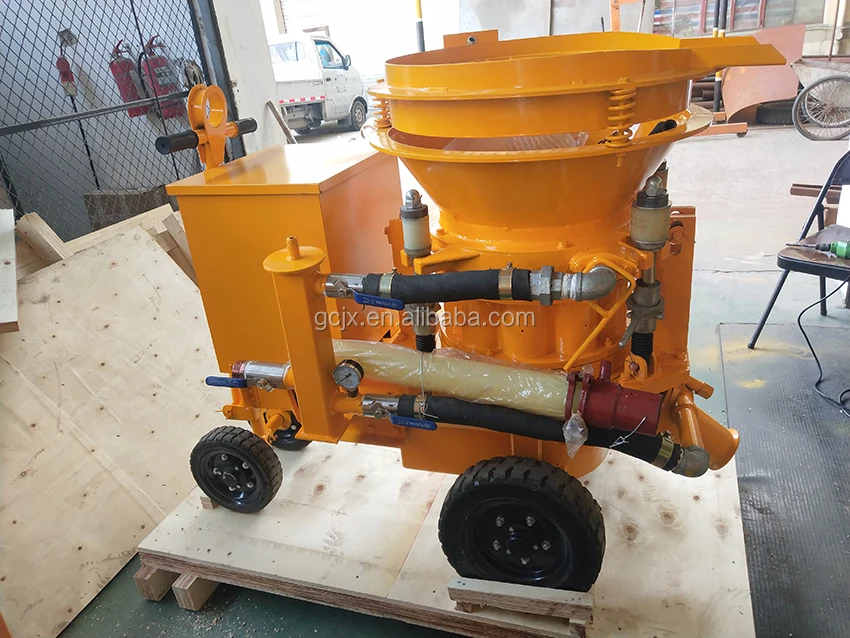

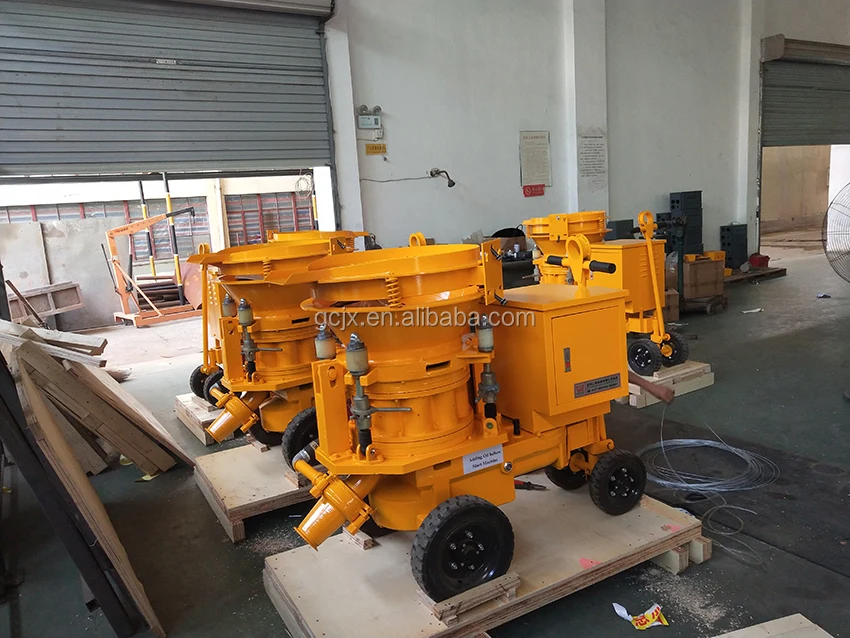

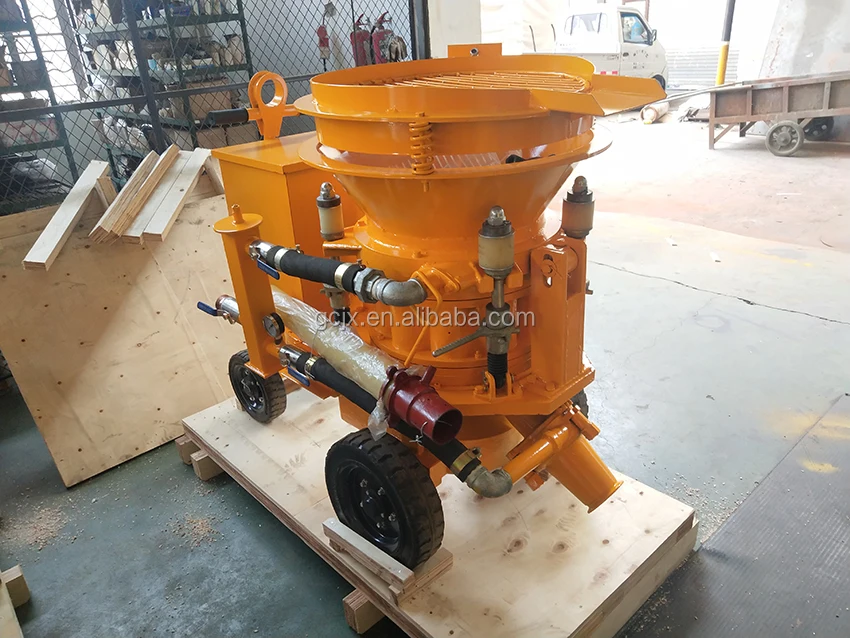

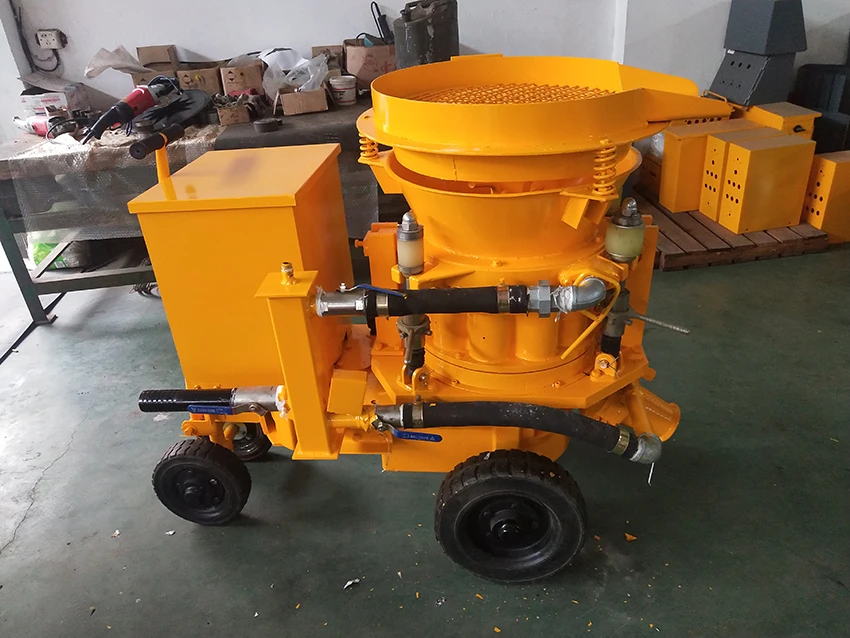

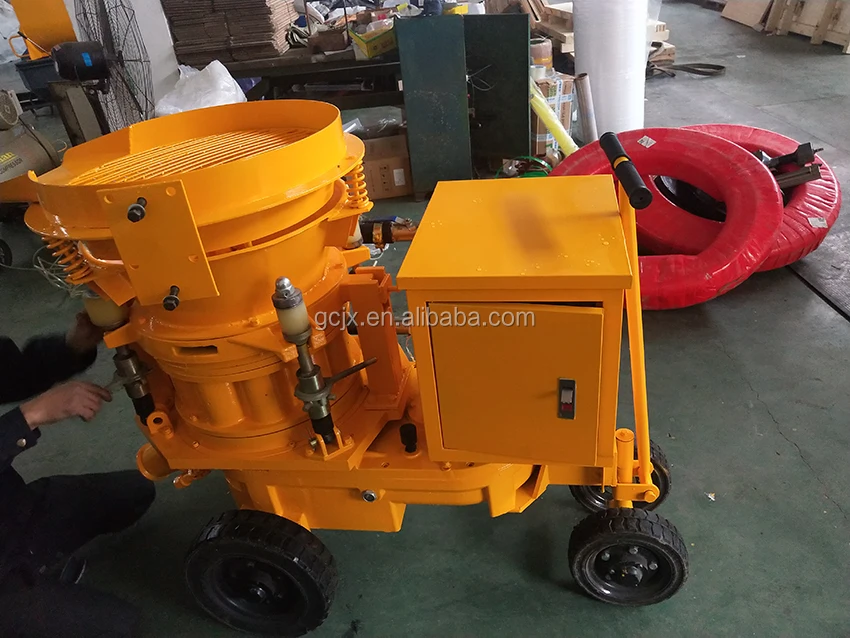

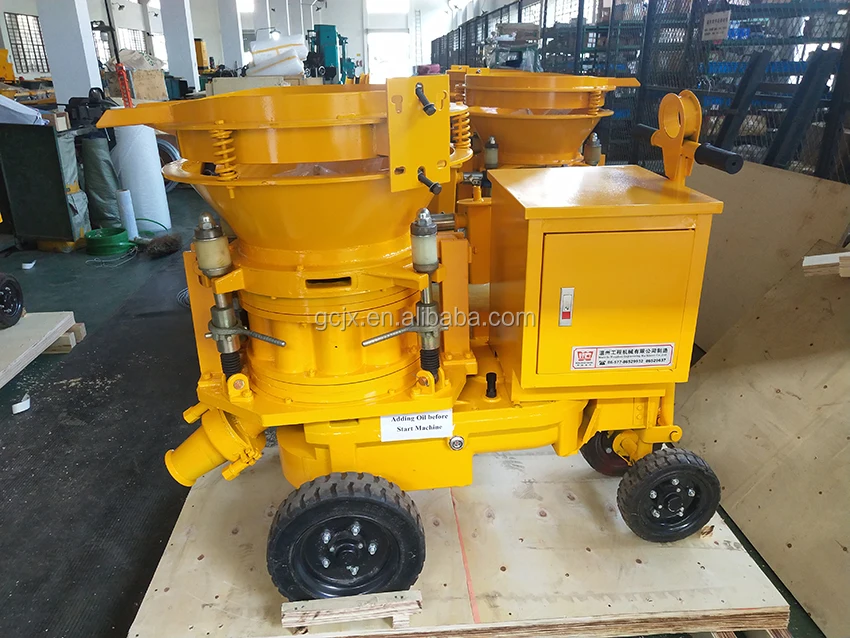

PZ-6 Small shotcrete machine
PZ series dry concrete shotcrete machine can be used for dry spraying, moist spraying, and wet spraying which introduced present new technology of concrete shotcrete. It is an optimized and improved generation product, adopts straight-through type chamber with smooth material flow. It also has advantages with strong ability of handling mixture, blanking delay, less remaining material, low dust, single-point compaction, easily adjustment and maintain, rubber sealing plate with long service life, small volume and strong mobility, low feeding height and small labor intensity etc.
PZ series dry concrete shotcrete machine is widely applicable for spraying concrete construction in tunnel, culvert, railway, highway, water conservancy projects, underground projects, coal mine, moorland mine well and roadway.
Technical parameter
Model | - | PZ-6 | PZ-9 |
Motor power | kw | 5.5 | 7.5 |
Production capacity | m3/h | 6.0 | 7-9 |
Cement-sand ratio | - | 1 : 3-5 | 1 : 3-5 |
Water-cement ratio | - | ≤0.4-0.45 | ≤0.4-0.45 |
Maximum horizontal delivery distance | m | 200 | 200 |
Maximum vertical delivery distance | m | 40 | 40 |
Vibration motor power | kw | 0.25 | 0.25 |
Maximum aggregate size | mm | 20 | 20 |
Inner diameter of delivery hose | mm | 51 | 51 |
Working air pressure | Mpa | 0.2-0.4 | 0.2-0.4 |
Air consumption | m3/h | 7-8 | 10-12 |
Net weight | kg | 700 | 900 |
Dimension (L×W×H) | mm | 1300×900×1000 | 1300×800×1300 |
company information
Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.
Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.
Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.
Function&Application
Infinite number of possible applications
**Base coat plaster (interior and exterior)
**Scraped and floating render
**Sprayed and textured render
**Rough trowel finish render and
**bonding layers
**Masonry mortar
**Fire proofing
**Sealing slurry
**Injection mortar and filling mortar
**Dispersion plaster
**Glass-fibre-reinforced concrete
**Cementitious adhesive
**Repair mortar and Insulating plaster
**Loam rendering
**and much more
Exhibition & Visitng
Welcome to our factory!!!
It would be our great honor to show & test our machine for you.
***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.
***Exhibition every year---Welcome to our fair
