Multi cyclone filter automatic powder coating spray paint booth
- Category: >>>
- Supplier: Hangzhou Color Powder Coating Equipment Co. Ltd.
Share on (1278907197):
Product Overview
Description
Product Description

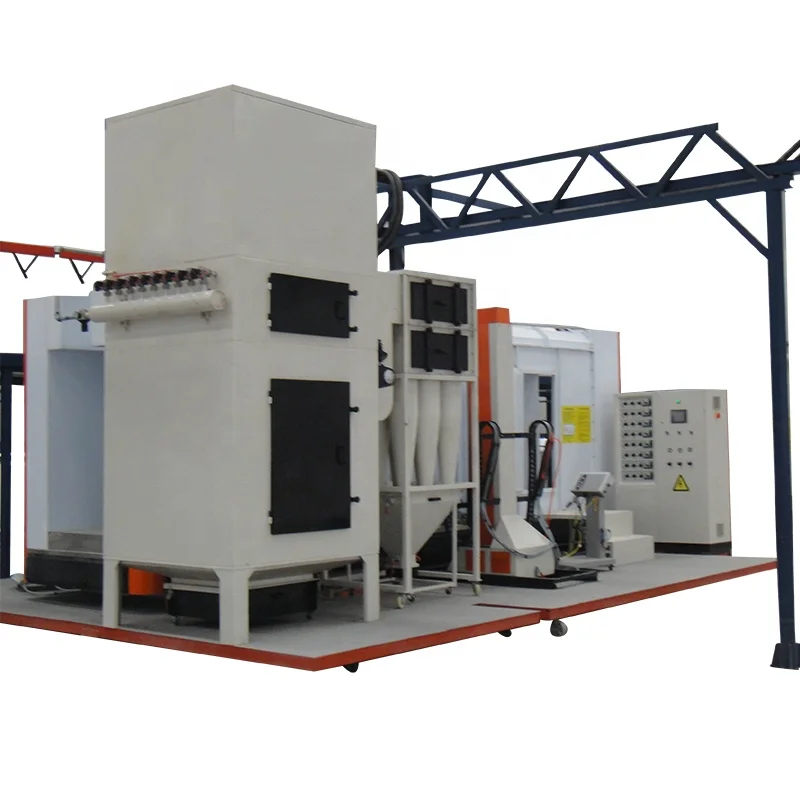

Multi cyclone filter automatic powder coating spray paint booth
Multi-cyclone automatic powder coating booth designed with cyclone device tends to maximize efficiency during multi-color change, reduce downtime while increase powder recovery. This system also built with automatic spraying equipment and intelligent powder supply center.
Details Images

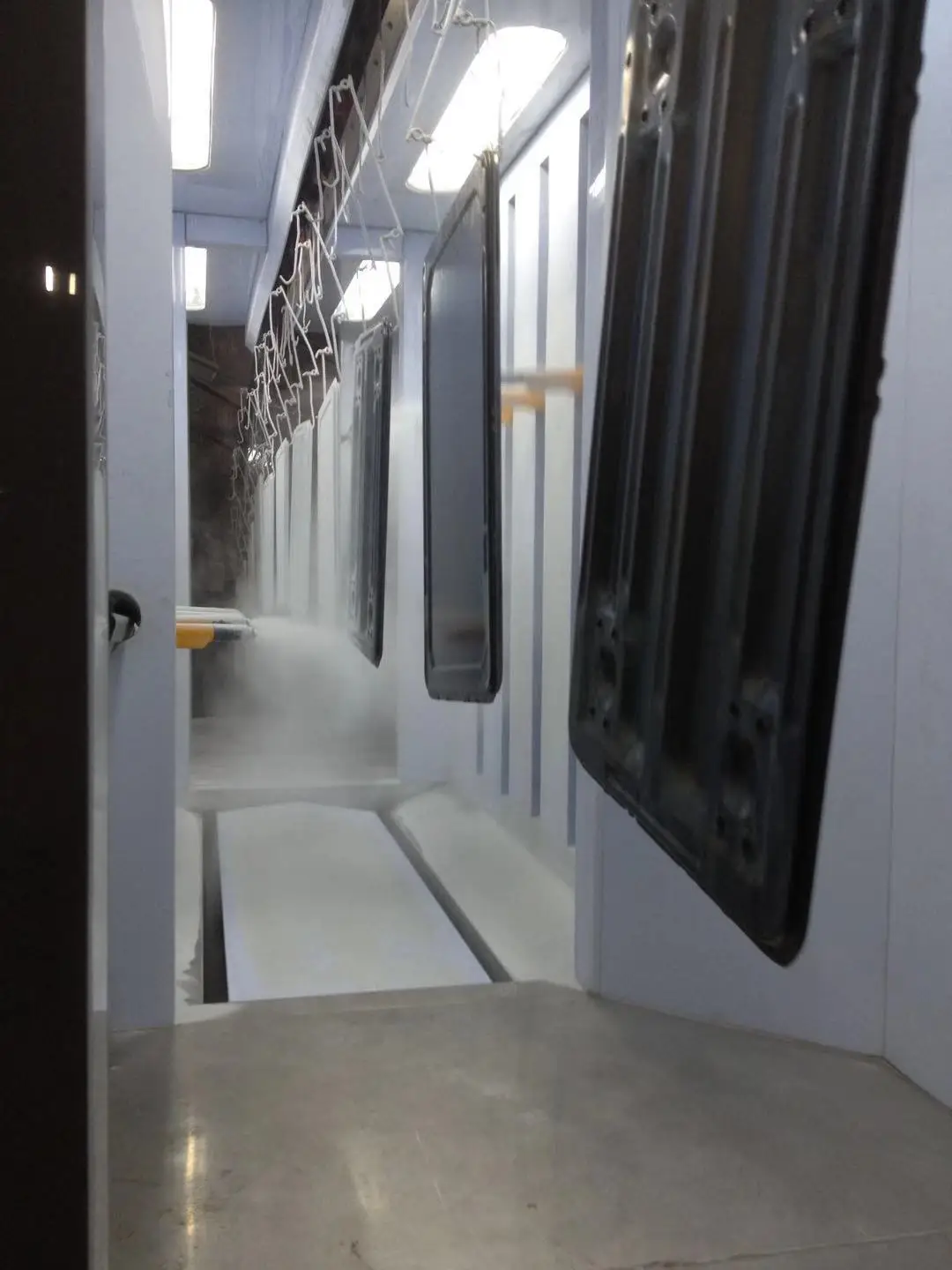

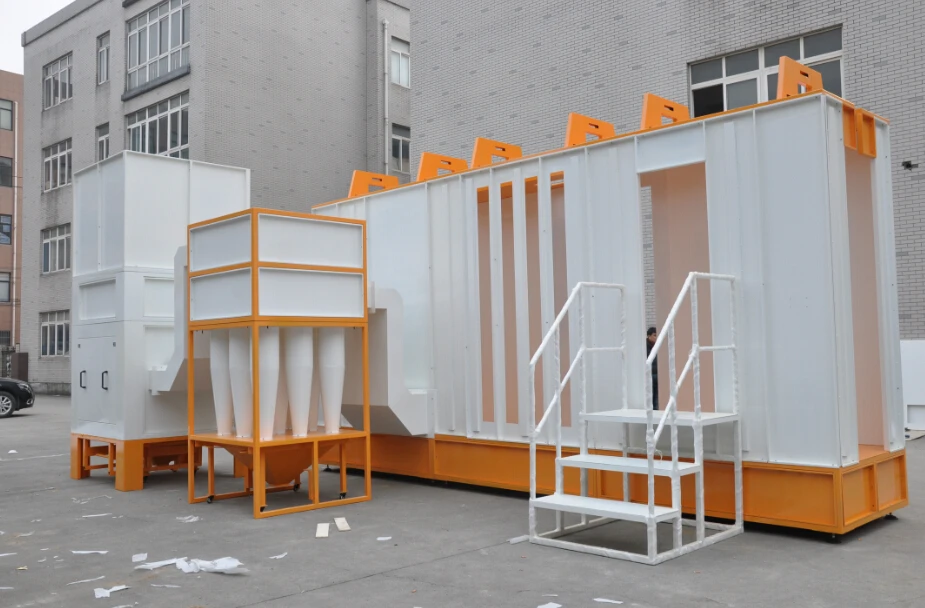

Automatic Powder Coating Booth with Cyclone System
This automatic spray booth is ideal for big and continuous powder coating production, whose cyclone design maximizes efficiency during color change, minimal powder waste in process at all times due to highest transfer efficiency and air cleaning system contributing to a clean, safe coating environment.

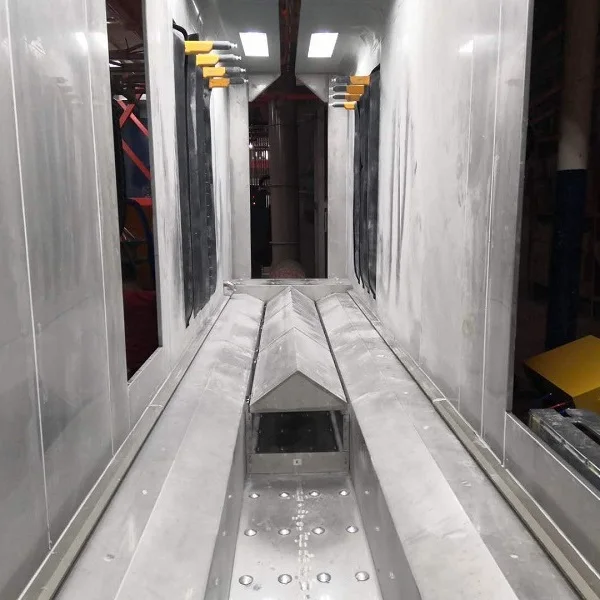

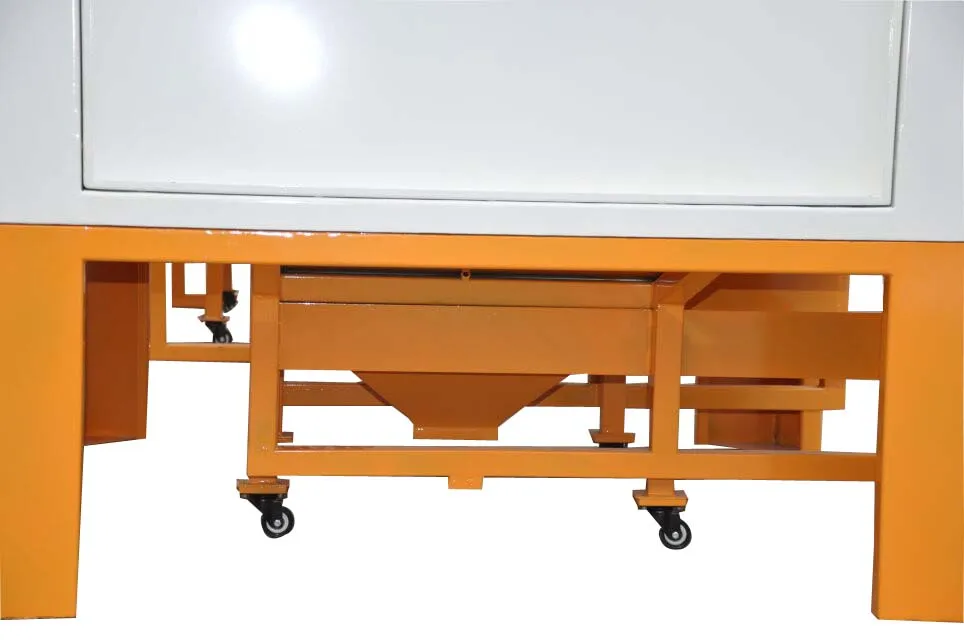

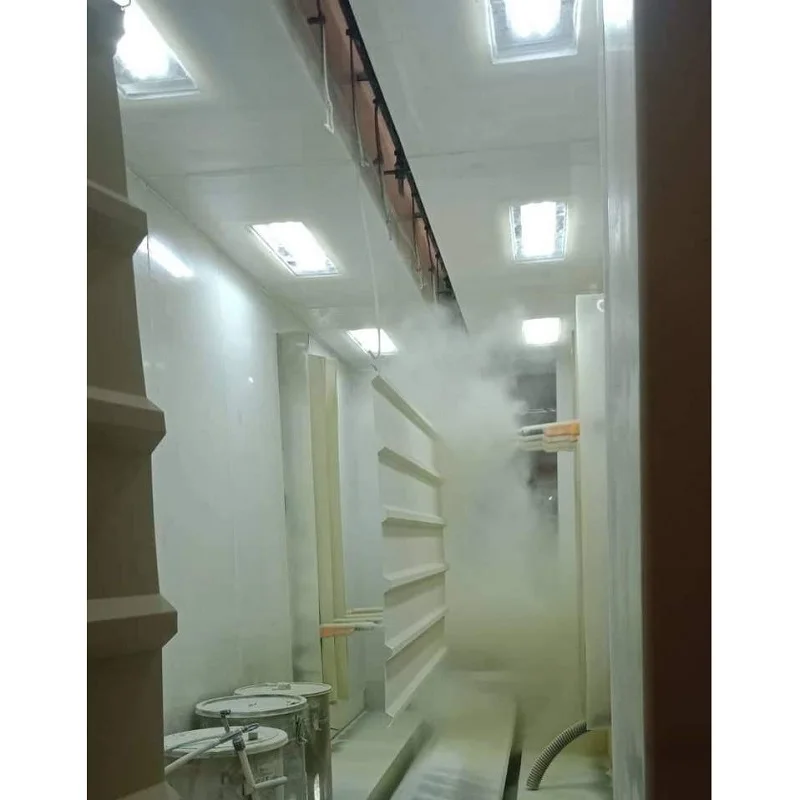

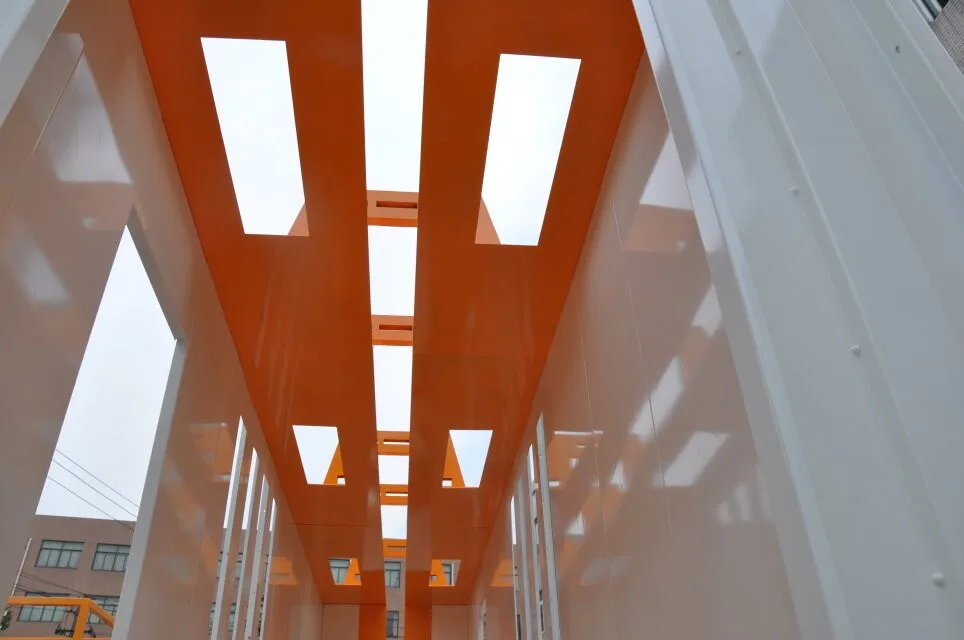

Powder Coating Booth Floor Design
The booth floor integrated with various air cleaning system, periodically removes the powder accumulated on the booth floor and push it to the extraction and recovery system.
The booth floor remains clean, with just a minimum amount of powder.
Automatic Powder Coating Booth Features

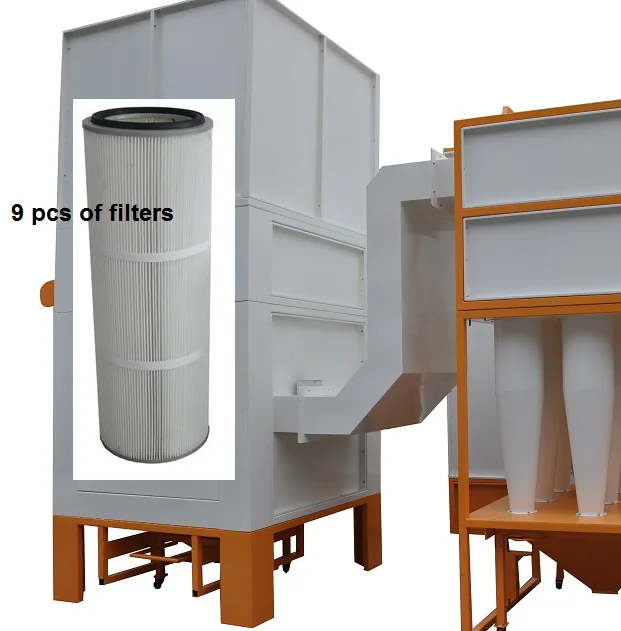

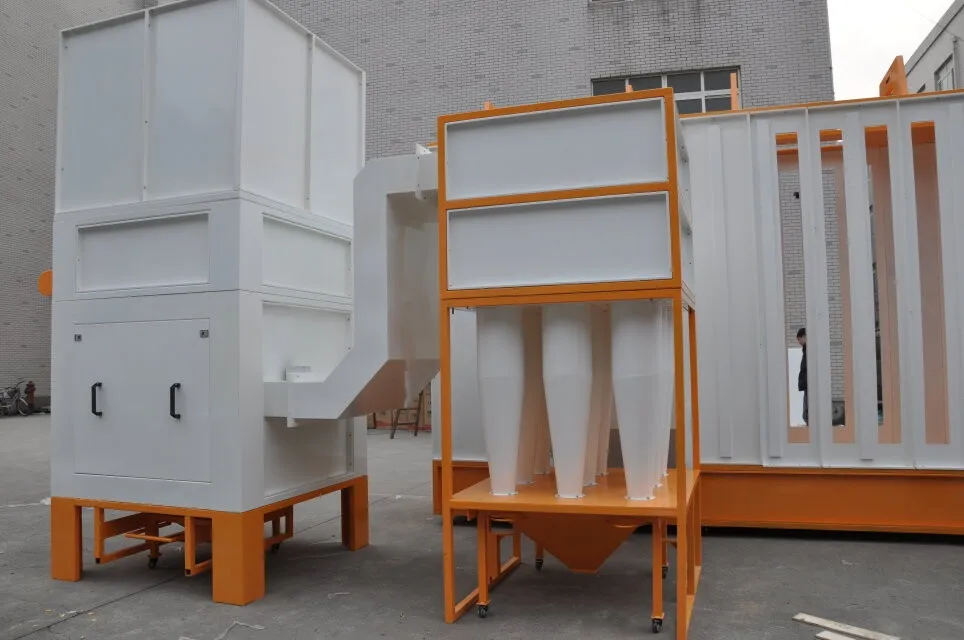

1. High-efficiently designed air cleaning system at booth floor, matching with the discharge device of "large-diameter cyclone separator + after filter unit" makes the least powder accumulation and the most environmental-friendly emission.
2. Our system allows custom design to select 2-24 pcs of auto spray guns to achieve any scale of production.
3. Variable frequency stepless speed regulation reciprocator can carry spray gun perfectly, and complete the spraying task successfully.
4. Optional powder self-recycling feed center ensures maximum utilization of powder and least waste, so you no need to worry about the automatic powder recovery, filtering and powder return to the powder hopper.
2. Our system allows custom design to select 2-24 pcs of auto spray guns to achieve any scale of production.
3. Variable frequency stepless speed regulation reciprocator can carry spray gun perfectly, and complete the spraying task successfully.
4. Optional powder self-recycling feed center ensures maximum utilization of powder and least waste, so you no need to worry about the automatic powder recovery, filtering and powder return to the powder hopper.
Model | COLO-S-6157 |
Booth Type | Multi-Cyclone |
Overall dimensions | 1700width x 1500 height x 6000 depth |
Weight | 4000kgs |
Power supply | Electric |
Nominal power | 15KW |
Voltage | 380V |
Frequency | 50-60Hz |
Filters | Polyester |
Filters count | 16pcs |
Filters hang type | easy for change |
Filter cleaning system | Pneumatic |
cyclone | 16pcs,Efficient automatic separation |

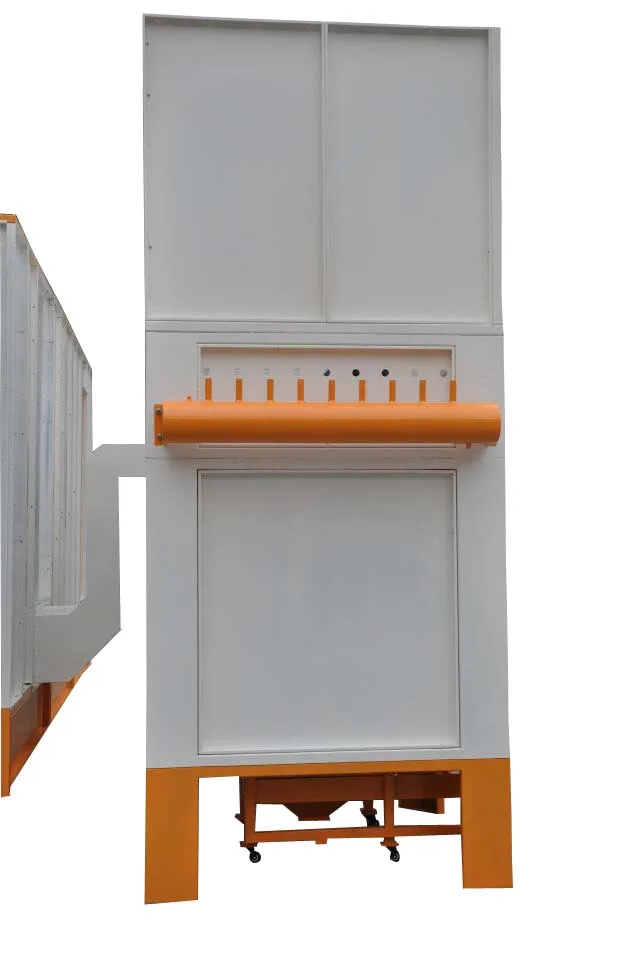

Rotation wing self-cleaning cartridge filter unit | 1set |
fliud hopper | 1set |
Warranty | 12 months |

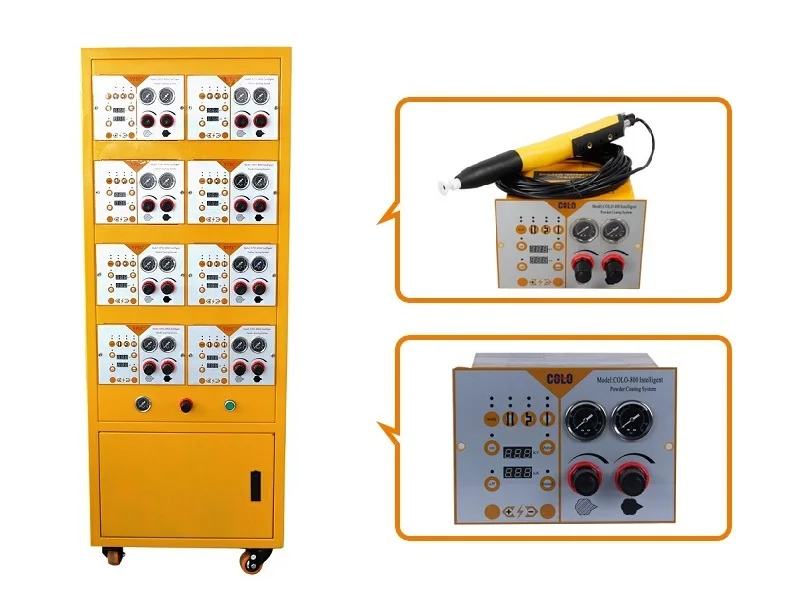

Automatic Powder Coating Gun System
1. A central control cabinet combines all gun controller for integrated operation, enbales to set parameters only at one host unit
to control whole system.
2. COLO-191S powder coating unit applies latest DVC technology allows a flexible and accurate setting of all parameters, giving
perfect finish with consistent quality.
3. The 100kv spray gun powerfully charge powders delivers high transfer efficiency, increase powder utilization
to control whole system.
2. COLO-191S powder coating unit applies latest DVC technology allows a flexible and accurate setting of all parameters, giving
perfect finish with consistent quality.
3. The 100kv spray gun powerfully charge powders delivers high transfer efficiency, increase powder utilization

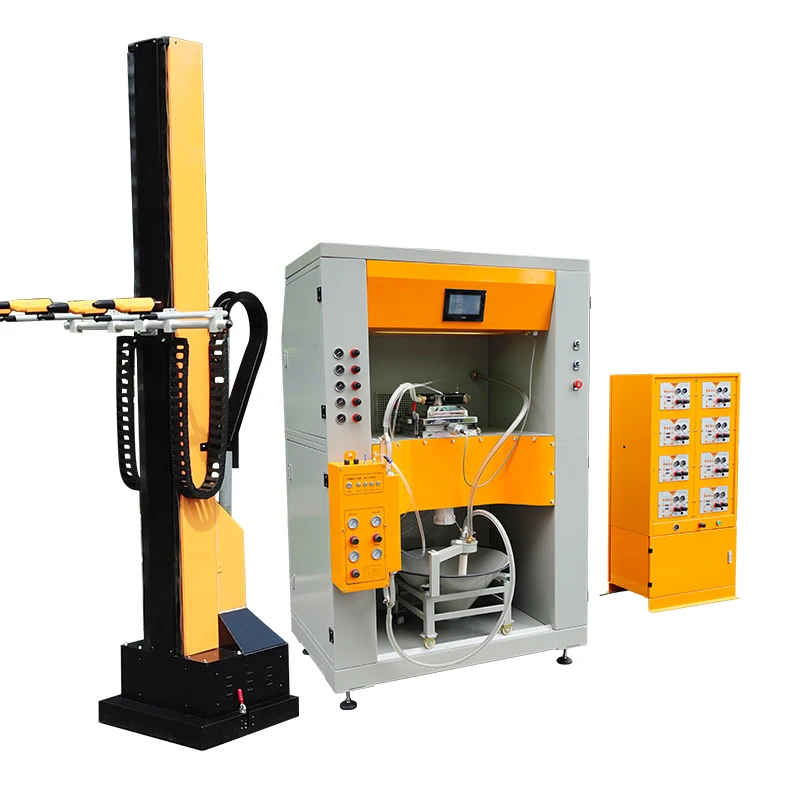

Powder Management Center
1. Allows directly placing the powder box on a funnel, flexible for color change. PLC touching screen panel makes it easy to handle the process.
2. Automatic cleaning of spray guns, powder hoses, injectors during color change, reduce manpower and increase efficiency.
3. Ultrasonic sieving of fresh powders and recovery powders, dissolving and loosening of powder accumulations for even powder
flow.
4. A closed powder hopper with a sener will detect the powder position and alarm a signal when a lack of powder.
2. Automatic cleaning of spray guns, powder hoses, injectors during color change, reduce manpower and increase efficiency.
3. Ultrasonic sieving of fresh powders and recovery powders, dissolving and loosening of powder accumulations for even powder
flow.
4. A closed powder hopper with a sener will detect the powder position and alarm a signal when a lack of powder.
Customer Feedback

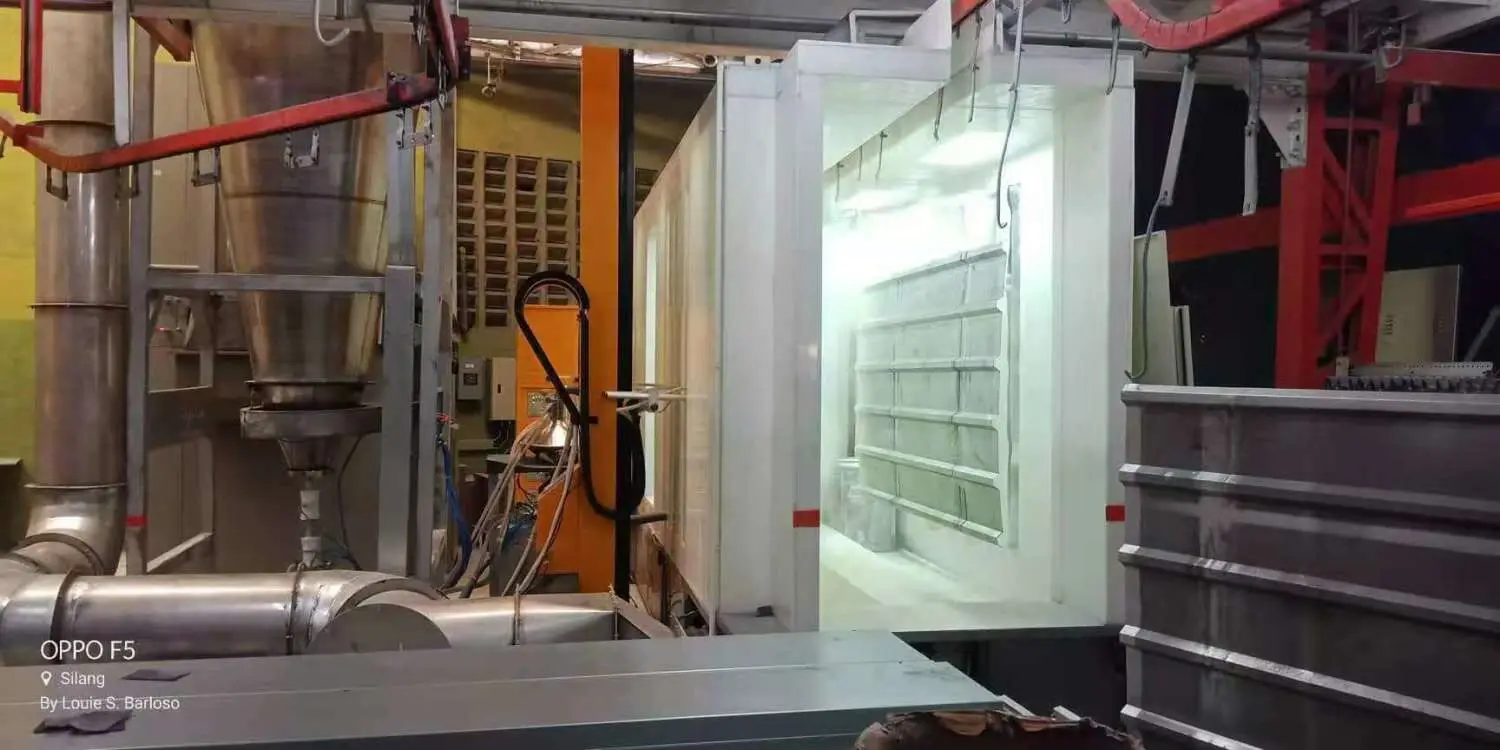

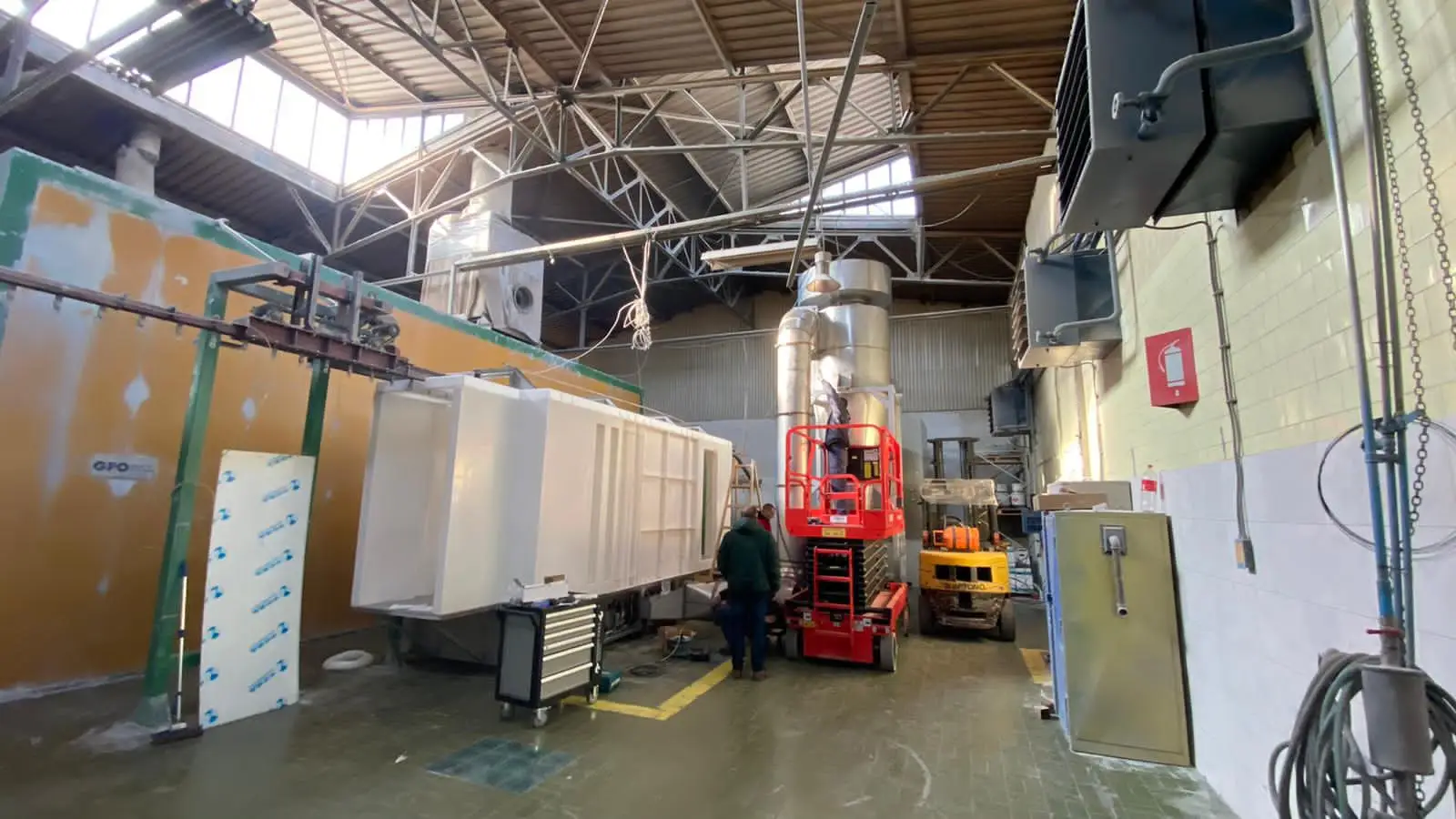

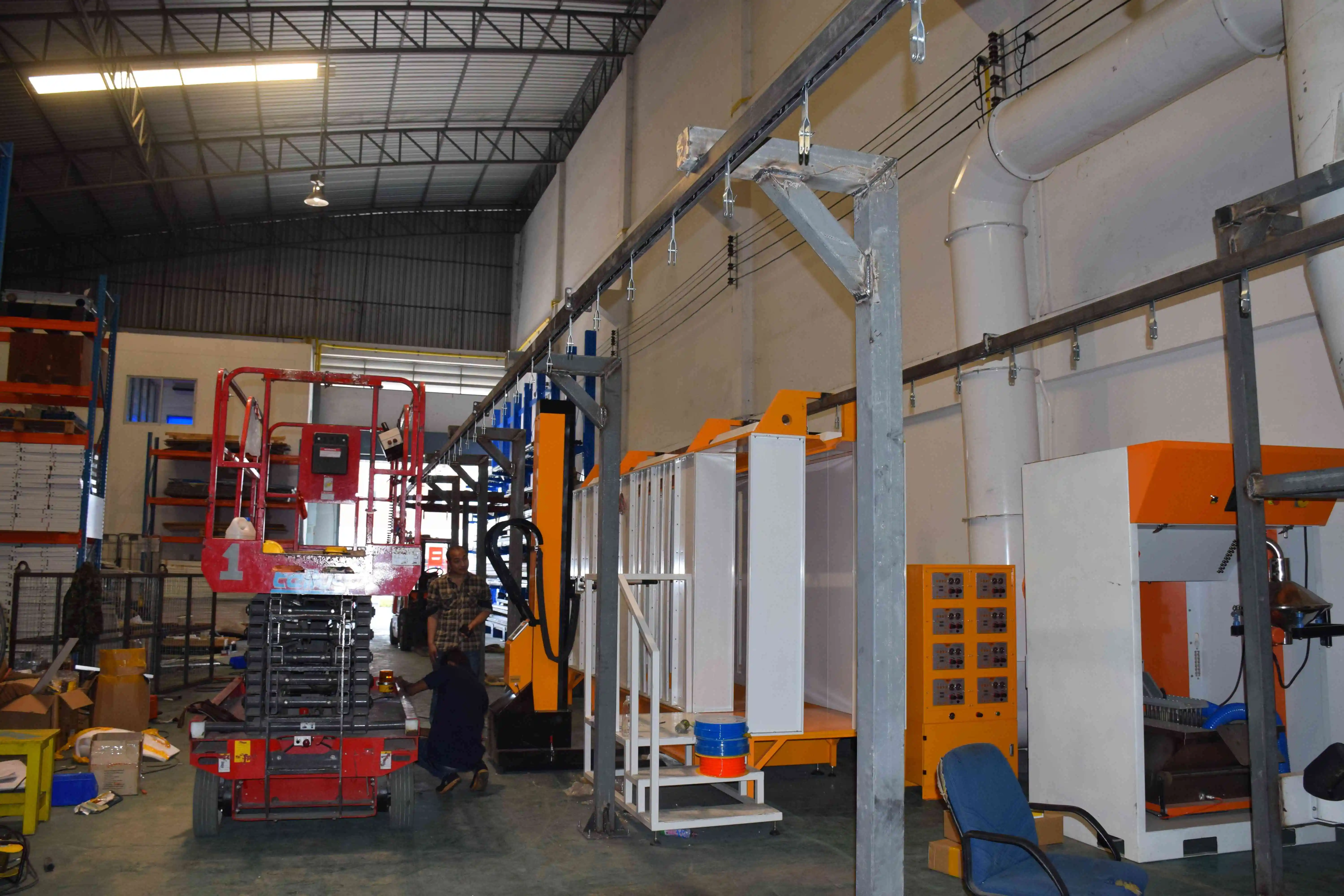

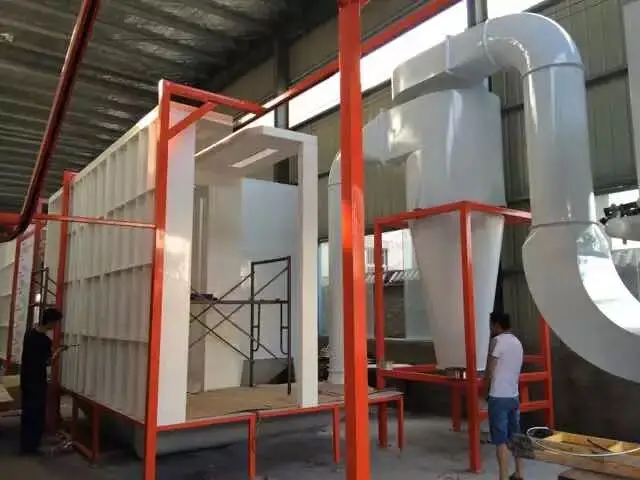

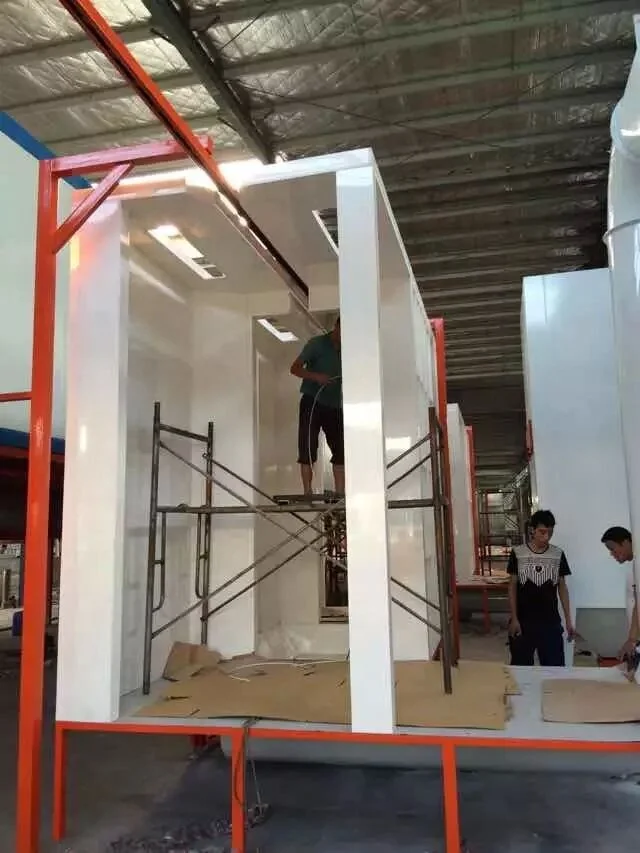

Cyclone Type Automatic Powder Booth for Powder Coating Line
Our automatic powder coating booth constructed with plastic booth chamber and stainless steel cyclone, which is specially built for multi-color coating lines. As the booth wall is made of anti-static plastic it does not attract powders which minimizes powder accumulation on the surface. It is the best choice for quick color change and high powder recovery demands.

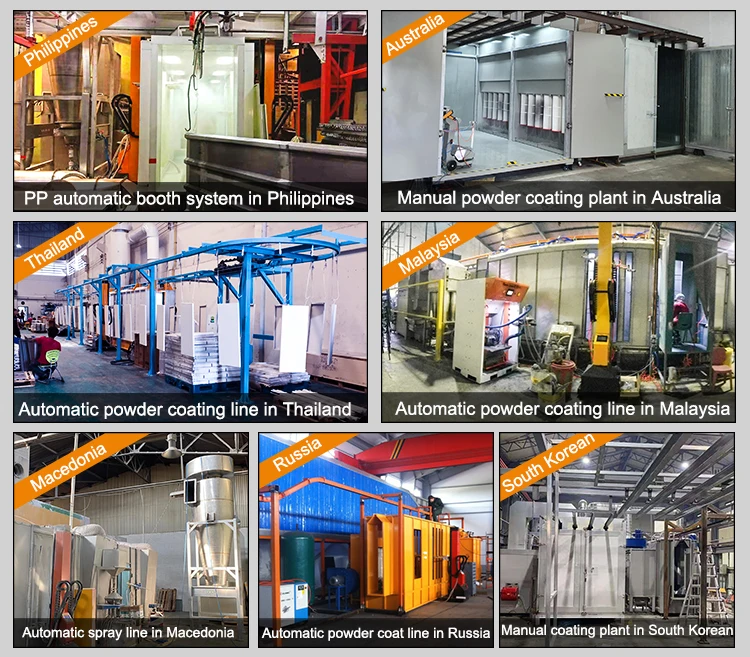

Customer Case
