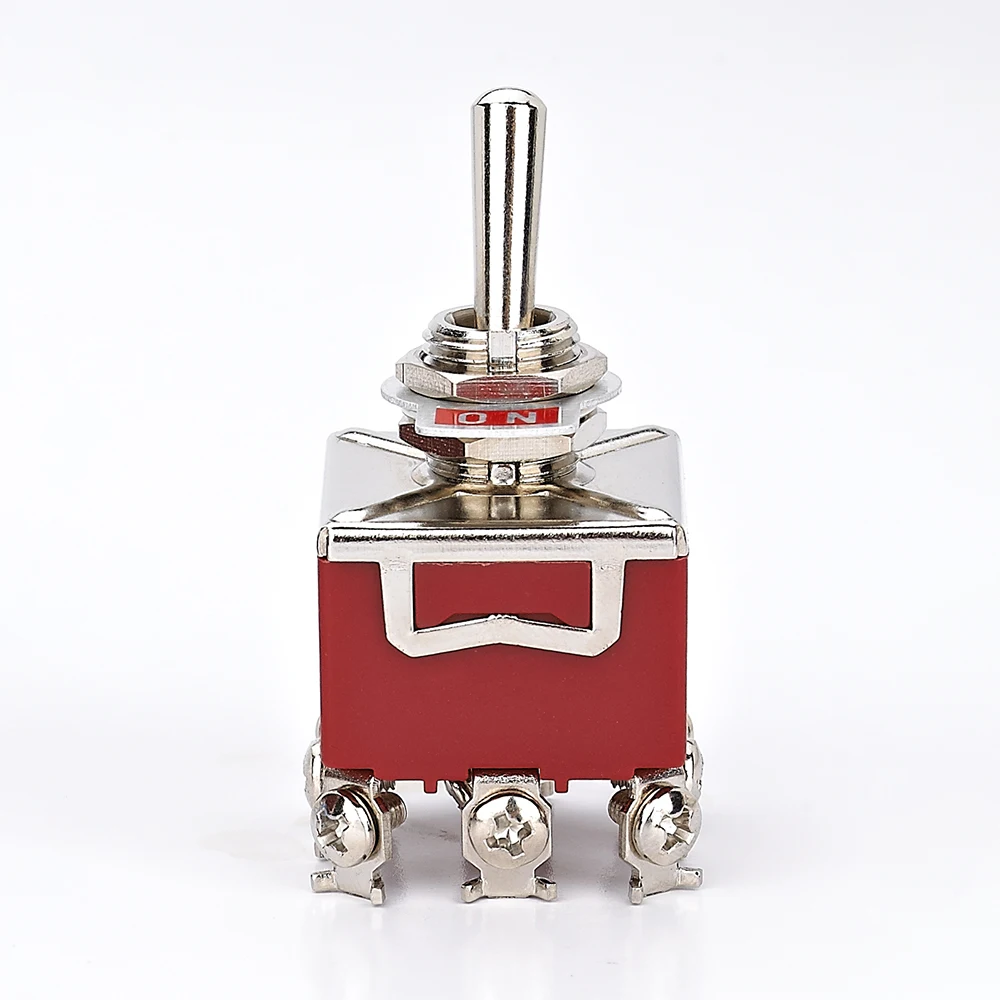

 25A 250V 3 position ON OFF ON electrical machine toggle switch



CHARACTERISTICS:



 Adopt thermoplastic crust,compact construction,and Simple installation;
May install the protecting cap,can against oil and dustproof;
Hand reset and automatic reset for flexible choice;
Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro motion tool etc.



Technical Specification:



Item		Data
Rating load		15A/250VAC,25A/250VAC
Operating frequency		30times/min
Insulation resistance		100MΩAbove DC500V
Contact resistance		25mΩ initial value
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	100,000 above
	Mechanical	500,000 above
Protection degree		IP40
Operating temperature		-25~+80℃
Operating humidity		<85%





 Mounting Holes & Product Structure:

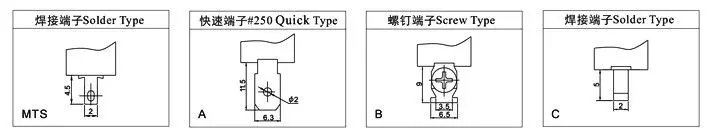

Terminal Form:





Dimension Drawing:

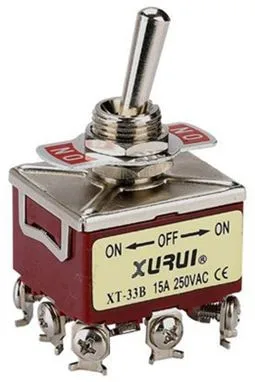

Model: XT-33B (ON-OFF-ON, TPDT)

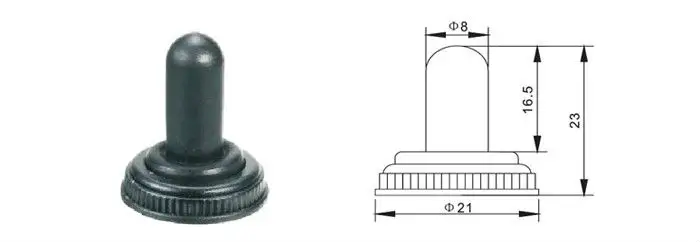

Protection Cap for waterproof:

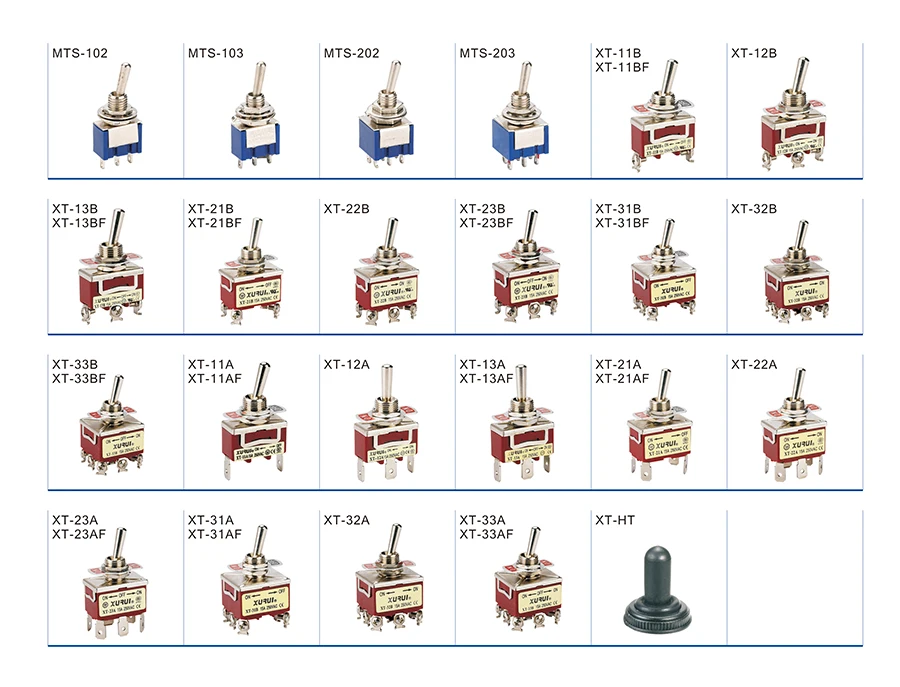

Our toggle switch full models:



Toggle switch certifications: UL KC TUV CE CCC
