High output low consumption graphite electrode making machine
- Category: >>>
- Supplier: Nantong Sunway Science And Technology Development Co. Ltd.
Share on (1282466767):
Product Overview
Description

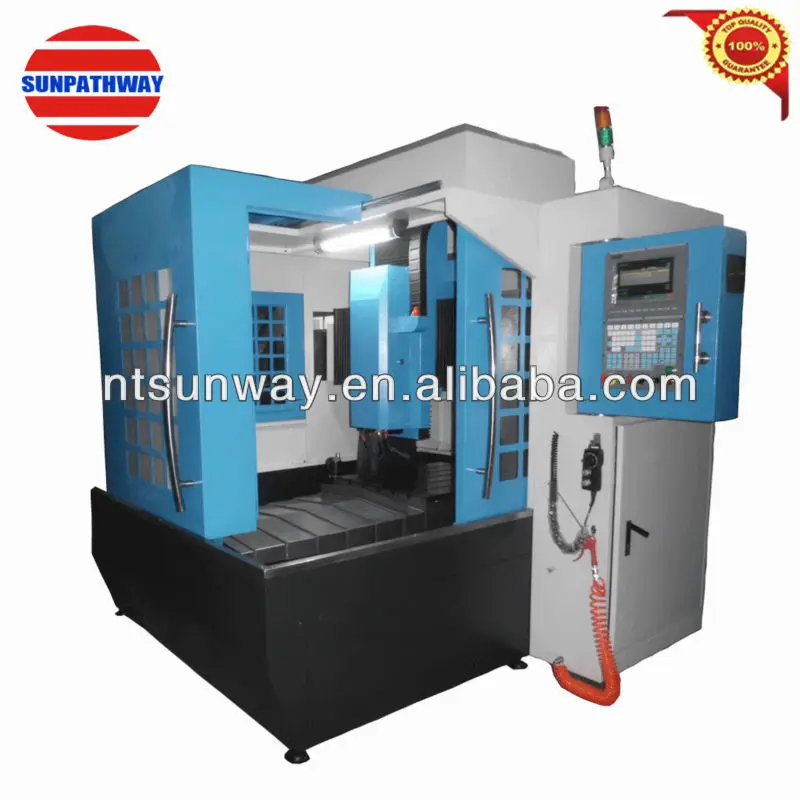

High output low consumption graphite electrode making machine
Product Description
model | DX-6050 |
Table size(LxW) mm | 550×650 |
T-slot mm | 5-14(center distance:110) |
Spindle speed r/min | 3000~24000 |
Spindle output power KW | 3.2 |
Spindle(diameter range of tools) | φ3-φ12 |
X axis mm | 600 |
Y axis mm | 500 |
Z axis mm | 250 |
The min distance from spindle to table | 100 |
Height of gantry door mm | 660 |
Permit height of gantry door mm | 350 |
Model of ball screw | 3205 |
Model of line rail | X:H30,Y:H25,Z:H25 |
Max machining speed mm/min | 7500 |
Positioning precision mm | 0.01/300 |
Resetting precision mm | 0.003 |
Max table load kg | 300kg |
Machine weight kg | 2500kg |
Overall dimension mm | 1800*1930*2000 |
Main configuration
1.electrical parts
No. | Name | Orgin | Note |
1 | Cnc system | SYNTEC or LNC |
|
2 | Drive motor of 3 axis | YASKAWA (Japan) | 0.85 KW |
3 | Electrical spindle | XURI or XINGCHENG | 3.2KW |
4 | Travel switch | Beijing |
|
5 | Relay | Schneider |
|
6 | transformer | Changnan(shanghai) |
|
7 | Switch power | Mean well(taiwan) |
|
8 | Electron hand wheel | Japan |
|
9 | Motor of water tank | ROCOI |
|
2.mechanical parts
No. | Name | Orgin | Note |
1 | Coupling shaft | Guangda |
|
2 | Screw of three axis | C3 level double nuts high precision | φ32×5 |
3 | Lubrication way | XUNRUN(nanjing) | Centralized Oiling |
4 | bearing | NSK or NACHI | high accurate non-match bearings |
5 | High precision Beeline rail of three axis | Hiwin or Yintai |
|
6 | Telescopic cover of Y asix | Made in China | Stainless steel |
7 | Accurate Round Nuts | YINSH or same grade |
|
8 | Bolts of whole machine | High Intensity 12.9 Grade(taiwan) |
|
9 | Body of machine | resin sand casting |
|
10 | Whole Machine Painting |
| Plastic Spraying |
