Locating bearing adapter sleeve H2316 stock bearing

Product Overview

Description

                         Locating bearing adapter sleeve H2316 stock bearing



1,H2316 stock bearing supply

2,Nut , locknut, lockwasher together used

3,ISO9001:2008 quality guarantee

4,OEM service offer

5,Free sample available



Introduction about adapter sleeve :

Adapter sleeves are suitable where bearings with a tapered bore are to be located on cylindrical shafts. They do not need to be secured on the shaft by any additional means. The bearings can be positioned at any point on smooth shafts. Adapter sleeves comprise slotted adapter sleeves, locknuts and tab washers. For larger sizes, retaining brackets are used instead of tab washers.





Stock bearing series we can supply :





Adapter Sleeve Applications :

1)Transmission, gearboxes, wheel hubs,

2)Cranes,elevator and lifting equipment

3)Agricultural ,pumps.mining

4)rail and transport use

5)Marine and shipping



Stock Bearing adapter sleeves design draft:



Stock bearing Adapter sleeve specifications  :



Bearing No.	Size				Supporting bearing	Weight(kg)
	d	d1	B1	d2
H202	15	12	19	25	1202K
H203	17	14	20	28	1203K
H204	20	17	24	32	1204K	0.036
H205	25	20	26	38	1205K	0.064
H206	30	25	27	45	1206K	0.086
H207	35	30	29	52	1207k	0.12
H208	40	35	31	58	1208K	0.16
H209	45	40	33	65	1209K	0.21
H210	50	45	35	70	1210K	0.24
H211	55	50	37	75	1211K	0.28
H212	60	55	38	80	1212K	0.31
H213	65	60	40	85	1213K	0.36
H214	70	60	41	92	1214K	0.55
H215	75	65	43	98	1215K	0.66
H216	80	70	46	105	1216K	0.81
H217	85	75	50	110	1217K	0.94
H218	90	80	52	120	1218K	1.1
H219	95	85	55	125	1219K	1.25
H220	100	90	58	130	1220K	1.4







Model	Dimensions mm						Wt kg	components
	d1	d	d2	B1	B2	G		cover	locknut	lockwasher
H2307 H2308 H2309	30 35 40	35 40 45	52 58 65	43 46 50	9 10 11	M35×1.5 M40×1.5 M45×1.5	0.17 0.22 0.28	A2307 A2307 A2309	KM07 KM08 KM09	MB07 MB08 MB09
H2310 H2311 H2312	45 50 55	50 55 60	70 75 80	55 59 62	12 12 13	M50×1.5 M55×2 M60×2	0.36 0.42 0.48	A2310 A2311 A2312	KM10 KM11 KM12	MB10 MB11 MB12
H2313 H2314 H2315	60 60 65	65 70 75	85 92 98	65 68 73	14 14 15	M65×2 M70×2 M75×2	0.55 0.90 1.05	A2313 A2314 A2315	KM13 KM14 KM15	MB13 MB14 MB15
H2316 H2317 H2318	70 72 80	80 85 90	105 110 120	78 82 86	17 18 18	M80×2 M85×2 M90×2	1.30 1.45 1.70	A2316 A2317 A2318	KM16 KM17 KM18	MB16 MB17 MB18
H2319 H2320 H2322	85 90 100	95 100 110	125 130 145	90 97 105	19 20 21	M95×2 M100×2 M110×2	1.90 2.15 2.75	A2319 A2320 A2322	KM19 KM20 KM22	MB19 MB20 MB22
H2324 H2326 H2328	110 115 125	120 130 140	155 165 180	112 121 131	22 23 24	M120×2 M130×2 M140×2	3.20 4.6 5.55	A2324 A2326 A2328	KM24 KM26 KM28	MB24 MB26 MB28

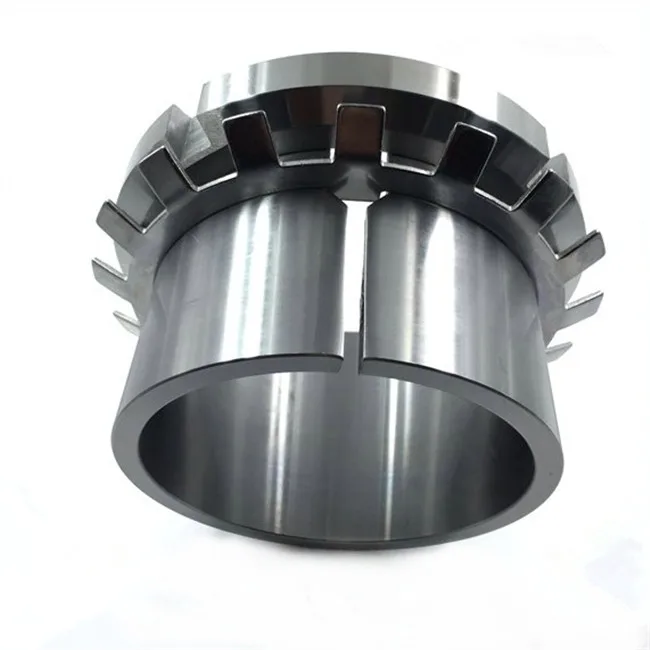

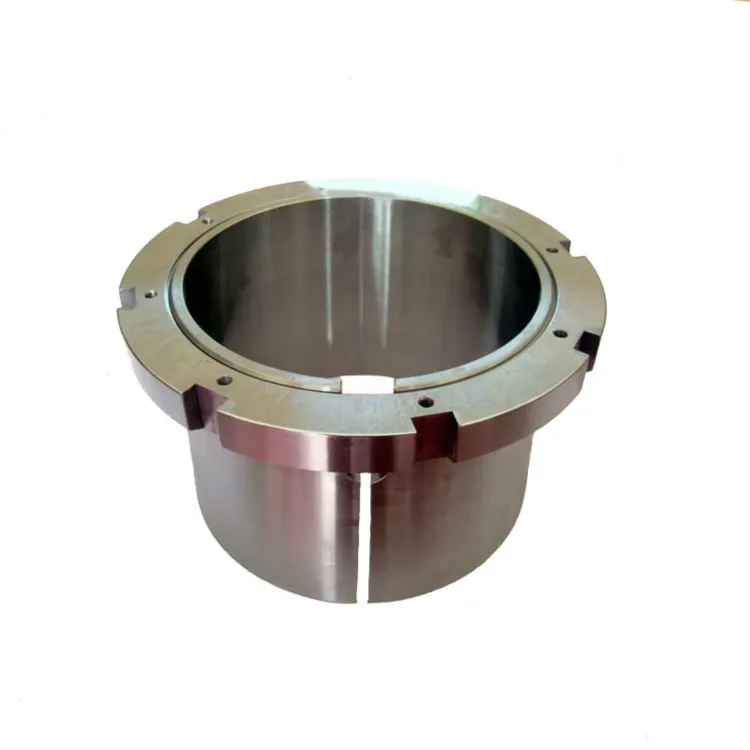

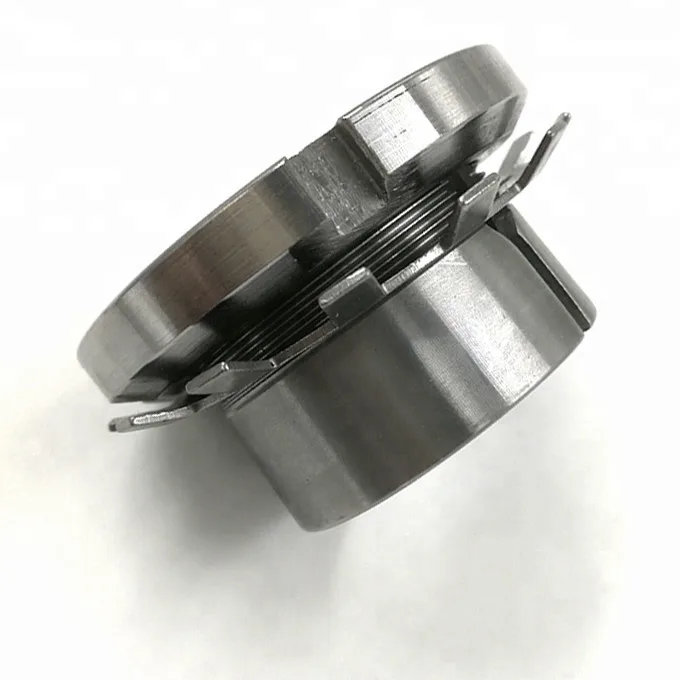

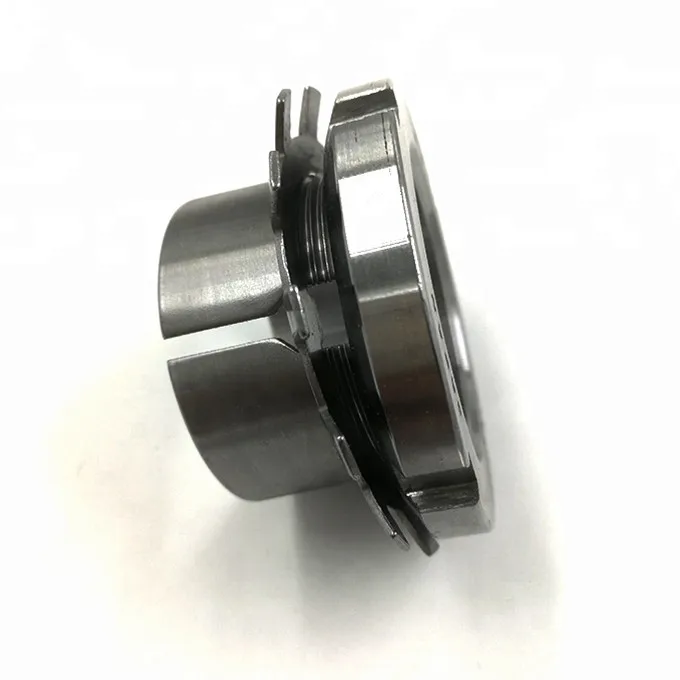

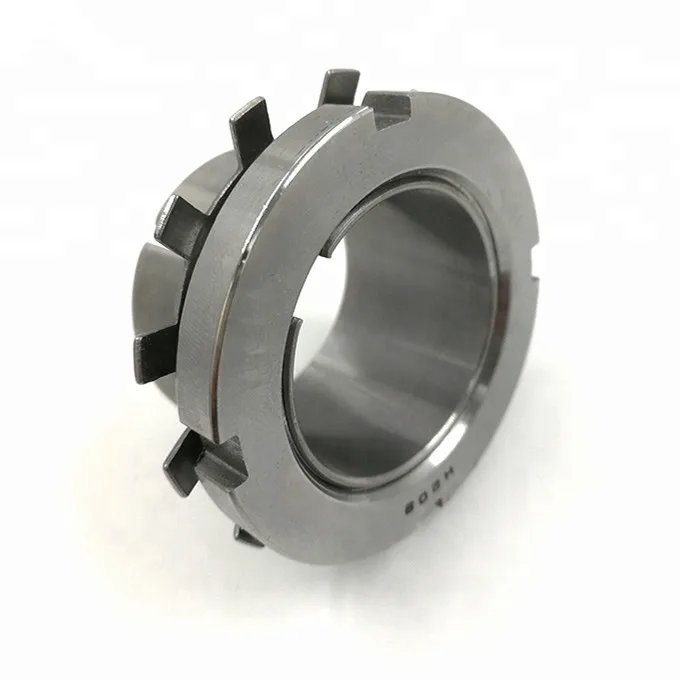

tapered sleeves for bearings pictures we can supply :
