wave soldering machine pcb linking conveyor WL350

Share on (1283722965):


Price:$1.00 - $2.00

Quantity:


Product Overview

Description

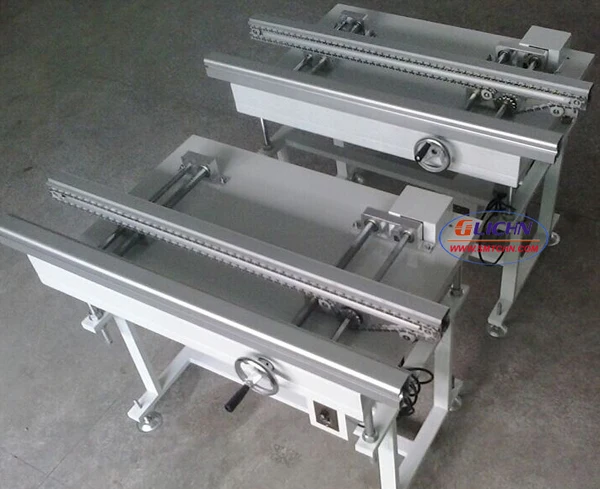

wave soldering machine conveyor loader WL350

( wave solder linking conveyor)


Product introduction










Features:





1.The connection device on the wave soldering is specially used in the input device before dual wave soldering of the PCB

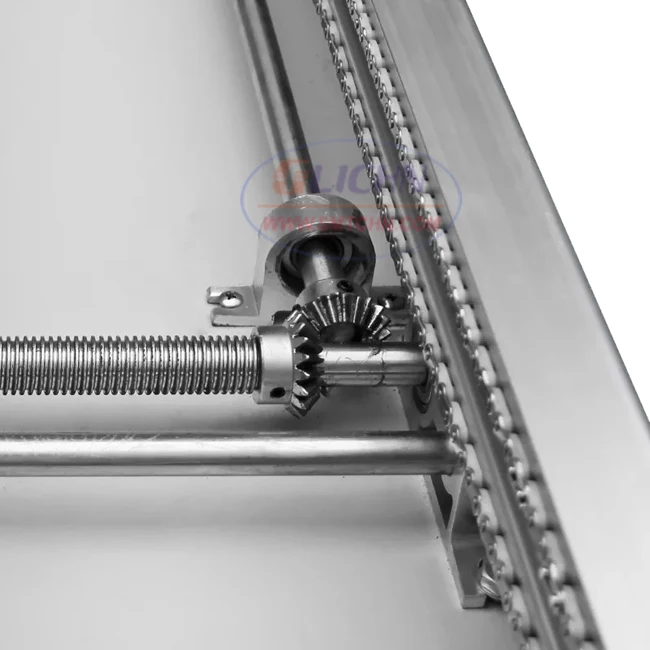

2.The angle of the gradient of the front and back end can be adjusted by the screw respectively





3.The nylon rolling chain allows stable conveying and the speed is adjustable.



Technical parameters









Specifications:

PCB width: Max.50-350mm



PCB transmission direction: L→R(R→L option)



PCB transmission speed: 0-2m/min



Transmission motor: AC220V 15W



Power supply: 220V 50Hz



Conveyor length: 1000mm



Weight: Approx.45kg

Dimension: 1000×690×750mm




Packaging & Shipping

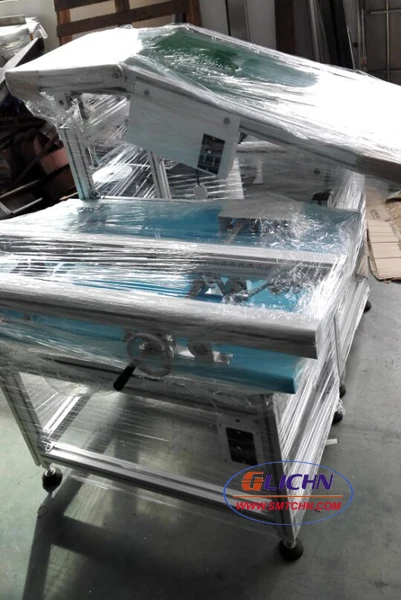

Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
SMT machine packaging 33.jpg
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;


SMT transportation.jpg








Company introduction


GLICHN found in 2010,Specializing in SMT equipment manufacturing services and sales of peripheral products. Factory is located in shunyi district of Beijing and shenzhen baoan district
SMT class:pick and place machine,small and middle size reflow oven, manual and semi-automatic solder paste printer,PCB loader and unloader,PCB magazine rack,SMD component counter,solder paste and chip production line etc.
THT Class:wave soldering machine, Spray tin stove,cut foot and forming machine,Plug-in production line etc
Others :Spin coater,Dispensing machine,nozzles,feeder,belt ,driver, motor,cylinder,High temperature tape,valve,etc


smt pcb assembly.jpg





Our Service


1. We’ll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
5.Engineers available to service machinery overseas.
