Worm gear for wind energy
US $2.80-$3.80

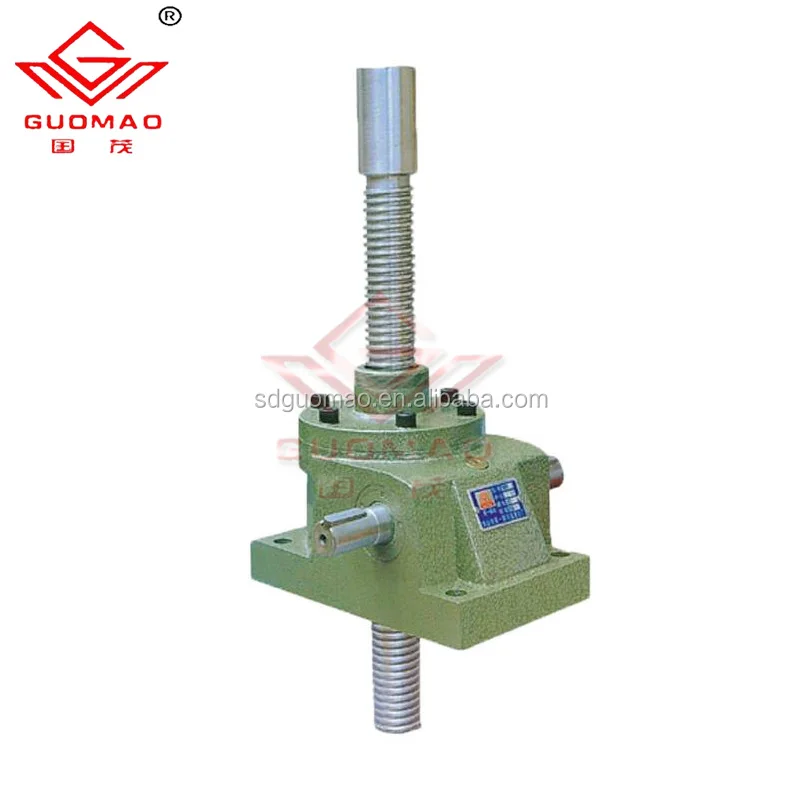

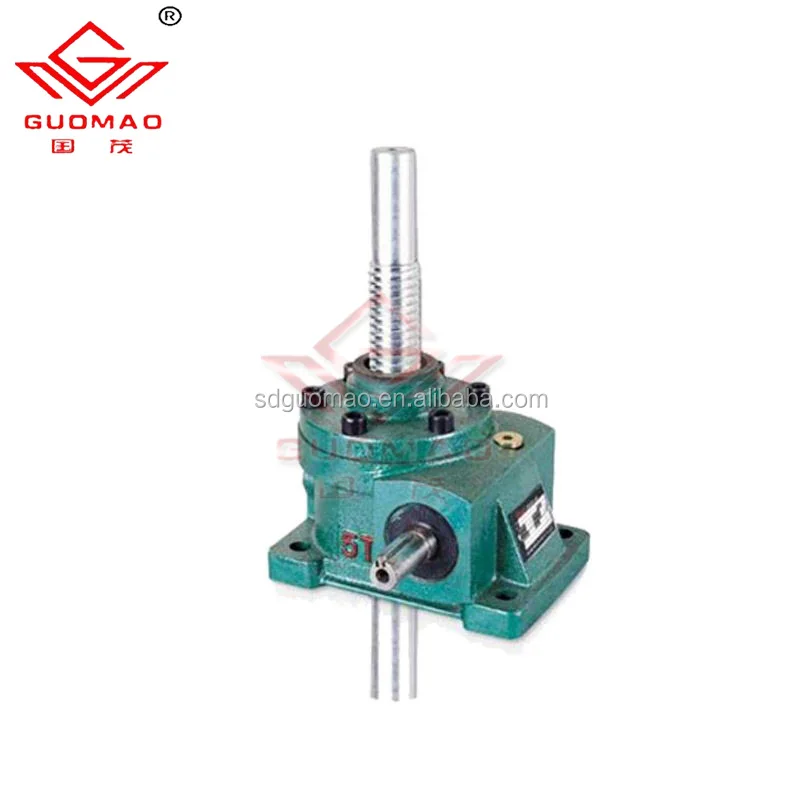

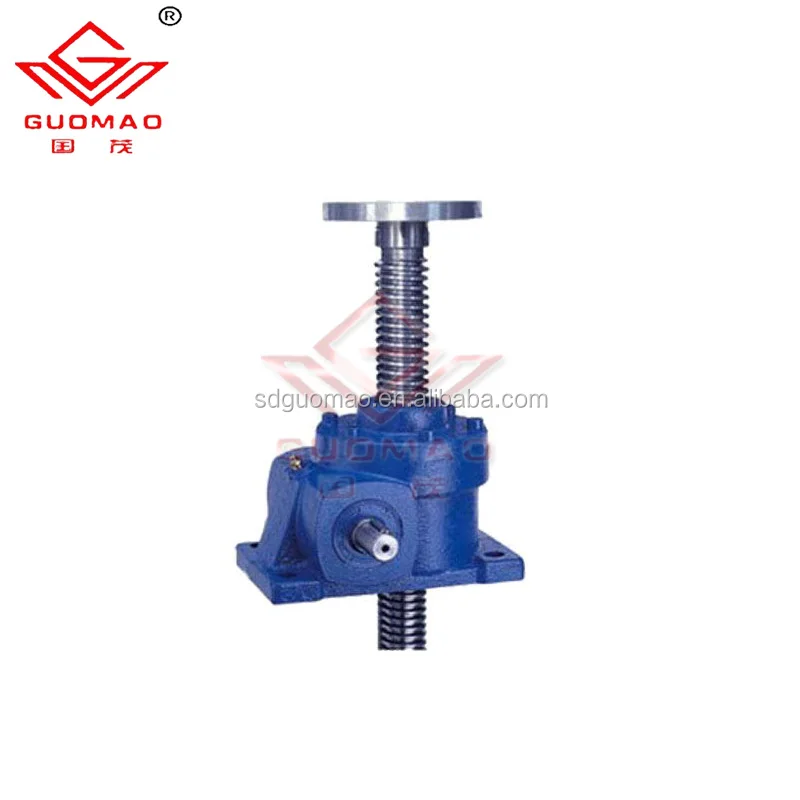

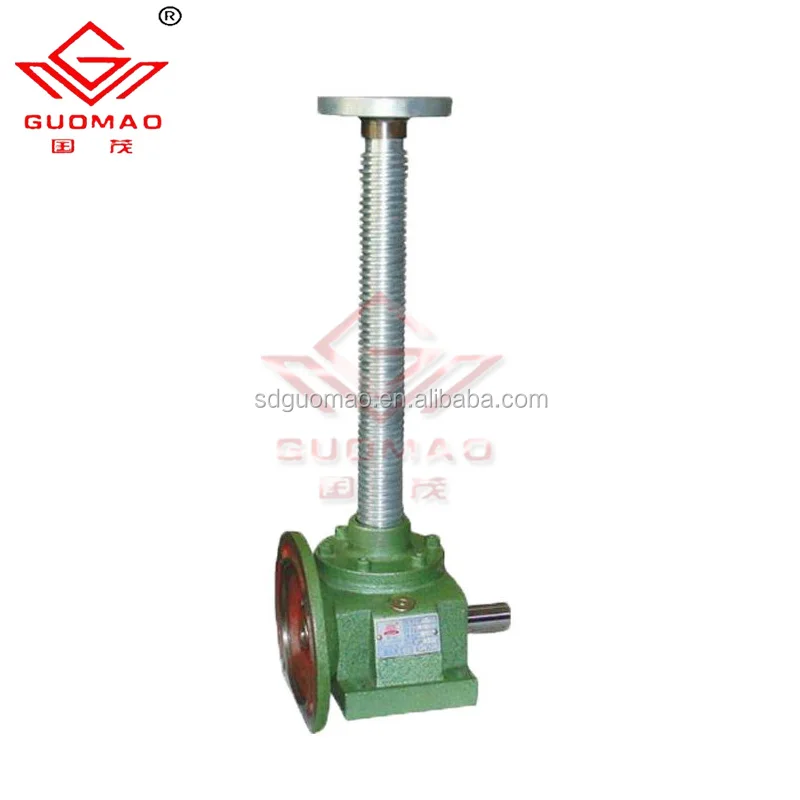

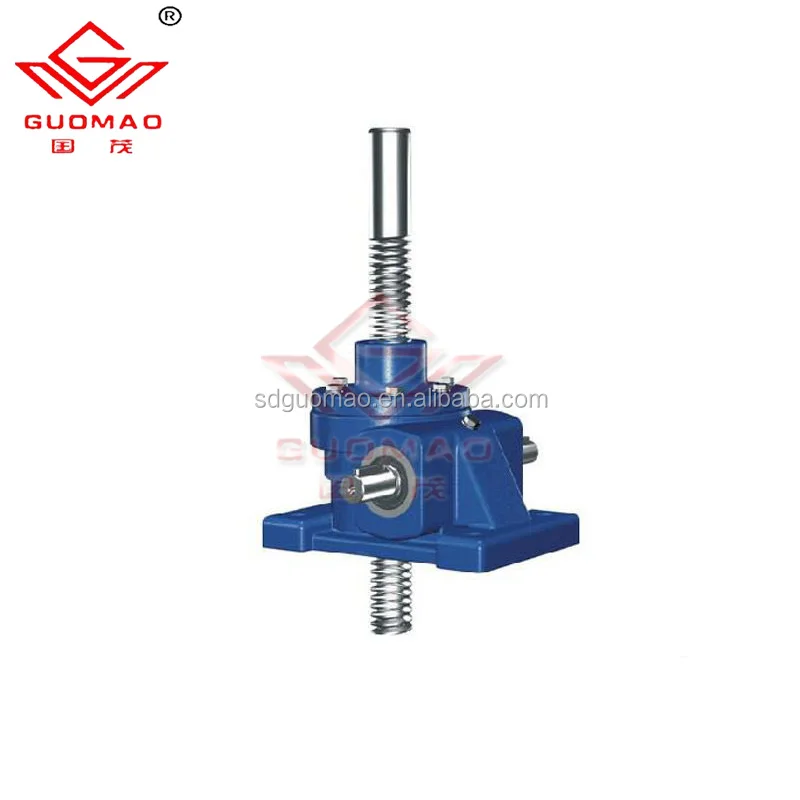

China SWL gear reducer with worm screw jack for electrical engineering adjustable screw jacks
- Category: Worms >>>
- Supplier: Shandong Guomaoguotai Reducer Co. Ltd. [Shandong China]Shandong
Share on (1284637415):
Product Overview
Description
China SWL gear reducer with worm screw jack for maintainance China SWL gear reducer with worm screw jack for maintainance adjustable screw jacks
SWL jack worm SWL jack worm electric screw lift jack
Customized small SWL screw jack
| 1. Brief Introduction | |
Function: Worm gear screw jack is a basis jack-up part, accomplanish the functions such as lifting, drop, push and inverting through worm gear drives screw.
Application Industry: WSH series worm gear screw jak is applied to the fields such as Aircraft maintenance platform, machinery, metallurgy, water conservancy,chemical industry, medical treatment, culture and hygienist etc.
Advantages: Compact configuration, small size, lightweight, convenient installation, flexible operation, high reliability and stability, also has a long service life and more connection form etc. |

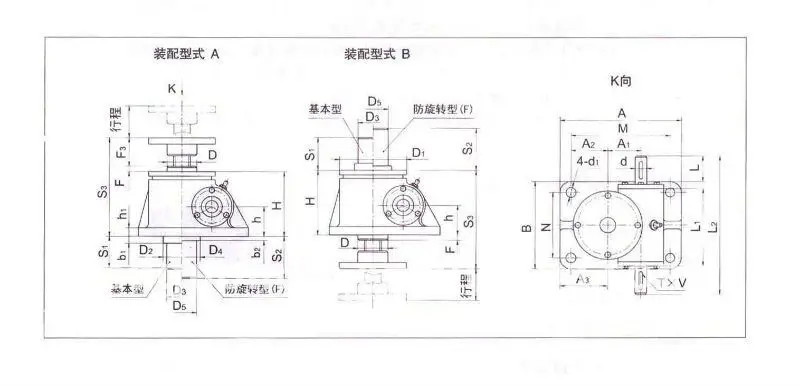

2. Assembly Type and Structure Mode
3. Different ends
4. Mainly Specification:
1. Model: SWL 2.5~120
2. Has self- locking ability: trapezoid screw has self-lock function, it can hold up load without braking device when screw stops traveling.
3. Can be driven directly by motor or other power or manual.
4. Low speed, low frequency:Be suitable for heavy load, low speed, low service frequency.
5. Has different configuration form and assembly type, and the lifting height can highly customized according to users’ demand.
Arrangement: single units,in pairs or multiple jacks systems,fully synchronization
5. Parameter
| Type | Structural Style | Model | Output Torque | Screw Diameter | Max.Power | Net Weight (without screw stroke) |
| (KN) | (mm) | (KW) | (KG) | |||
| SWL Screw Jack |
I Type
| SWL2.5 | 25 | Tr30X6 | 0.55 | 7.3 |
| SWL5 | 50 | Tr40X7 | 1.1 | 16.2 | ||
| SWL10 | 100 | T58X12 | 2.6 | 25 | ||
| SWL15 | 150 | T58X12 | 2.6 | 25 | ||
| SWL20 | 200 | Tr65X12 | 3.7 | 36 | ||
II Type | SWL | 250 | Tr90X16 | 4.8 | 70.5 | |
| SWL35 | 350 | Tr100X18 | 6 | 87 | ||
| SWL50 | 500 | Tr120X20 | 7.5 | 420 | ||
| SWL100 | 1000 | Tr160X23 | 15 | 1010 | ||
| SWL120 | 1200 | Tr180X25 | 17.5 | 1350 |
6. Packaging
We have flexible packing method to protect the goods.
7. Successful case for airlines
8. Why choose us
- Whole program including units of high quality Screw Jacks and T steering gearbox, motor etc.
- Covers an area of 800,000 square meters, with more than 2,500 staffs
- We're the biggest screw jack manufacturer in China
- Professional technique designing engineers
