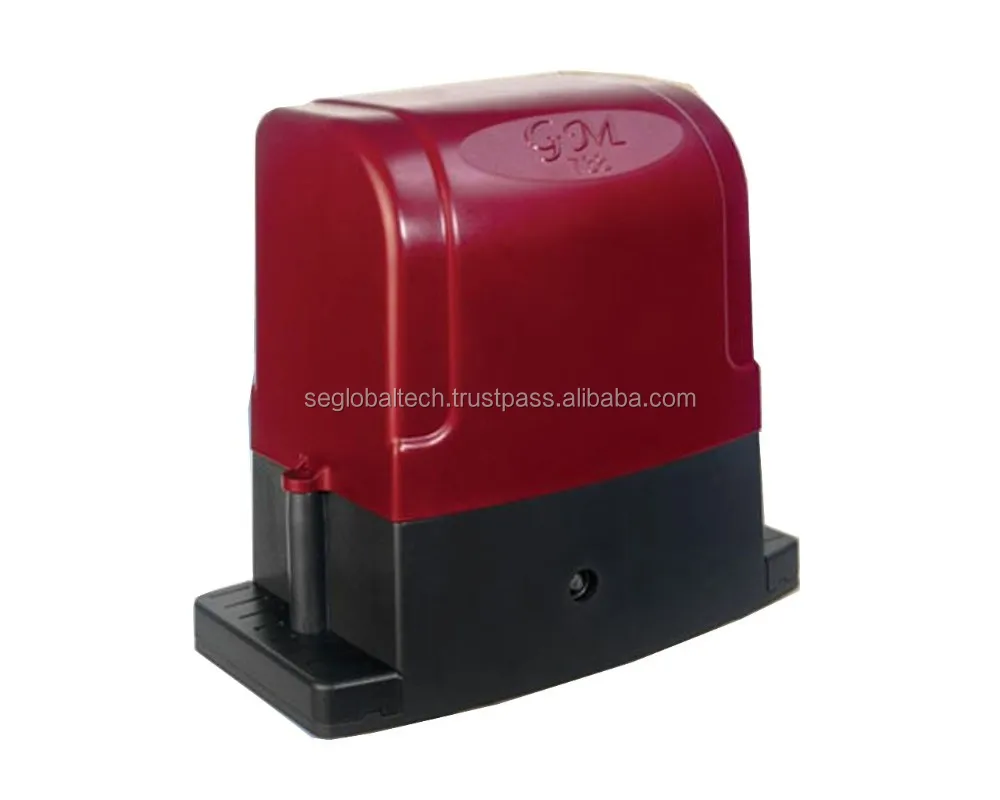

AUTOGATE MOTOR GM 738 DC SLIDING MOTOR

Power Supply : AC 220 ~ 240V, 50Hz, single phase

Operating Voltage : DC 24V for normal speed ; DC 12V for cushioning speed

Motor Type : oil bath gear box

Motor Rotation Speed : 3500RPM

Operating Ambient Temperature : -10°C to 40°C

Electronic Controller : microcomputer based

Max. Weight of Gate : 700kg

Gate Speed : 15 metre / min

Safety Clutch : electronic counter technology auto reverse

Protection Class : IP55

Remote Controller : 2 channel, 330MHz UHF

Manual Operation : special released key for manual operate

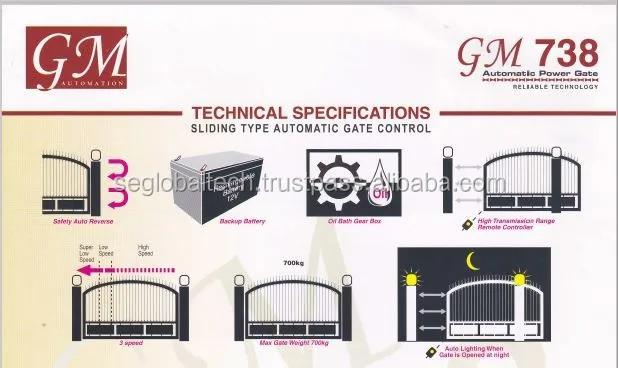

Detailed Images

Packing & Delivery

Packing Details :

GM 738 DC sliding motor x 1 unit

DC 03 3 speed DC sliding control panel x 1 unit

12v 7ah battery x 1 unit

12v 9v 0v 9v 12v transformer x 1 unit

12'' x 10'' PVC box

2CH 330mhz remote control (transmitter) x 3 pcs

2CH 330mhz remote receiver x 1 unit

1 metre metal gear rack x 4 pcs
