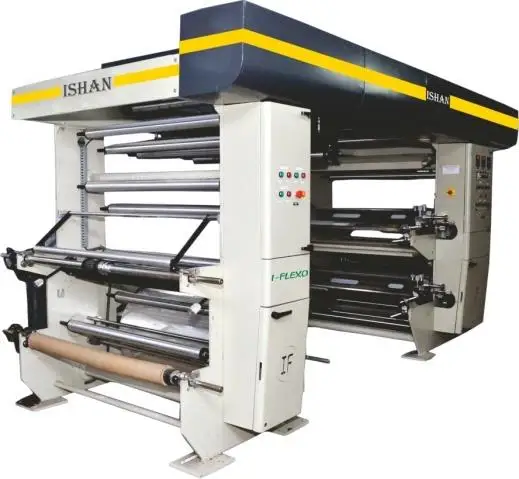

4 Color Flexo Printing Machine
4 Color Flexo Printing Machine
4 Color Flexo Printing Machine

4 Color Flexo Printing Machine

Share on (128629249):


Price:RUB 1,912,090.00 - RUB 11,472,540.00

Quantity:


Product Overview

Description

  • 2 Colors, 4 Colors, 6 Colors, 8 Colors for Printing on LDPE/LLDPE/HDPE/HM HDPE, BOPP,PP, Polyester Films/Paper
Description 2 Color 4 Color 6 Color 8 Color
Model No. IF 2220 IF 4420 IF 6620 IF  8820
Dimensions in FtsLength X Width X Height 13 X 6 X7 15 X 6 X 9 16 X 6 X 10 20 X 8 X 15
Web Width 14”- 20”- 26”-32”- 42” 14”- 20”- 26”-32”- 42” 14”- 20”- 26”-32”- 42” 14”- 20”- 26”-32”- 42”
Printing Width  12”- 18”- 24”- 30”- 40” 12”- 18”- 24”- 30”- 40” 12”- 18”- 24”- 30”- 40” 12”- 18”- 24”- 30”- 40”
Print Repeat     8” to 36” 8” to 36” 8” to 36” 8” to 36”
Max. Reel Dia 30” 30” 30” 30”
Printing Speed up to 70 Meter Per Minute 70 Meter Per Minute 70 Meter Per Minute 70 Meter Per Minute
POWER REQUIREMENTS
Main Drive A.C
Blower A.C. Motor
Web Aligner A.C. Motor
Winder Motor
Heating Load

3 HP
2 HP
0.5Hp

4 HP
6KW

3 HP
4 HP
0.5Hp

4 HP
12 KW

5 HP
6 HP
0.5Hp

4 HP
18 KW

7.5 HP
8 HP
0.5Hp

4 HP
24 KW
Printing Option: 2, 1+1 4, 1+3, 2+2 6, 5+1, 2+4, 3+3 8, 1+7, 2+6, 3+5, 4+4

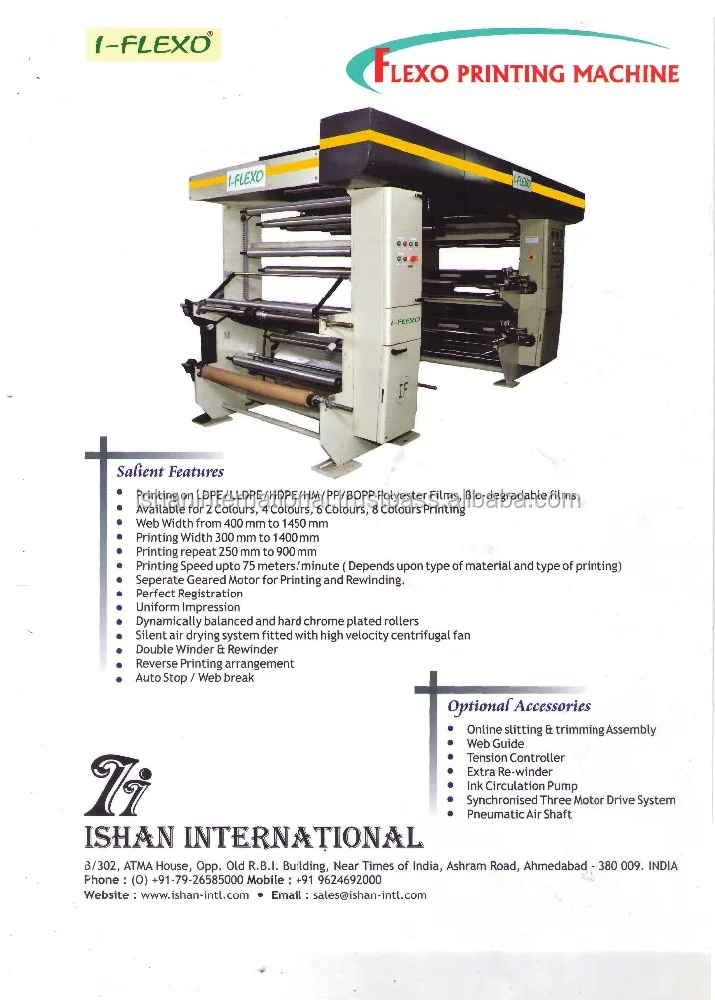

Salient Features:

  Printing on LDPE/LLDPE/HDPE/HM/PP and Polyester Films/Paper
  Perfect Registration
  Uniform Impression
  Double Winding and unwinding Stand
  Reverse Printing arrangement
  Auto Stop for web break
  All rollers are dynamically balanced and hard chrome plated
  Silent air drying system fitted with high velocity centrifugal fan



Optional Accessories

  Online slitting & trimming Assembly
  Web guide
  Tension Controller
  Extra re-winder
  Ink Circulation Pump
  Synchronised Three Motor Drive System
  Chambered Doctor Blade
  Pneumatic Air Shafts
