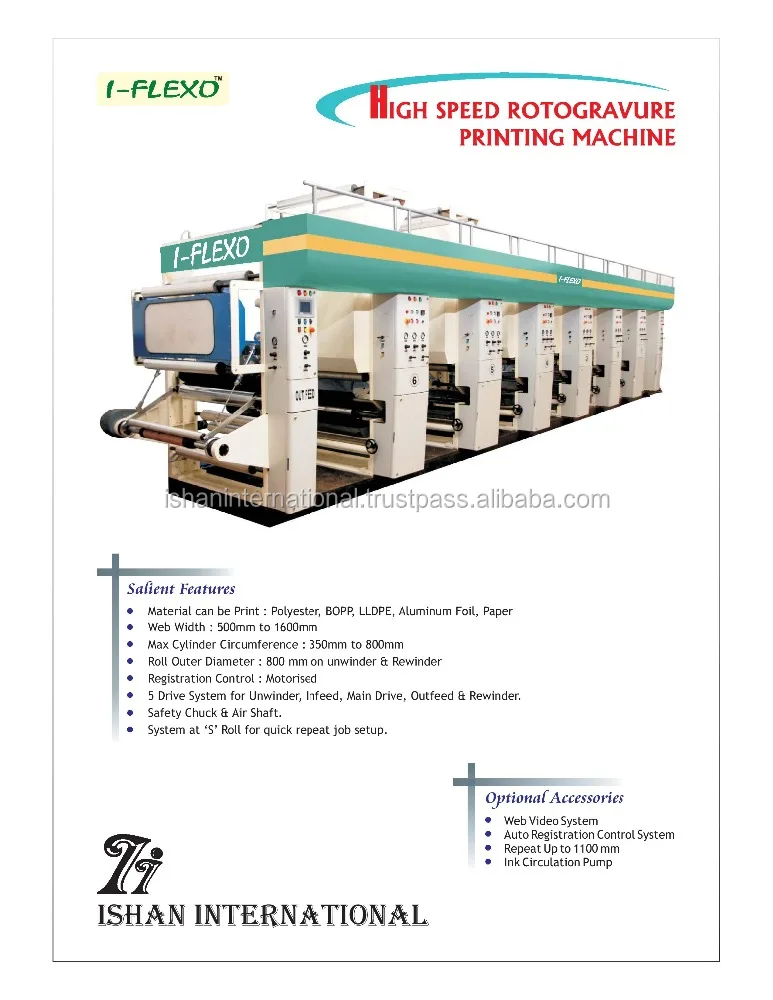

  • Aluminium Foil Rotogravure Printing Machine 4 color rotogravure 1200mm Printing Machine speed 100mpm Doctor Blade TensionControl
Aluminium Foil Rotogravure Printing Machine 4 color rotogravure 1200mm Printing Machine speed 100mpm Doctor Blade TensionControl
Aluminium Foil Rotogravure Printing Machine 4 color rotogravure 1200mm Printing Machine speed 100mpm Doctor Blade TensionControl
Aluminium Foil Rotogravure Printing Machine 4 color rotogravure 1200mm Printing Machine speed 100mpm Doctor Blade TensionControl
Aluminium Foil Rotogravure Printing Machine 4 color rotogravure 1200mm Printing Machine speed 100mpm Doctor Blade TensionControl

Aluminium Foil Rotogravure Printing Machine 4 color rotogravure 1200mm Printing Machine speed 100mpm Doctor Blade TensionControl

Share on (128629646):


Price:$101,000.00 - $110,000.00

Quantity:


Product Overview

Description









































































































Machine TypeRotogravure Printing MachineRotogravure Printing MachineRotogravure Printing Machine
No. of Station Unit2 Colors4 Colors6 Colors
Model No.IF-2220 RGIF-4220 RGIF-6220 RG
Maximum Printing width700MM(28”)/1050mm(42”)700mm(28”)/1200mm(48”)700mm(28”)/1200mm(48”)
Printing Variable CylinderFrom minimum 350 mm. To Maximum 800mmFrom minimum 300 mm. To Maximum 800mmFrom minimum 300 mm. To Maximum 800mm
Maximum Reel diameter700 mm at Un-winder700 mm at Un-winder700 mm at Un-winder
Core inner diameter76mm. at Un-winder  and Winder76mm. at Un-winder
76mm. At Winder		76mm. at Un-winder  and Re-winder
Power RequirementMain drive 3 H.P. A.C.
Blower 1 H.P.
Heaters 6 H.P. X 2
Torque motor 2 H.P.
Web aligner 0.5 H.P.		Main drive 5 H.P. A.C.
Blower 1 H.P.
Heaters 4 H.P. X 4
Torque Motor2 H.P.
Web aligner 0.5 H.P		Main drive 5 H.P. A.C. / 7.5 H.P. A.C.
Blower 1 H.P. X 6
Heaters 4 H.P. X 6
Web aligner 0.5 H.P
Un-winder1 set Mechanical Brake Shaft made from EN-8 material with collar nut1 set
Magnetic Powder Brake
Shaft made from EN-8 material with collar nut		1 set  Magnetic Powder Brake
Shaft made from EN-8 material with collar nut
Printing Stations

  • 2 set  body

  • Gear Boxes with highly efficient bevel gears.

  • Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene.

  • Draying hoods 2 nos.

  • Design in such away to blow uniform of Web.

  • Flow can be control by damper.

  • Digital Temperature controller are Provided.

  • Doctor blade with oscillation system.

  • It can be adjustable to different wiping angle.

  • Balanced guide rolls from Aluminum pipe.




  • 4 set  body

  • Gear Boxes with highly efficient bevel gears with neutral arrangement.

  • Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene.

  • Draying hoods 2 nos.

  • Design in such away to blow uniform of Web.

  • Flow can be control by damper.

  • Blind Temperature controller/ indicators are provided.

  • Doctor blade with oscillation system.

  • It can be adjustable to different wiping angle.

  • Balanced guide rolls from Aluminum pipe.




  • 6 set  body

  • Gear Boxes with highly efficient bevel gears with neutral arrangement.

  • Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene.

  • Draying hoods 2 nos.

  • Design in such away to blow uniform of Web.

  • Flow can be control by damper.

  • Blind Temperature controller/indicators are provided.

  • Doctor blade with oscillation system.

  • It can be adjustable to different wiping angle.

  • Balanced guide rolls from Aluminum pipe.


Re-winder

  • 1 set.

  • Shaft with collar and nut.




  • 1 set.

  • Shaft with collar and nut.

  • For rewinding Torque motor assembly




  • 1 set.

  • Shaft with collar and nut.

  • Tension Controller on Re-winder


Machine Speed

  • Mechanical up to 100 m/min.

  • (Depending on type of inks, nature and thickness of material printing cylinder.)




  • Mechanical up to 100 m/min.

  • (Depending on type of inks, nature and thickness of material printing cylinder.)




  • Mechanical up to 100 m/min.

  • (Depending on type of inks, nature and thickness of material printing cylinder.)


Material to PrintBOPP, LDPE, POLYESTER etc.BOPP,LDPE, POLYESTER etc.BOPP, LDPE, POLYESTER etc.
Counter Meter

  • Meter per Minute counter




  • Meter per Minute counter




  • Meter per Minute counter



Optional Accessories
























 Three drive system
 Tension Controller
 Auto registration system
 Web video
 Ink Circulation Pumps

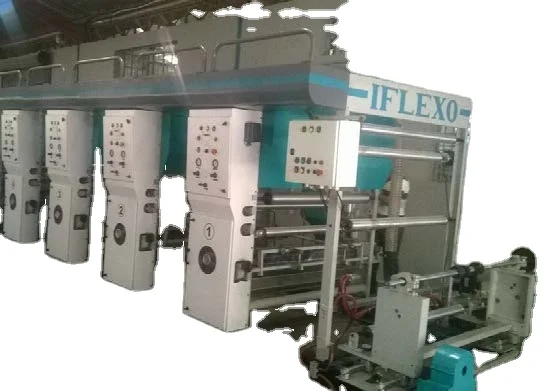

4 color roto gravure.bmp.jpg









Product Description


Rotogravure Printing Machine 4 Color -1200 mm 100 meter per minute speed


Include:
(a) Web Aliner
(b) Tension Controller on unwinder
(c) Dynaspeed on rewinder
(d) Rubber Rollers Pneumatic
(e) Doctor Blade Mechanical
(f) Double Side Dryer Box System
(g) Drive - “Siemens, Germany’ or Equivalent
(h) Motors – ‘Crompton’ or Equivalent
(i) Gearbox











Company Information





We are pleased to take this opportunity to introduce our company “Ishan International”,as one of the leading manufacturer of high-quality Printing and Extrusion Machines.


Ishan International was founded in 2008 and we are very fast growing company in India. The company has it’s headquarter in Ahmedabad, an industrial heart in the state ofGujarat, India.We are ISO certified company.


We have 300+Happy Customers, 50+Smiling staff & Associates, 1800+Installations, exporting to more than 25 countries in a span of just 13 years. We have Service Support office in Lagos, Nigeria also we have representative in Mexico, Brazil, Miami, South Africa, columbia, Nigeria, Ghana, Kenya, Uganda





lshan International has a manufacturing facility with a built area oftotal 27,000 sq.ft. the facility boasts of well-equipped assembly shop with modern-day equipments. From initial part concept to fully engineered drawings, Ishan International is your manufacturing partner. Company spread our services to all corners of the country and other than India as well.


Our powerhouse of innovations- the R&Dsection works hand in glove with our fabrication and machine shop which is augmented with all modern machines and process methodologies to bring our innovation to life.


We put our innovation and customer requirements in every design that help us exceed their expectations. It’s our determination and zest to mount great heights that today our company is well-recognized among the best. We offer our machines in safe & exports worthy packaging optionsto our clients to providesafer deliveries at the user’s end.





We have a wide range of products including CI Flexo Printing Machines, Flexo Printing Machine, Biodegradable Bag Making Machine,Extrusion Blown Film  Machine, Side Sealing Machine, Bag Making Machine, SolventLess Lamination Machine,Rotogravure Printing Machine,Gluing Rewinding Machine,Center Slitting Machine,Solvent Base Lamination Machine, Designed making use of supreme in the classmaterial, these are in conformism with the norms defined by the market.





Made in India to global standards, this company’s products have found wide acceptance and acclaim in various countries around the globe.





Kindly let us know how we can be associated with each other and feel free to get in touch with us.


If you have any requirements for any of the machinery, we can supply the same at the best of the rates, on time delivery and service quality.





We would love to hear you and appreciate receiving your valued inquiries so as to quote our best.





For more details, please visit our website www.ishan-intl.com





Also you can see the videos of our machines on the below given link.


https://www.youtube.com/channel/UCl22Qrs55ruB4nspYMRr_Lw
