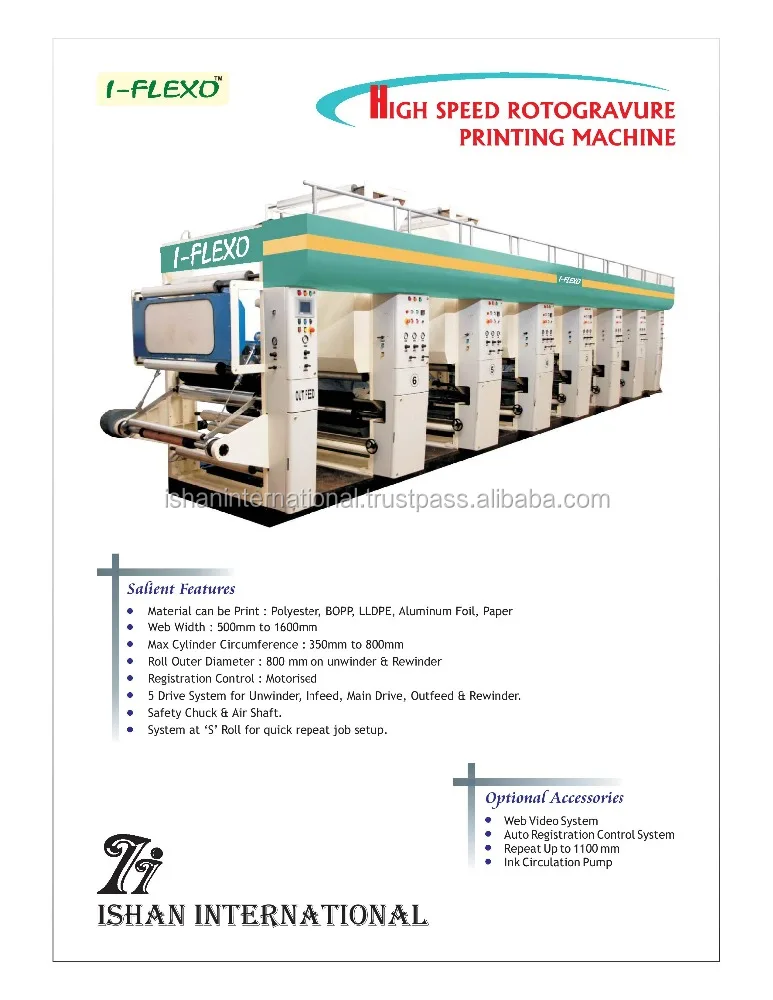

Hi speed Rotogravure Printing Machine

Product Overview

Description

WE ARE MANUFACTURER AND EXPORTER OF FLEXO GRAPHIC PRINTING MACHINE, ROTO GRAVURE PRINTING MACHINE,SLITTING MACHINE AND BAG MAKING MACHINE

WE HAVE MORE THAN 200 INSTALLATION IN OVERSEAS. WE GET REPEAT ORDERS DUE TO OUR AFTER SALES SERVICE AND SUPPORT

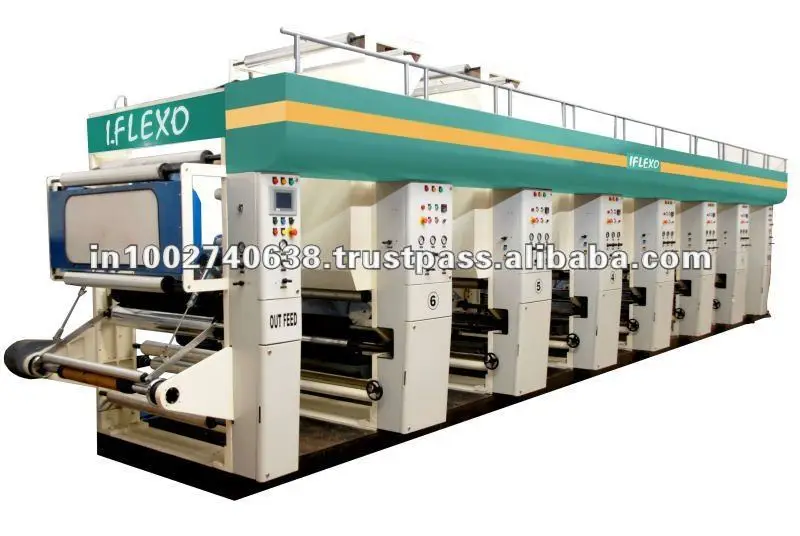

Hi speed Rotogravure Printing Machine.

ALSO AVAILABLE IN EIGHT COLORS

Machine Type Rotogravure Printing Machine Rotogravure Printing Machine Rotogravure Printing Machine No. of Station Unit 2 Colors 4 Colors 6 Colors Model No. IF-2220 RG IF-4220 RG IF-6220 RG Maximum Printing width 700MM(28”)/1050mm(42”) 700mm(28”)/1200mm(48”) 700mm(28”)/1200mm(48”) Printing Variable Cylinder From minimum 350 mm. To Maximum 800mm From minimum 300 mm. To Maximum 800mm From minimum 300 mm. To Maximum 800mm Maximum Reel diameter 700 mm at Un-winder 700 mm at Un-winder 700 mm at Un-winder Core inner diameter 76mm. at Un-winder  and Winder 76mm. at Un-winder  76mm. At Winder 76mm. at Un-winder  and Re-winder Power Requirement Main drive 3 H.P. A.C. Blower 1 H.P.   Heaters 6 H.P. X 2 Torque motor 2 H.P.  Web aligner 0.5 H.P. Main drive 5 H.P. A.C. Blower 1 H.P.   Heaters 4 H.P. X 4 Torque Motor2 H.P.  Web aligner 0.5 H.P Main drive 5 H.P. A.C. / 7.5 H.P. A.C. Blower 1 H.P. X 6 Heaters 4 H.P. X 6 Web aligner 0.5 H.P Un-winder 1 set Mechanical Brake Shaft made from EN-8 material with collar nut 1 set Magnetic Powder Brake Shaft made from EN-8 material with collar nut 1 set  Magnetic Powder Brake Shaft made from EN-8 material with collar nut Printing Stations 2 set  body Gear Boxes with highly efficient bevel gears. Ink trays with design to less wastage, less ink requirements and less evaporation of Toluene. Draying hoods 2 nos. Design in such away to blow uniform of Web. Flow can be control by damper. Digital Temperature controller are Provided. Doctor blade with oscillation system. It can be adjustable to different wiping angle. Balanced guide rolls from Aluminum pipe. 4 set  body Gear Boxes with highly efficient bevel gears with neutral arrangement. Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene. Draying hoods 2 nos. Design in such away to blow uniform of Web. Flow can be control by damper. Blind Temperature controller/ indicators are provided. Doctor blade with oscillation system. It can be adjustable to different wiping angle. Balanced guide rolls from Aluminum pipe. 6 set  body Gear Boxes with highly efficient bevel gears with neutral arrangement. Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene. Draying hoods 2 nos. Design in such away to blow uniform of Web. Flow can be control by damper. Blind Temperature controller/indicators are provided. Doctor blade with oscillation system. It can be adjustable to different wiping angle. Balanced guide rolls from Aluminum pipe. Re-winder 1 set. Shaft with collar and nut 1 set. Shaft with collar and nut. For rewinding Torque motor assembly 1 set. Shaft with collar and nut. Tension Controller on Re-winder Machine Speed Mechanical up to 100 m/min. (Depending on type of inks, nature and thickness of material printing cylinder.) Mechanical up to 100 m/min. (Depending on type of inks, nature and thickness of material printing cylinder.) Mechanical up to 100 m/min. (Depending on type of inks, nature and thickness of material printing cylinder.) Material to Print BOPP, LDPE, POLYESTER etc. BOPP, LDPE, POLYESTER etc. BOPP, LDPE, POLYESTER etc. Counter Meter Meter per Minute counter Meter per Minute counter Meter per Minute counter

Optional Accessories

Three drive system.   Tension Controller.   Auto registration system.   Web video.   Ink Circulation Pumps.
