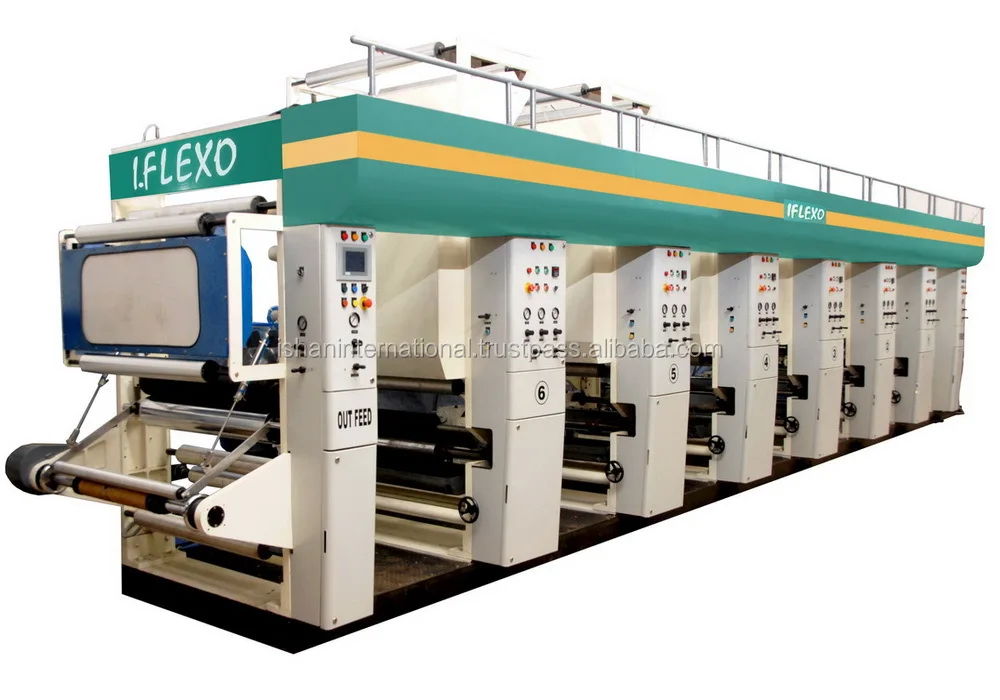

Eight Color Rotogravure Printing Machine Web Width 1000 mm SPEED 150 meters per minute 5Drive System with SAAPL Web AlinerSystem
Eight Color Rotogravure Printing Machine Web Width 1000 mm SPEED 150 meters per minute 5Drive System with SAAPL Web AlinerSystem
Eight Color Rotogravure Printing Machine Web Width 1000 mm SPEED 150 meters per minute 5Drive System with SAAPL Web AlinerSystem

Eight Color Rotogravure Printing Machine Web Width 1000 mm SPEED 150 meters per minute 5Drive System with SAAPL Web AlinerSystem

Share on (128786136):


Price:$166,000.00 - $175,000.00

Quantity:


Product Overview

Description



Company Information



















  • We are pleased to take this opportunity to introduce our company “Ishan International”,as one of the leading manufacturer of high-quality Printing and Extrusion Machines, are in the business from more than a decade now. The company has it’s headquarter in Ahmedabad, an industrial heart in the state of Gujarat, India. We are an ISO certified company.





    We have 300+Happy Customers, 50+Smiling staff & Associates, 1800+Installations, exporting to more than 25 countries in a span of just 13 years. We have Service Support office in Lagos, Nigeria also we have representativein Mexico, Brazil, Miami, South Africa, columbia, Nigeria,Ghana,Kenya,Uganda





    lshan International has a manufacturing facility with a built area of total 27,000 sq.ft. the facility boasts of well-equipped assembly shop with modern-day equipments. From initial part concept to fully engineered drawings, Ishan International is your manufacturing partner. Company spread our services to all corners of the country and other than India as well.





    Our powerhouse of innovations- the R&D sectionworks hand in glove with our fabrication and machine shop which is augmented with all modern machines and process methodologies to bring our innovation to life.





    We put our innovation and customer requirements in every design that help us exceed their expectations. It’s our determination and zest to mount great heights that today our company is well-recognized among the best. We offer our machinesin safe & exports worthy packagingoptions to our clients to provide safer deliveries at the user’s end.





    We offer a wide range of products including CI Flexo PrintingMachines, Flexo Printing Machine, Biodegradable Bag Making Machine, ExtrusionBlown Film  Machine, Side Sealing Machine, Bag Making Machine, Solvent Less Lamination Machine, Rotogravure Printing Machine, Gluing Rewinding Machine, Center Slitting Machine, Solvent Base Lamination Machine and others. All these machines are designed and made using supreme quality materials which are in conformism with the norms defined by the market.





    Made in India to global standards, this company’s products have found wide acceptance and acclaim in various countries around the globe.






  • WE HAVE MORE THAN 200 INSTALLATION IN OVERSEAS. WE GET REPEAT ORDERS DUE TO OUR AFTER SALES SERVICE AND SUPPORT



8 Colour Roto Gravure Printing Machine


ALSO AVAILABLE IN EIGHT COLORS






































































































Machine TypeRotogravure Printing MachineRotogravure Printing MachineRotogravure Printing Machine
No. of Station Unit2 Colors4 Colors6 Colors
Model No.IF-2220 RGIF-4220 RGIF-6220 RG
Maximum Printing width700MM(28”)/1050mm(42”)700mm(28”)/1200mm(48”)700mm(28”)/1200mm(48”)
Printing Variable CylinderFrom minimum 350 mm. To Maximum 800mmFrom minimum 300 mm. To Maximum 800mmFrom minimum 300 mm. To Maximum 800mm
Maximum Reel diameter700 mm at Un-winder700 mm at Un-winder700 mm at Un-winder
Core inner diameter76mm. at Un-winder  and Winder76mm. at Un-winder
76mm. At Winder		76mm. at Un-winder  and Re-winder
Power RequirementMain drive 3 H.P. A.C.
Blower 1 H.P.
Heaters 6 H.P. X 2
Torque motor 2 H.P.
Web aligner 0.5 H.P.		Main drive 5 H.P. A.C.
Blower 1 H.P.
Heaters 4 H.P. X 4
Torque Motor2 H.P.
Web aligner 0.5 H.P		Main drive 5 H.P. A.C. / 7.5 H.P. A.C.
Blower 1 H.P. X 6
Heaters 4 H.P. X 6
Web aligner 0.5 H.P
Un-winder1 set Mechanical Brake Shaft made from EN-8 material with collar nut1 set
Magnetic Powder Brake
Shaft made from EN-8 material with collar nut		1 set  Magnetic Powder Brake
Shaft made from EN-8 material with collar nut
Printing Stations

  • 2 set  body

  • Gear Boxes with highly efficient bevel gears.

  • Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene.

  • Draying hoods 2 nos.

  • Design in such away to blow uniform of Web.

  • Flow can be control by damper.

  • Digital Temperature controller are Provided.

  • Doctor blade with oscillation system.

  • It can be adjustable to different wiping angle.

  • Balanced guide rolls from Aluminum pipe.




  • 4 set  body

  • Gear Boxes with highly efficient bevel gears with neutral arrangement.

  • Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene.

  • Draying hoods 2 nos.

  • Design in such away to blow uniform of Web.

  • Flow can be control by damper.

  • Blind Temperature controller/ indicators are provided.

  • Doctor blade with oscillation system.

  • It can be adjustable to different wiping angle.

  • Balanced guide rolls from Aluminum pipe.




  • 6 set  body

  • Gear Boxes with highly efficient bevel gears with neutral arrangement.

  • Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene.

  • Draying hoods 2 nos.

  • Design in such away to blow uniform of Web.

  • Flow can be control by damper.

  • Blind Temperature controller/indicators are provided.

  • Doctor blade with oscillation system.

  • It can be adjustable to different wiping angle.

  • Balanced guide rolls from Aluminum pipe.


Re-winder

  • 1 set.

  • Shaft with collar and nut.




  • 1 set.

  • Shaft with collar and nut.

  • For rewinding Torque motor assembly




  • 1 set.

  • Shaft with collar and nut.

  • Tension Controller on Re-winder


Machine Speed

  • Mechanical up to 100 m/min.

  • (Depending on type of inks, nature and thickness of material printing cylinder.)




  • Mechanical up to 100 m/min.

  • (Depending on type of inks, nature and thickness of material printing cylinder.)




  • Mechanical up to 100 m/min.

  • (Depending on type of inks, nature and thickness of material printing cylinder.)


Material to PrintBOPP, LDPE, POLYESTER etc.BOPP, LDPE, POLYESTER etc.BOPP, LDPE, POLYESTER etc.
Counter Meter

  • Meter per Minute counter




  • Meter per Minute counter




  • Meter per Minute counter



Optional Accessories
























 Three drive system.
 Tension Controller.
 Auto registration system.
 Web video.
 Ink Circulation Pumps.


 High speed RotoGravure
