Product Overview

Description

Low consumption coal Linear vibrating sifter

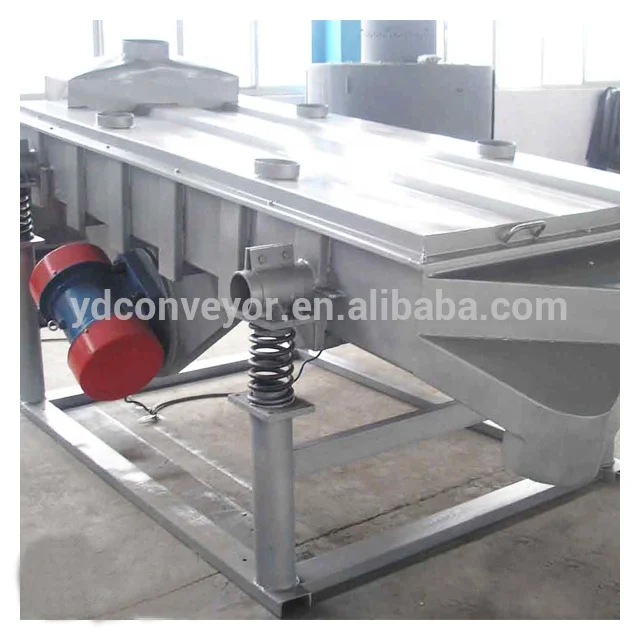

Low consumption coal Linear vibrating sifter use vibration motor as vibration source, the materials is rose and moved in the straight at the same time.

The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlet.



Main application:

Low consumption coal Linear vibrating sifter is used in metallurgy, building, chemical refractory, cement, ceramics, food and other industries.

Features:

1.Small volume, light weight, simple structure, convenient installation, easy maintenance;

2.Low noise, low consumption, high efficiency and low cost;

3.High accuracy of screening, no dust pollution, environmental protection.

4.Replaced variety of screen and long service life.



Model	Feeding size (mm)	Capacity (t/h)	Voltage (V)	Power (kw)	Vibrating frequency  (times/min)	Double amplitude (mm)	Weight (kg)
							1 layer	2 layers	3 layers
ZS-0.4×1.2	≤30	6	380	0.4×2	1500	2-4	160	189	218
ZS-0.5×1.2	≤30	7		0.75×2	1500	2-4	260	297	335
ZS-0.6×1.2	≤30	8		0.75×2	1500	2-4	280	317	355
ZS-0.7×1.5	≤50	12		1.5×2	1500	2-4	420	468	515
ZS-0.8×1.6	≤50	14		1.5×2	1500	2-4	457	520	554
ZS-0.9×1.8	≤50	15		2.0×2	960	2-4	870	927	984
ZS-0.9×2.4	≤60	16		2.0×2	960	2-4	1200	1298	1305
ZS-1.2×2.4	≤60	20		2.5×2	960	3-5	1500	1625	1750
ZS-1.2×3.0	≤60	24		2.5×2	960	3-5	1760	1913	2066
ZS-1.5×3.0	≤60	28		3.7×2	960	3-5	2400	2629	2858
