XZB 100T 2RT Rubber Injection & Pressure Molding Machine

Product Overview

Description

rubber injection & pressure molding machine:



XZB series rubber injection & pressure molding machine



XLB series is suitable for injection and molding all kinds of rubber,plastic,etc.It is mostly suitable for high quality requirements,complex shape,thick wall and these products with embedded parts.

• Features:

      1.Injecting rubber after the mould being blocked,high molding pressure in inner cavity of the mould,high density construction of products.

       2.High speed open/close molds,high production efficiency,low blocking speed,protect mold.

       3.Atomatic in/out mold and ejector device,low labor strength.

       4.Optional normal valve or proportional valve,matching-advanced oil way,reduce energy consumption.

       5.The electric system adopt PLC programming control,which is easy to be operated.



•  Main technical data:

model	XZB-630	XZB-1000B	XZB-1600	XZB-2000	XZB-3000	XZB-3500	XZB-5000	XZB-6000
Mold-locking force(KN)	630	1000	1600	2000	3000	3500	500	6000
Injection pressure(MPa)	90	100	100	98	91	91	100	70
Material tank size(mm)	70x215	80x225	80x280	90x300	120x377	120x450	150x410	80x550
Block stroke(mm)	300	300	300	300	400	350	500	500
Inject and press stocke(mm)	330	350	380	450	530	600	560	730
Themo-plate size (mm)	400x400	450x450	520x540	550x600	680x750	700x700	926x1000	900x1100
Max.distance of themo-plate(mm)	250~350	200~400	200~400	180~480	280~750	300~550	600~1000	800~1300

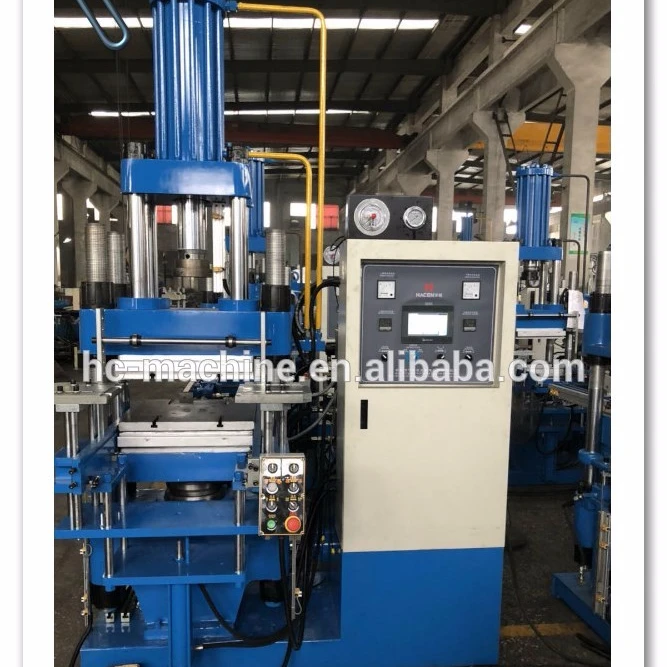

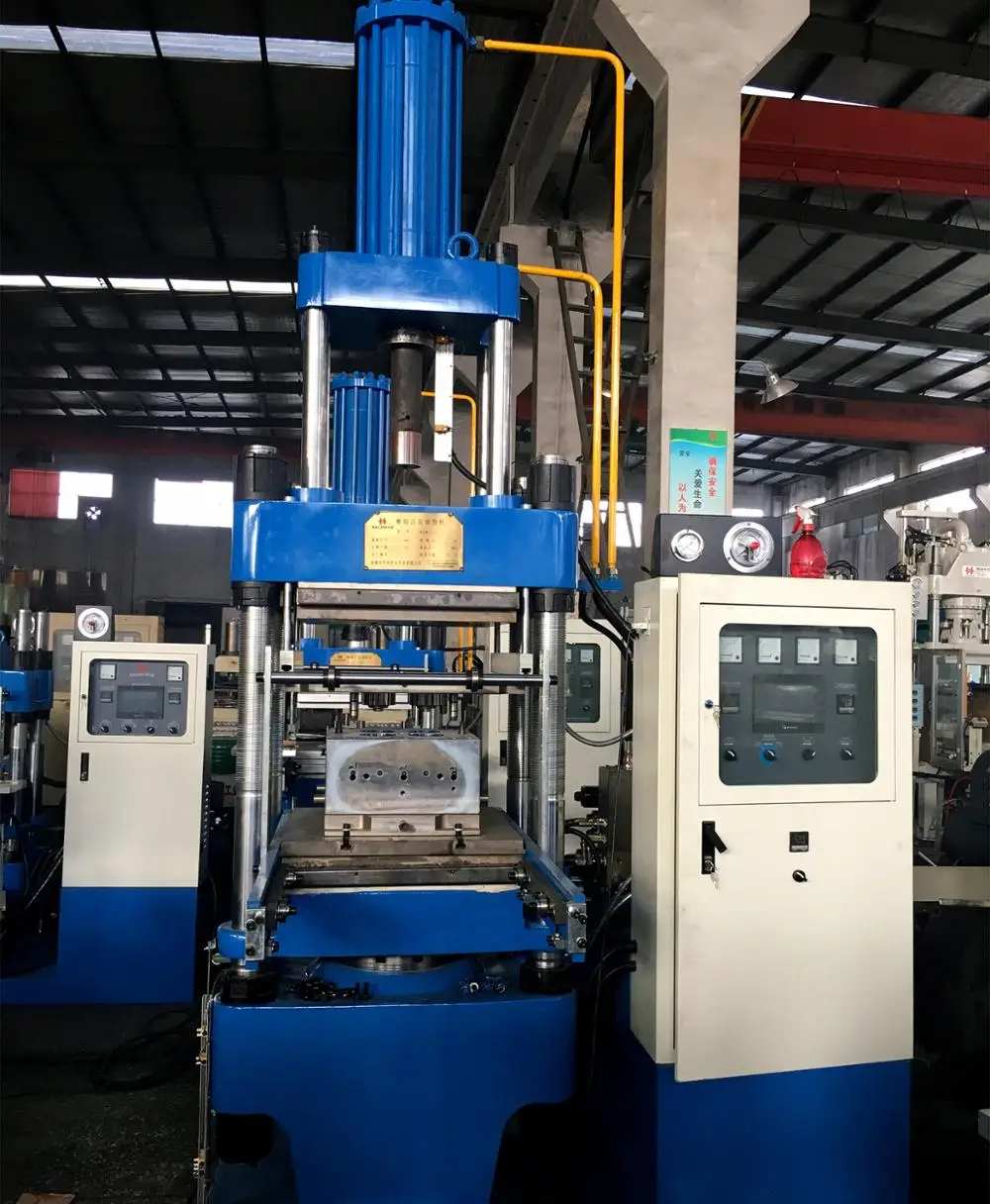

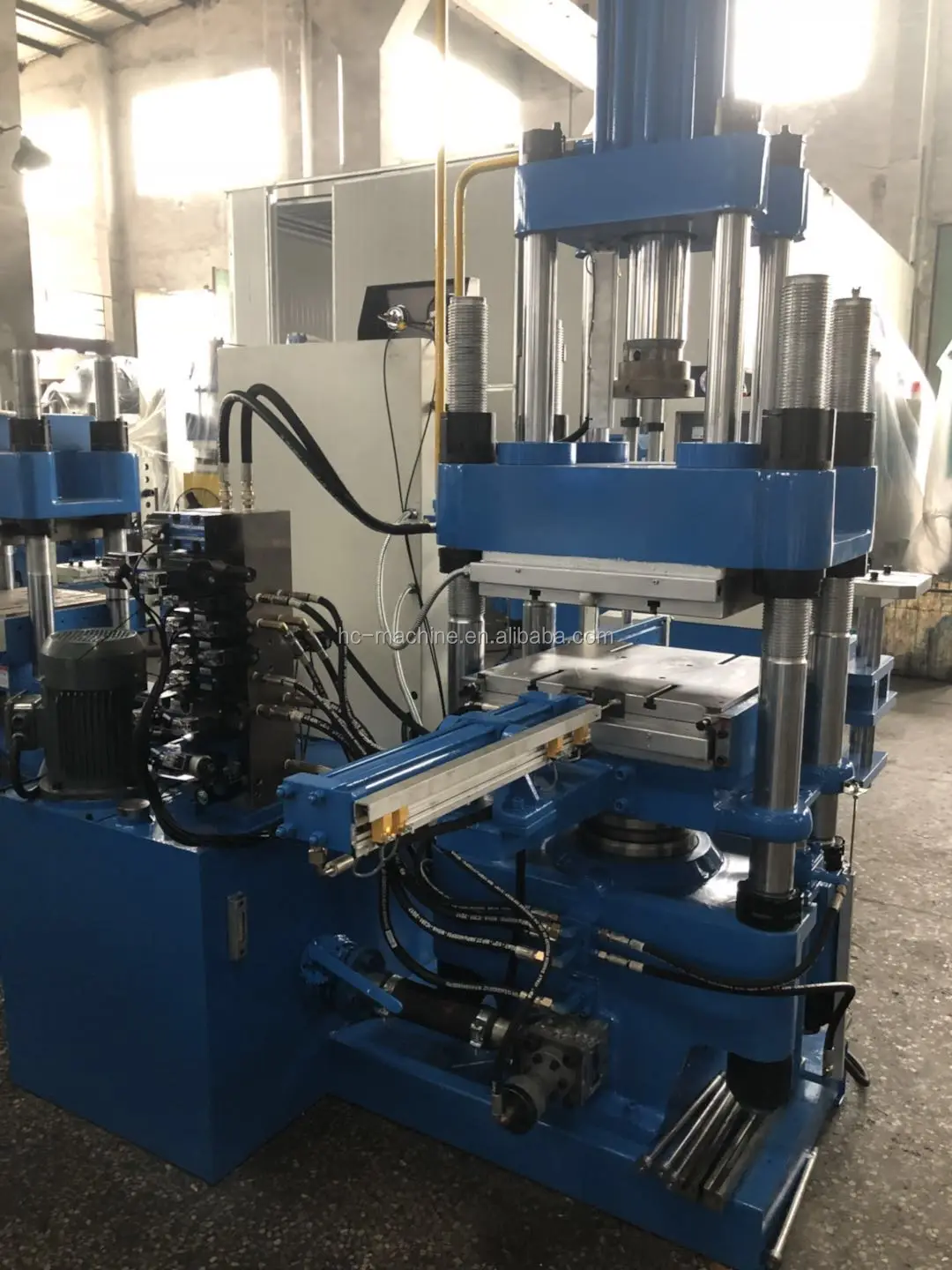

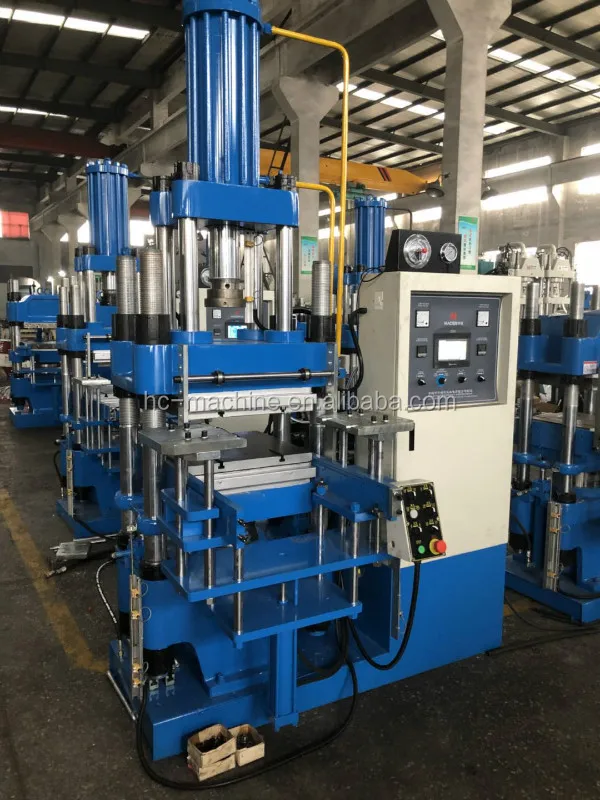

Machine pictures:

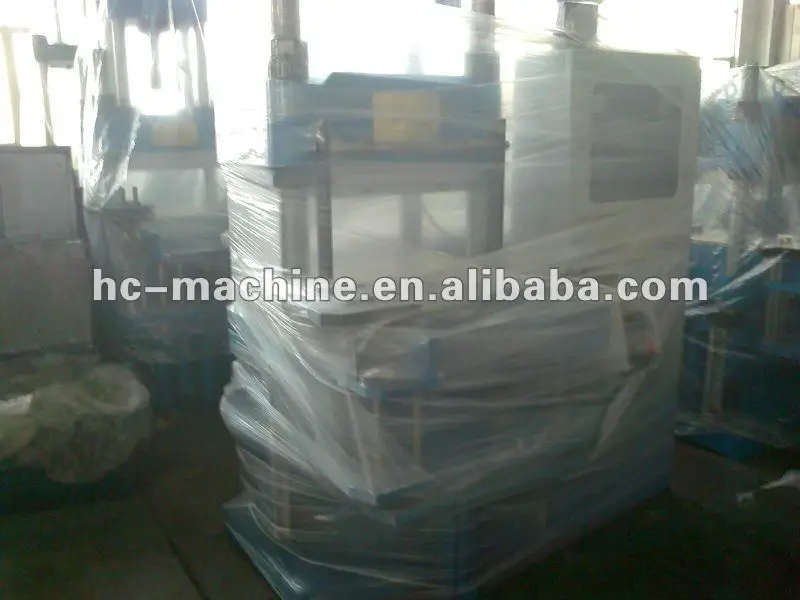

Packaging picture:

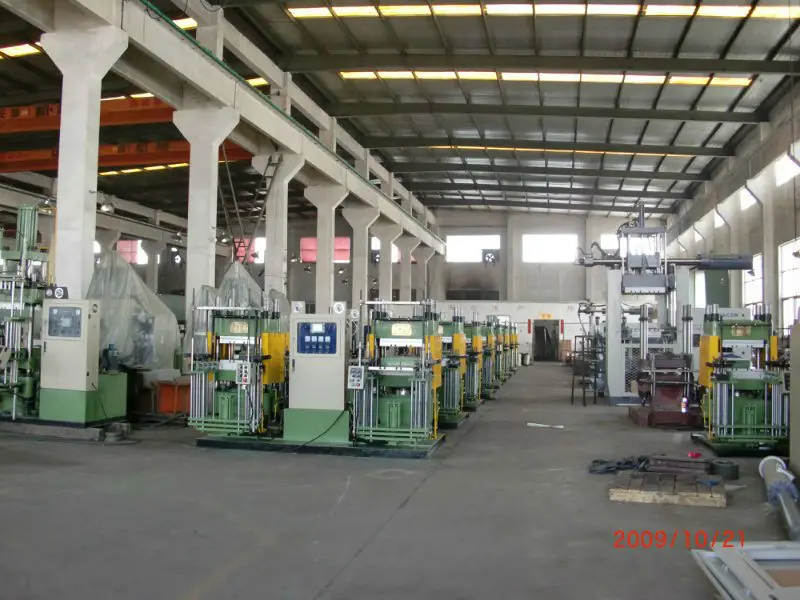

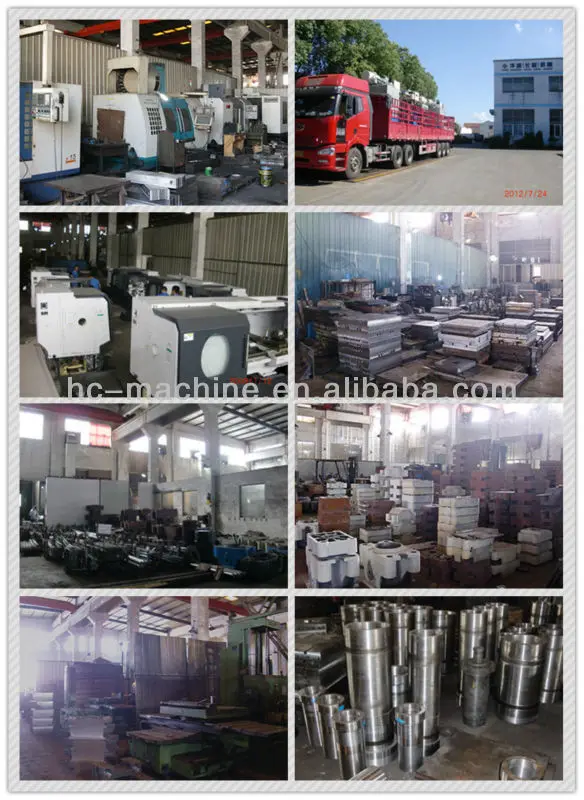

Our factory pictures:



Our exihibition pictures:

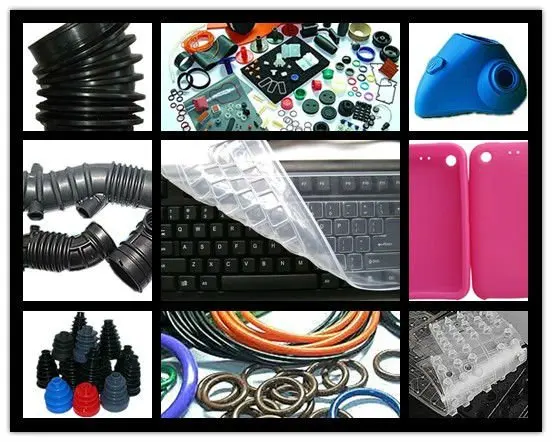

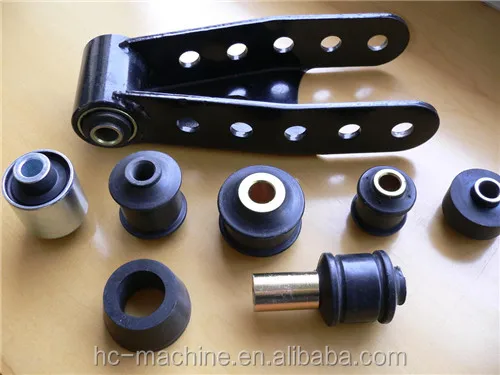

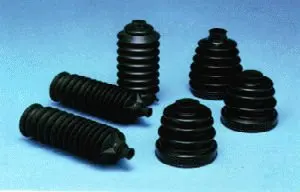

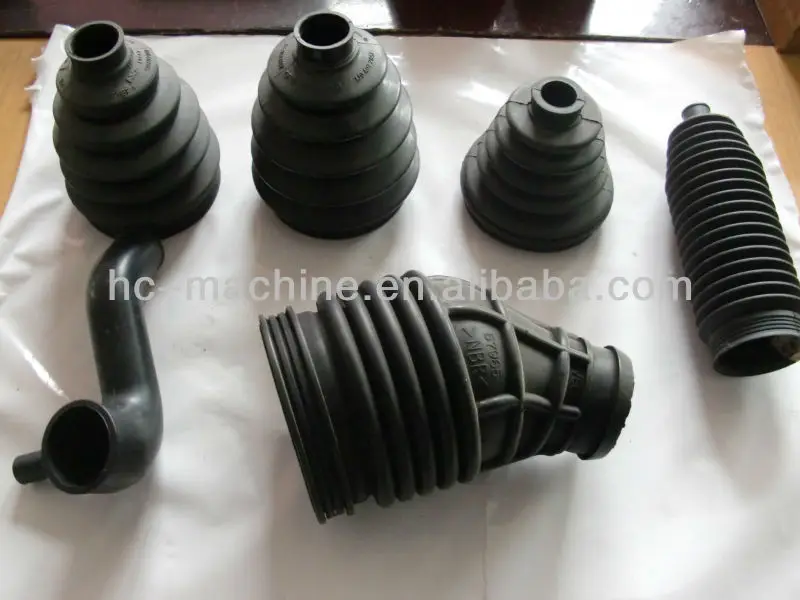

Appications:





The main service item on our machine:





    1 Installation and debugging: Our engineers will teach you about the installation and debugging for free.

    2 Technology training :Our company will offer technology training for your operation.

    3 After-sales service:We will supply the free repairment on this machine for one year , but will supply the maintenance lifetime. ( the service is only for natural damage)
