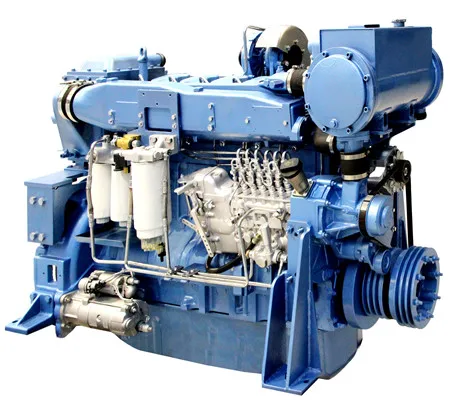

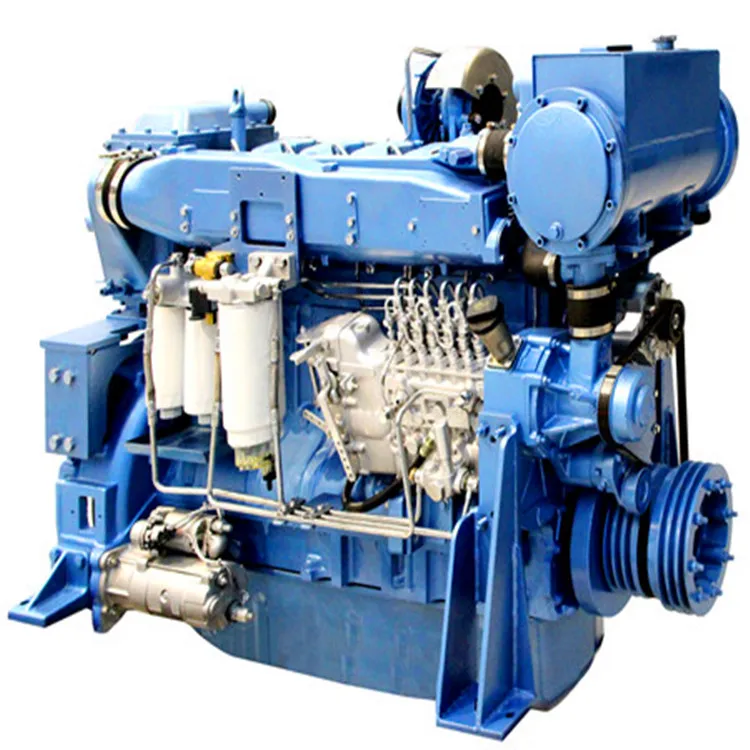

high quality styer inboard marine diesel engine with gear box
- Category: >>>
- Supplier: Weifang U-Power Co. Ltd.
Share on (1289000670):
Product Overview
Description
Weichai WD10 series marine diesel engine (140-240kW)
Parameters Table
| Type | Four-stroke, water cooled, in-line, turbocharged/turbocharged and intercooled | Number of cylinders | 6 |
| Cylinder diameter/stroke | 126×130(mm) | Displacement | 9.726L |
| Oil consumption rate | ≤0.6g/kW·h | Noise | ≤99dB(A) |
| Minimum fuel consumption rate | 195g/kW·h | Idle speed | 600±50r/min |
| Torque reserve | 20-35% | Rotation direction of crankshaft (facing the free end) | Clockwise |
Dimensions | Turbocharged 1499×814×1164(mm) 1018kg | ||
Model Portfolio Table
| Series | Model | Air intake mode | Rated power kW/Ps | Speed r/min | Speed Fuel feeding mode | Emission level | Power classification |
| WD10 | WD10C190-15 | Turbocharged and intercooled | 140/190 | 1500 | Mechanical pump | IMOⅡ | P1 |
| WD10C218-15 | Turbocharged and intercooled | 160/218 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| WD10C240-15 | Turbocharged and intercooled | 176/240 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| WD10C240-18 | Turbocharged and intercooled | 176/240 | 1800 | Mechanical pump | IMOⅡ | P1 | |
| WD10C278-15 | Turbocharged and intercooled | 205/278 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| WD10C278-21 | Turbocharged and intercooled | 205/278 | 2100 | Mechanical pump | IMOⅡ | P1 | |
| WD10C300-21 | Turbocharged and intercooled | 220/300 | 2100 | Mechanical pump | IMOⅡ | P1 | |
| WD10C312-18 | Turbocharged and intercooled | 230/312 | 1800 | Mechanical pump | IMOⅡ | P1 | |
| WD10C326-21 | Turbocharged and intercooled | 240/326 | 2100 | Mechanical pump | IMOⅡ | P1 |
Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.
Product description
Safe and reliable
- The frame type main bearing structure; high rigidity; high safety performance index
- The internal and external double-circulation water cooling method is adopted, and the water jacket exhaust pipe can be selected, so as to prolong the service life of the diesel engine, and the overhaul period is 20000h
Strong power
- Large power reserve; torque reserve reaches 20%-35%
- The configuration of high-pressure oil pump, turbocharger, and fuel injector is optimized; the acceleration of ships is quick; the navigation speed is high
Economical and fuel-efficient
- The intake and fuel supply system is optimized, which broadens the economic operation range of the diesel engine
- The fuel consumption is low under normal working conditions, and the minimum fuel consumption is 195g/kW•h
Comfortable and environmentally friendly
- Strengthen the design of key components, so that the products are featured by small vibration and low noise
- IMOⅡ ship emission standards are met
Strong practicability
- LCD Internet instrument can be selected to monitor the speed, water temperature, oil temperature and pressure of diesel engine in real time, so as to achieve timely automatic alarm and stop when the parameters exceed the limit values
- Stormy wave mode is added to ensure that the ship engine will not stop at critical moments such as stormy waves
- There is a large amount of the products in the market, and the reserve of spare parts is sufficient, which make maintenance convenient

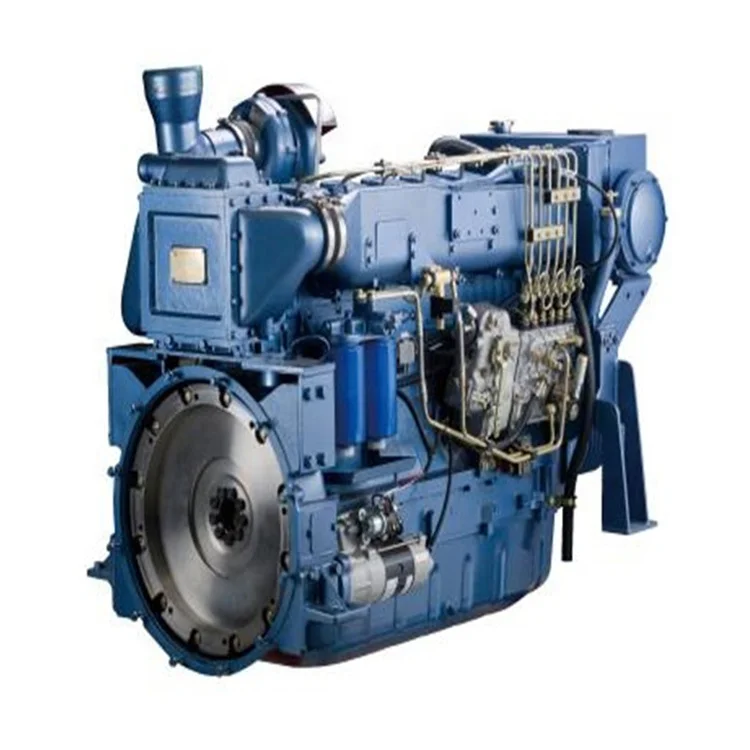

WD10 inboard marine diesel engine used with gearbox
WD10 series marine diesel engine is a modified model, which is developed, according to the relevant national standards and ship regulations, through making improvement on the combustion system, intake an exhaust system, cooling system, PTO system and engine monitoring system on the basis of assimilating foreign advanced technology. This model boasts wide power and speed range, small size and weight, impact structure, reliable operation, advanced economic and technical targets as well as convenient installation. It is mainly used as the main engine or the auxiliary engine of the ship.
The main advantages of the engine
Wide power range
The power range of WD615 marine engine is 120-250HP and its speed range is 1500-2500r/min.
Low fuel consumption
The minimum fuel consumption of WD615 engine is 198g/kW.h. Its fuel consumption curve is very flat. It has good economy under common working condition.
Reliable operation
Backed by the internationally advanced technology, WD615 marine engine is superior to the home-made engine in terms of components design and the selection of raw materials. The engine components will go through harsh inspection to ensure a high reliability. High performance engine monitoring meter can effectively guarantee the reliable operation of the engine.
Convenient installation and maintenance
WD615 marine engine adopts 6135C flywheel housing (widely used in China) or SAE1, SEAII (international standard) flywheel housing. Both the seawater-freshwater exchanger and the air cooler are mounted on the engine making the installation more convenient. To make easier for the maintenance, some alterations are made on the observation hole of the injection advance angle, the fuel filter as well as the position of the oil drain hole.
Structure advantages
Flywheel and Flywheel shell
There are three kinds of flywheel shell for choice: SAEI, SAEII, 6135C.
Crankshaft front end output
Power output from the front end can meet the needs of driving the seawater pump, generator, steel wheel pump, fish net elevator and other appliance. And there are many kinds of belt wheel given for the choice.
Seawater pump
Impeller shaft of seawater pump is made of stainless steel, impeller and sealing ring are made of brass that is eroding-resistant and can prolong their life greatly. In addition to this, there are other kinds of seawater pump and double-suck seawater pumps that have more rate of flow and higher lift for the customer.
Fresh water cooling system
The type of cooling system is still closed and compelled cooling. According to the circumstance (tropics, semi-tropics, temperate-zone and etc), people can choose 55, 75 and 85, temperature controlled or no temperature controller and let the cooling water flow into the big circulation directly, which can keep the cooling water at about 80 after the circulation. Cooling pipes of the seawater-freshwater exchanger are made of brass pipe, and its cooling core is assembled by the advanced expanding-connection technology.
Intake and exhaust system
The intake and exhaust system has been improved more to adapt the special circumstance for ships to haul fishnets.
Structure 1: the surface of the exhaust pipe and turbocharged is smeared with special warm-proof by special technology, which has lowered the temperature in the engine room. Steel cover is added to the exhaust pipe to prevent people from scalding by the protruding tighten blots.
Structure2: specialized exhaust pipe is designed for marine diesel engine. The exhaust pipe is cooled by sea water through sea water and fresh water exchanger of inner-cooler. This structure can reduce the surface temperature of exhaust pipe to below 60.
Apparatus monitoring system
WD615 series marine diesel engine equips with the advanced ED211A5G or FV5K5F4 series deseil engine monitor. The monitors are all PC controlled. The car measure and display automatically the diesel engine speed cooling water temperature, oil temperature and speed cooling water temperature.
