Price:$1,500.00

Quantity:


Product Overview

Description


Product Description
The water chiller packaged chiler is applied to plastics industry to precisely control moulds temperature so that molding cycle can be reduced and quality would be improved. Also MIC series can be applicable for electronic and machinery manufacturing to ensure normal operation temperature for devices.
Configurations
1.Panasonic brand scroll compressor
2. TAIWAN Minamoto brand water pump
3.Adopt precise Taiwan PUNP P.I.D.temperature controller with an accuracy of 0.1 degree
4. Dry Filter:USA ALCO
5. EXPANSION VALVE: EMERSON USA
6. SIEMENS Electrics
7.Adopt R22 regrigerant or R407C environmenlty type refrigerant
8. Stainless steel water tank
Features
1.Cooling Range5~25 degree; 2.Double Compressor design(above 10HP),can automatically working together,or one stop.3.Refrigration loop controlled by high&Low pressure switches to ensure stable operation. 4.Insulated water tank made of stainless steel 5.Equipped with anti-freeze thermostate 6.Compressor and Pump overload protection 7. Vibration Absorber used to prevent compressor vibration damage to refrigerant pipeline
Detailed Images
Stainless steel water tank

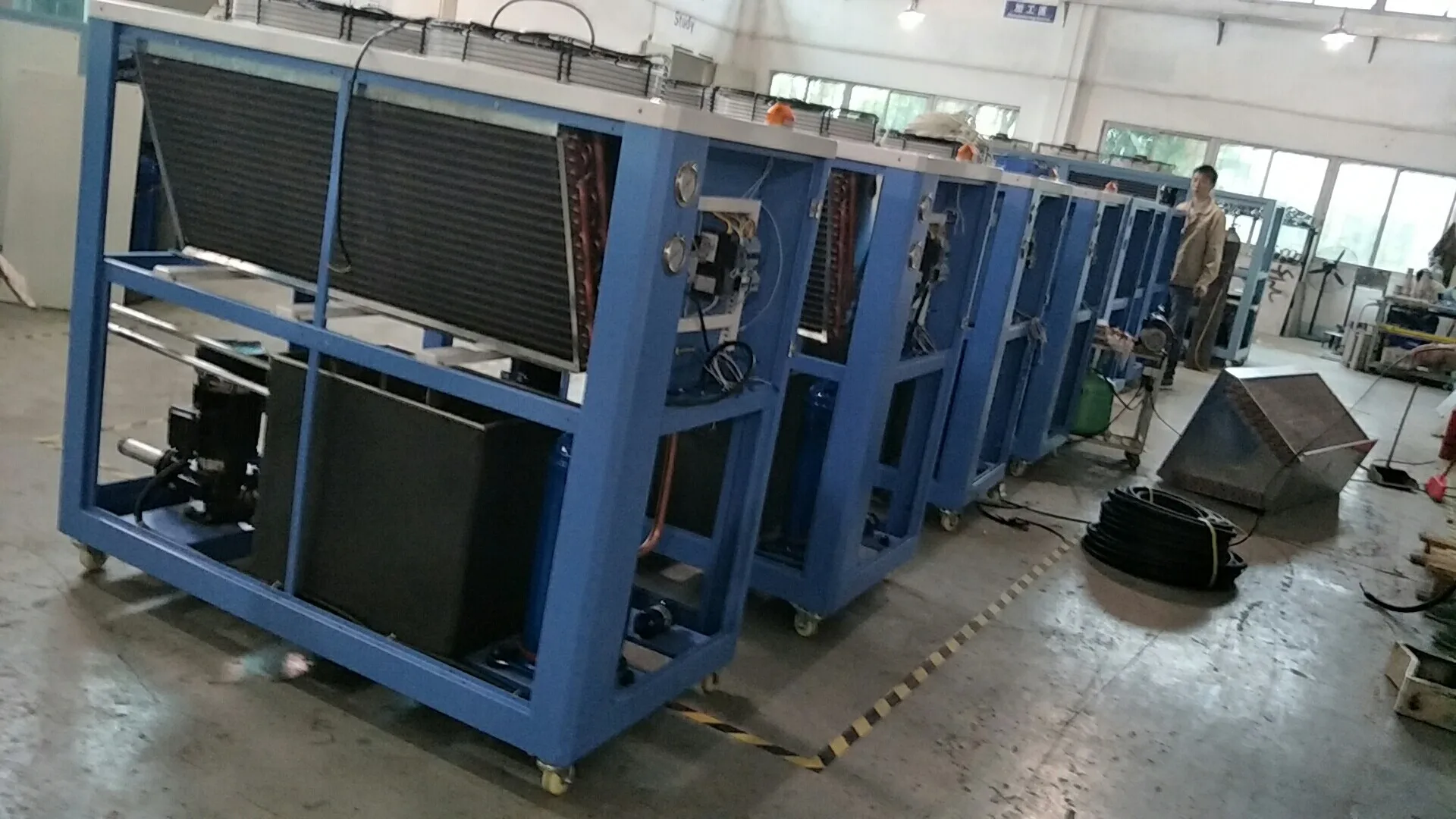

Fin type condenser , tube in shell evaporator
Panasonic brand compressor
Minamoto brand water pump
SIEMENS Electrics

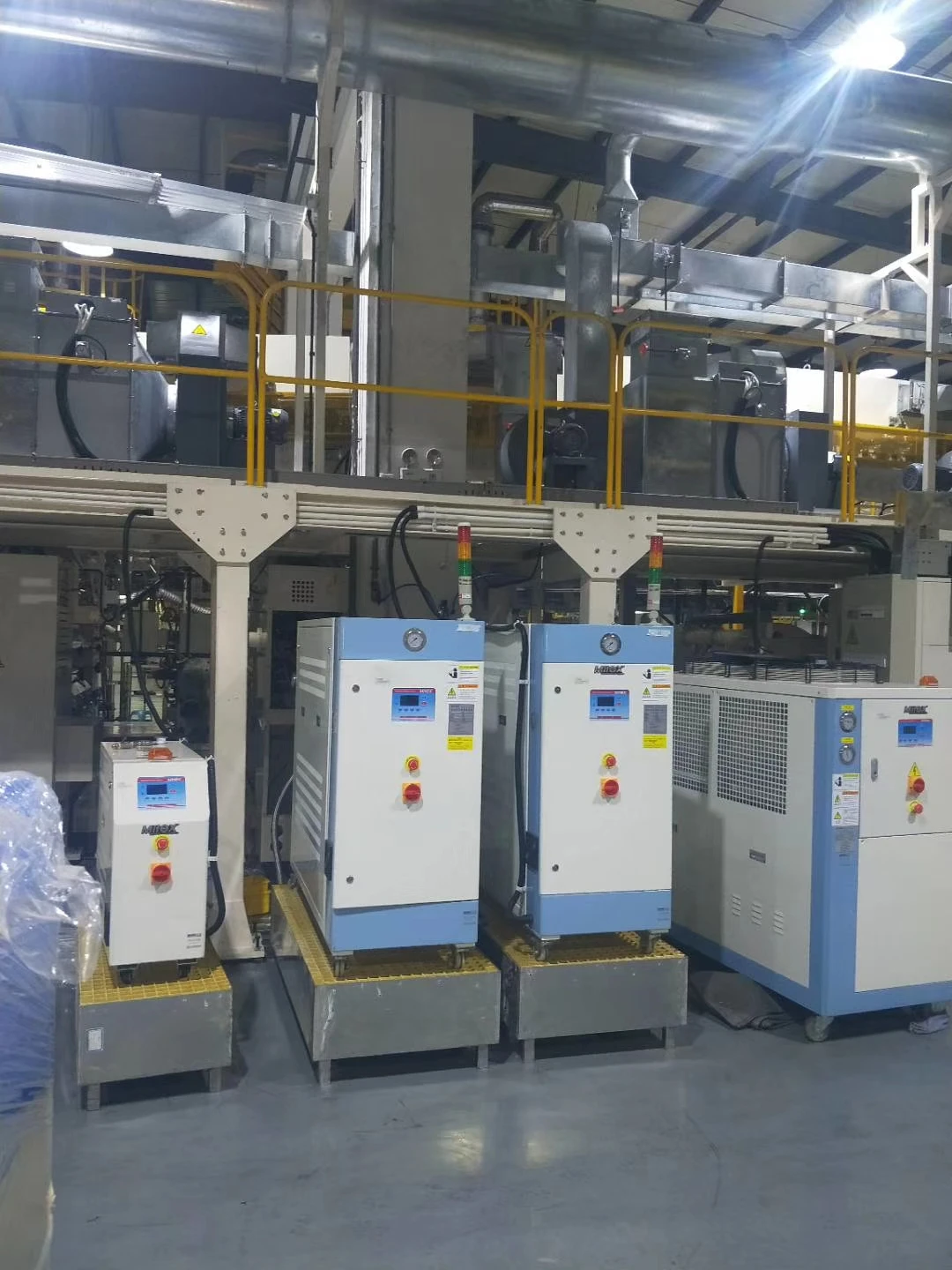

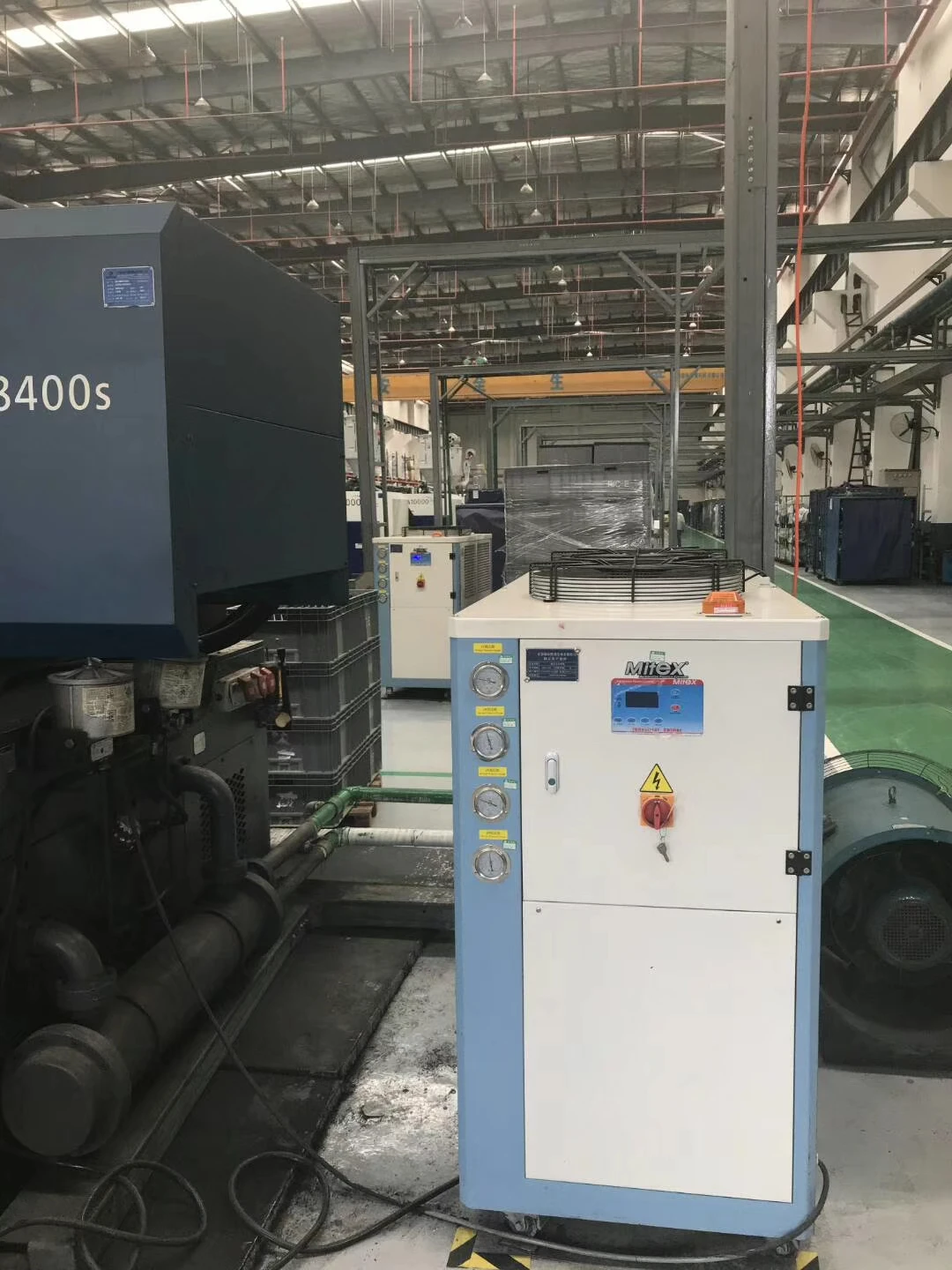

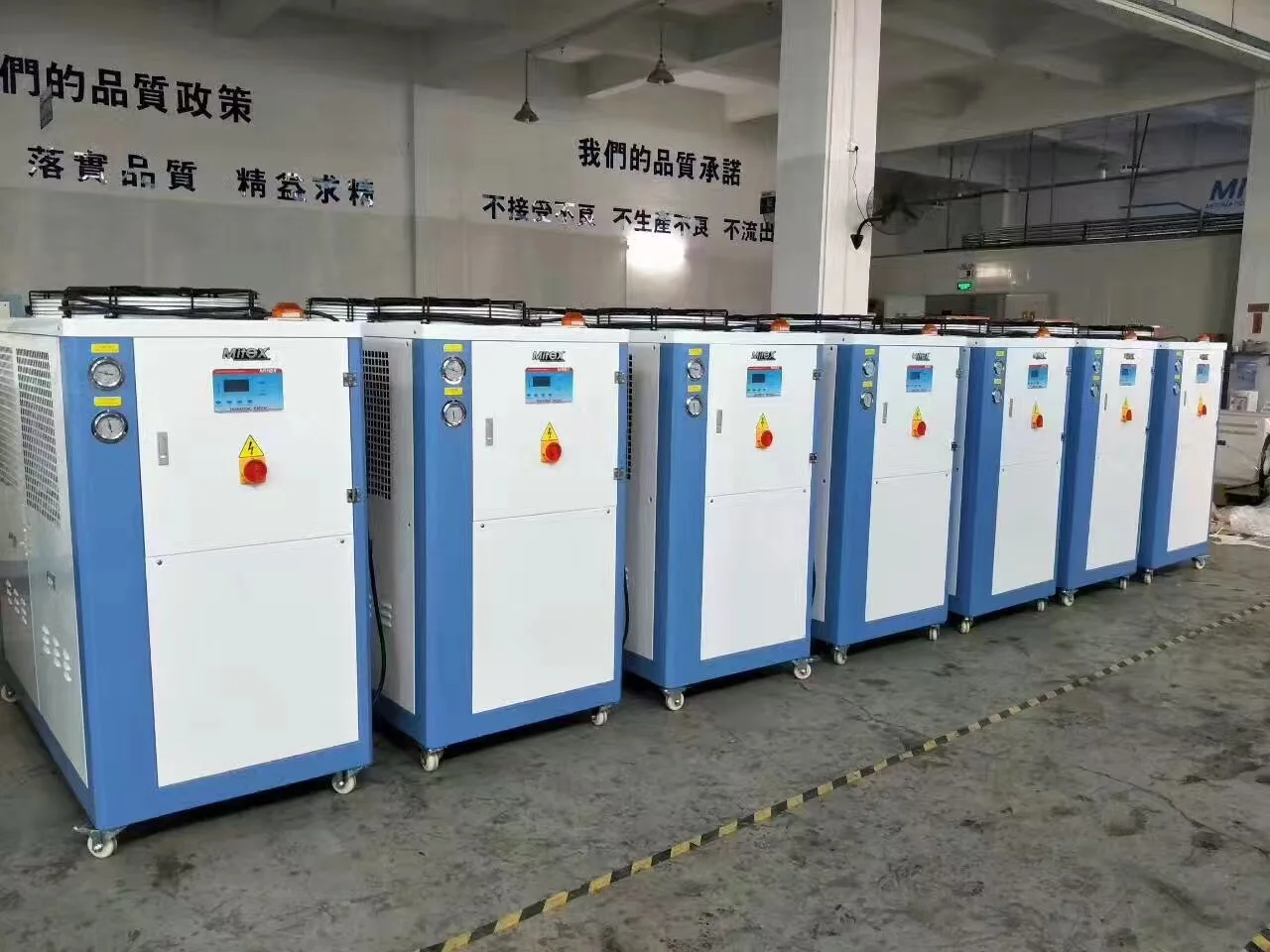

Customer cases
Product Paramenters
Model
5A
10A
15A
20A
25A
30A
Freezing capacity
KW
15.6
31.2
46.8
7862.4
93.6
93.6
Kcal/hr
13416
26832
40248
53664
67080
80496
Btu/hr
532354
106469
159704
212938
266173
319408
Compressor
power (KW)
3.95
2 x 3.95
2 x 6.3
2 x 7.95
2 x 9.1
 3 x 7.95
Refrigerant
Weight KW
2.5
2 x 2.5
2 x 5.5
2 x 6.0
2 x 7.5
3 x 6.0
Control mode
Thermostatic expansion valve
type
R22/ R407C (customized)
Evaporator
Type
Tube in shell
Condenser
Type
Fin style
Fan (KW)
0.38
2 x 0.38
2 x 0.78
2 x 0.78
2 x 0.78
3 x 0.78
Water tank
L
62
79
150
175
175
220
Pump
Power (KW)
0.75
1.5
1.5
2.2
3
4
Flow rate (L/min)
75
120
208
330
330
550
Pressure (kg/cm2)
2
2
2
2
2
2
Pipe Coupling
Chillerd water outlet (inch)
1
1.5
2
2
2
2.5
Chilled water inlet (inch)
1
1.5
2
2
2
2.5
Water supply port (inch)
0.5
0.5
1
1
1
1
Over flow port of water tank (inch)
0.5
0.5
0.5
0.5
0.5
0.5
Drainage port of water tank (inch)
0.5
0.5
1
1
1
1
Protective device
Compressor
Overload relay
Pump
Overload relay
Refrigerant circuit
HIgh and low pressure switches
Cooling water circuit
Water level switch / water flow switch (for option)/ by-pass valve (for option)
Power specification
380v, 3 phase , 50hz (can be customized )
Measures exchange
1KW=860kcal/hr  1RT=3024 kcal/hr     10000 btu/hr= 2520 Kcal/hr
Dimension
LXWXH MM
1450x765x1500
1750x765x1500
2150x1005x1700
2150x1005x1700
2550x1005x1700
3150x1005x1800
Related Products
Packing&Shipping
Plywood packing
Company Introduction
Mitex Automation Machinery Co., Ltd is a national-level High-tech enterprise that established in July, 2007. also a plastic machinery manufacturer speclizlizes in R&D, production and sales to the customer for plant project, design and modern industry 4.0 resolution.
The main products include: centralized feedng system, dehumidifying and drying system, automatic metering and mixing system, crushing and recovery sytem, mold temperature controlling sytem and automatic solution etc.
