Customized P T E Style Silicone rubber foam strip for sealing

Product Overview

Description

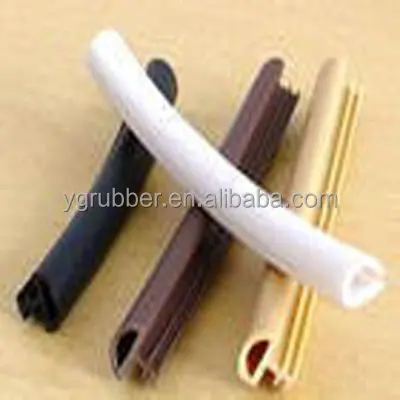

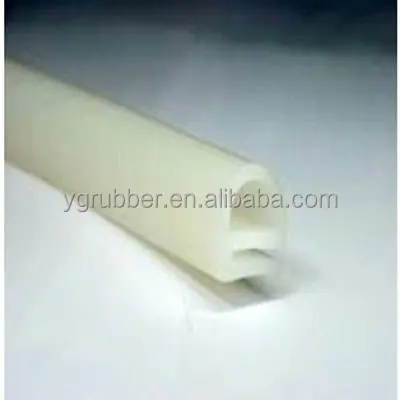

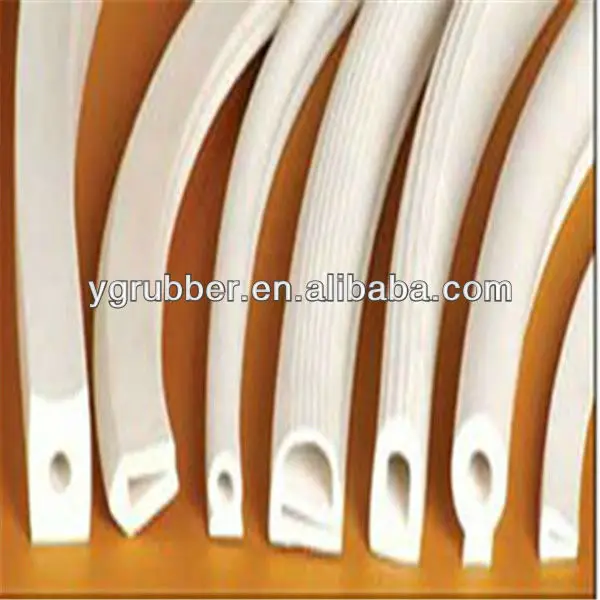

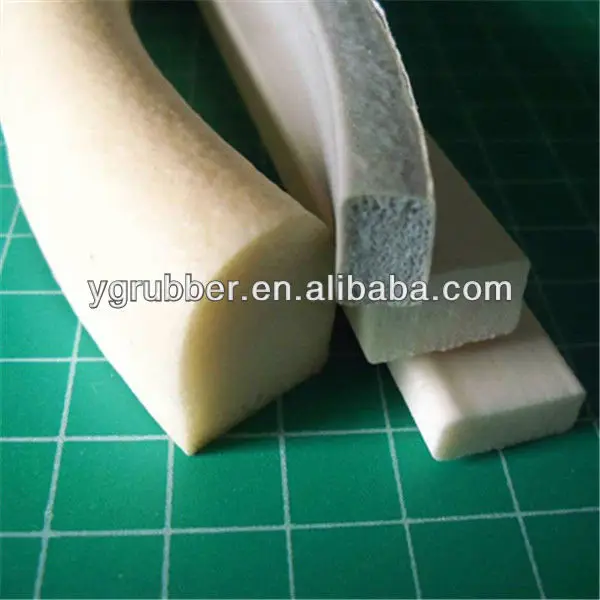

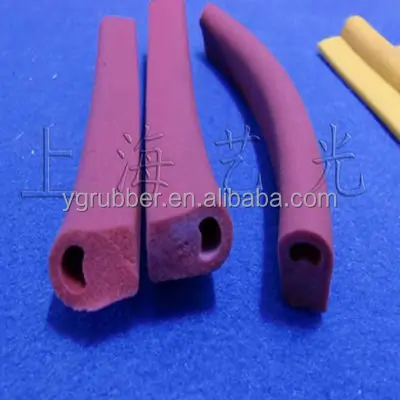

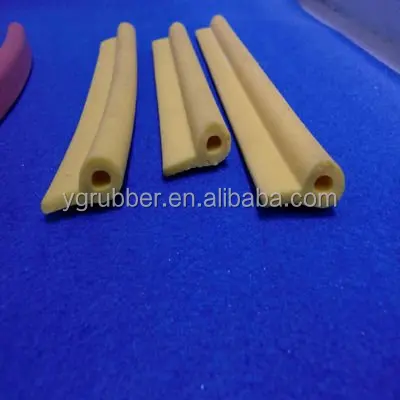

P T E Style Silicone Foam Seal strips

Features:

1.Perfect elasticity& High tensile strength

2.Heat resistance range from -60~250 Celsius degree

3.Anti-oil, water-proof, anti-ozone, Light-proof aging

4.Odorless

Technical Data:

Performance	Parameter	Test Standard
Tensile Strength	3.0 M pa	ASTM D412
Breaking Strength	25 K n/m	ASTM D1458
Elongation	450 %	ASTM D412
Hardness	20±5 Shore A	ASTM 2240
Temperature Range	-60~260 C	En344
Density	0.4~0.6 g/cm3(Customize)	ASTM D792
Thermal Conductivity	w/m*k	ASTM D5470
Breakdown Voltage	25 K V	ASTM D149



[Property]

Material: silicone rubber       Test Standard: ASTM

Max Diameter: 50mm           Color: any available

Max Thickness: 30mm          Cell: closed cell





[Specification]

Round strip:Φ2  Φ3  Φ4  Φ5  Φ6  Φ7  Φ8  Φ10  Φ12  Φ14  Φ15                        Φ16  Φ18  Φ20  v22  Φ30  Φ50

Square strip: 4*4  6*6  8*8  10*10  14*14  16*16  18*18  20*20  25*25               30*30  40*10  50*10  60*10  80*10  90*10  100*10

[Color]

Black, Red, White, others can be customized

[Additional services]

About the self adhesive tape, we have three kinds in stock based on regular usage,

  (1)  Acrylic double-sided adhesive tape.

  (2)  3M different types adhesive tape

  (3)  High temperature resistant adhesive tape

Packing and Shipping

1)Inner plastic film, outer CTN, Woven Bags, etc., can meet your requirement.

2)International express such as:FedEx,DHL,UPS,TNT;Or sea shipments as customers' required.





Shanghai Yiguang Special Rubber Products Co., Ltd(Shanghai and Hefei factories). established in 2006, mainly engaged in the study of silicone rubber foam sponge and polymer materials,

and we have technical cooperation with many schools and research institutes.

Currently,our production technology and production equipment has reached the leading level in domestic. The total area is 23,100 square meters.

The main products can be divided into 6 series: silicone foam series, silicone sponge series, silicone extrusion strip&tube series, silicone sheet series, silicone die-cut parts series, high-temperature silicone seal gasket series.

Our products is complementary products of aerospace,railway and high-speed rail, automotive, home appliance industry, electrical and electronics, medical and food fields, printing equipment, textile, clothing and equipment and other fields.

The company has passed ISO9001: 2000,ISO14001 environmental management system certification, DFA,UL and GS.



Our Serives

1. Sample:

 (1). If you worry about our quality before ordering, we can supply you our current samples for free to check our quality

 (2). After finishing the mold: we would supply the samples for your approval before mass production ensure everything is perfect.

2. OEM / ODM service

OEM & ODM ar highly welcomed, we provide full technical support for free.



3. After-sales service

100% responsible for our products, supply active feedback within 24 hours and solutions in short time; supply re-work or refund if the mistake cuased by us.



  FAQ

 1.Q: Do you have a factory?
A:We have factory in HeFei.We have the most convenient transportation conditions. You can visit us at anytime,



2.Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.



3.Q:How can I get the samples?
A: 1)We are honored to offer you samples. New clients are expected to pay for the courier cost,the samples are free for you,

     this charge will be deducted from the payment for formal order.
   2)Regarding the courier cost: you can arrange a RPI (remote pickup) service upon Fedex, UPS, DHL, TNT, etc.

     to have the samples collected; or inform us your DHL collection account. Then you can pay the freight direct to your local carrier company.

4.Q:How does your factory do regarding quality control?
A:"Quality is priority? Our worker always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
