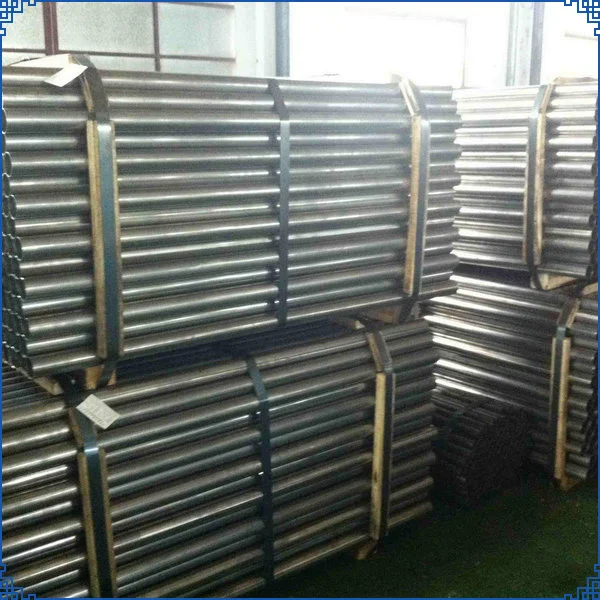

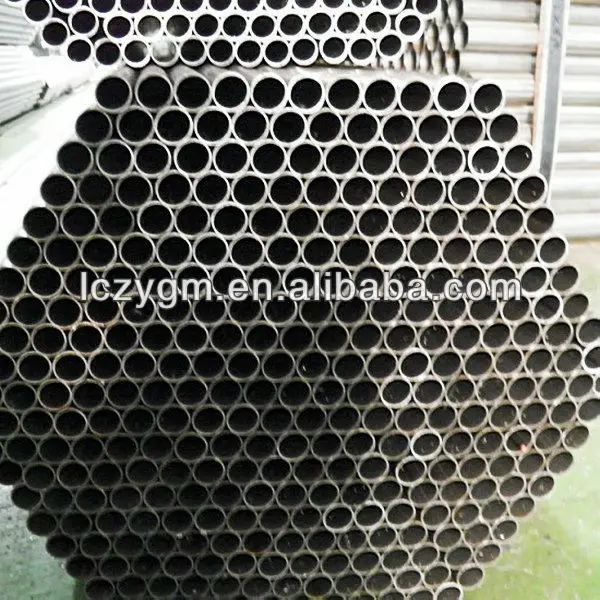

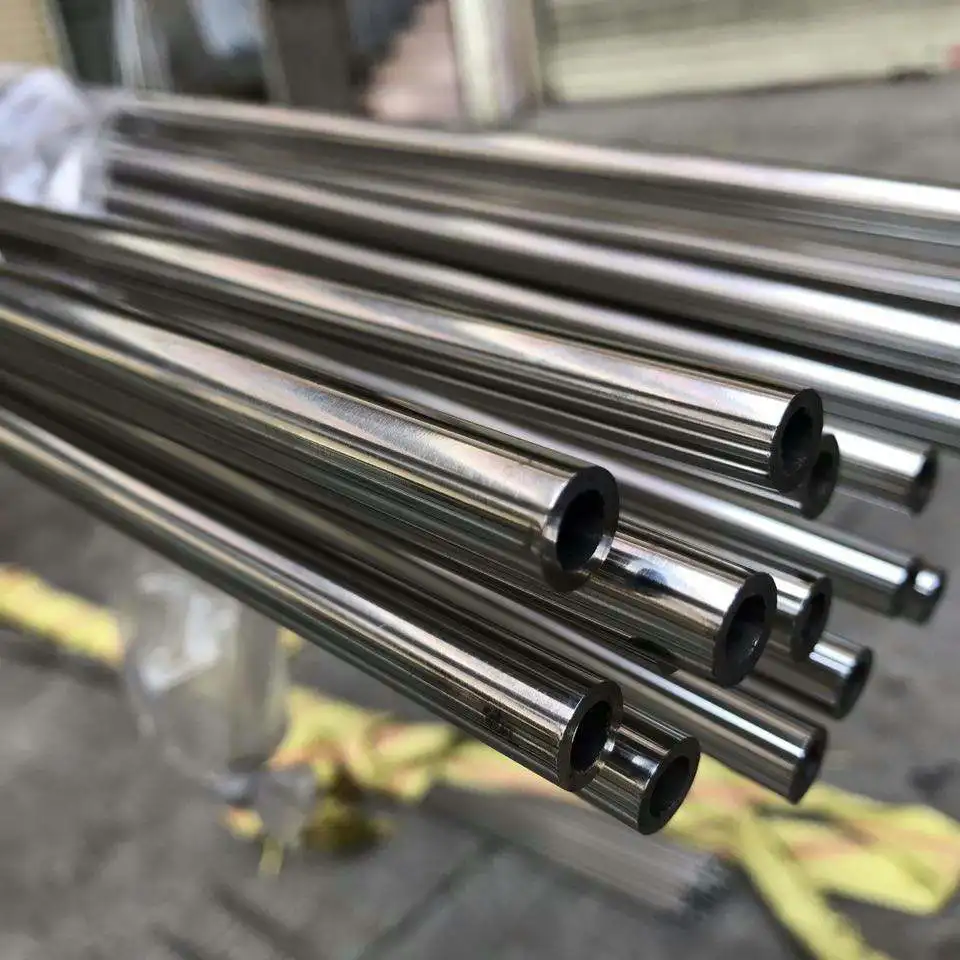

AISI 409 stainless steel pipe for automotive muffler and shock absorber

Product Overview

Description

AISI 409 stainless steel pipe



1. Features of aisi 409 stainless steel pipe :
    1) Inside and outside bead scarfing
    2) Higher expansion rate
    3) Smooth surface roughness
    4) Accurate roundness



2. Specifications of aisi 409 stainless steel pipe :
    1) Standard: GB/T12770-2002, ASTM, JIS ect.
    2) Grade: SUH409L
    3) Outside Diameter: 12-114mm
    4) Wall Thickness: 1.0-2.0mm
    5) Length:5.8 meters or according to your request
    6) Type: Welded

3. Application of aisi 409 stainless steel pipe :
    1) Muffler tube of exhaust systems
    2) Cylinder tube of shock absorber and steering parts ect

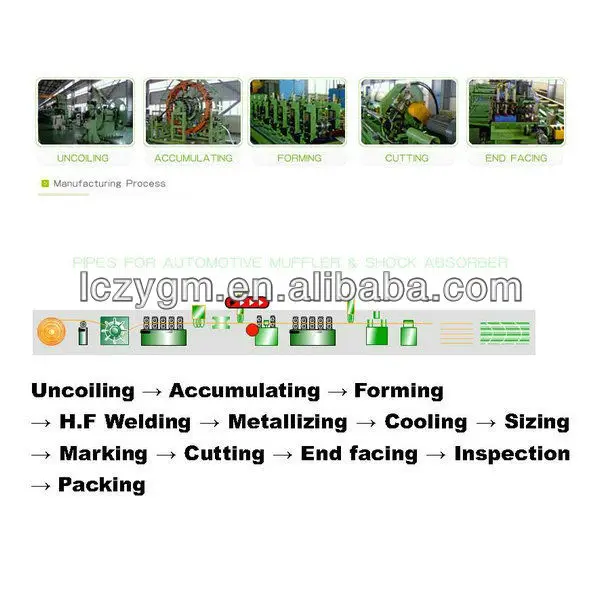

4. Manufacturing process of aisi 409 stainless steel pipe :

5. Chemical composition and Mechanical property of aisi 409 stainless steel pipe :



Material	Chemical Composition (%)						Mechanical Properties
	C max	Si max	Mn max	P max	S max	Cr	T.SN/ mm2	Y.pN/ mm2	E.L%	Hardness HRB
SUH409L	0.03	1.00	1.00	0.04	0.03	10.50-11.75	360	175	25	80

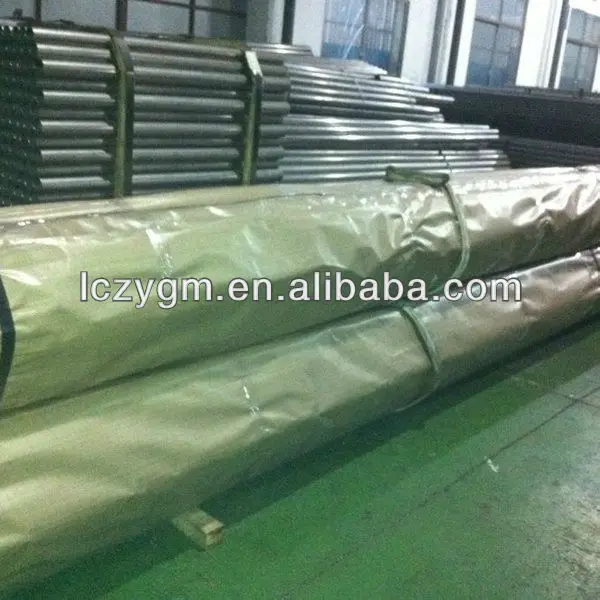

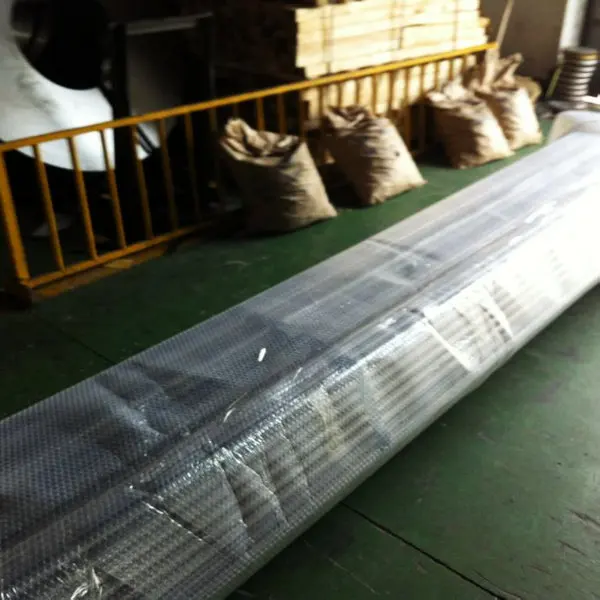

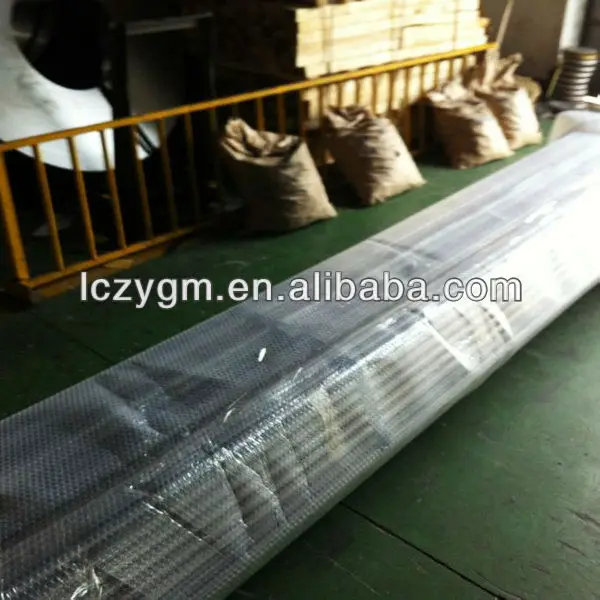

6. Packing of aisi 409 stainless steel pipe :

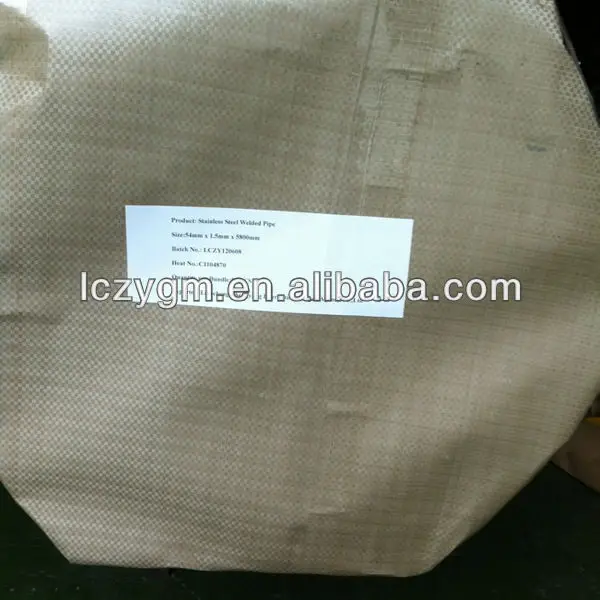

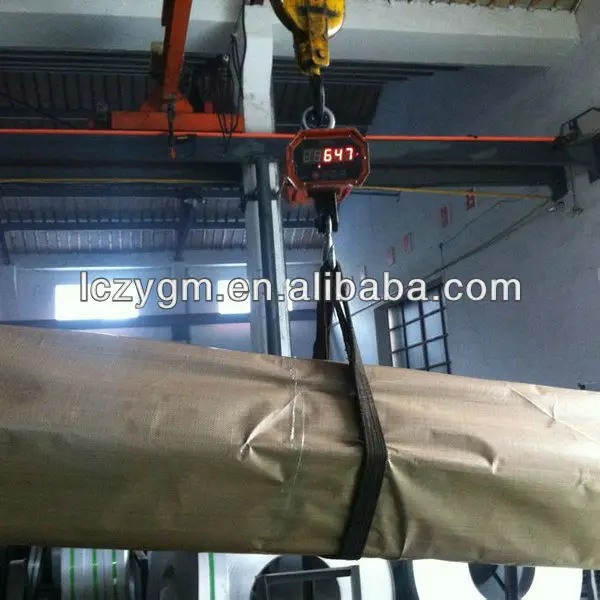

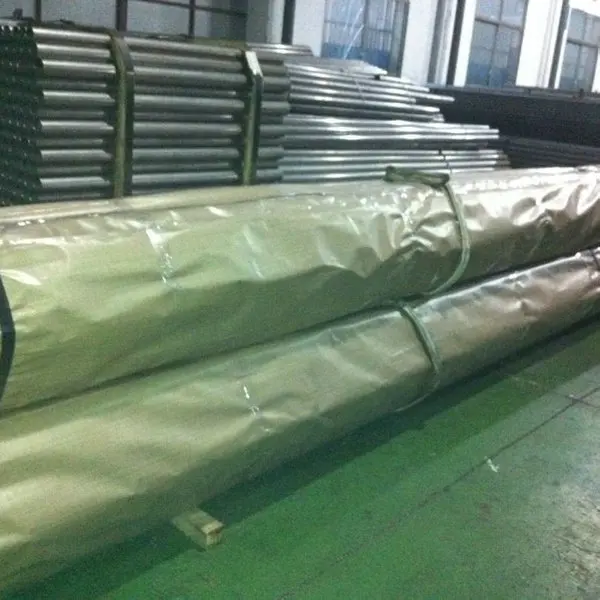

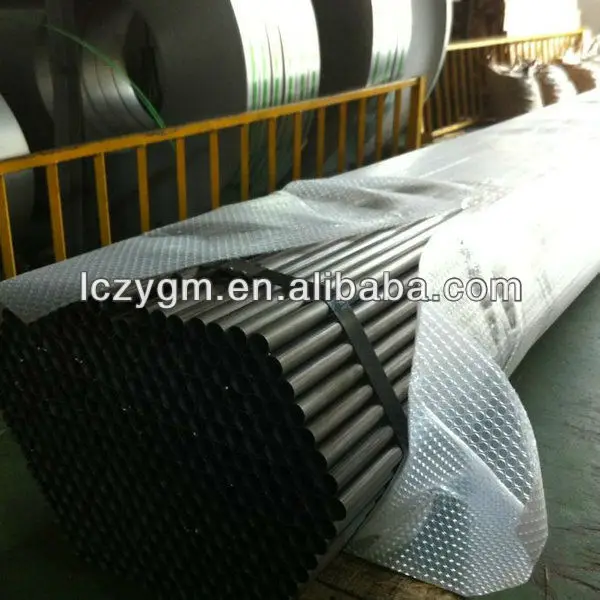

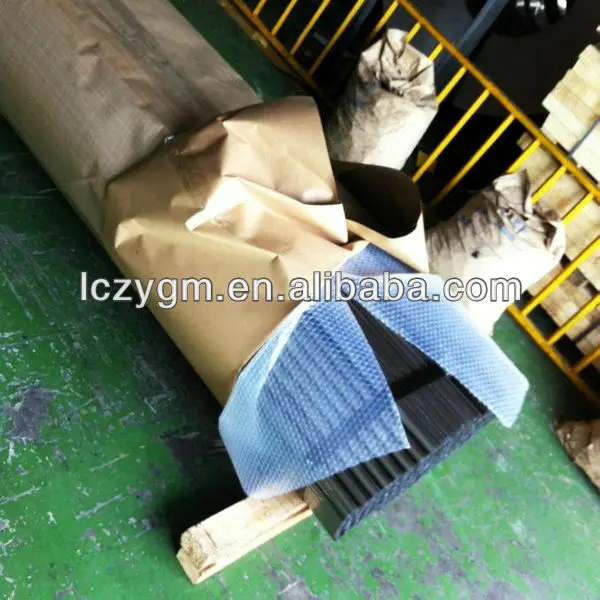

    In bundles and wrapped with anti-rust paper.
    Or according to your requests.





7. Export markets of aisi 409 stainless steel pipe :
    Egypt, Iran, Kuwait, Algeria, Saudi Arabia, South Africa, India, Malaysia, Indonesia,

Canada, Brazil, Mexico, Venezuela ect.



8. Main dimensions of aisi 409 stainless steel pipe :

Outside Diameter   (mm)	Wall Thickness
mm	mm
12	1.0	1.2	1.5
12.7	1.0	1.2	1.5
13	1.0	1.2	1.5
15.9	1.0	1.2	1.5
16	1.0	1.2	1.5
17.3	1.0	1.2	1.5
19.1	1.0	1.2	1.5
20	1.0	1.2	1.5
22	1.0	1.2	1.5
22.2	1.0	1.2	1.5
24.4	1.0	1.2	1.5
25	1.0	1.2	1.5
25.4	1.0	1.2	1.5
28	1.0	1.2	1.5
28.6	1.0	1.2	1.5
29	1.0	1.2	1.5
30	1.0	1.2	1.5
32	1.0	1.2	1.5
35	1.0	1.2	1.5
36	1.0	1.2	1.5
38	1.0	1.2	1.5
38.7	1.0	1.2	1.5
39	1.0	1.2	1.5
40	1.0	1.2	1.5
41	1.0	1.2	1.5
42	1.0	1.2	1.5
42.7	1.0	1.2	1.5
43	1.0	1.2	1.5
45	1.0	1.2	1.5
48	1.0	1.2	1.5
48.6	1.0	1.2	1.5
50	1.0	1.2	1.5
50.8	1.0	1.2	1.5
52	1.0	1.2	1.5
53	1.0	1.2	1.5
54	1.0	1.2	1.5
55	1.0	1.2	1.5
57	1.0	1.2	1.5
57.2	1.0	1.2	1.5
58.5	1.0	1.2	1.5
60	1.0	1.2	1.5
64	1.0	1.2	1.5
65	1.0	1.2	1.5
68.5	1.0	1.2	1.5
70	1.0	1.2	1.5
75.6	1.0	1.2	1.5
76	1.0	1.2	1.5
82	1.0	1.2	1.5
90	1.0	1.2	1.5



If any question or inquiry,please contact us freely.
