SYNCOTEK Card Reading Plastic Card Dispenser Bill Acceptor Manufactures
US $250.00-$278.00
All in one cash Payment Kiosk Machine/Bill Payment Kiosk
- Category: >>>
- Supplier: Shenzhen Netoptouch Technology Co. Ltd.
Share on (1290468291):
Product Overview
Description
Description
All-in-one cash Payment Kiosk Machine/Bill Payment Kiosk
This all-in-one kiosk equips with bill acceptor, thermal printer, door sensor and 3G route. Worlk with control
software, it is able to recognize how much the insert money is and self print receipt via touch the screen. It
not only connect to internet via wired netcard, but also via 3G route.
Contact us freely to get more information about this all in one cash payment kiosk machine.
Specification of All-in-one cash Payment Kiosk Machine/Bill Payment Kiosk | ||||||
No. | Components | Specification | ||||
1 | Computer Parts | Android PC host (can be customized) | Mainboard: Industrial motherboard, CPU: I3 CPU | |||
RAM: DDR3 1333 4GB; Hard Disk: 500GB, 7200R, SSD available | ||||||
RS-232 Ports, RJ45 interface, 2 cooling fan | ||||||
4 USB Ports,1 10/100M Net Port | ||||||
2 LTP; Data Cable; Power Cable; Newtwork Cable | ||||||
Integrated disply card, Net Card, Sound Card, Video board embed. | ||||||
2 | Monitor | 19.1 inch | 100% new Grade A+ TFT LCD or LED | |||
Brightness: 350cd/m2 Hardness: Moh'S 3 | ||||||
Contrast: 1000:1 Lifelong: more than 50 000 hours | ||||||
Max(native). Resolution: 1280x1024 | ||||||
Response Time:10ms;Dot pitch: 0.297;VGA interface | ||||||
3 | Touch Panel | 19.1''infrared | Durability: Scratch-free, more than 50,000,000 touches without failure | |||
antirust, anti-acid, anti-dust, water proof, anti-vandal | ||||||
Thickness: 3mm; Resolution: 4096×4096; Light Transmit: 95% | ||||||
Surface Hardness: Mohs' hardness rating of 7 | ||||||
Response Time: 5ms; Interface: USB | ||||||
4 | Enclosure | Durable 1.5mm cold rolled steel frame, painting color optional | ||||
Ergonomically sleek and smart design | ||||||
Easy to install and operate with drawers | ||||||
Internal fans for ventilation | ||||||
Left and right bi-channel; amplified output; Multimedia speaker | ||||||
Moistureproof, Antirust, Anti-acid, Static free | ||||||
5A | Extra device for bill payment kiosk | Printer | Thermal printer, 80mm paper to print, photo print available. | |||
bill acceptor | banknote acceptor which supports most of currencies, with cash storage box | |||||
5B | Extra device for bill payment kiosk | Door sensor | Customized sensor to show the status of the on&off kiosk door | |||
3G route&UPS | 3G route with GPS function&UPS, backup time(about half an hour) | |||||
6 | Operating system | Windows | Windows 7 or Windows 10. | |||
7 | Production Time | 15~20 working days after deposite confirmed | ||||
8 | Packing | Safty Wooden case for exporting | ||||
9 | Warranty and MOQ | 1 Year, aftersale online service forever. MOQ: 1 piece | ||||
10 | Payment Terms | 50% Deposit, 50% balance T/T before shipment. | ||||
Product Show
How the payment kiosk machine looks like

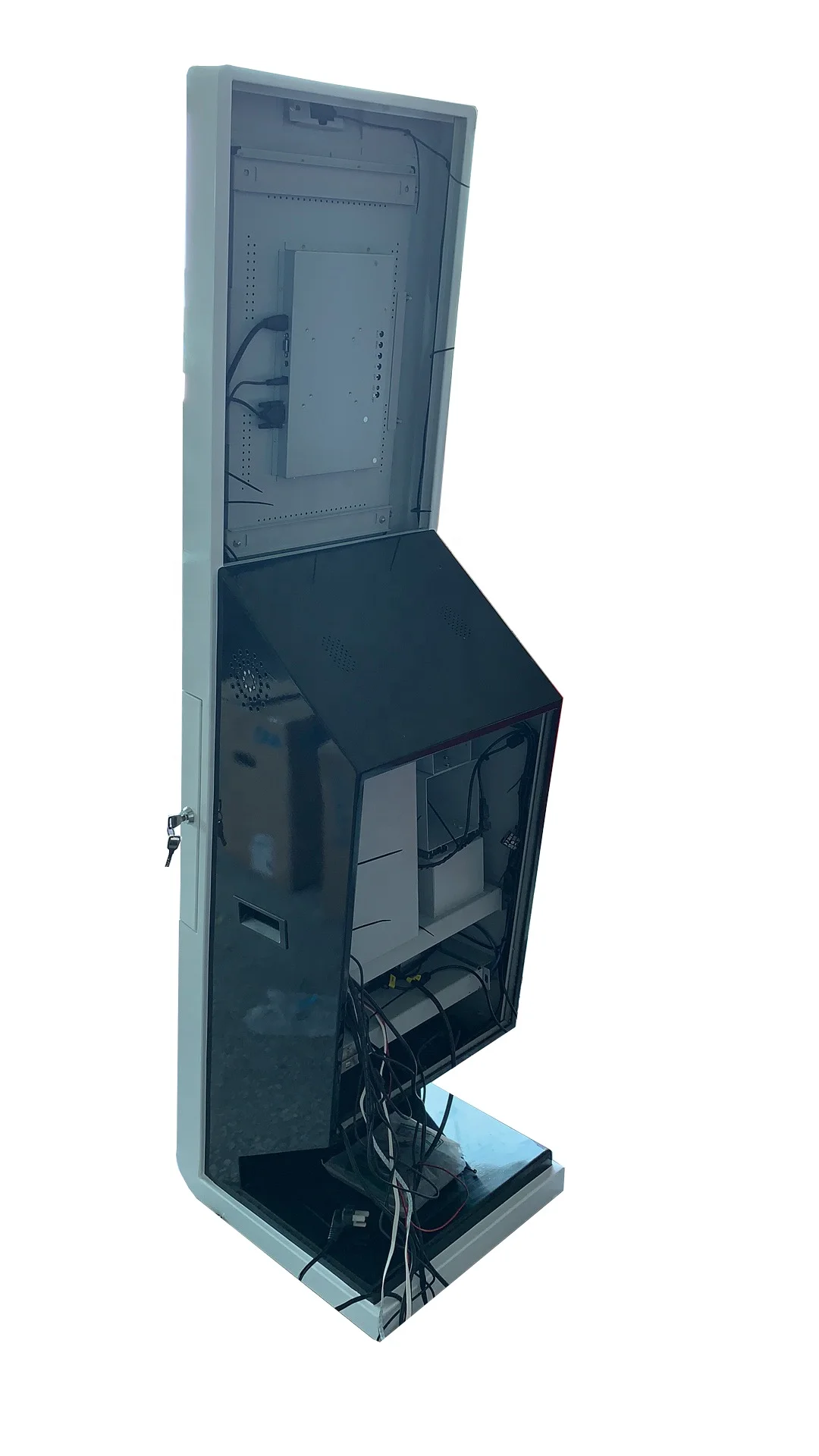

inside of the kiosk body?
This picture shows that inside of the kiosk case, how it looks like for every part. Here the payment machine is only with banknote acceptor and thermal printer, coin acceptor&card reader are avaialble, so does wall mounted payment kiosk idea with different prices.
Supplementary specification of this touch kiosk:
1. The infrared touch panel is two-point touch, if need more point touch, its available.
2.. With multimedia function, you can set all in one kiosk to display advertising during the period that
nobody using it.
3. Other model kiosk machine for sale, you are welcome to inform us about the kiosk idea you prefer, we
will design new similar all-in-one paymentl kiosk for you.
4. Software for this all-in-one payment kiosk is available, only for English Version.
5. Only with bill acceptor as payment method, this payment kiosk machine only accept cash payment, and
only bill&banknotes are available.
6. If you need, we can order Licensed Windows Operate System for you, but Windows 10 is not available.
Android system is available.
7. Due to problem caused by light, water and other reasons, this mall kiosk only can be used indoor, working
voltage is 110v~240v.
8. This bill payment kiosk must work with related self payment software, right now the kiosk only can print
test page and recognize how much the money is, but what content to print and what does inserted money
for, it has no idea.
Similar all-in one payment kiosk design with bill acceptor and thermal printer:
Photos of other bill payment kiosk design with more devices, customized design&Idea are welcome.
Applications
1.Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3.Non-profit Organizations: Telecommunications, post offices, hospital, schools
4.Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers
6.Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet
bars, beauty shops, golf course.
About Us
Our History starts from 2003.
List of some of our clients
Factory and workshop
Company
Factory
Our Factory
Workshop
Our Workshop
Semi-finished kiosk case
Warehouse
Certifications
FAQ
Q: Whats the working voltage of this machine?
R: Its AC110V~240V.
Q: Are you trading company or manufacturer of kiosk?A: We are kiosk case manufacturer&factory and have our own kiosk assemble workshop. Our factory located at Songgang, Shenzhen.
Q: How long is your delivery time?
A: Generally it is about one month after deposit for sample.
Q: Do you provide free samples?
A: Because our MOQ is one piece, and most of our kiosk are customized design, free sample is not available.
Q: What is your terms of payment?
A: T/T, Paypal, West-Union and Trade Assurance are welcome. Usually 50% of the total payment as deposit, rest to be balance before delivery.
Q: How long is your warranty period?
A: Normally the warranty period is one year dated from delivery, during this period, if there is any part cant work, we will help you to fix it, or delivery you replacement for free.
