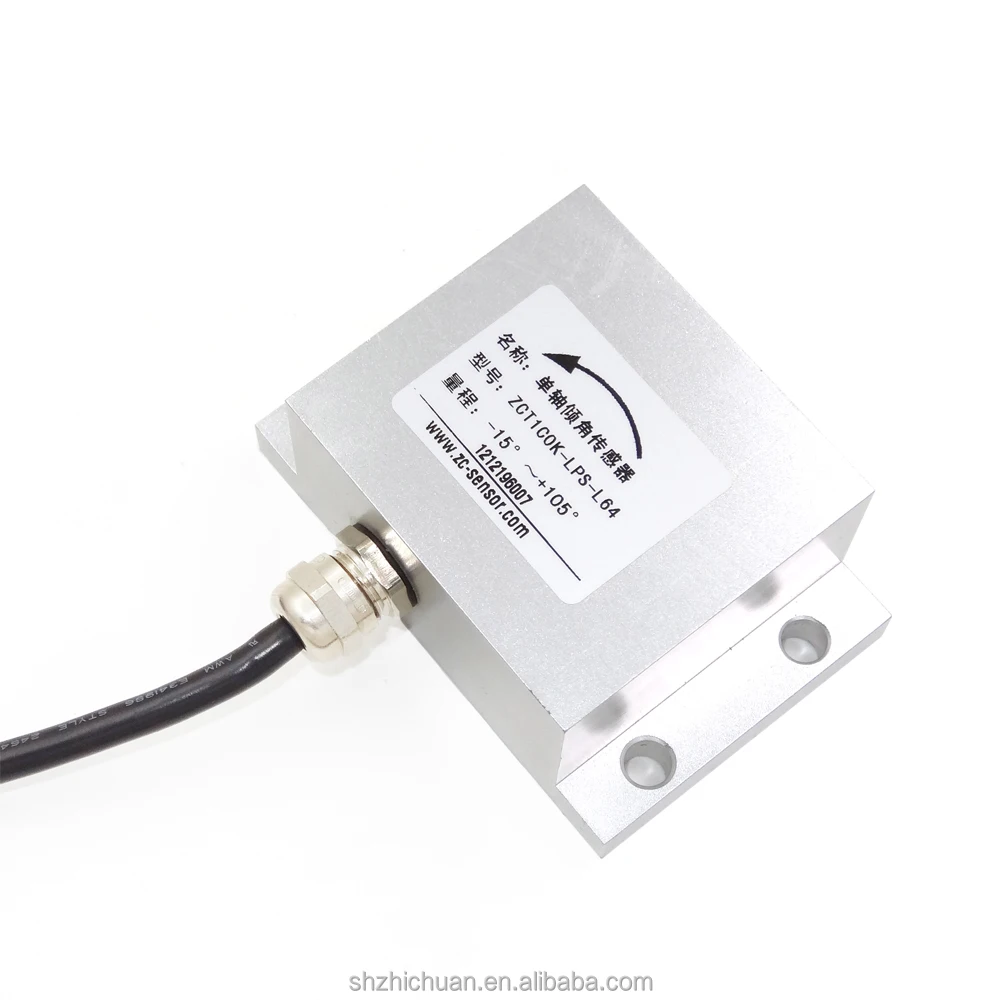

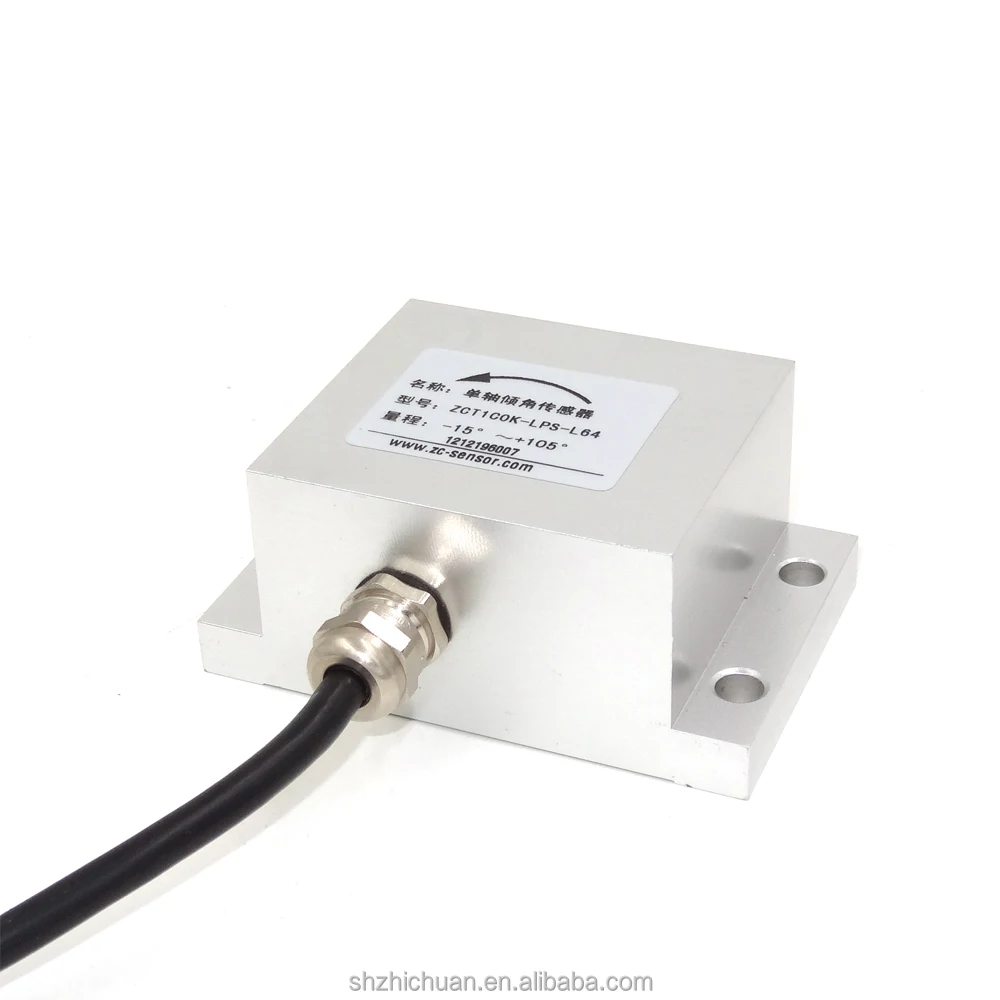

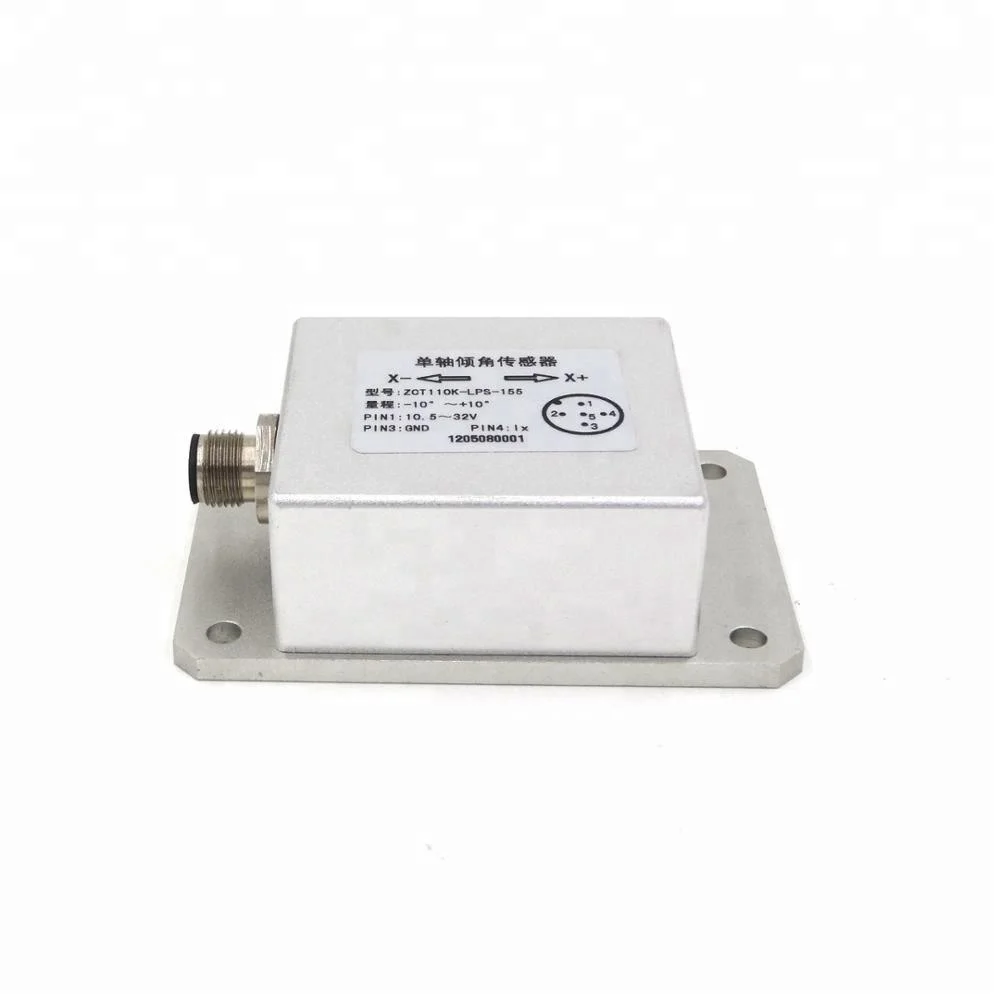

ZC Low Cost High Precision Single Axis Analog Current Output Inclinometer Sensor

Product Overview

Description

1. General description:

• ZCT1XXK-LPS is researched and produced by Shanghai Zhichuan.
• high stability current type inclinometer.
• Output standard 3 wire 420mA analog current.It has anti-jamming characteristic, adapt to long distance signal transmission.

 2. Features

• Industrial devices entirely
• High stable and reliable performance
• Anti-vibration, shockproof
• High cost performance
• Waterproof grade:IP66

 3. Application

• Engineering machinery, engineering vehicles
• Security control, tilt control

4. Technical specification:

	Parameter	Test condition	Min.	Type	Max.	Unit
Electrical specification	Supply voltage		12	24	30	V
	Quiescent Current	Supposed supply voltage 24V		30	40	mA
	Operating Temperature		-40		85	°c
Performance specification	Measuring Range	ZCT100K-LPS		0-90		°
		ZCT195K-LPS		-15-80		°
		ZCT1K0K-LPS		0-180		°
	Resolution			0.01		°
	non-linearity			±0.2		%/FS
	Sensitivity	ZCT100K-LPS	0.1768	0.1778	0.1788	mA/°
		ZCT195K-LPS	0.1674	0.1684	0.1694	mA/°
		ZCT1K0K-L	0.0878	0.0889	0.0898	mA/°
	Zero output current		3.995	4.000	4.005	mA
	Zero temperature drift			0.5	0.86	°
Others	Size			72*72*45		mm
	Cable length		0.9	1	1.1	m

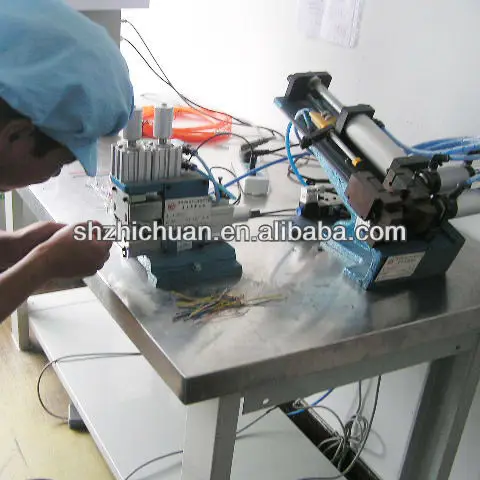

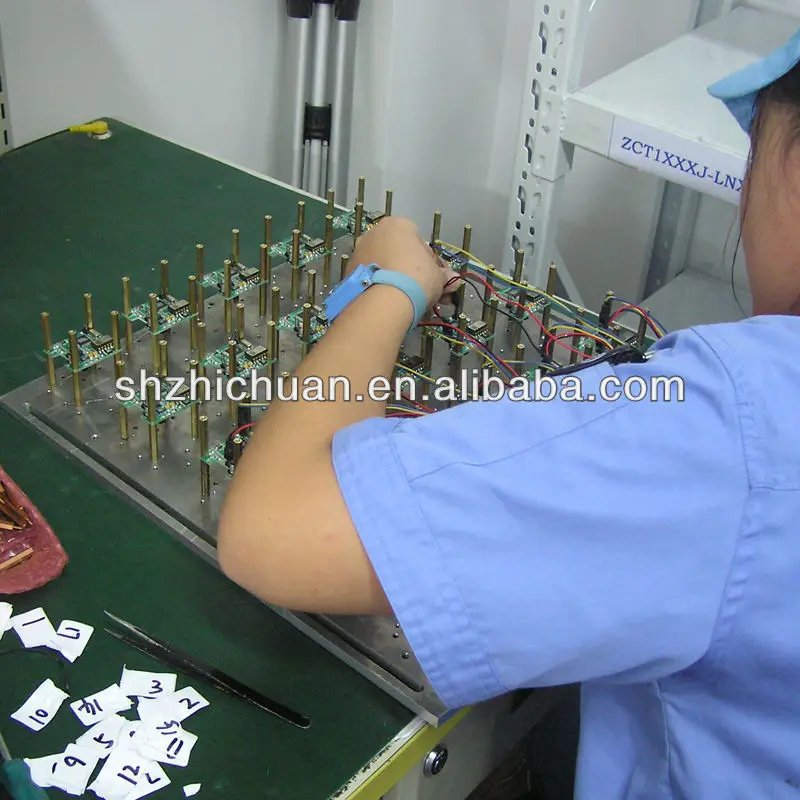

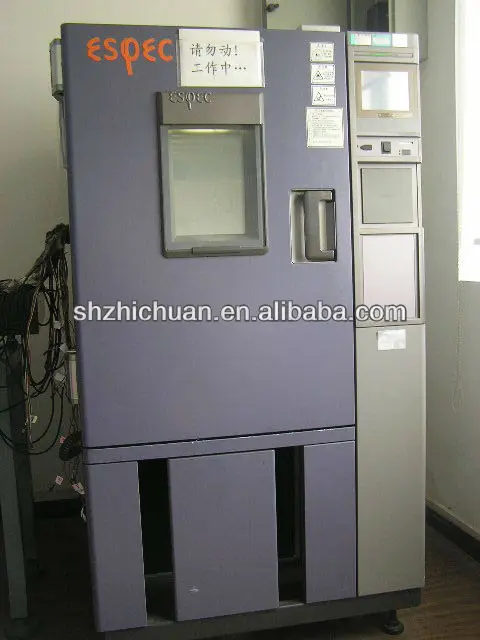

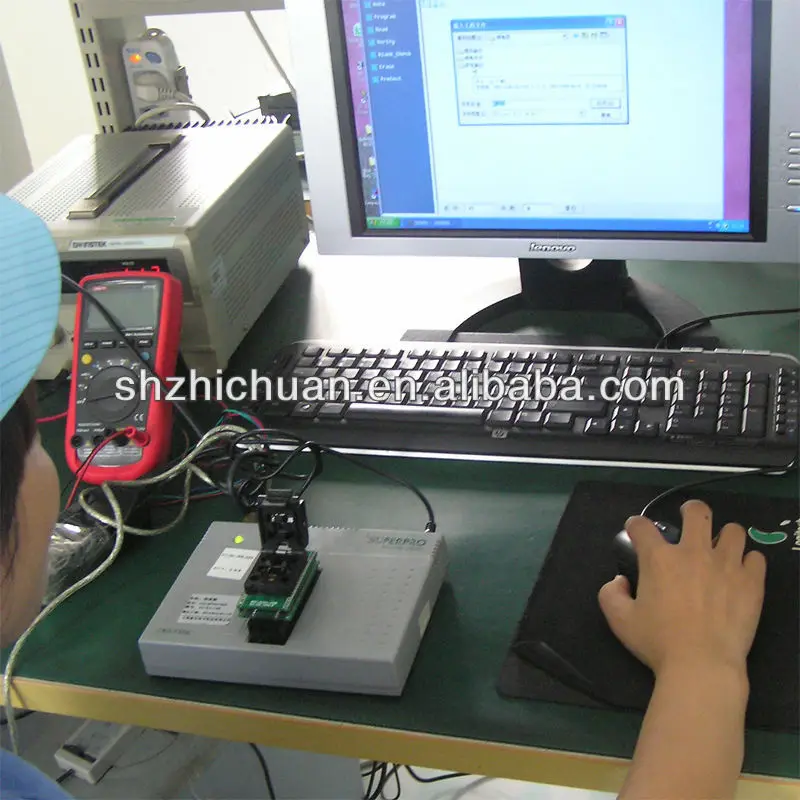

5. Production procedure:

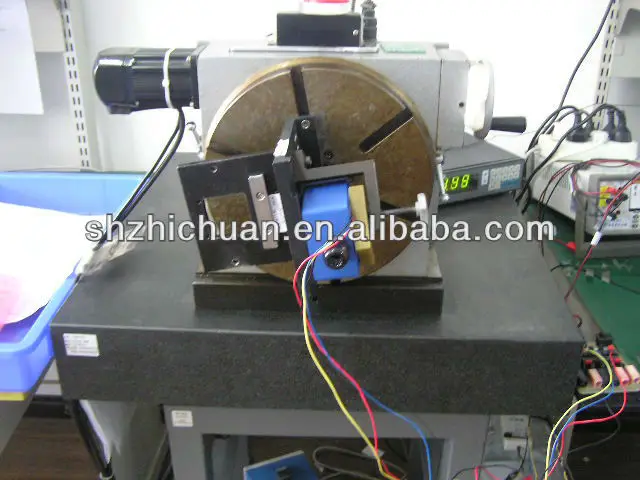

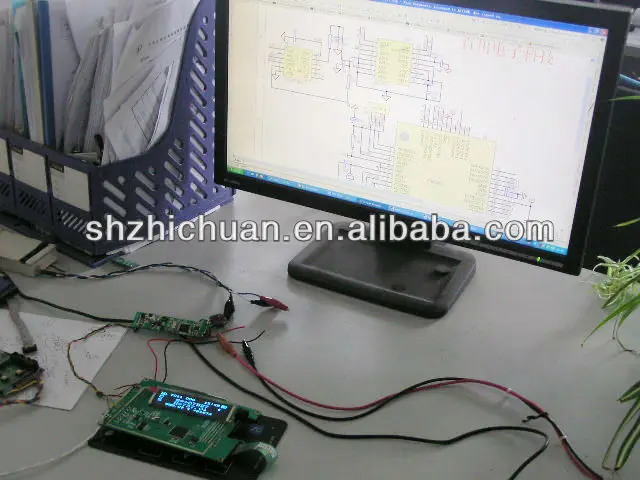

6. R&D:

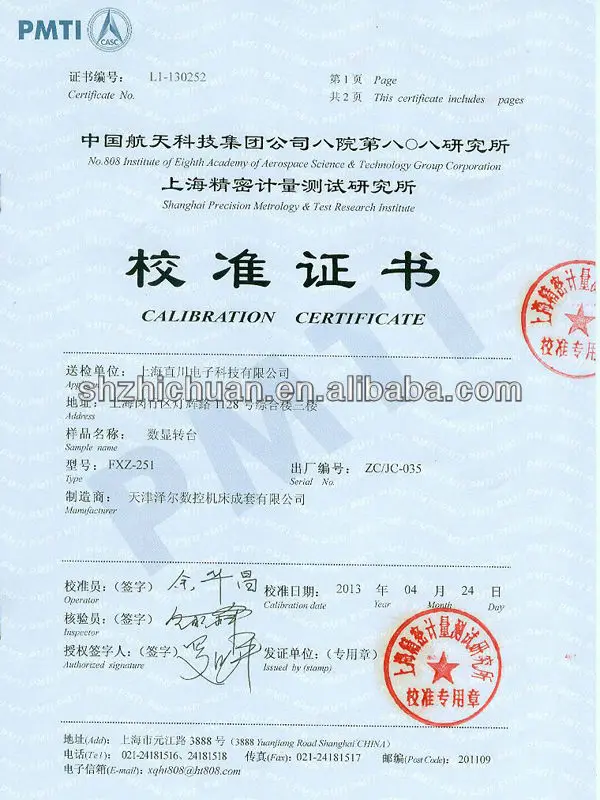

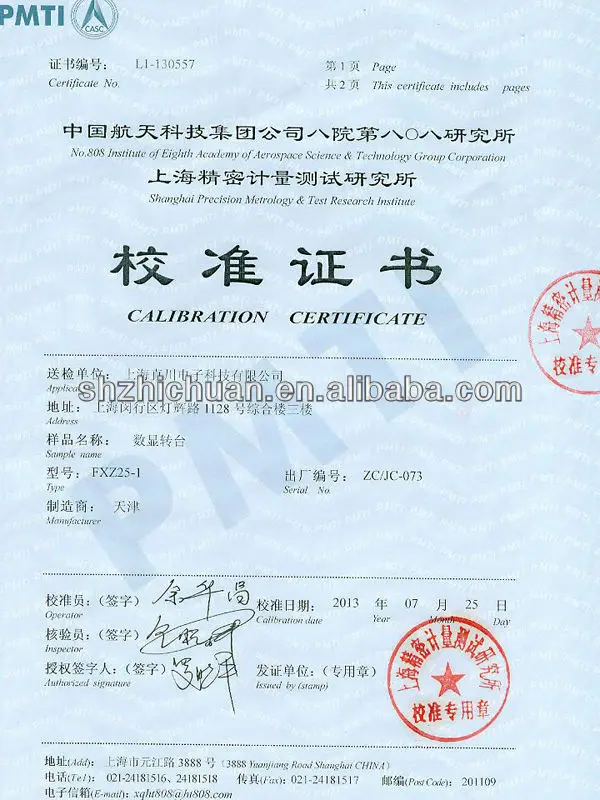

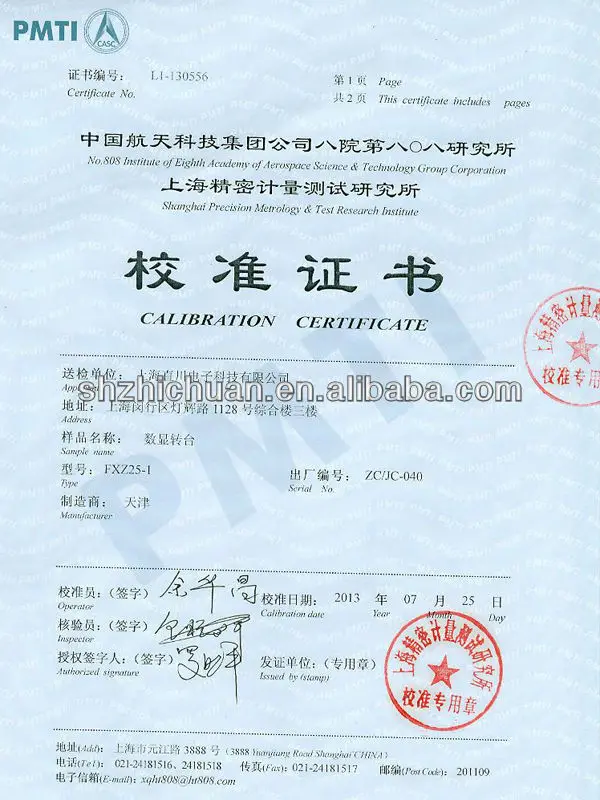

7. Calibration Report for Testing Machine:

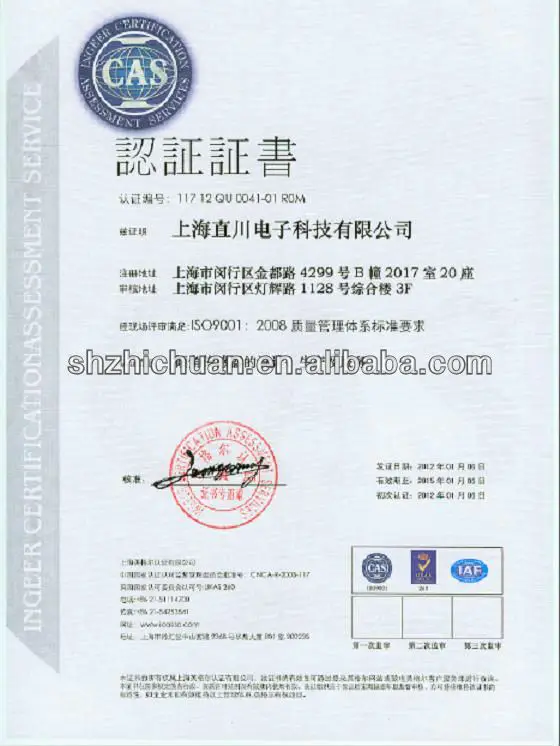

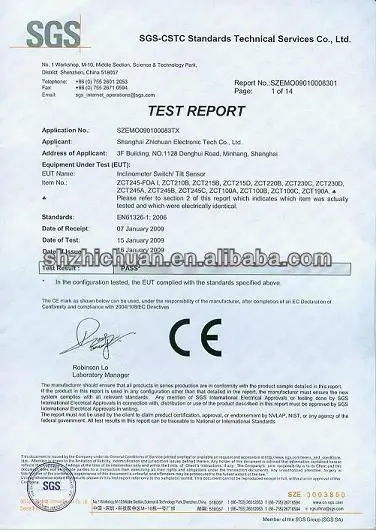

8. Certificates:





9. Why Choose Us:

1. 12 years manufacturing experience .

2. A strong and professional R&D working team.

3. Well trained&professional work staff and perfect testing equipment

4. 100% inspection before shipment.

5. CE Approved.

6. Quality Management System: ISO9001.

7. Provided competitive price and serious quality control.

8. Have the good capability to develop new products based on clients’ requirements.

9. Have the experience to work with the Global Fortune 500 & Top 1 of the related filed.

10. Perfect After-Sales Service.
