Hot selling fiber bale opening and fiber carding and collector line

Product Overview

Description

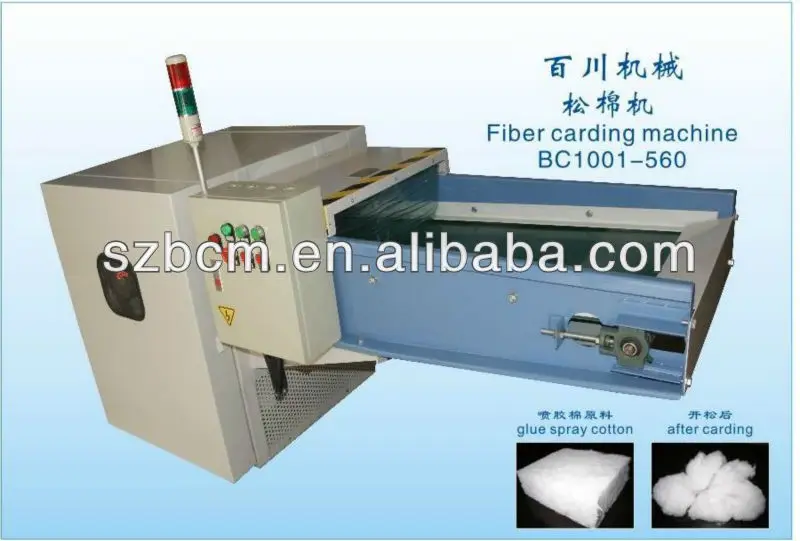

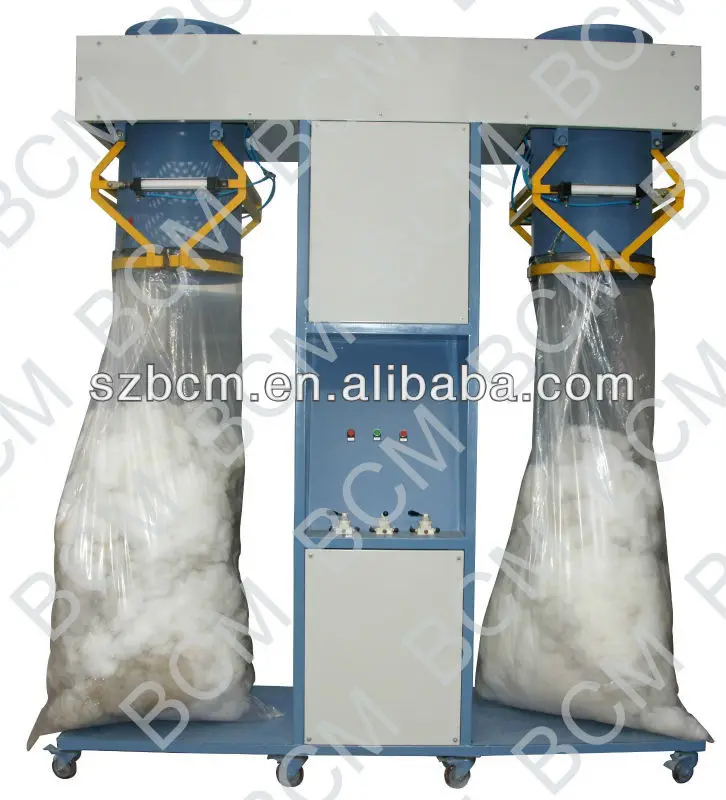

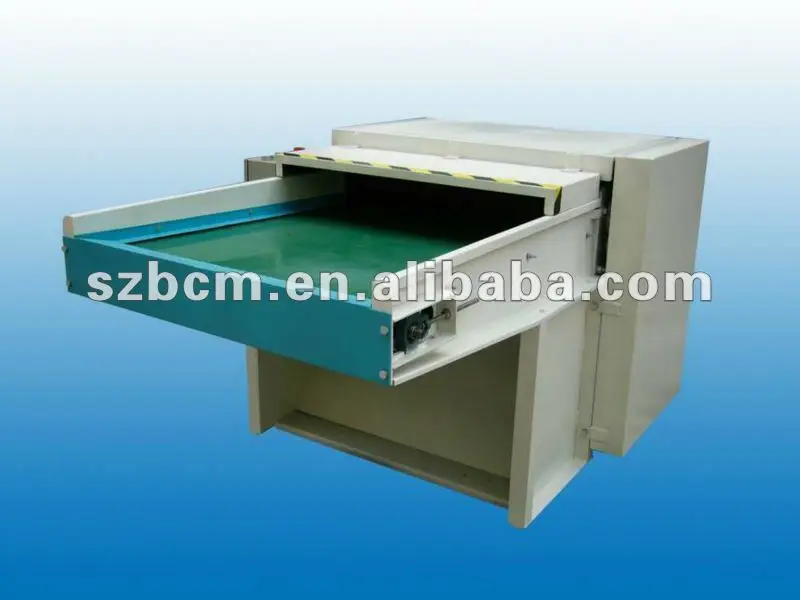

Fiber carding machine and  two head collector

Suitable for upholstery, sofa and beddings production. To enhance competitiveness and improve working efficiency

 Suitable for opening all kinds of short fibers (less than 100mm) . such as polyester, glue-spay cotton, silk floss ,woolen … with a remarkable opening rate 99%

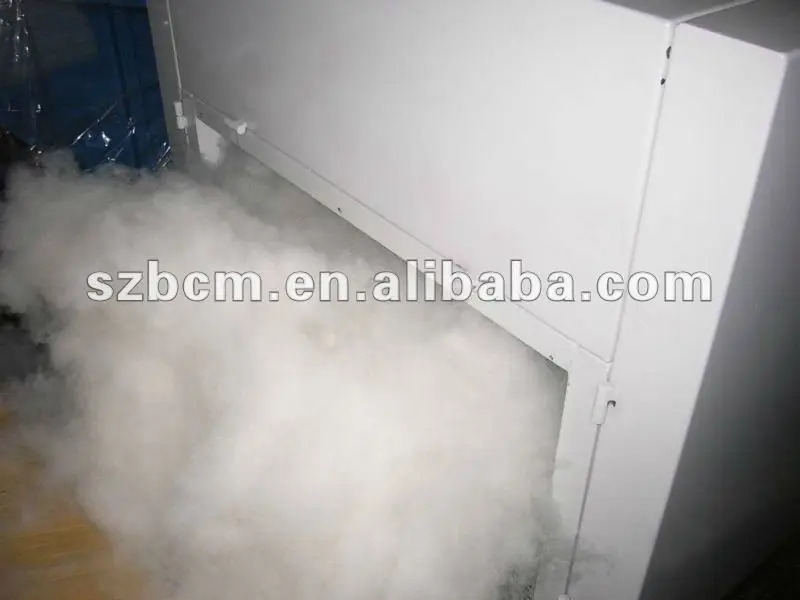

 After processing ,the fiber will be even and fluffy



Model	BC1001-360	BC1001-560	BC1001-790	BC1001-1000
Belt width	360mm	560mm	790mm	1000mm
Dimensions(mm) (L*W*H)	2140*750*940	2150*900*940	2150*1150*980	2150*1400*1100
Power	2.95kw	4.75kw	6.25kw	6.25kw
Net weight	400kg	600kg	800kg	1000kg
capacity	60-80kg/h	120-150kg/h	160-190kg/h	200-250kg/h
