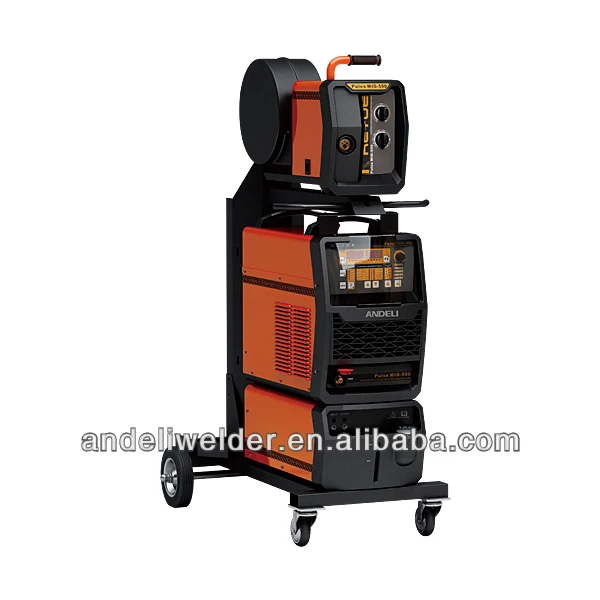

Professional Automatic CO2 Sheild MIG Welding Machine MIG 500H

Product Overview

Description





Professional Automatic CO2 Sheild MIG Welding Machine MIG-500H





Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993. 2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE. 3. 300 cooperating companies - We have over 300 cooperating companies. 4. 3000 workers - We have over 3000 workers. 5. USD150,000,000 - The total assets is USD150,000,000. 6. 235,000 square meters - The area of Andeli is 235,000 square meters. 7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……

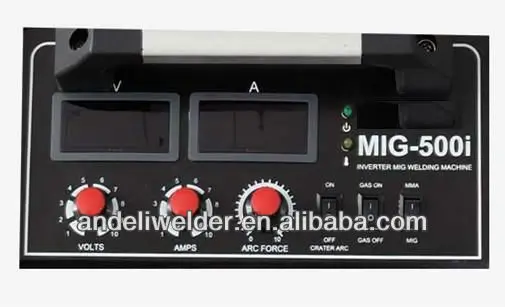

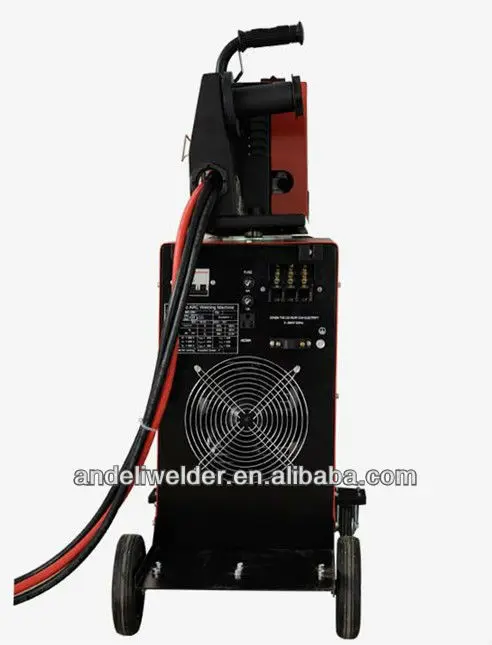

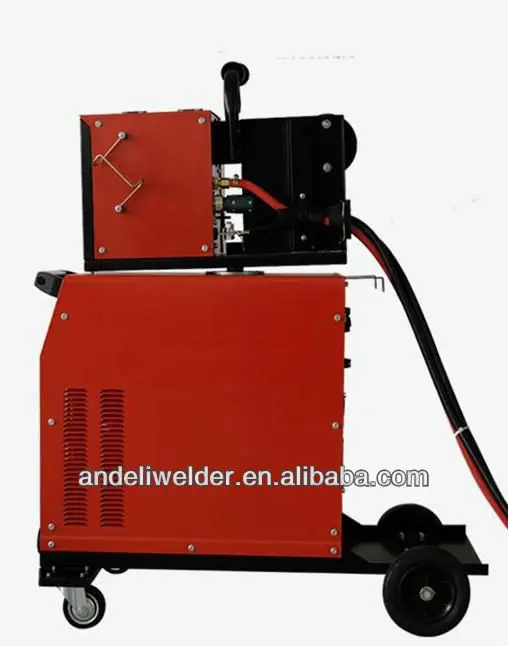

380/400V Welding Machine MIG-350i/500i



Features:

1.IGBT Inverter system,soft switch technology design.

2.2 work modes:MAG/CO2&MMA.

3.Modularized main circuits design,SIMENZ IGBT modules used (500A).

4.Fast Arc despondence control system,perfect welding performance.

5.Perfect air-cooling system,Intelligent Ventilator Management.

6.Professional separated Wire-feeder.

7.Anti Arc-Interruption circuits design for stable welding arc&low splash.

8.Heavy Duty,suitable for heavy industry&vessel building jobs etc.

9.Over Heat,Over Current protection,Input voltage regular fits.

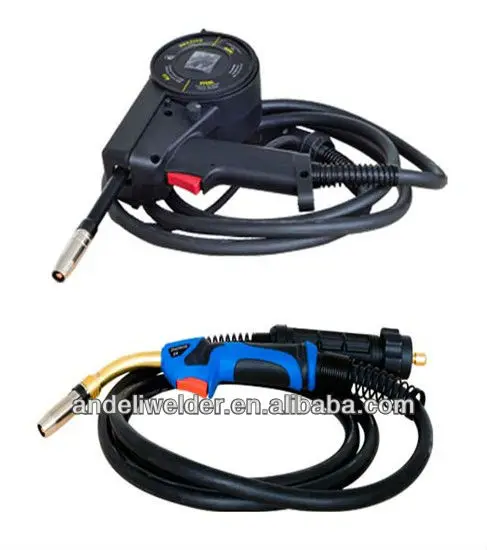

10.Professional MIG torch: MB36KD....



Item No	MIG-350i	MIG-500i
Input Voltage	3PH~,380/400V,50/60Hz
Rated Input Capacity	16KVA	26KVA
Rated Input Current	21A	37A
No-load Voltage	58V	70V
Rated Output Voltage	31.5V	39V
Output Current Range	30-350A	30-500A
Output Voltage Range	15-40V	15-50V
Rated Duty Cycle	60% @ 350A	60% @ 500A
Gas Retard Time	5S	5S
Wire Spool Capacity	300mm(15kg)	300mm(15kg)
Wire Diameters	0.8-1.6mm	0.8-1.6mm
Welding Thickness	1.0-10mm	1.2-25mm
Dimension(LxWxH)	800x450x987mm	800x450x987mm
Weight	50KG	50KG





Accessories:













Competive:



* BUY WITH CONFIDENCE.

* QUALITY MACHINES MANUFACTURED BY ANDELI.

* FULL SERVICE AND PARTS BACK UP.

* 24 MONTHS WARRANTY.



The data in the above table is only for reference. Please subject to the nameplate on the device.And we do producing many other different series too,if you feel interests,please send us an inquiry!!

















Our salesmen will reply your inquiry within 24 hours. Any order is welcome. If you like to be our agent in your country, we can give you any support on the technique & other aspects.
