B.ZTN II Semi Automatic /manual Toothpaste /Laminated /Cream Tube Shoulder Injection Machine
- Category: >>>
- Supplier: Shanghai Sunway International Trade Co. Ltd.
Share on (1293779326):
Product Overview
Description
Products Description
B.ZJ-II Shoulder Injection Machine (Semi-automatic)
Mould Size Diameter (mm): 12.7, 16, 19, 22, 25, 28, 30, 32, 35, 38, 50, 60 (Oval& round for choice)Introduction:
B.ZJ-II Plastic injection & forming machine is developed based on our second generation injection machine and advanced foreign technologies. Its double-mould alternative forming way gives it high work efficiency. When the worker operation the machine, it need two hands press the joint mould at the same time. Avoiding the hands touch the middle of the mould. Secure the safety of the people.
This machine which is safe and reliable has the advantages of pre moulding on screw, material-input in a fixed quantity at a specific position. The chief valves adopt double proportion, stress match with equality, precision in low press ion. The whole process is fluency and excellent. Control temperature and jet press ion in different sectors. Firing rate and step less
adjustment. With the function of in or out which it will more convenient of adjust the mould and cleaning the pipe. Large
mould-lock power, smooth mould moving, electric and pneumatic interlocking. Small taken installation space, convenient assembling and disassembling of the moulds..

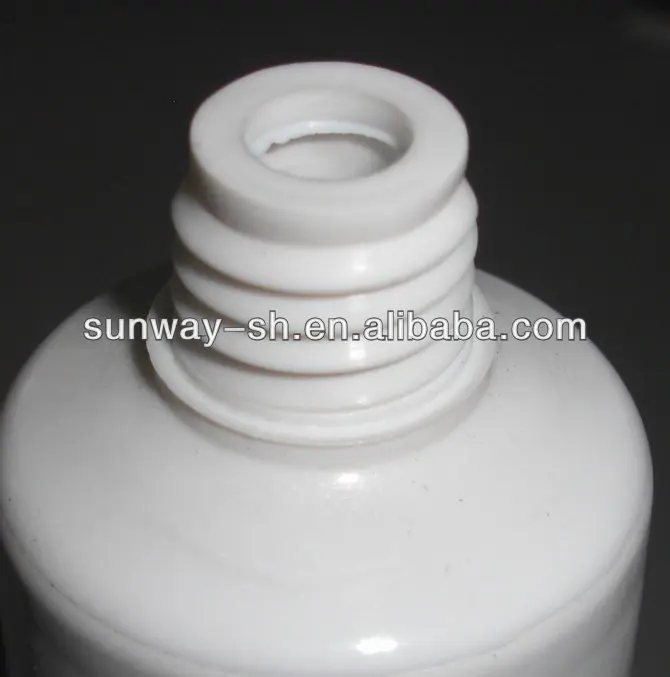

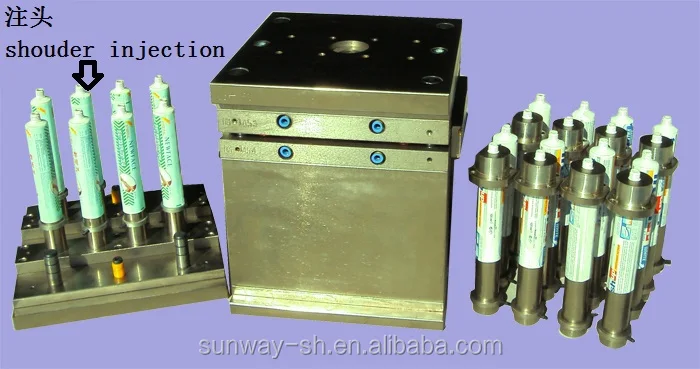

Shoulder-injection mould: the diameter of tube is 12.7mm-60mm.with ellipse and round shape, we can manufacture it according to the customer's needs and also can make screw shape.
Main Technical Parameters:
Power of The Main Machine | 5.5KW |
Heating Power | 3.5KW |
Casting Quantity | 63cm3 |
Injection Pressure | 136MPa |
Mould-Lock Power | 400KN |
Mould-Open Power | 100KN |
Production Capacity | 22-24pcs/min |
Dimension | 2300×1700×2800mm |
Weight | 1300kg |

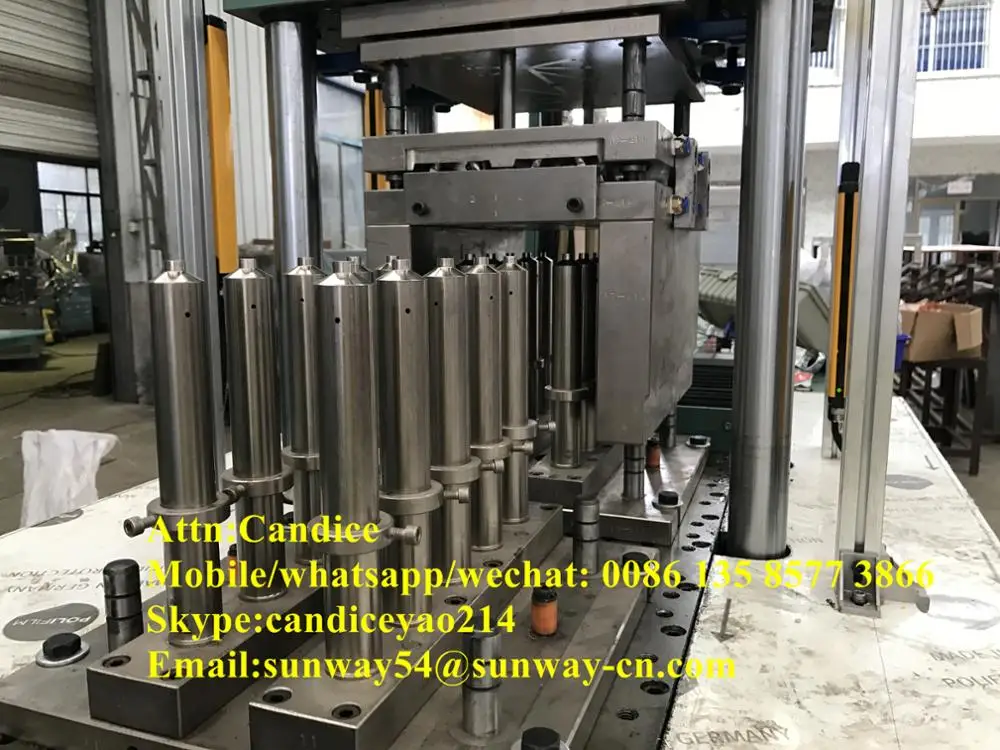

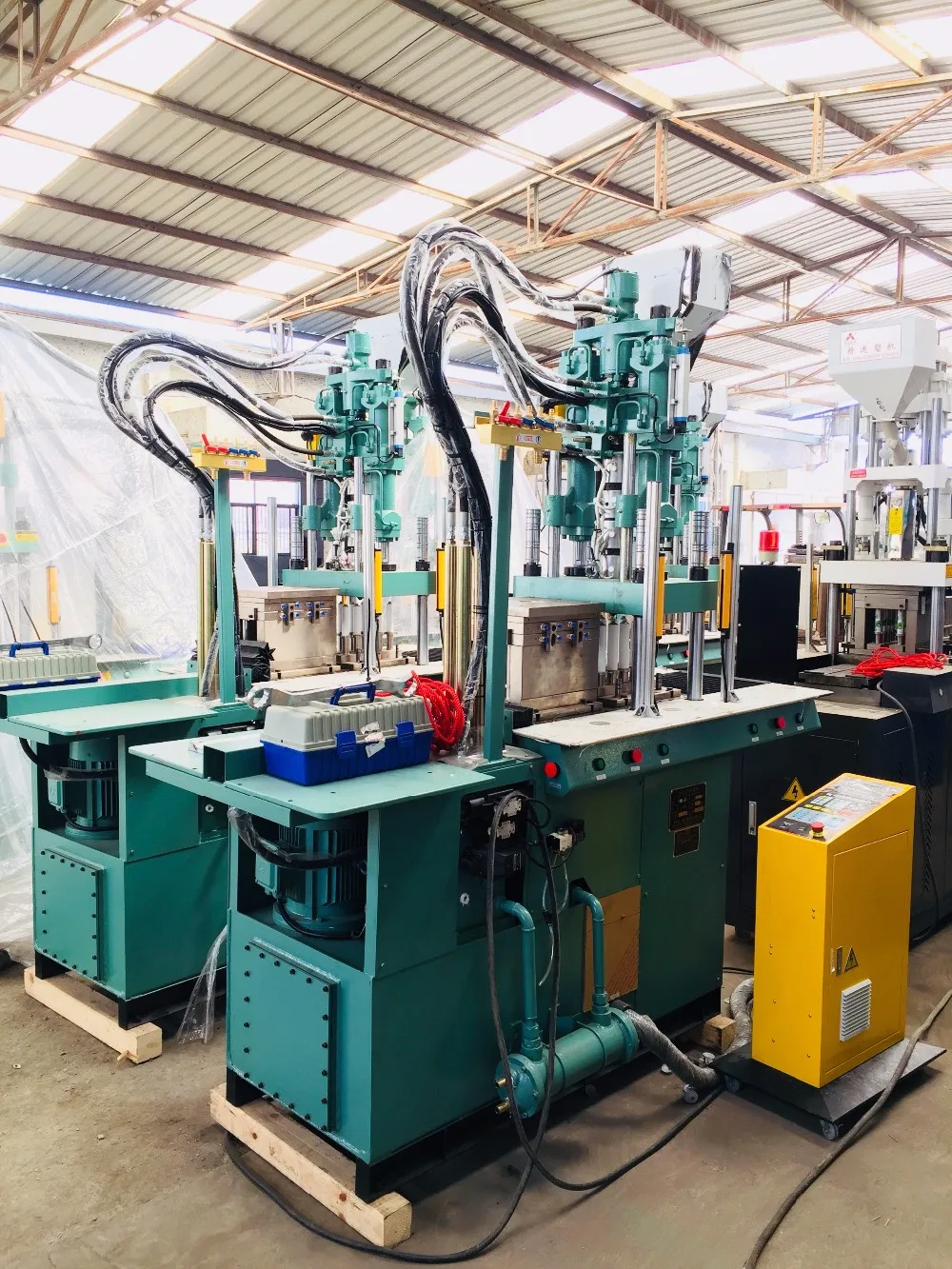

Product Showing
Company Introduction
With more than 10 years of development history, Sunway Enterprise is a trans-regional and trans-industry enterprise
integratingresearch, development, manufacturing and trade. It owns Shanghai Sunway International Trade Co., Ltd., Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd., Guangzhou Sunway Industrial Co., Ltd., and Hewang Packaging & Printing Co., Ltd. in Nigeria Ogun Guangdong Free Trade Zone.With Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd. as the manufacturing base of machinery products, Sunway Enterprise is devoted to researching, developing and manufacturing various types of machinery products,which mainly include daily chemical machinery, pharmaceutical machinery, packaging machinery, food machinery and various
stainlesssteel products.
Main products:
Automatic aluminum-plastic composite packaging tube and automatic plastic packaging tube production lines, packaging
tubeprinters,packaging tube drilling, sealing and capping machines, various types of packaging tube filling and sealing
machines,color ribbon filling and sealing machines and other ointment production equipment; vacuum ointment makers, vacuum homogenizing emulsifiers,mixers, reaction kettles and other production equipment for ointments, washing products and condiments.
Product research and development:
During the long-time manufacturing practice, we have successfully developed and manufactured many series of packaging machines and auxiliary machinery with several tens of varieties. Now we have formed professional packaging system engineering technologies that enable us to carry out design and manufacturing of packaging machinery according to customers’ enterprise status, practical production situations and special requirements, as well as provide installation commissioning, technical training, etc. for customers.
Technical cooperation:
We have always been bearing the responsibility of “integrating world’s advanced technologies and creating the brilliance of national industry”, and devoting ourselves to digestion, absorption and mastery of internationally advanced processing techniques and cutting-edge technologies of packaging machinery. We have cooperated with many foreign companies and acquired profound understanding of the internationally advanced packaging technologies.
integratingresearch, development, manufacturing and trade. It owns Shanghai Sunway International Trade Co., Ltd., Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd., Guangzhou Sunway Industrial Co., Ltd., and Hewang Packaging & Printing Co., Ltd. in Nigeria Ogun Guangdong Free Trade Zone.With Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd. as the manufacturing base of machinery products, Sunway Enterprise is devoted to researching, developing and manufacturing various types of machinery products,which mainly include daily chemical machinery, pharmaceutical machinery, packaging machinery, food machinery and various
stainlesssteel products.
Main products:
Automatic aluminum-plastic composite packaging tube and automatic plastic packaging tube production lines, packaging
tubeprinters,packaging tube drilling, sealing and capping machines, various types of packaging tube filling and sealing
machines,color ribbon filling and sealing machines and other ointment production equipment; vacuum ointment makers, vacuum homogenizing emulsifiers,mixers, reaction kettles and other production equipment for ointments, washing products and condiments.
Product research and development:
During the long-time manufacturing practice, we have successfully developed and manufactured many series of packaging machines and auxiliary machinery with several tens of varieties. Now we have formed professional packaging system engineering technologies that enable us to carry out design and manufacturing of packaging machinery according to customers’ enterprise status, practical production situations and special requirements, as well as provide installation commissioning, technical training, etc. for customers.
Technical cooperation:
We have always been bearing the responsibility of “integrating world’s advanced technologies and creating the brilliance of national industry”, and devoting ourselves to digestion, absorption and mastery of internationally advanced processing techniques and cutting-edge technologies of packaging machinery. We have cooperated with many foreign companies and acquired profound understanding of the internationally advanced packaging technologies.

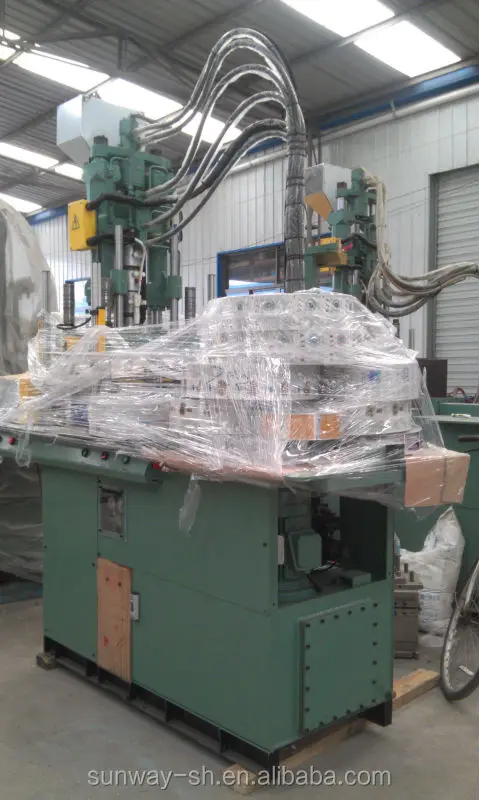

Product packaging
