LS1012EU pwm solar thermal controller 12V 10a auto switch ce rohs solar charge controller manual
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (1293799041):

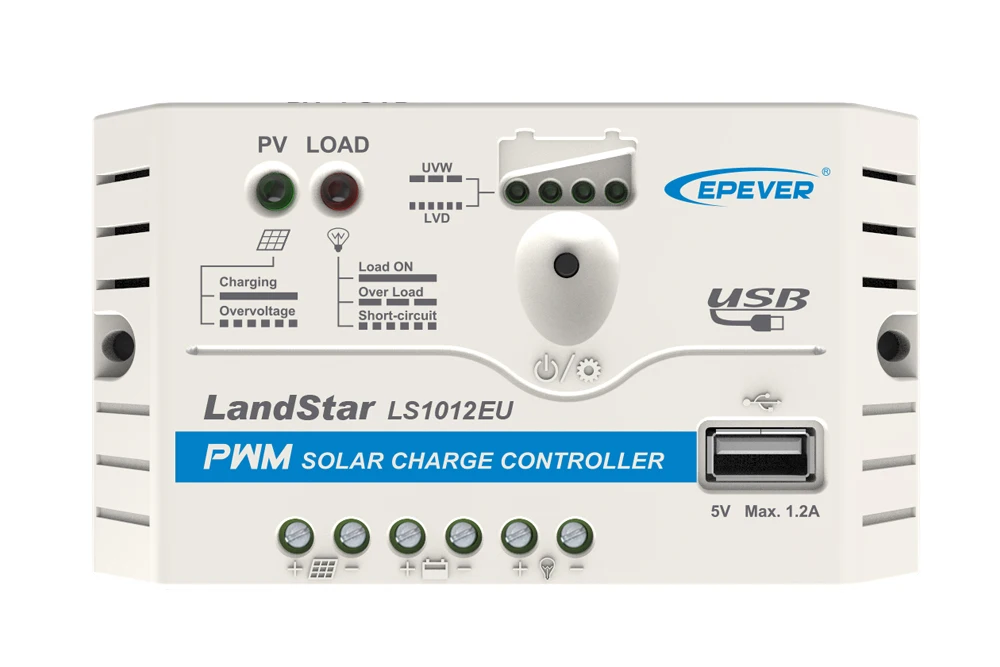

Product Overview
Description
Products Description
1. Series PWM charging mode
2. LED indicator indicates battery situation
3. Battery temperature compensation function
4. Extensive electronic protection
5. USB ports available (LS-EU series only)
6. User friendly design buttons
7. Industrial quality standard design
2. LED indicator indicates battery situation
3. Battery temperature compensation function
4. Extensive electronic protection
5. USB ports available (LS-EU series only)
6. User friendly design buttons
7. Industrial quality standard design

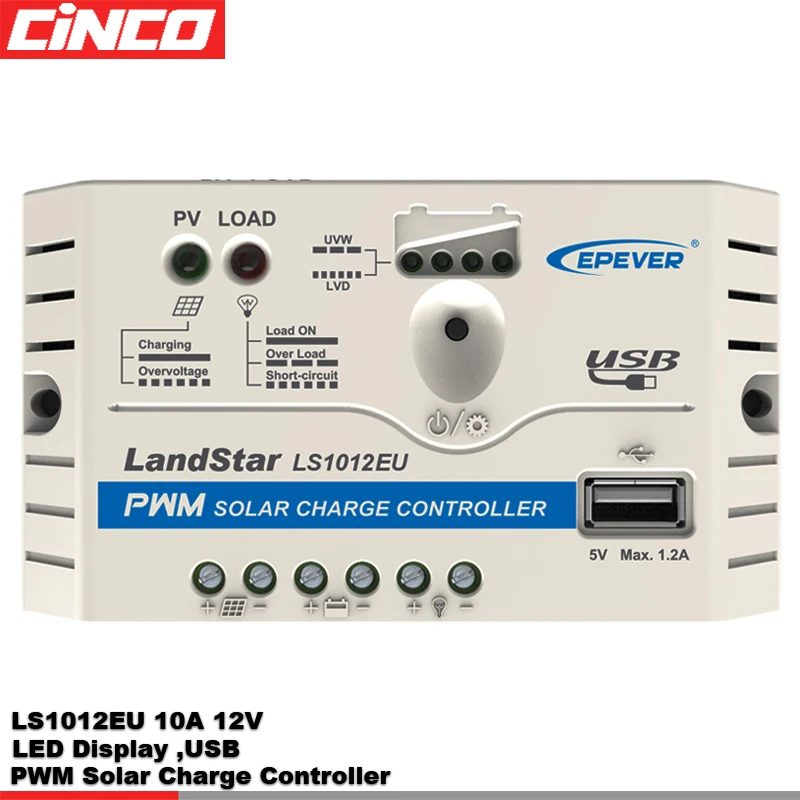

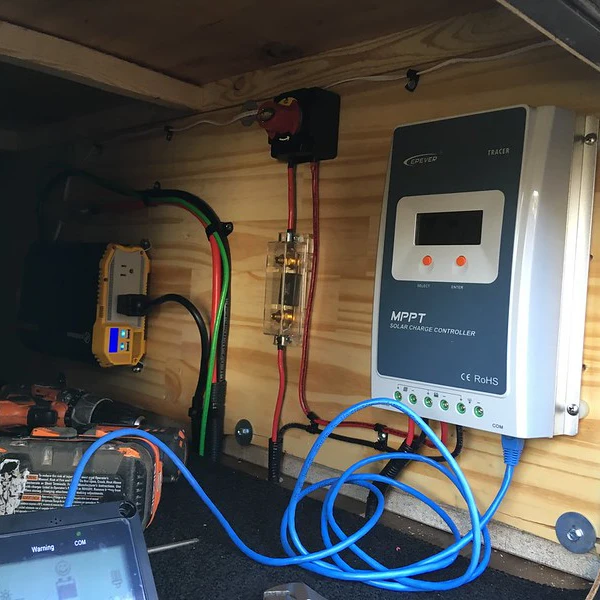

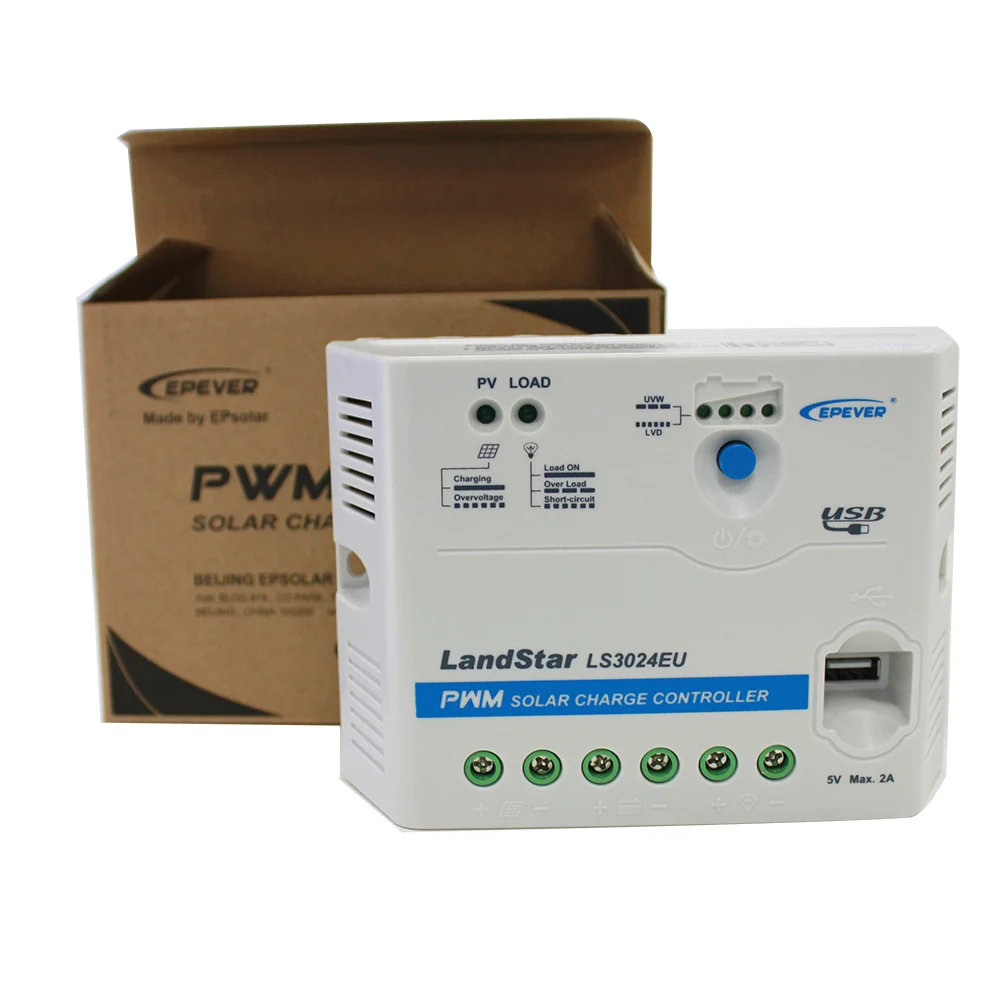

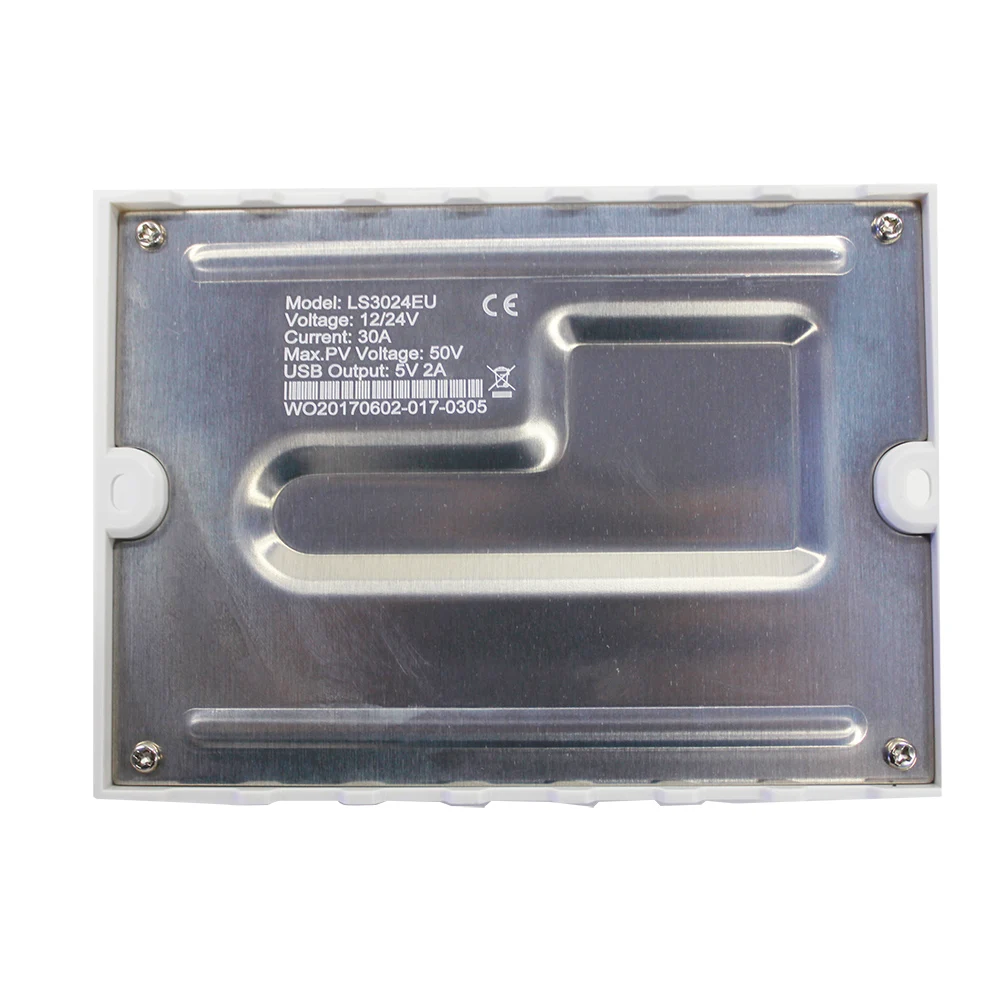

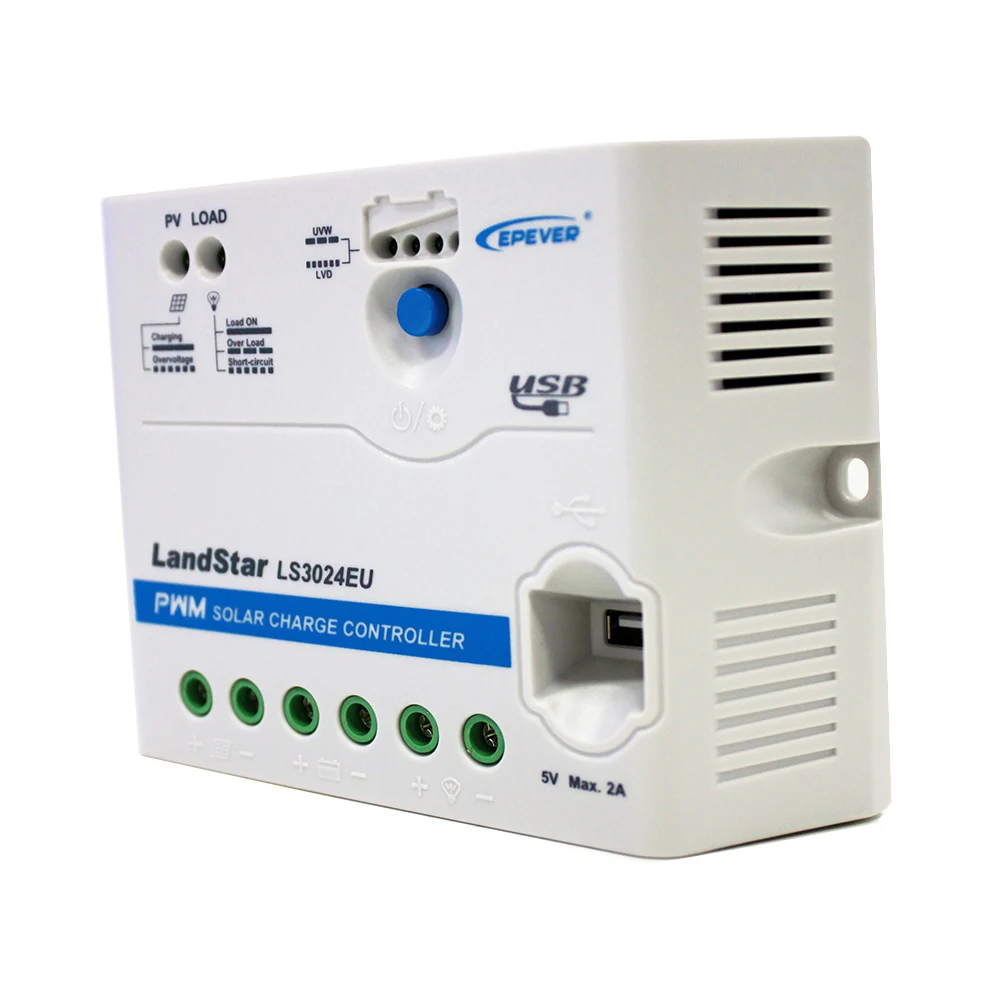

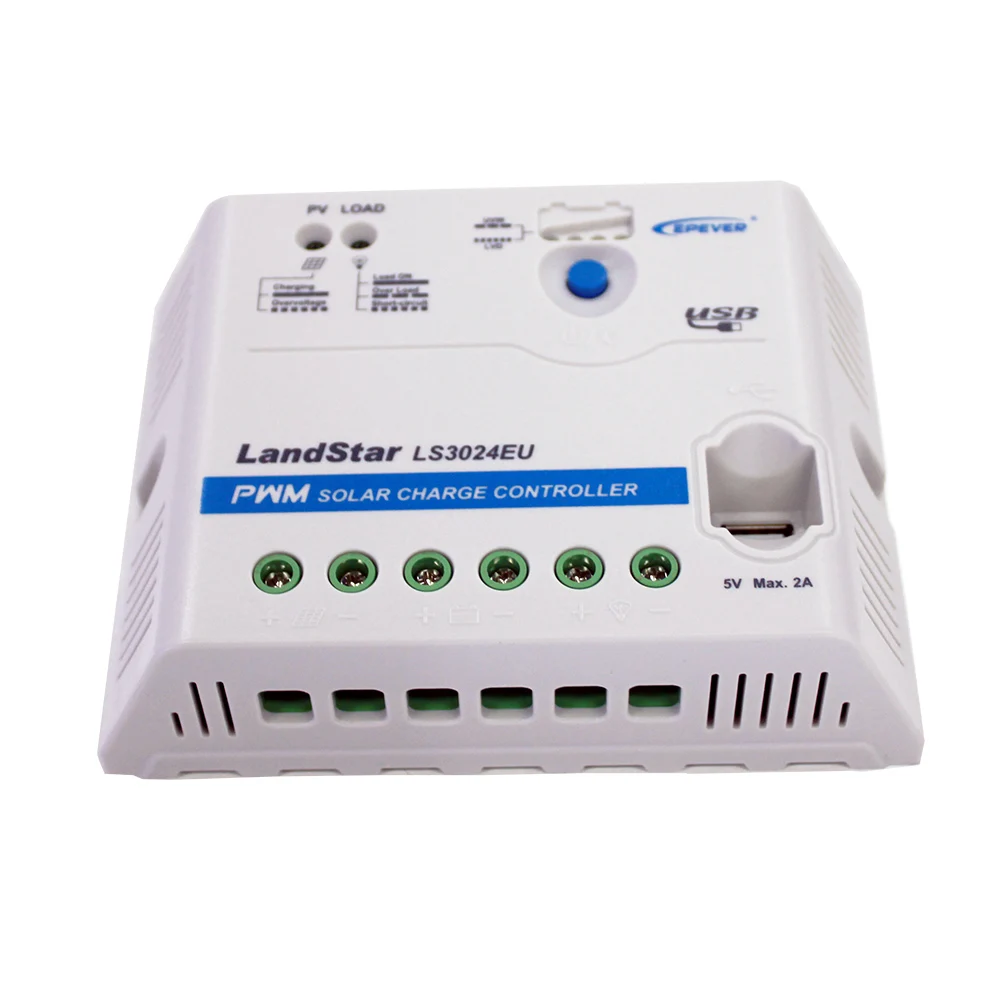

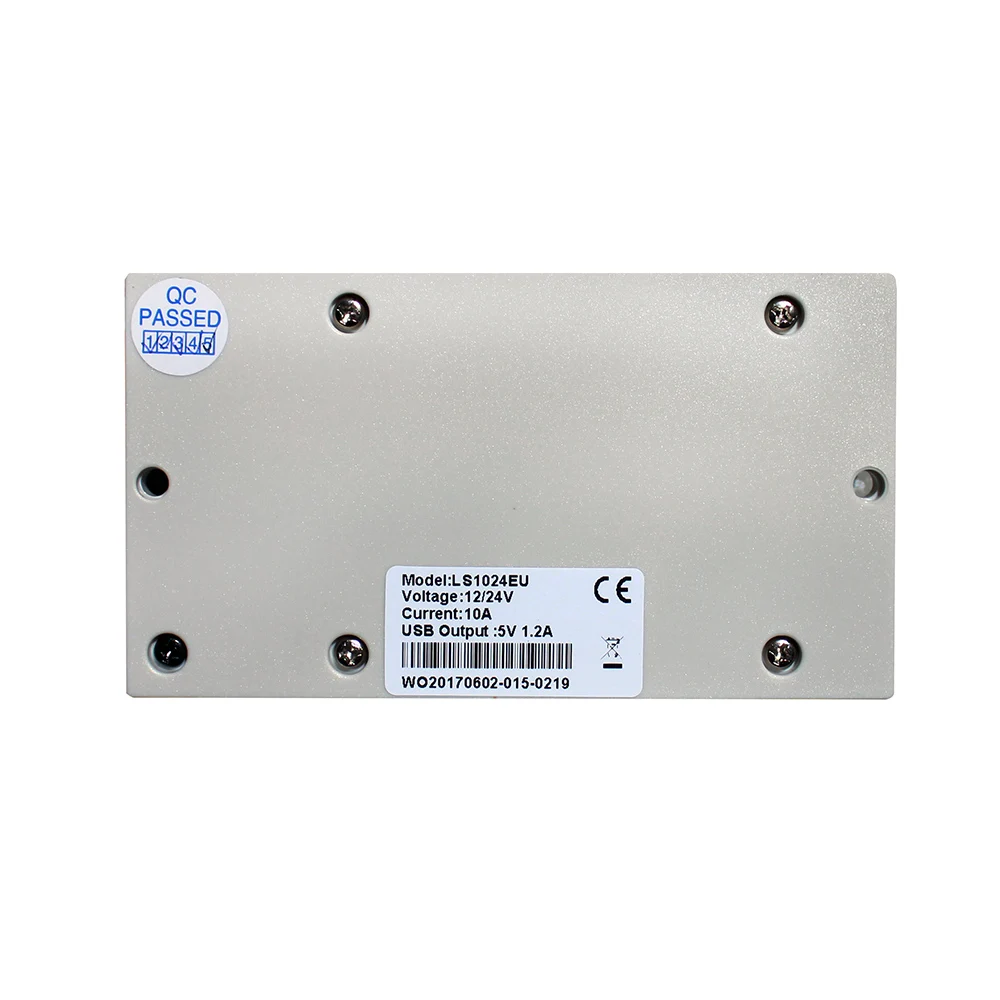

Details Images

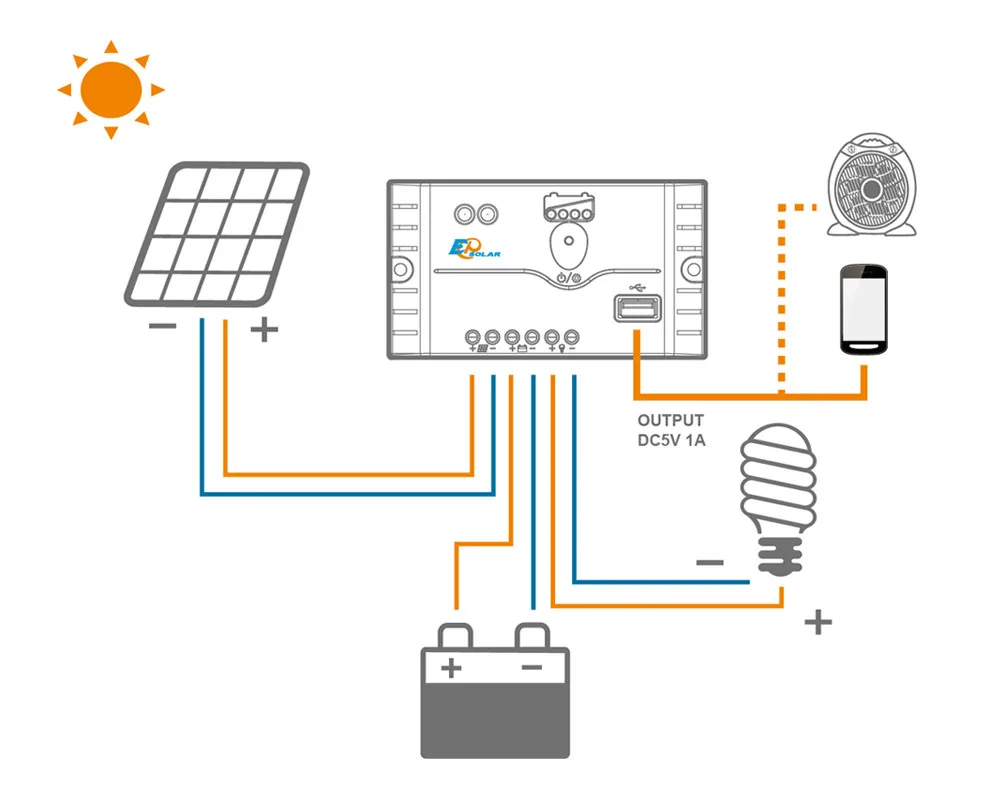

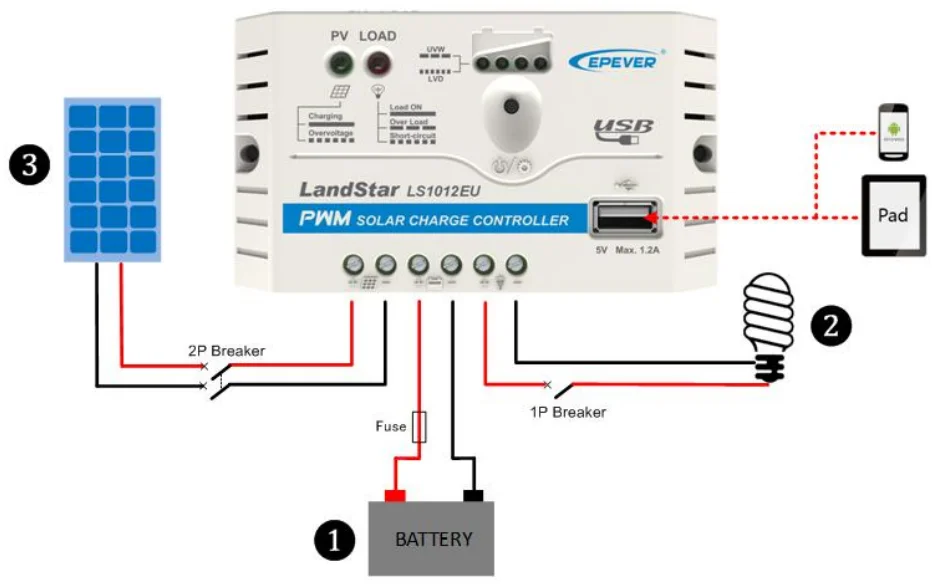

Wiring order & Accessories
Product Paramenters
Item | LS0512E | LS1012E | LS1024E | LS2024E | |||
Nominal system voltage | 12VDC | 12VDC | 12/24VDC | 12/24VDC | |||
Rated charge current | 5A | 10A | 10A | 20A | |||
Rated discharge current | 5A | 10A | 10A | 20A | |||
Battery input voltage range | 8V～16V | ||||||
Max. PV open circuit voltage | 30V | ||||||
Self-consumption | 12V≤5mA; 24V≤7mA | ||||||
Charge Circuit Voltage Drop | ≤0.21V | ||||||
Discharge Circuit Voltage Drop | ≤0.12V | ||||||
USB input interface | - | ||||||
Temperature compensation coefficient | -5mV/℃/2V | ||||||
Working environment temperature | -35℃ ～ +55℃ | ||||||
Humidity | ≤95%,(N.C.) | ||||||
Enclosure | IP30 | ||||||
Grounding | Common Positive | ||||||
Overall dimension(mm) | 92.8x65 x20.2 | 101.2x67 x21.8 | 101.2x67 x21.8 | 128x85.6 x34.8 | |||
Mounting dimension(mm) | 84.4 | 92.7 | 92.7 | 118 | |||
Mounting hole size | Φ4.5 | ||||||
Terminals | 14AWG/2.5mm2 | 12AWG/4mm2 | 12AWG/4mm2 | 12AWG/4mm2 | |||
Net weight | 0.07kg | 0.08kg | 0.08kg | 0.15kg | |||
Item | LS0512EU | LS1012EU | LS1024EU | LS2024EU | LS3024EU | ||||
Nominal system voltage | 12VDC | 12VDC | 12VDC | 12/24VDC | 12/24VDC | ||||
Rated charge current | 5A | 10A | 10A | 20A | 30A | ||||
Rated discharge current | 5A | 10A | 10A | 20A | 30A | ||||
Battery input voltage range | 8V～16V | ||||||||
Max. PV open circuit voltage | 30V | ||||||||
Self-consumption | 12V≤5mA; 24V≤7mA | ||||||||
Charge Circuit Voltage Drop | ≤0.21V | ||||||||
Discharge Circuit Voltage Drop | ≤0.12V | ||||||||
USB input interface | 5VDC/1.2A | ||||||||
Temperature compensation coefficient | -5mV/℃/2V | ||||||||
Working environment temperature | -35℃ ～ +55℃ | ||||||||
Humidity | ≤95%,(N.C.) | ||||||||
Enclosure | IP30 | ||||||||
Grounding | Common Positive | ||||||||
Overall dimension(mm) | 109.7x65.5 x20.8 | 120.3x67 x21.8 | 120.3x67 x21.8 | 148x85.6 x34.8 | 148x106.8 X43.7 | ||||
Mounting dimension(mm) | 100.9 | 111.5 | 111.5 | 138 | 138 | ||||
Mounting hole size | Φ4.5 | ||||||||
Terminals | 14AWG/2.5mm2 | 12AWG/4mm2 | 12AWG/4mm2 | 10AWG/6mm2 | 8AWG/10mm2 | ||||
Net weight | 0.09kg | 0.10kg | 0.10kg | 0.18kg | 0.29kg | ||||

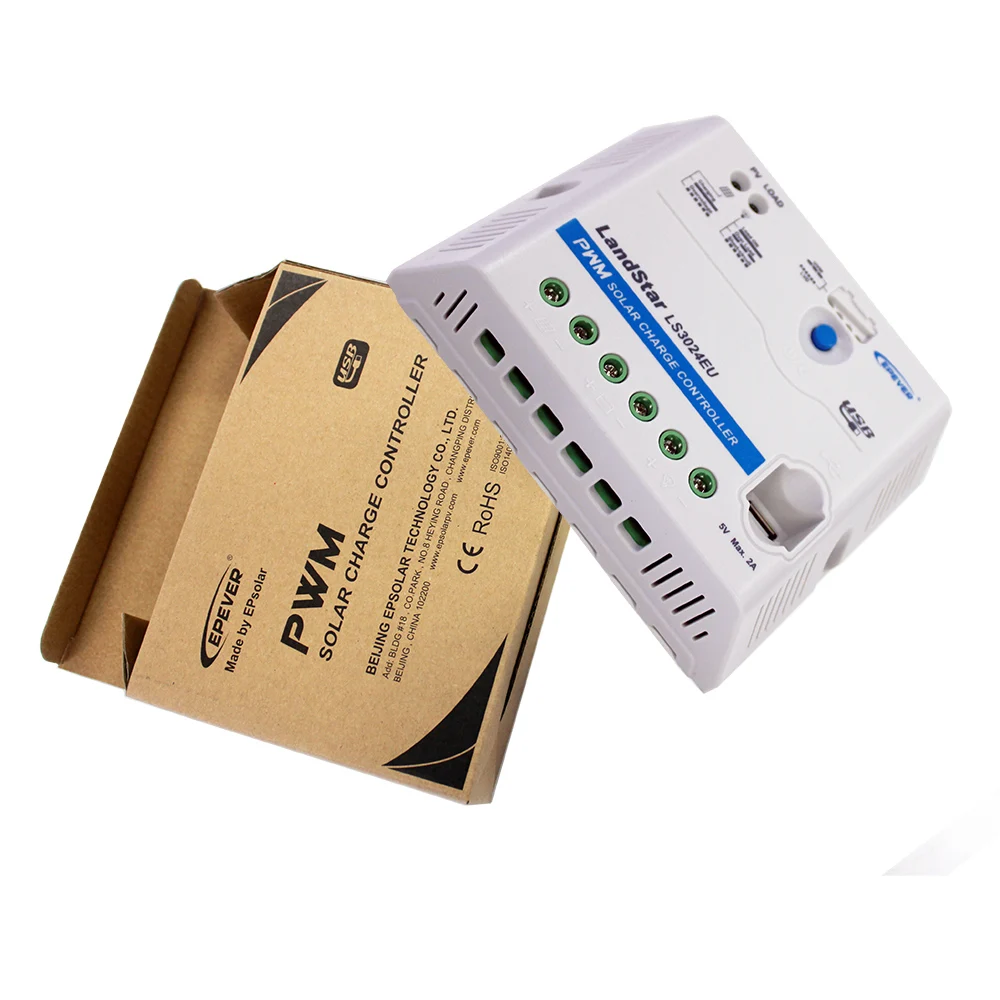

Product packaging

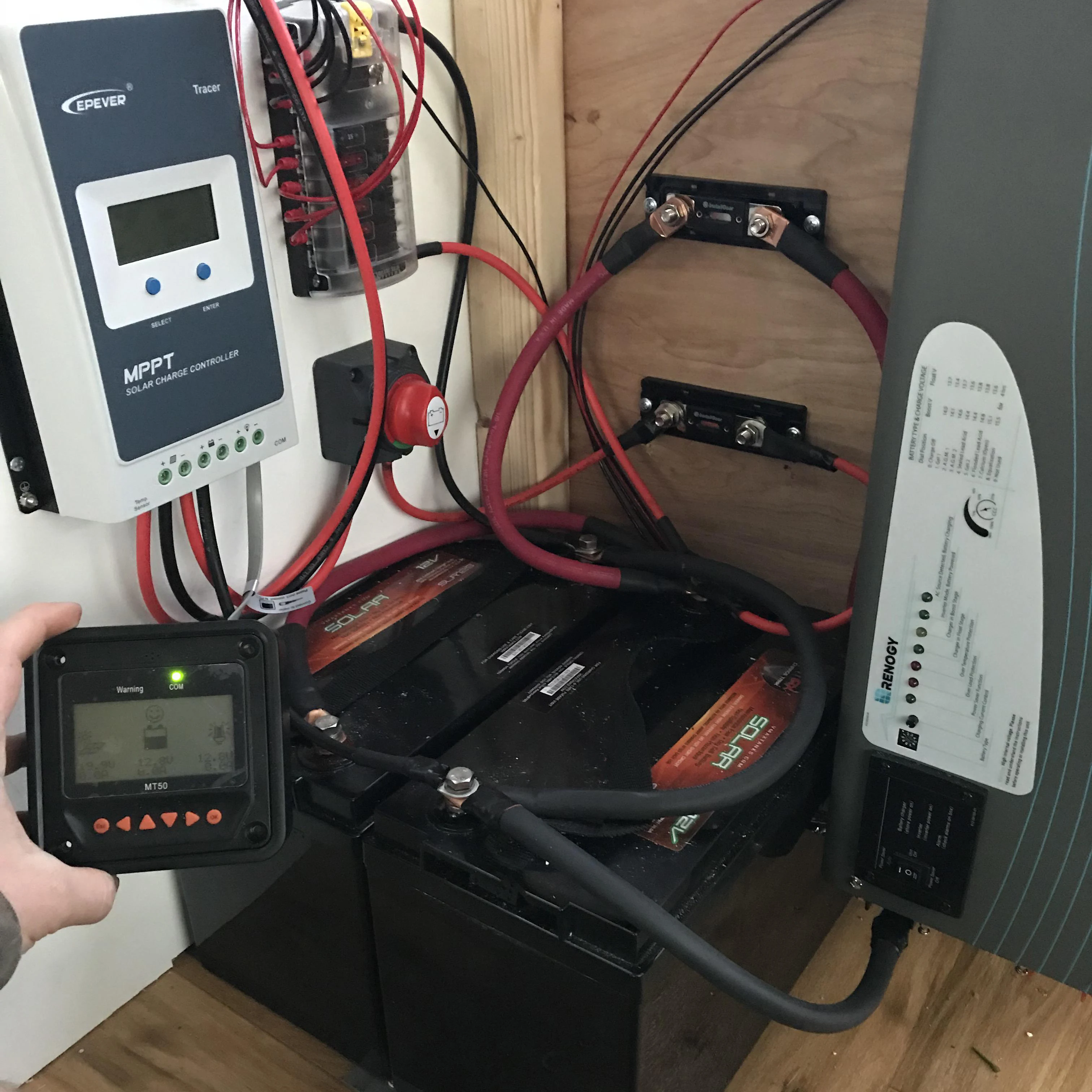

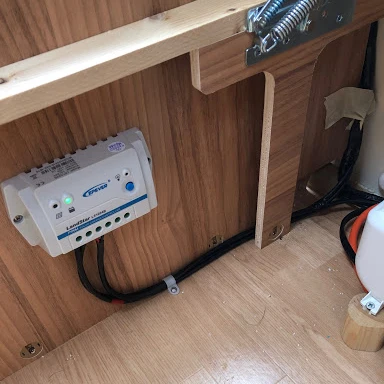

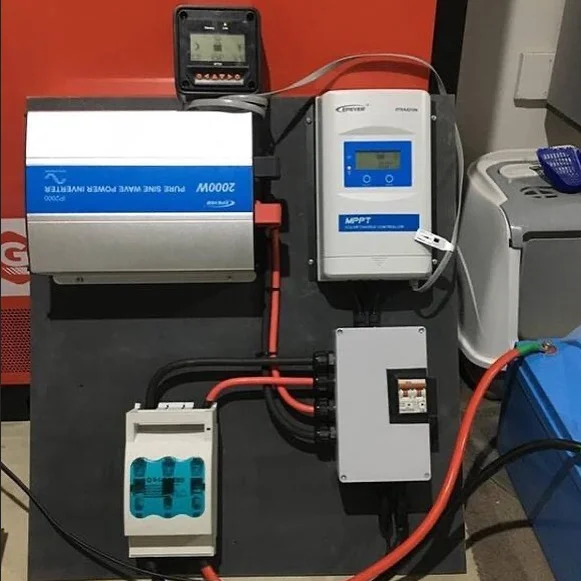

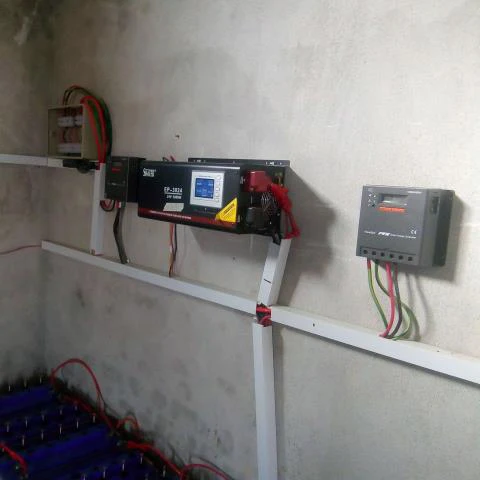

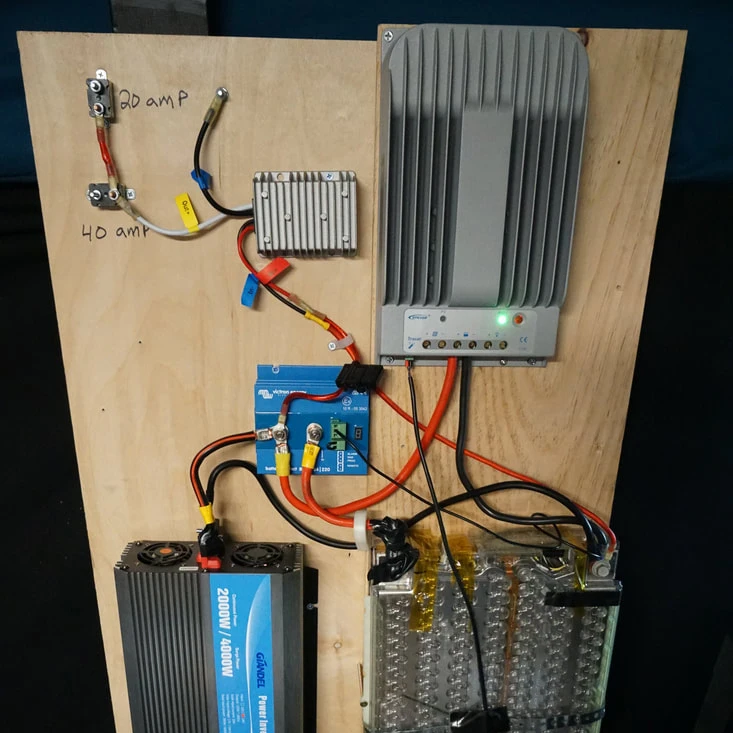

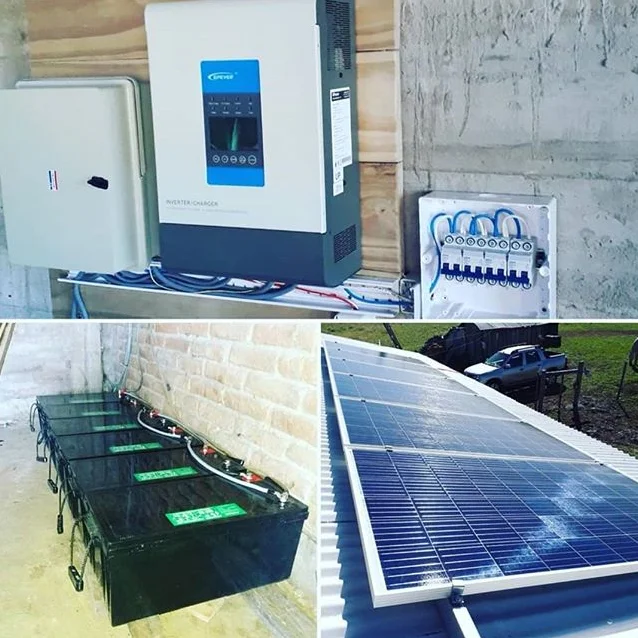

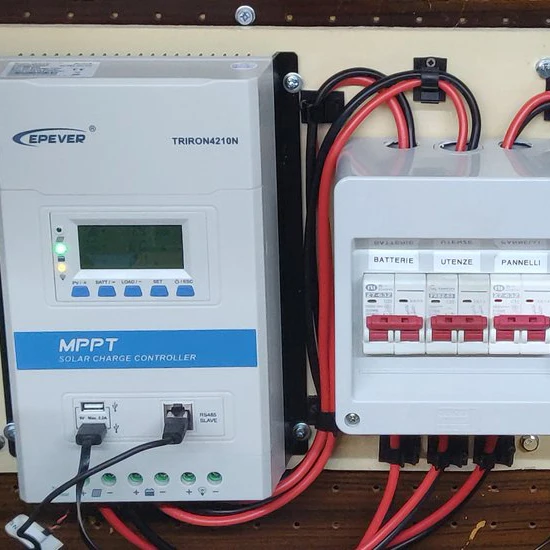

Customer Photos
