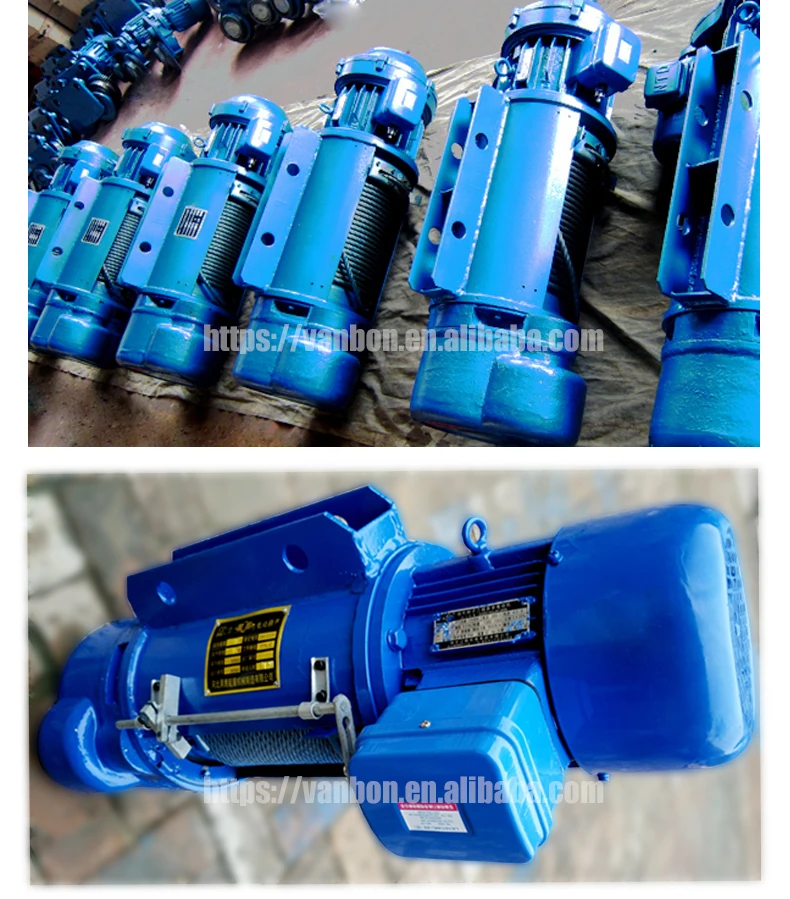

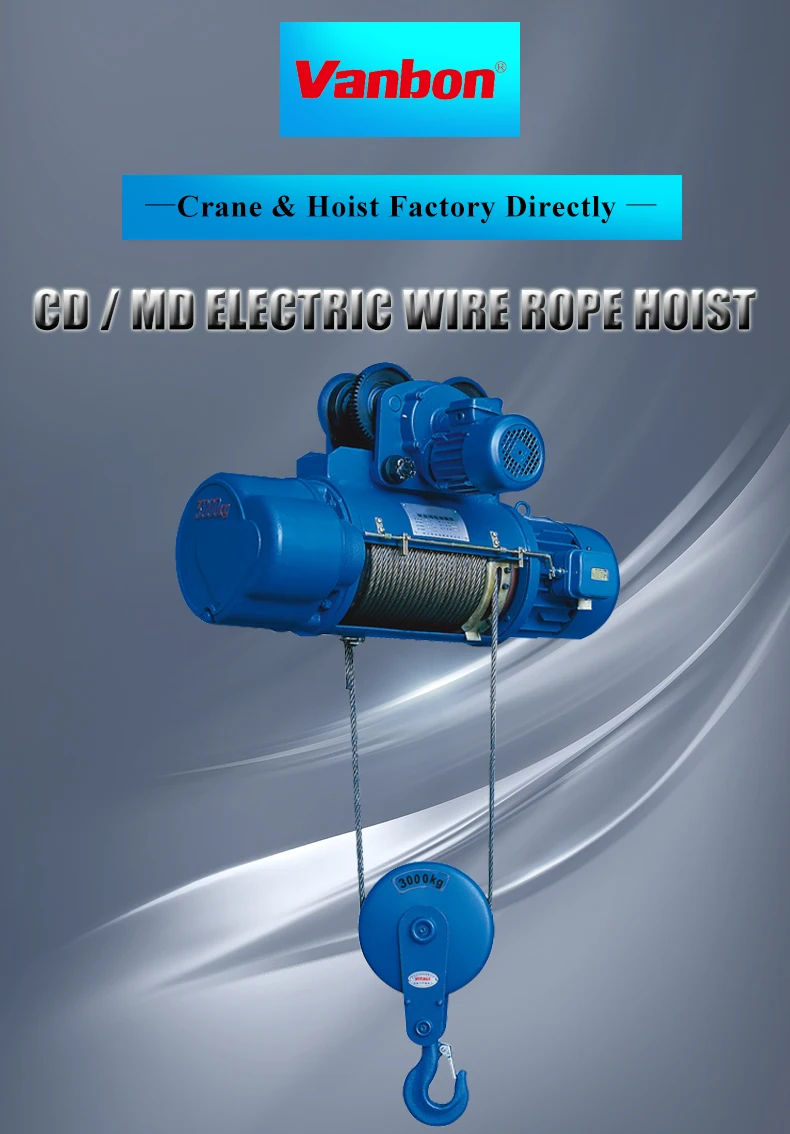

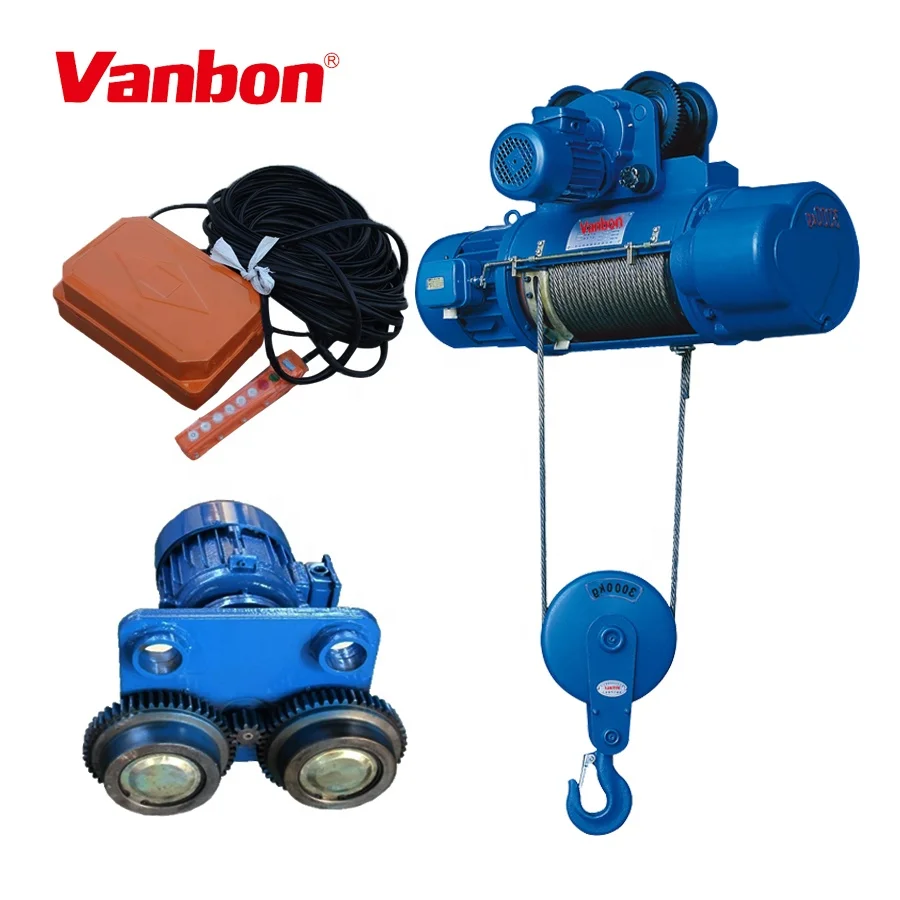

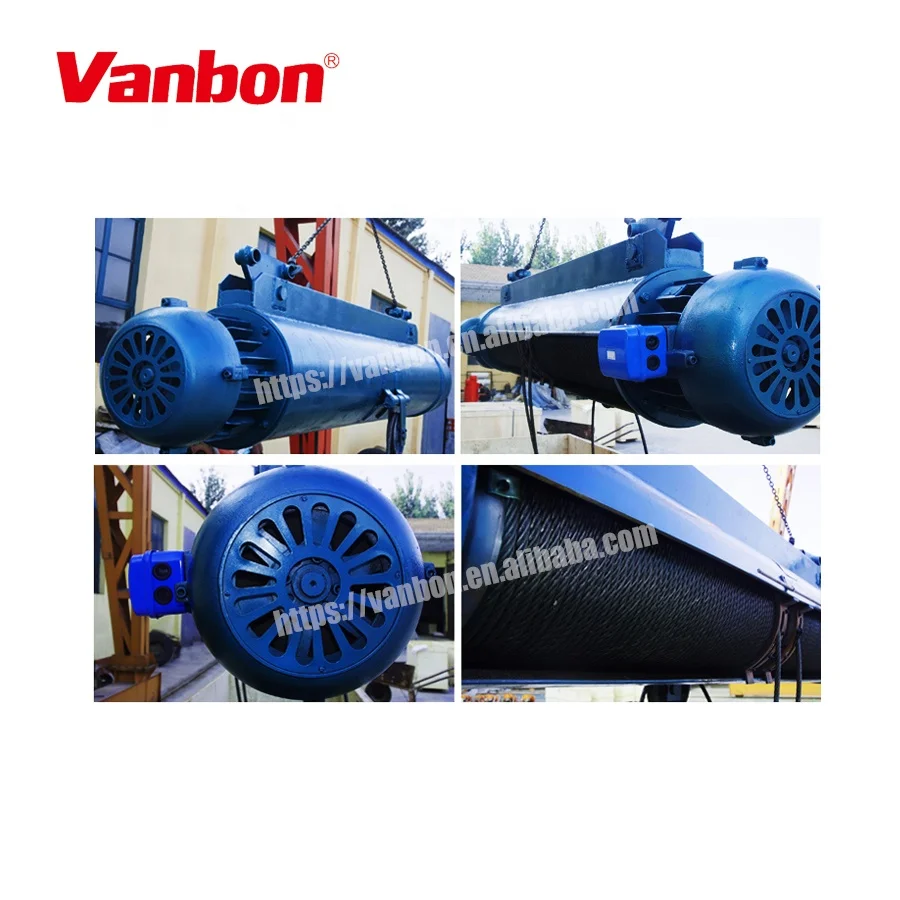

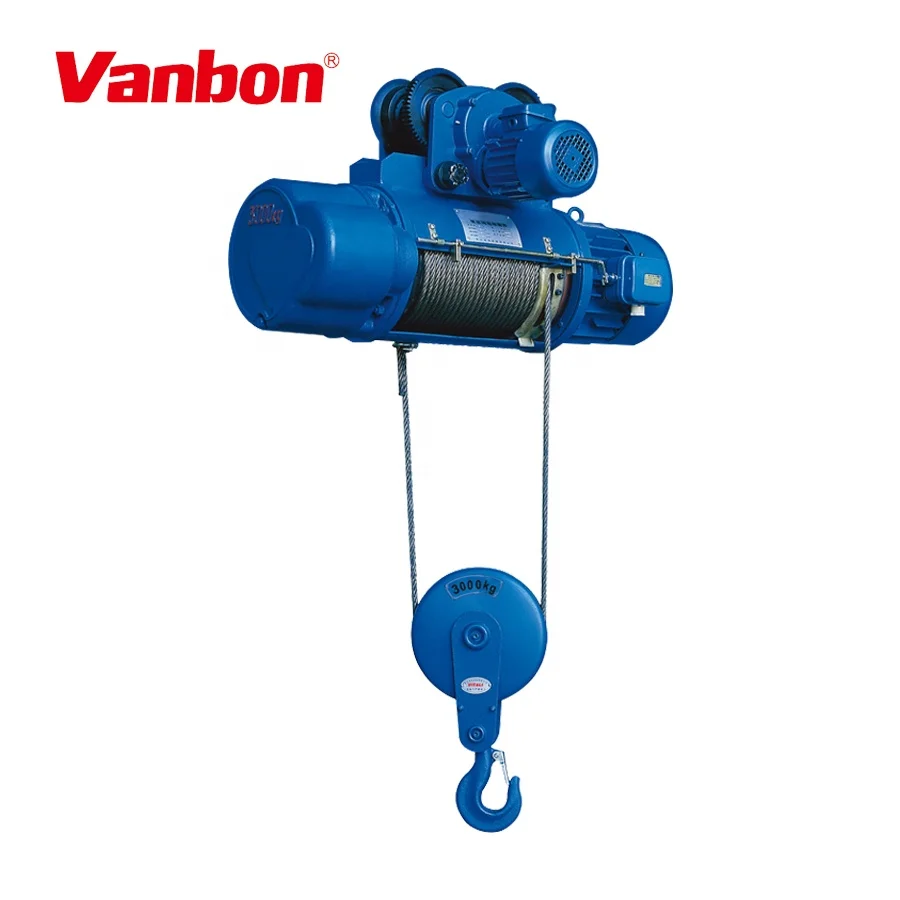

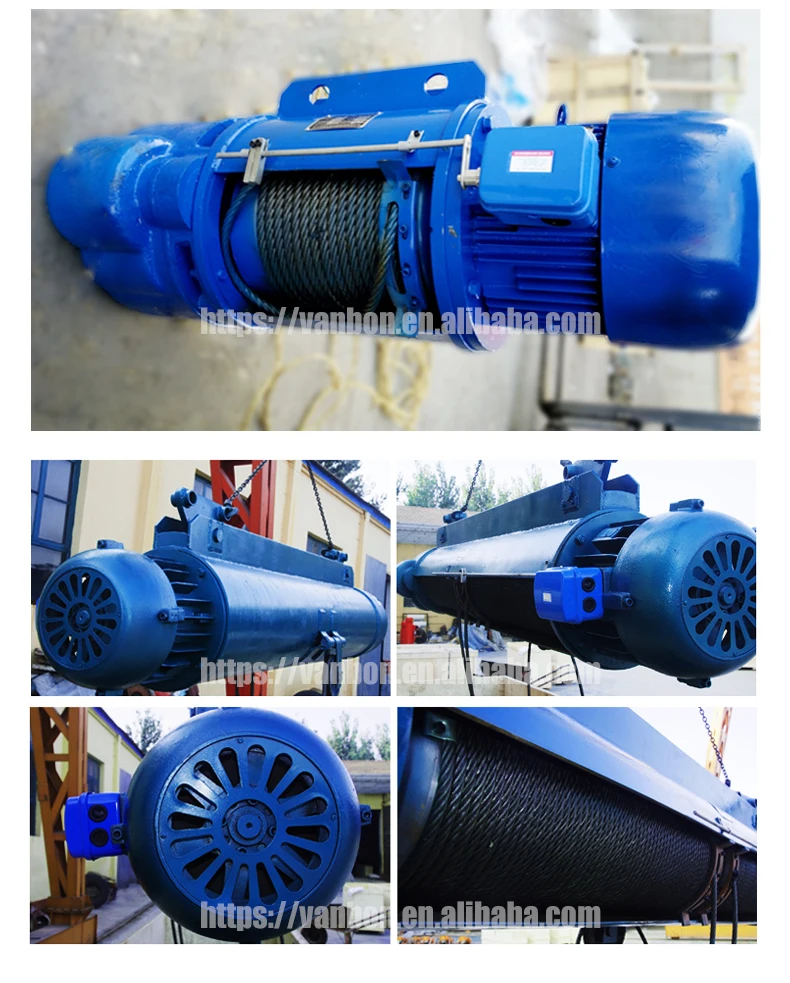

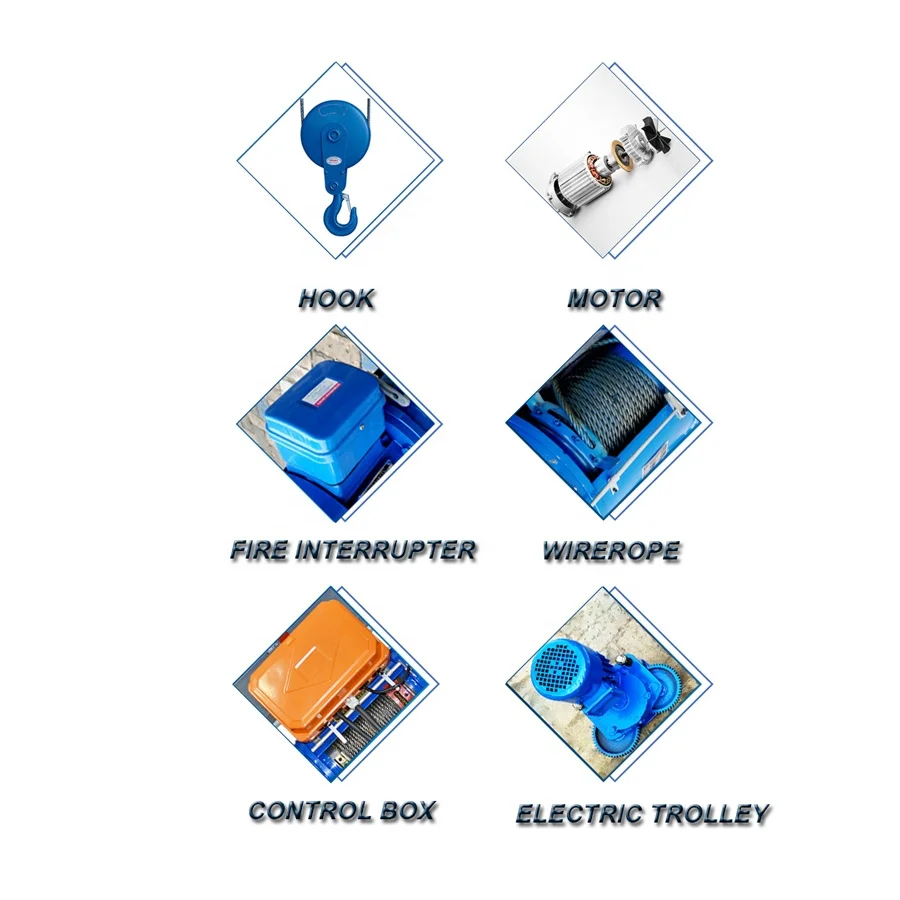

Vanbon good price CD/MD type construction electric wire rope winch hoist 1ton 2ton 3ton 5ton 10ton as crane spare parts
- Category: >>>
- Supplier: Shanghai Wanbo Hoisting Machinery Co. Ltd.
Share on (1294091751):
Product Overview
Description
Product Description

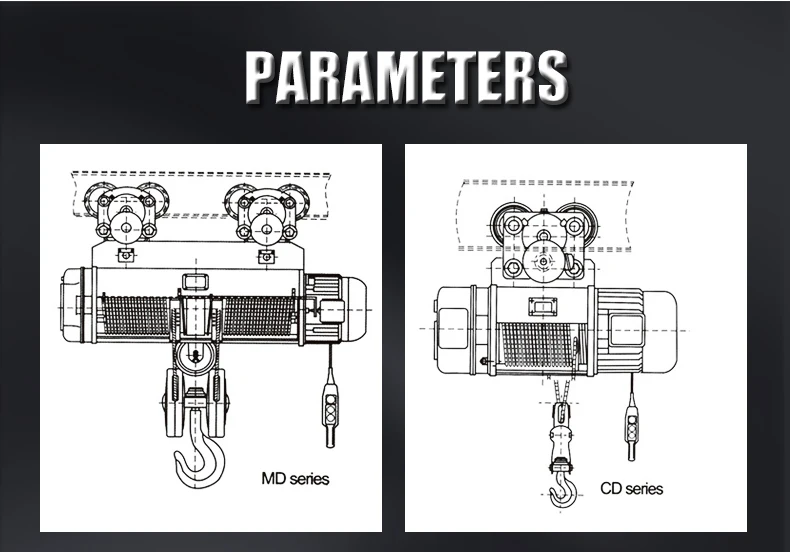

| Model | CD, MD | ||||||||||||||||||||||||
| Lifting capacity | T | 0.25 | 0.5 | 1 | 2 | 3 | |||||||||||||||||||
| lifting height | M | 3 | 6 | 9 | 3 | 6 | 9 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 |
| lifting speed | m/min | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | |||||||||||||||||||
| travel speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | |||||||||||||||||||
| wire rope | diameter of rope | 3.6 | 4.8 | 7.4 | 11 | 13 | |||||||||||||||||||
| diameter of wire | 0.22 | 0.34 | 0.5 | 0.6 | |||||||||||||||||||||
| structure form | 6*19 | D-6*19+1 | D-6*37+1 | D-6*37+1 | D-6*37+1 | ||||||||||||||||||||
| Lifting motor | type | ZD112-4 | ZD112-4 ZDS1 0.2/0.8 | ZD122-4 ZDS1 0.2/1.5 | ZD131-4 ZDS1 0.4/3 | ZD132-4 ZDS1 0.4/4.5 | |||||||||||||||||||
| capacity/kw | 0.4 | 0.8 0.2/0.8 | 1.5 0.2/1.5 | 3 0.4/3 | 4.5 0.4/4.5 | ||||||||||||||||||||
| rotating speed/r/min | 1380 | 1380 | 1380 | 1380 | 1380 | ||||||||||||||||||||
| power | 3P (380v-660V) 50Hz. 60Hz | ||||||||||||||||||||||||
| traveling motor | type | Dw5024 | ZDY111-4 | ZDY111-4 | ZDY112-4 | ZDY112-4 | |||||||||||||||||||
| capacity/kw | 0.06 | 0.2 | 0.2 | 0.4 | 0.4 | ||||||||||||||||||||
| rotating speed/r/min | 1400 | 1380 | 1380 | 1380 | 1380 | ||||||||||||||||||||
| power | 3P (380v-660V) 50Hz. 60Hz | ||||||||||||||||||||||||
Company Information

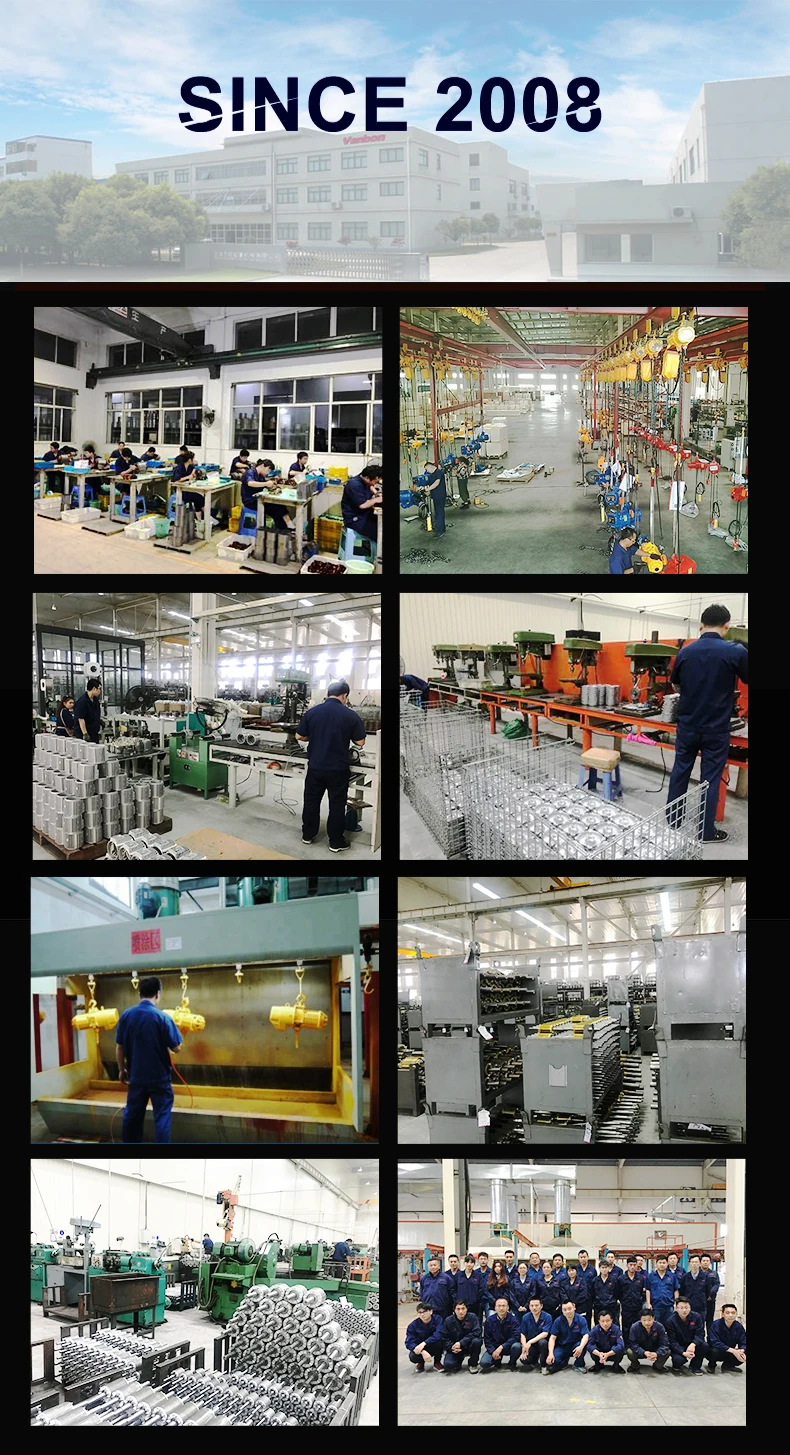

Vanbon Shanghai, 12years factory producting crane and hoists, we have exported to 45countries with our good quality, good price and high effeiciency after sale service.
As the leading supplier of Crane & Hoists, our innovative and reliable equipment and technologies enable us to deliver highly productive solutions that positively impact profitability and efficiency for our customers.
We are fortunate to be able to rely on capable, highly motivated stuffs who remain loyal to us for many years and devote themselves enthusiastically to Vanbon. We offer our stuffs various basic and advanced training programmes.
Obtained the approval of ISO 9001 and CE certification from Europe, we follow the concepts of "better quality and forever innovation".
Certifications
Exhibitions

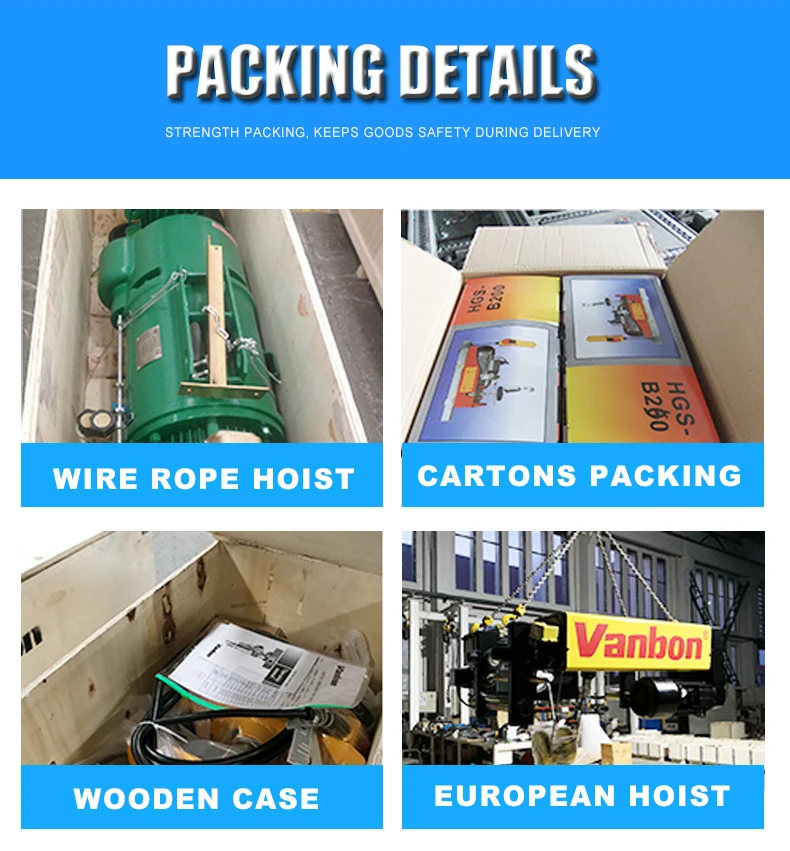

Packaging & Shipping
Buyer Feedback
Contact information

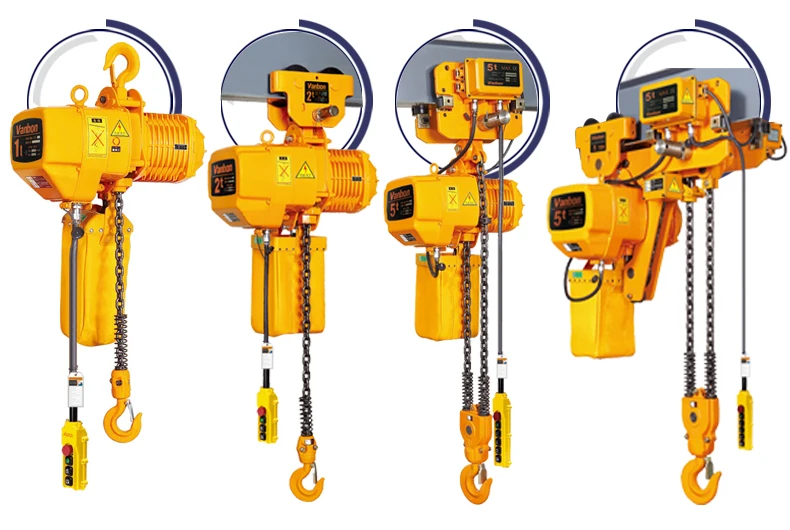

ELECTRIC CHAIN HOIST SERIES >>>>>>
