Float Valve for water tank in Stainless steel or Cast Iron made in Taiwan

Product Overview

Description

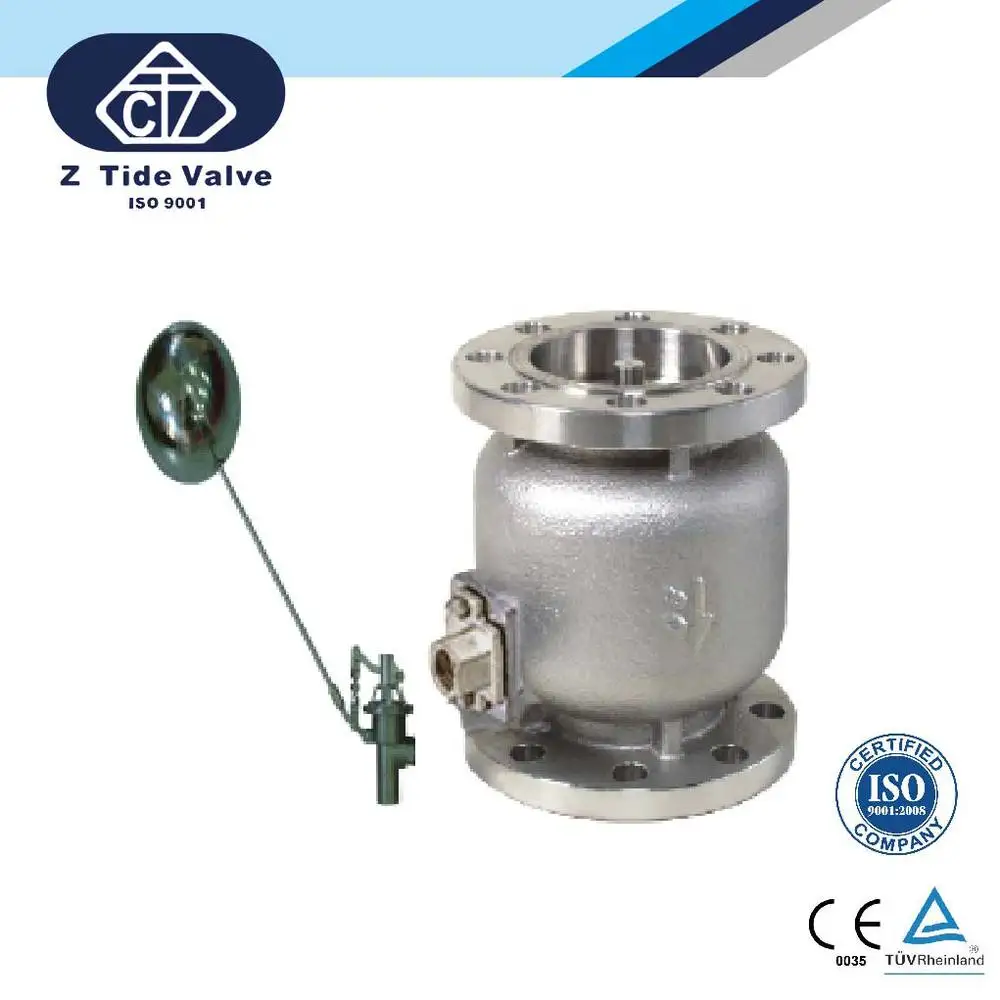

Float Valve for water tank in Stainless steel or Cast Iron made in Taiwan

(Float valve)



Product Link:

https://www.z-tide.com/index.php?action=product_detail&cid=93&id=523



Float valve uses a sub-valve(float valve switch) to control the main valve.  When the water level elevates to the full water level set by sub-valve(float valve switch), the sub-valve(float valve switch) closes and the back pressure chamber inside the main valve accumulates pressure rapidly, which reversely pushes the piston valve to close.

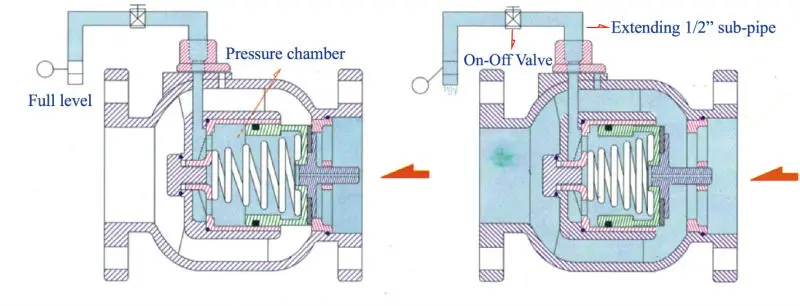

Float valve closed state





                                                      Float vavle closed state                                                                          Float Vavle open state





1. The working pressure should be greater than 0.3kgf/cm² and gate fully open with 1.5 kgf/cm², please check the pressure before installation.



2. Please remove impurities or mmetal dusts inside the pipe thoroughly.  If possible, please add filter to prevent pipe blocking.



3. Vertical and horizontal installation is acceptable.  Avoid upside-down installation under insufficient flow.

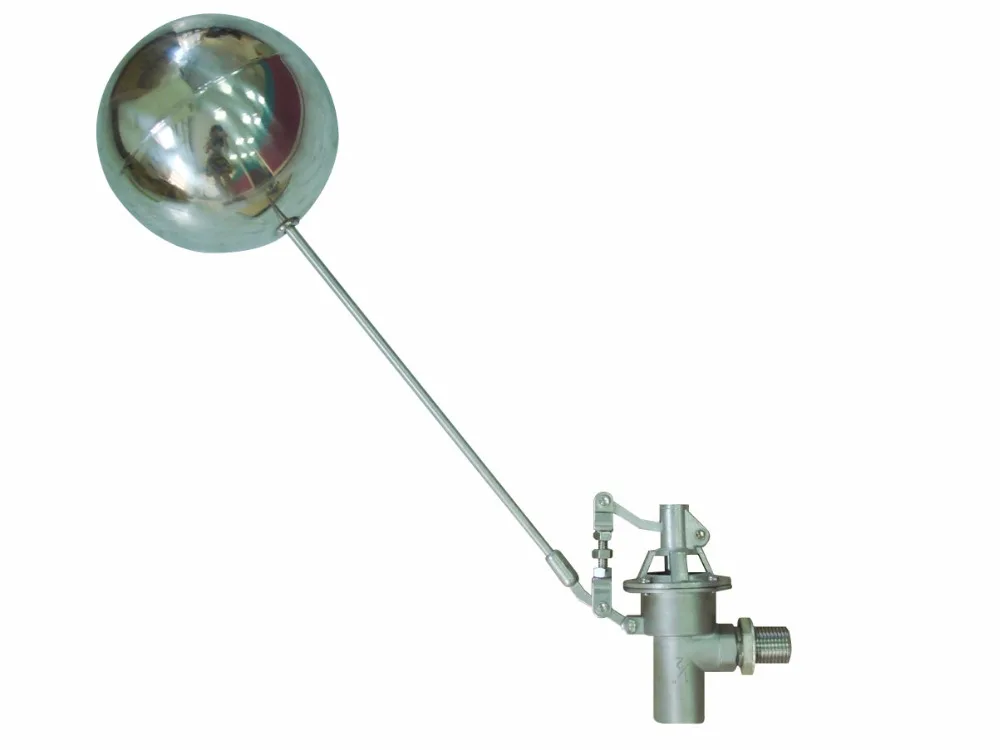

4. Float ball size is 4’’, and the connection end is 1/2’’ PT Thread( Max, Pressure 10 kgf/cm²).





                                                                                                                       (Thread end)

Item No	Size	L(mm)	A(mm)	Weight(Kg)	CV
BTF-40	1.5”	120	75	3	48
BTF-50	2”	200	95	8	75





                                            Flange Standard: Class 150 / Class 300 ANSI

                                                                                                                        (Flange end)

Item No	Size	L(mm)	A(mm)	Weight(Kg)	CV
BFF-50	2”	190	95	12	75
BFF-65	2.5”	210	100	14	105
BFF-80	3”	225	115	19	140
BFF-100	4”	250	127	26	260
BFF-125	5”	280	150	37	390
BFF-150	6”	310	165	50	550
BFF-200	8”	420	205	94	1000
BFF-250	10”	470	240	150	1600
BFF-300	12”	530	275	200	2200
BFF-350	14”	600	320	280	3000
