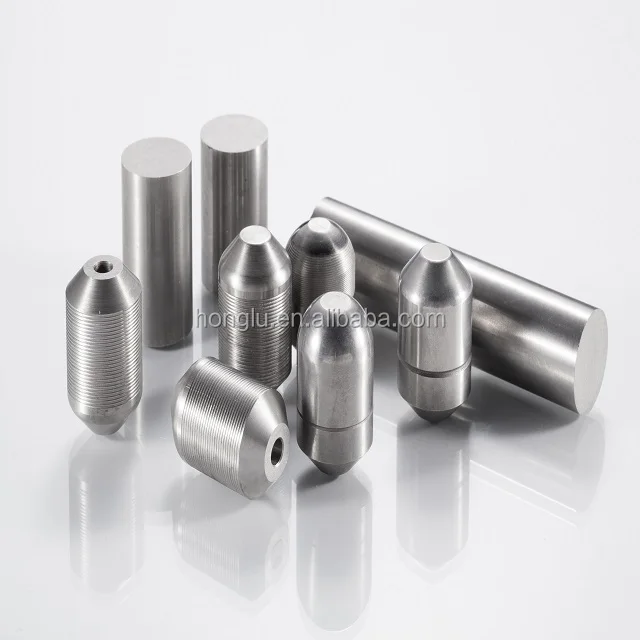

As with Transformers, molybdenum rods can be used for a long time at a sufficiently high temperature. It can be straight to ensure that molybdenum rods can be applied in more areas. Whether it is used as a raw material for drawing molybdenum wire or as a heating part of a high-temperature furnace, or for processing complex shape parts, molybdenum, this molybdenum good partner always appears at the right time in the right place.

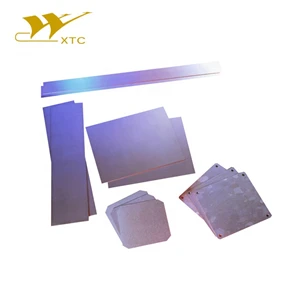

According to customer's requirements, Honglu can produce a variety of moly high-temperature furnace heater, reflectors, rack, boat pan, plate and other parts.

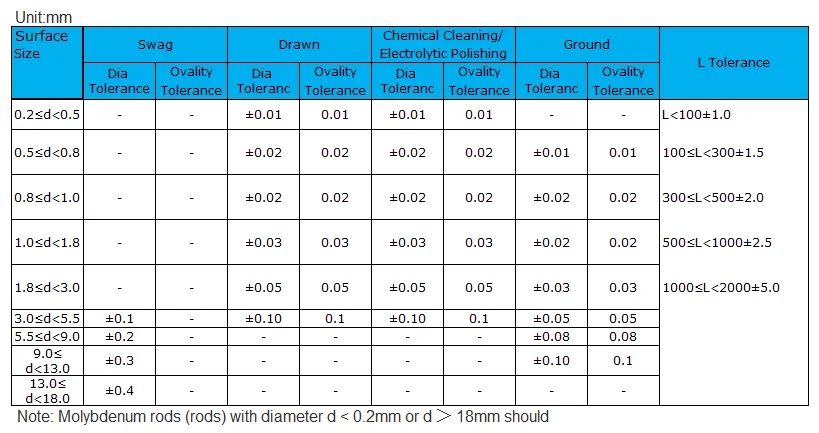

Sizes and Tolerances
Unit:mm
Surface
Size
Swag
Drawn
Chemical Cleaning/
Electrolytic Polishing
Ground
L Tolerance
Dia Tolerance
Ovality
Tolerance
Dia Toleranc
Ovality
Tolerance
Dia Toleranc
Ovality
Tolerance
Dia Toleranc
Ovality
Tolerance
0.2≤d<0.5
-
-
±0.01
0.01
±0.01
0.01
-
-
L<100±1.0
100≤L<300±1.5
300≤L<500±2.0
500≤L<1000±2.5
1000≤L<2000±5.0
0.5≤d<0.8
-
-
±0.02
0.02
±0.02
0.02
±0.01
0.01
0.8≤d<1.0
-
-
±0.02
0.02
±0.02
0.02
±0.02
0.02
1.0≤d<1.8
-
-
±0.03
0.03
±0.03
0.03
±0.02
0.02
1.8≤d<3.0
-
-
±0.05
0.05
±0.05
0.05
±0.03
0.03
3.0≤d<5.5
±0.1
-
±0.10
0.10
±0.10
0.10
±0.05
0.05
5.5≤d<9.0
±0.2
-
-
-
-
-
±0.08
0.08
9.0≤d<13.0
±0.3
-
-
-
-
-
±0.10
0.10
13.0≤d<18.0
±0.4
-
-
-
-
-
-
-
Note: Molybdenum rods (rods) with diameter d < 0.2mm or d < 18mm should be contact us
