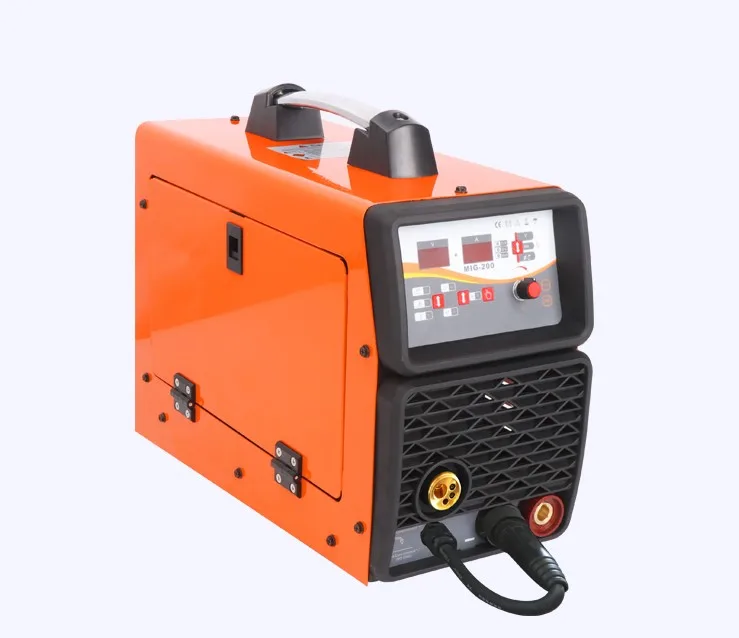

Single phase 220V 200A CE approved Digital control SMAW/GMAW/LIFT TIG CO2 IGBT DC inverter welding machine MIG 200
- Category: >>>
- Supplier: Andeli Group Co. Ltd.
Share on (1294609608):
Product Overview
Description
Product Description
Single phase 220V 200A CE approved Digital control SMAW/GMAW/LIFT TIG CO2 IGBT DC inverter welding machine MIG-200
1.Product Features:
· Support MMA,MIG, Lift TIG 3 functions
· IGBT technology,the core adopts advanced IGBT inverter device
· Suitable for welding metal plate with thickness above 0.8mm
· Inductance control for arc stability and spatter control
· Digital voltage and ampere meters
· Wire size selection, do a favor to quickly matching the welding parameter
· Over current and over voltage protections are available
· Small splashing and great penetration
· Energy saving-compared with the traditional GMAW machine mor efficient
· Widely used in electric power,steel structure,shipbuilding and other industries
2.Products Show:
3.Technical Details:
Model | MIG-200 |
Rated input voltage(V) | 1PH AC220V±15% |
Rated input power(KVA) | 6.9 |
Rated input current (A) | 31 |
Rated output | 24V/200A |
Output current(A) | 50-200 |
No-load voltage (V) | 54±5 |
Rated duty cycle% (40℃ 10min) | 200A 60% |
127A 100% | |
Efficiency (%) | 70 |
Protection grade | IP21 |
Insulation grade | F |
Net weight (KG) | 28.5 |
Gross weight (KG) | 32.5 |
Dimension of machine (mm) | 610*400*605 |
Dimension of package (mm) | 630*400*610 |
4.Purchase Guide:
Material | Sheet thickness (mm) | Stick diameter (mm) | Current range(A) | Model |
Carbon steel Stainless steel Low alloy steel | ≥0.8 | 0.8/1.0 | 50-200 | MIG-200 |
≥0.8 | 0.8/1.0 | 50-250 | MIG-250 | |
≥0.8 | 1.0/1.2 | 60-350 | MIG-350 | |
≥0.8 | 1.0/1.2/1.6 | 60-500 | MIG-500 | |
Carbon steel Stainless steel Low alloy steel Aluminum | ≥0.8 | 0.8/1.0 | 5-185A | MIG-200P |
≥0.8 | 2.5/3.2/4.0/5.0 | 25-350 | MIG-350H | |
≥0.8 | 5.0/6.0/8.0 | 25-500 | MIG-500H |

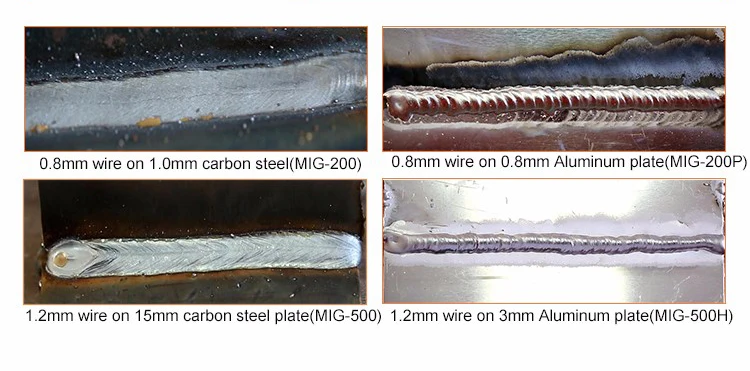

5.Performance
