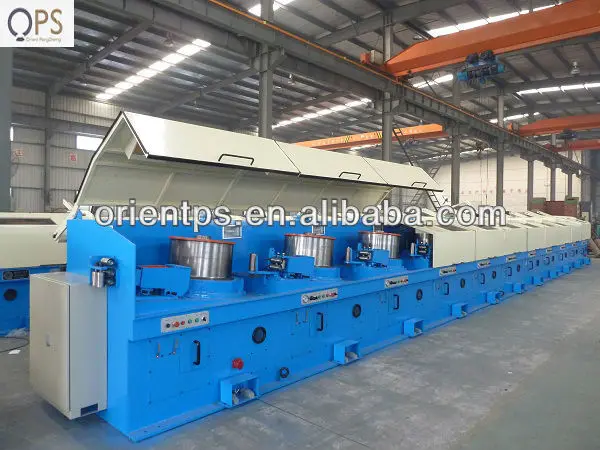

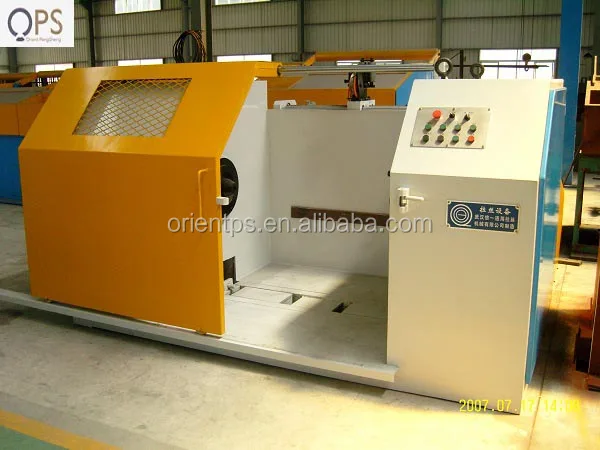

Straight type steel wire drawing machine can be used for drawing various kind of steel wire with high running speed. The machine is designed as rigid structure and high automation to make the process higher stability and easier operation. It can be also designed according to customer’s requirements.
Line features:
1. Available for high/medium/low carbon steel, stainless steel wire. 2. Rigid structure 3. Sensitive tension roller 4. Tungsten carbide coated capstans 5. High cooling efficiency for capstan and die box 6. First class electric elements 7. PLC control and easy touch screen operation 8. High safety standard
SPECIFICATION FOR LZ8/560 DRAWING MACHINE
Machine model
LZ 8/560
Inlet material
High/medium/low carbon steel wire
Inlet wire Dia.
5.5mm
Outlet wire Dia.
2.0mm
Line speed
10m/s
Motor power
37kw
Touch screen
SIEMENS
PLC
SIEMENS
Detailed Images

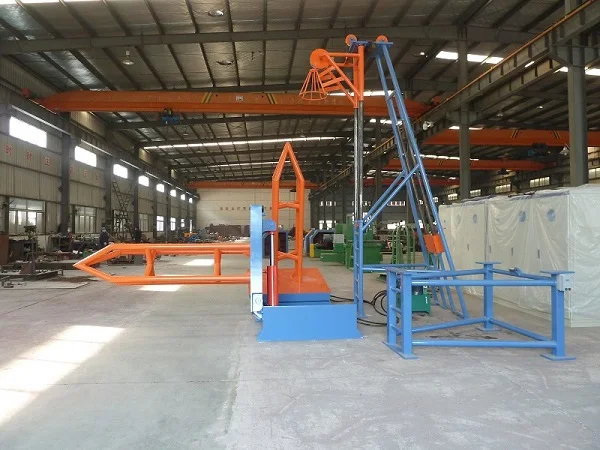

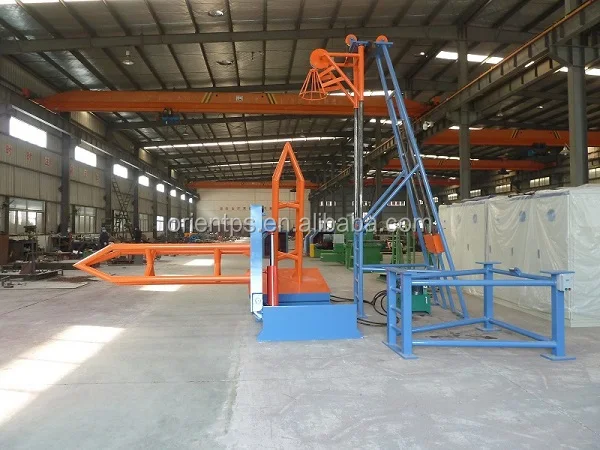

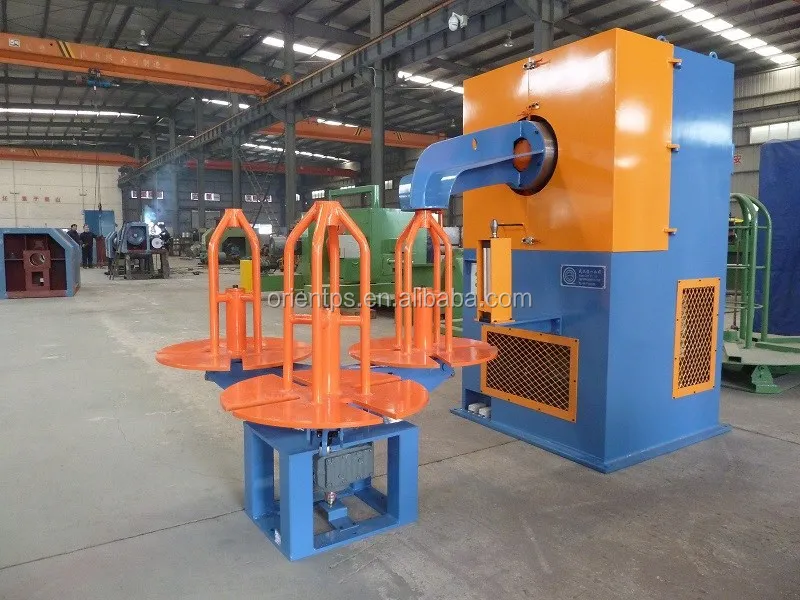

PAY-OFF
Name: Hydraulic vertical pay-off
The wire guiding basket could be lower for first wire passing.
Special device for the detecting of wire spiral disorder The vertical pay-off device can handle two coils The pay-off device can handle 2.5T (Max.) weight of coil.
MACHINE PART

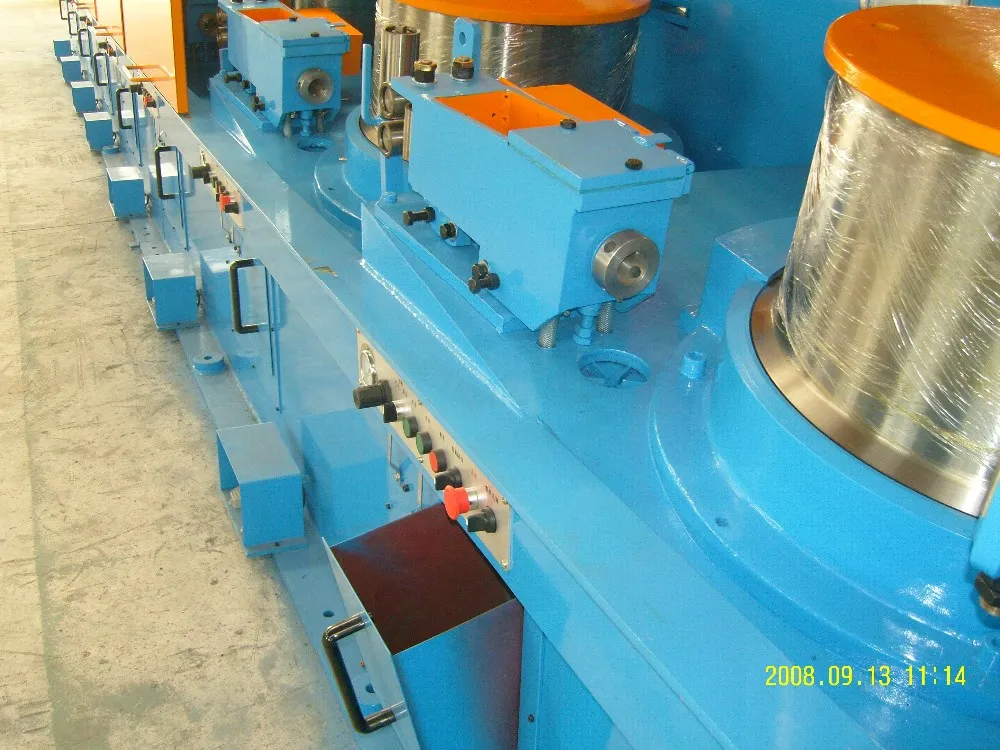

Name: Drawing block
The drawing block is tungsten carbide coated;
Surface hardness more than 60 HRC;
The roughness must be lower than 0.80 µmm;
The inner side of block is water anti-corrosion treated;
Block cooling: inner water cooling and outer air cooling
Machine Part
Name: Drawing die box The position of die box can be adjusted; Wire skip roller designed when the wire need to be by passed the die; Drawing die adopts water cooling directly; The lubrication soap box has the motorized powder mixer.
