3.5 ton Air Winch chainsaw winch

Product Overview

Description

 3.5 ton Air Winch chainsaw winch

Introduction...............................................................................

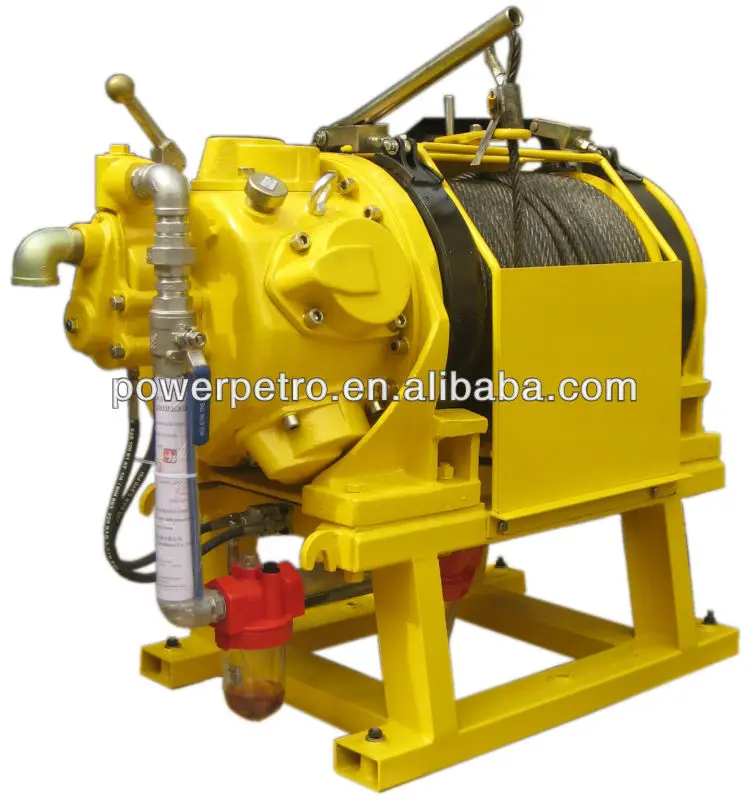

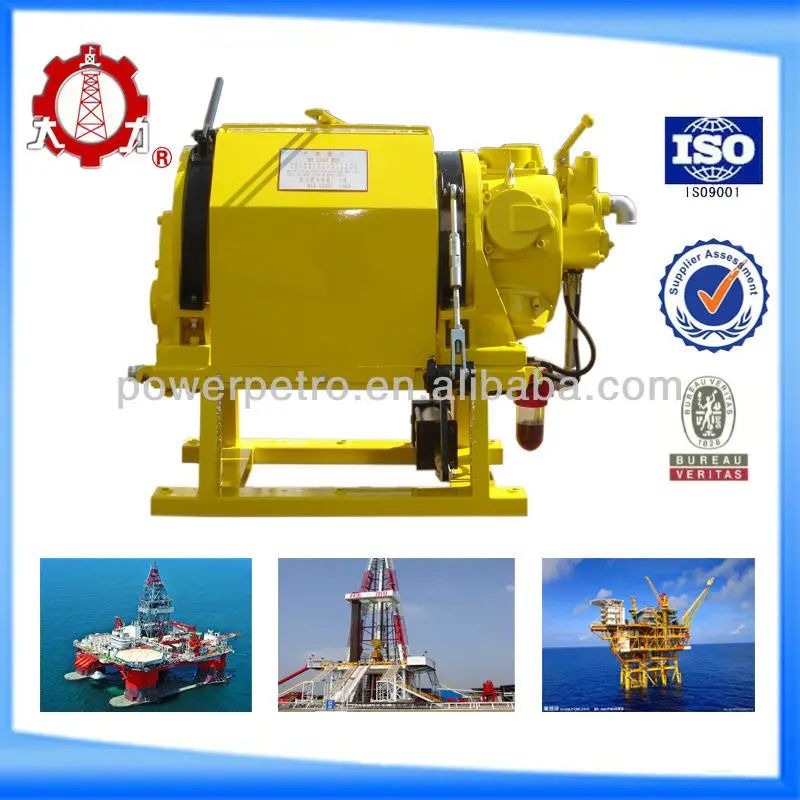

JQHSB-35*17 double-braking air winch adopts compressed air as power to lift and drag heavy cargo. For better security, it is specially designed with hand brake and foot brake. They're very popular in drilling platform, marines, minings, engineering sites, etc.

Advantages

1. Compact in size, light in weight, portable to move and easy to install;



2. Simple and reliable operation with little noise;



3. Low maintenance relieves your anxiety;



4. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;



5. Enclosed construction keeps out dirt and dust and seals in oil and grease for complete lubrication of all moving parts;



6. High starting torque ensures starting with load, performing hoisting, lowering and stop actions;



7. The Normal Force can be tailor-made to meet your requirement.



Specifications for winches in JQH Series

Model		JQH10*48	JQHSY-5*48	JQHSB50*12	JQHSBD50*12
Pressure of Compressed Air (mpa)		0.6-0.7	0.6-0.7	06-0.8	0.6-0.8
Normal Pull Force ( KN)		10	5	50	50
Wire Rope Speed (m/min)		35-48	48	12	12
Wire Rope Diameter (mm)		8	8	15.875	15.875
Inlet Diameter (mm)		25	20	32	32
Pneumatic Motor	Rated Power (KW)	4	4	17	17
	Cylinder Number(pieces)	6	6	5	5
	Cylinder Diameter(mm)	65	65	130	130
	Air Consumption(l/sec)	130	130	247	247
Drum	Number (piece)	1	1	1	1
	Diameter (mm)	175	175	222	222
	Width (mm)	198	198	335	335
	Wheel Rim Diameter(mm)	290	290	485	485
	Rope Capacity (M)	120	120	120	120
Configuration	Length (mm)	722	857	1200	1200
	Width (mm)	342	342	920	920
	Height (mm)	530	440	989	989
	Weight (Kg)	117	128	480	480











We hereby to confirm that the Remote Winch can be tailor-made to meet your special needs and requests, with the highest quality, prompt delivery and first-rate service.
