Fishmeal Drier fish meal production line fish feed manufacturing line animal feed production plant

Product Overview

Description

The Drier is composed of a horizontal crust, a revolving shaft, weld with a heating coil pipe that has vanes. The coil pipe can heat the fish meal, at the same time push fish meal towards the outlet by the vanes. Steam is evenly distributed into the heating pipe by the allotter. Since the steam and condensate flow respectively in channels on the coil, so as to stabilize the high temperature.

With the rotation of shaft, fish meal is agitated by the vanes and heating pipes, thus to keep the best contacted with the shaft and pipes. Vapors from heating is let out from the top by the pipeline, with the weak vacuum inside pipeline, less cold air is absorbed and no steam leaks. The Steam enters through inlet, and condensate drained out from outlet.



Features
1. Fitting with Clutch, the Drier could be directly restarted with loading when sudden-stop during operation, avoid emptying inside materials.
2. With steam jacket, increase drying area, properly improve drying efficient, to assure material drying adequately.
3. Compression handles, compact structure, convenient open & shut.
4. The Main shaft is made of super thick quality seamless pipe.
5. By means of drainage system, take condensate back to boiler, therefore improve boiler efficiency, meanwhile reduce energy consumption.
6. With steel foundation, no concrete foundation, changeable installation position.

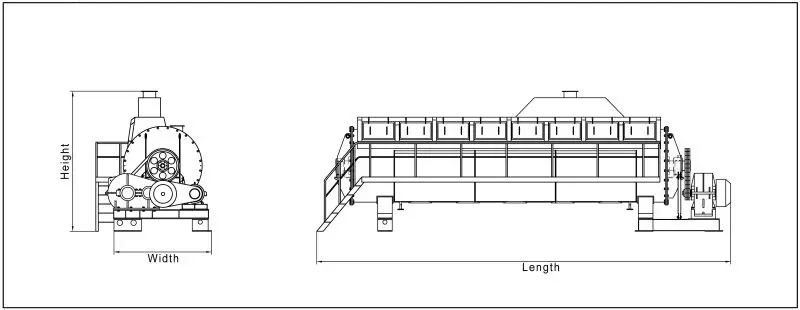

Type	Power	Shipping date
		Length	Width	Height	Weight
	kw	mm	mm	mm	kg
SG-80T	45	8760	2300	3300	17870
SG-1300*7800	45	10115	2457	2855	14000
SG-1600*7800	45	10120	2600	3105	17800
SG-100T	55	9910	2300	3300	20000
SG-150T	90	11300	2600	3645	31800
