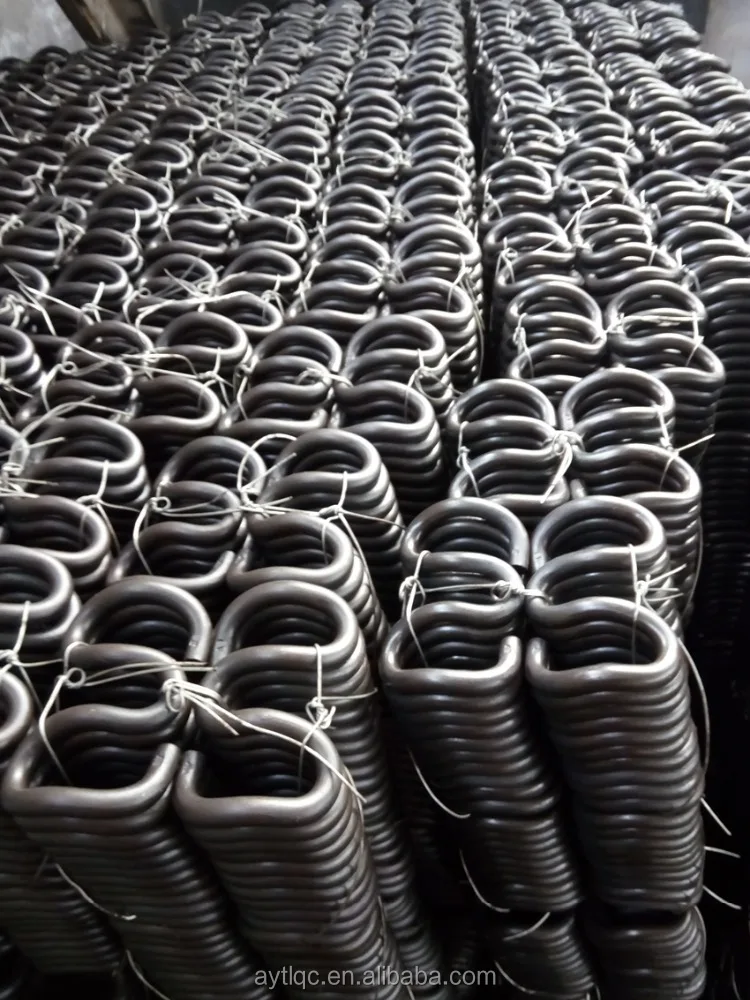

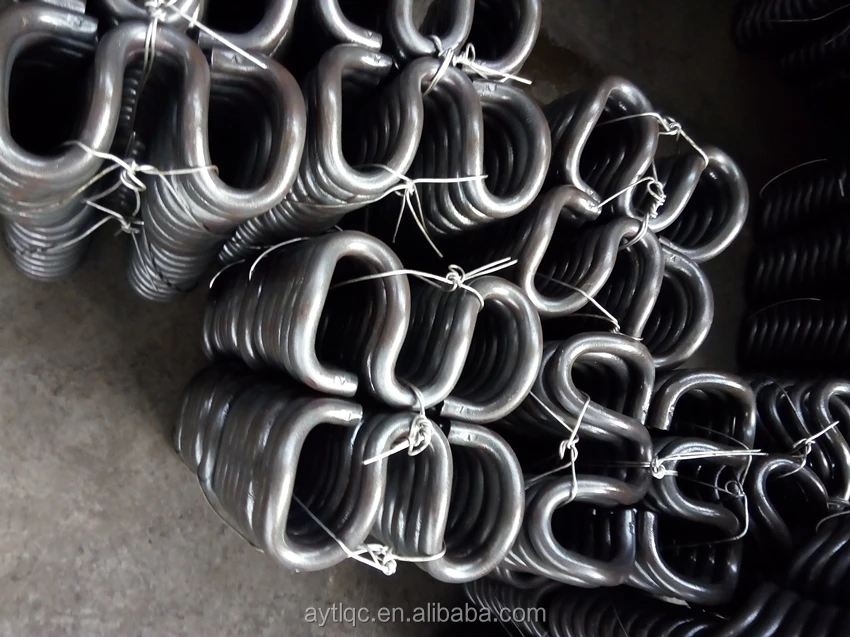

Russia type rail clips,E Clip railway Fastening System

Our Full Production as followings for reference:

1)Railway Fishplate/Joint Bar/

l         Available Type:

---North America:115RE,132RE;

---Asia&Africa:UIC54,UIC60;

---South America:TJ45,TJ57;

---British Commonwealth:BS60,BS75;

l         Raw Material:45#,50#,B7,etc.

l         Surface:Natural or Paint.

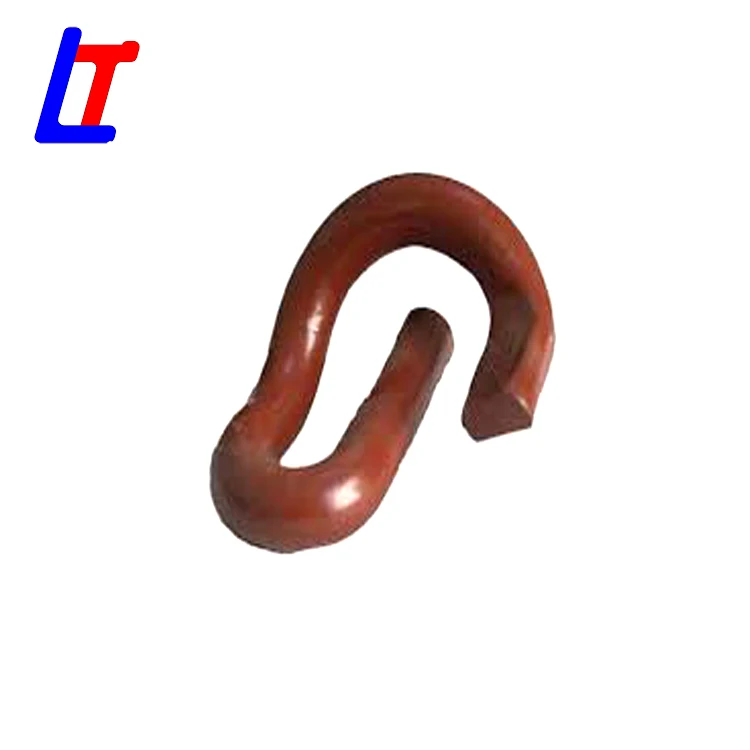

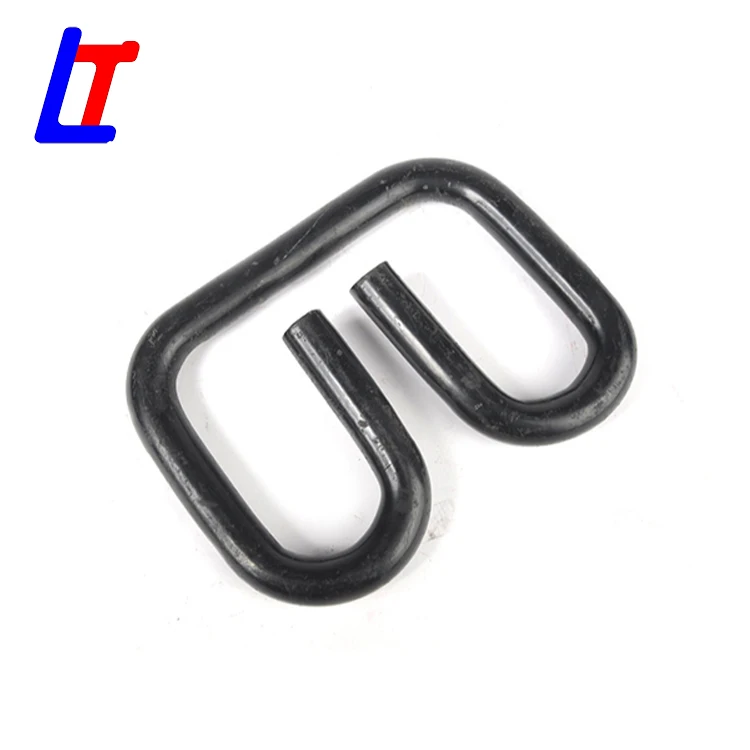

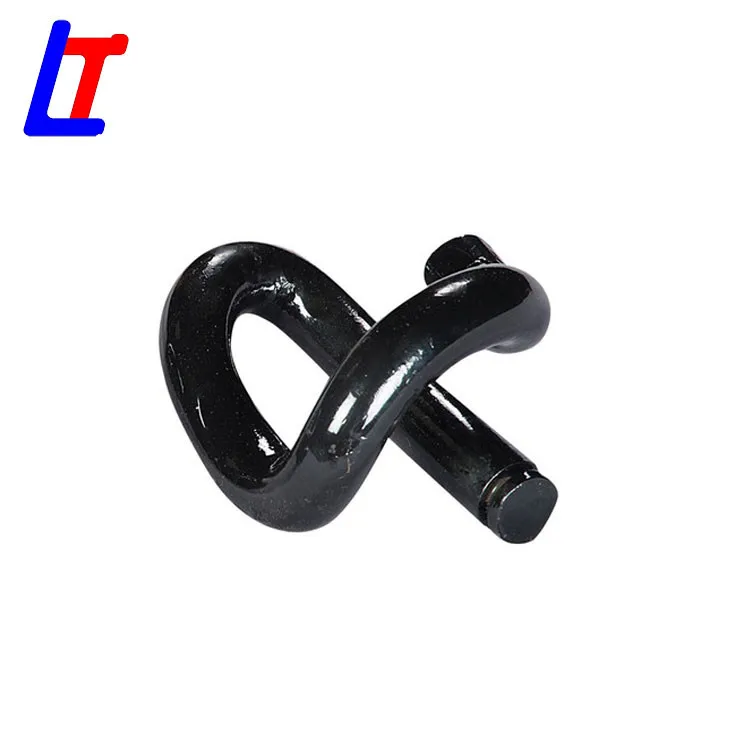

2)Rail Clip/E Clip

l         Type:E1609,E1809,E1817,E2055,E2056,E2009,E2001,E2006,PR401,PR309;

l         Raw Material:Q235,55#,40Mn2,20MnSi,etc;

l         Grade:4.6,4.8,5.6,6.8,10.9,12.9;

l         Surface:Natural,Black,Zinc,etc

3)Railway Tie Plate/Railway Base Plate

l         Type:Fit to SKL & E type fish Plate supporting cast iron and forging railway base plate

l         OEM is available according to customers drawings and samples.

l         Raw Material:45#,QT400-15,QT450-10,QT500-7

l         Surface:Natural,Oil,etc.

4)Dog Spike,Railroad Spike/

l         Type5/8x5” 9/16x5-1/2”,3/8x3-1/2”,16x16x165,15.9x139.7;etc

l         Raw Material:Q235,55#,45#,40Mn2,20MnSi,etc.

l         Grade:4.6,4.8,5.6,6.8,10.9,12.9

l         Surface:Natural,Black,Zinc,etc;

5)Railway Screw Spike Sleeper Screw/Railway Rail Fasteners

l         Type:Ss Series Square Spike from Ss1/130 to Ss25/165 and BS square spike,Twisted Spike,any other type is available according to customers drawings and samples.

l         Raw Material:Q235,45#,55#,55Q,etc;

l         Surface:Natural,Oil,Black Paint,Zinc,etc;

6) Railway Bolt/Inserted Bolt/Track Bolts/

l         Type:

    AREMA Track Bolts:115RE,132RE;

    UIC Track Bolts and Square Bolts:UIC54,UIC60;

    TJ45;TJ57;BS60,BS75 Fish Plate MRailway bolts:T Bolt,HS26,HS32 Series T bolt,turnout,hex bolt,subway bolts.

l         Grade:4.6,4.8,8.8,9.8,10.9,12.9,etc;

l         Material:Q235,35#,45#,40Cr,etc.

7) Crane Clip/Rail Clamp/Weldable Clip

1) Type: KPO3, KPO6, Many other kinds are available .

2) Raw Material: Q235.45#,etc.

3) Surface: Natural, Black Paint,Zinc, etc.

8) Gauge Apron

  Used in UIC54,UIC60,115RE, 132RE, 100RE, 133RE, 100RB railway products.

  Specification: 6#, 10#, 14#, 20#,etc.

  Raw material: Q235,etc.

9) Rubber Pad/Under Rail Pad

Type: R54 1435mm, R54 1067mm, R60 1435mm, ZW687, ZW700.Pandrol series #7, #8, #9, #11, #12, #13 Nylon Insulators.

Raw Material: Rubber.

Surface: Natural.

10) Rail Shoulder

  Type: All kinds available according to customers drawings and samples.

  Raw material: QT400-15.QT450-10.QT500-7,etc.

  Surface: Natural

11)High Strength Fishtail Bolt/ Clip Bolt / Clamp Bolt

l          Type: Hex/Square/Flange Head according to DIN, BS, AREA Stardard

l          Specification: M8-M64.

l          Grade: 4.6,4.8,5.6,5.8,8.8,etc.

l          Raw Material: Q235, 45#, 40Mn2, 20Mnsi, 35CrMo, 40Cr,etc.

l          Surface: Natural (oil), Black Paint, Color Paint, Zinc, ext.

1. Q: Are you a manufacturing factory?
   A: Yes, we are.
2. Q: Do you accept drawing?
     A:  we accept customization, please offer your own design drawing before we calculate accurate price for you requst.
3. Q: what information should we Provide if we need price?
     A:  drawing with all size;  material;  surface treatment; quantity.
3. Q: how many ways of surface treatment?
    A: plain (oiled); paint with any color; oxide black;
        wax; bitumenizing; DHG; electroplating znic; ect
4. Q: payment terms?
    A:  30% by T/T as deposit,balance 70% by T/T against copy of B/L within 7 working days.
5. Q: Validity Date?
    A: 10~15 days in general. it will be showed in quotation.
6. Q: Certification Matters?
   A: We have ISO9001:2008,SGS. We also accept Third Party Test from clients.

Our company is located in Linzhou city which is under the TAIHANG mountains with famous and beautiful scenery in the world—that is the miracle and artifical   HONGQU,a river over the mountains.There are also many famous steel manufacturers that is near or around our company,such as ANYANG STEEL FACTORY,HANDAN STEEL FACTORY and CHANGSHA STEEL FACTORY.So,our company has abundant resources with much convenient transportation which provide exceptional conditions for our company’s production and further developement.

Our company is established in 1976 with about 30 years production experiences.

It covers an area of 35,000 sq meters and have 580 employees,including many high-

level engineers and now its annual production capacity is over 29,000 tons.So,it’s a really professional manufacture in the business of railway equipment ,especially in analysis,production and sales.

Our main products include five major series: (1)all kinds of cast iron products;

(2)three kinds of elastic fasteners;(3) rail fasteners in metro city;(4)all kinds of

sidetrack accessories;(5)lane track accessories,etc.In particular,we have advanced

equipment and excellent technology in foundry.So,our products are very popularly

adopted by many national and foreign railway bureaus for the important railway engineerings,city subways and some special lines in the factories and mines.

Our company’s testing means is complete and the technical force is strong. The

products are timely sampled by the Inspection Center of The Railway Ministry.for the quality assurance.So,we got the Certificate of ISO9001-2000 for the quality management system in the year of 2001.

We always adhere to the purpose of “quality first,customers first” and welcome all the customers and friends to do business with us for mutual benefit and a better future..
