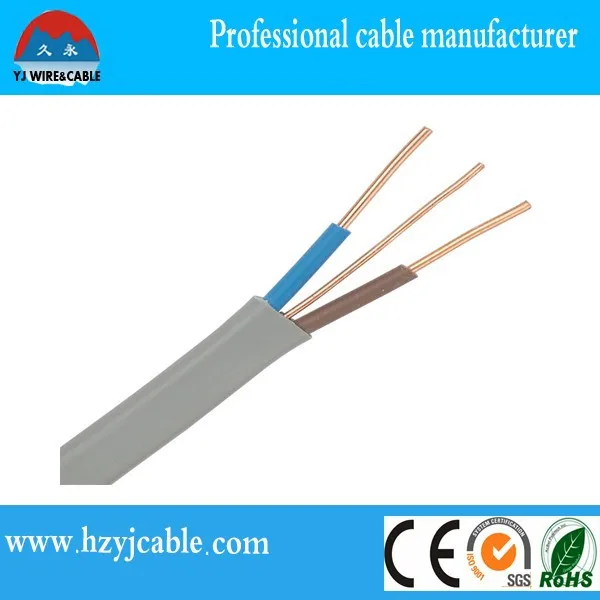

2x1.5 E flat twin and earth cable

Product Overview

Description



Structure:Conduct---pure copper/copper clad copper/copper clad aluminum/aluminum

Insulation---PVC/PE/XLPE

Size:According to Standard/Sample/Price requirement.

Detailed Product Description







  PVC Wire is used for lighting, electronic equipment, instument and communication equipment with rated voltage 450/750V or 300/500V.

  The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.



rated voltageU0/U V	Nominal section mm2	Conductor constructionnumber/Φmm	Insulation thickness mm	Inner insulation/outer insulation thickness   mm	Average outer daimeter mm			Reference Weight(km/kg)	20°CDirect current resistanceΩ/km
					Lower limit	Upper limit			Un-tinned	tinned
300/500	2×1.0+E	2×1/1.13	0.7	0.4/1.2	7.6		10.0	117.89	12.1	12.2
	2×1.5+E	2×7/0.52	0.7	0.4/1.2	7.8		10.5	125.73	12.1	12.2
	2×2.5+E	2×1/1.78	0.8	0.4/1.2	8.6		11.5	159.88	7.41	7.56 56
	2×2.5+E	2×7/0.68	0.8	0.4/1.2	9.0		12.0	174.25	7.41	7.56 56
	2×4 +E	2×1/2.25	0.8	0.4/1.2	9.6		12.5	206.65	4.61	4.70
	2×4 +E	2×7/0.85	0.8	0.4/1.2	10.0		13.0	224.16	4.61	4.70
	2×6 +E	2×1/2.76	0.8	0.4/1.2	10.5		13.5	236.83	3.08	3.11
	2×6	2×7/1.04	0.8	0.4/1.2	11.0		14.0	287.85	3.08	3.11
	2×10	2×1/3.58	1.0	0.6/1.4	13.0		16.5	436.37	1.83	1.84
	2×10	2×7/1.35	1.0	0.6/1.4	13.5		17.5	472.67	1.83	1.84
	2×16	2×7/1.70	1.0	0.6/1.4	15.5		20.0	648.99	1.15	1.16
	2×25	2×7/2.14	1.2	0.8/1.4	18.5		24.0	984.49	0.727	0.734
	2×35	2×7/2.52	1.2	1.0/1.6	21.0		27.5	1312.42	0.524	0.529

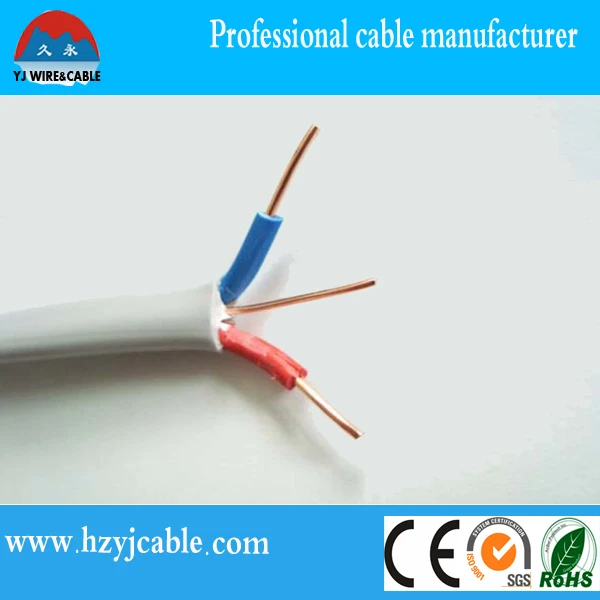

4,Complete Photo for Reference









2.20 producing cable lines, Poduction Capacity 1000,000 rolls/day.Delivey Time:1 weeks. 3 producing space,full department including Test&Technical Department.



3.We have more than 150 employees, with 15 experienced technicians and 5 skillful QC to control the quality of different kind of cables. "Quality first & Customer first" is our philosophy.



4.We have grown from a small factory with an annual turnover of USD50,000 to over USD50,000,000 during these 10 years. Our production capacity can meet various foreign customers.







FAQ:

(1).When can I get the price?



We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.



(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.



(3).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.



(4).What's your delivery term?

We usually accept FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.



We can produce the specifications according to the customers' requirement.
