Machinery Repair Shops workshop single girder 5 ton mobile gantry cranes

Product Overview

Description

workshop single girder box-type gantry crane with safety device





MH model electric hoist girder gantry crane is used together with CD MD Model Electric hoists.It is a track travelling small and medium-sized crane. Its proper lifting weight is 3.2 to 32 tons, proper span is 12 to 30 meters. Its proper working temperature is -20°c to 40°c.

This product is a regular crane widely used at open ground and warehouses to load and unload or grab materials. It has 2 controlling methods, namely ground , controllong and room contrlling.

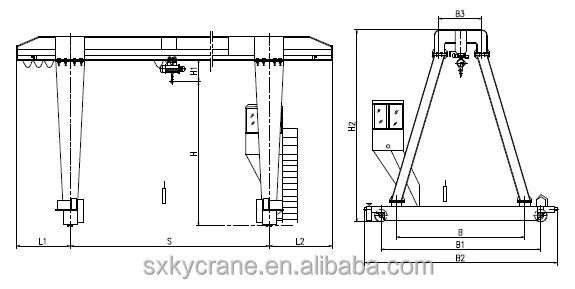

Sketch of  portal gantry crane





Delivery date		In 20 working days after received the deposit and comfirmed designs
Payment		* 30% down payment through T/T within 2days after signing the contract.                   * 70% balanced payment after inspection before delivery from factory by T/T             * We also accept order on line throught trade assurance of Alibaba .
Validity		20 days



Warranty		18 months after commissioning at site or 24 months after delivery, what occurs first. During this period, we will bear all repair and maintenance expenses including broken spare parts and man power if it is caused by the defects of products itself.

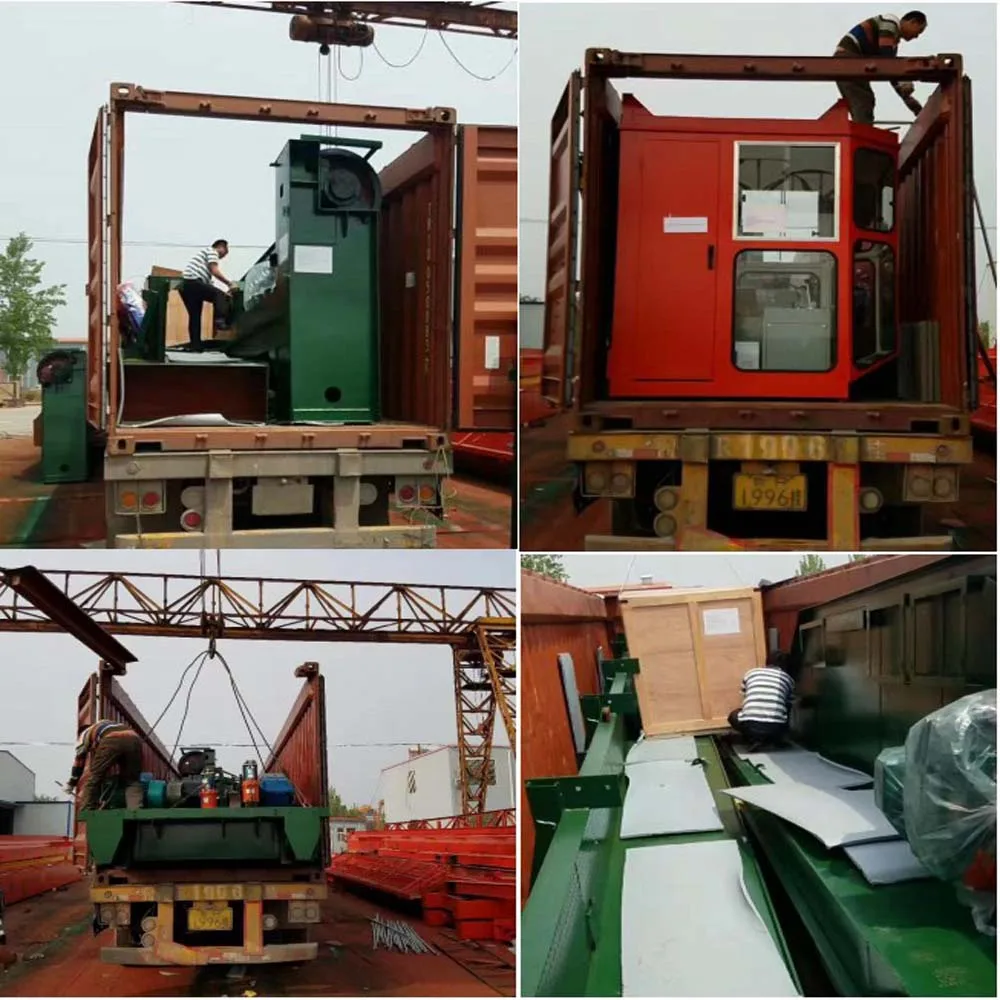

Shippment		By sea



Technical Parameters of  portal gantry crane

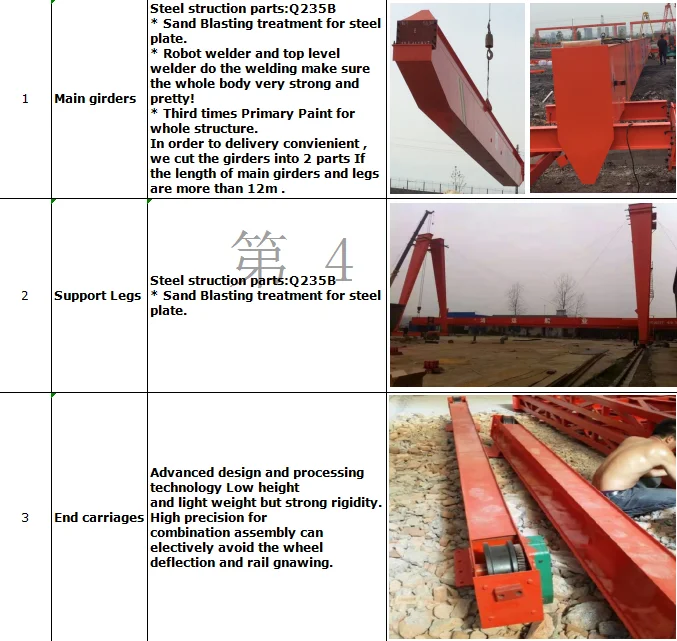

*Main girder is used of U template and range of welding surface into the composite beams

*USES the high quality carbon steel of Q235B or Q345B

*Lifting motor: Tapered rotor three-phase asynchronous braking motors



Lifting mechanism
Item			Unit		Lifting mechanism
Lifting capacity			t		10
Lifting height			m		6m
Span			m		12
Double lifting speed wire rope electric hoist                               t	Lifting speed		m/min		0.7/7
	Lifting motor power		kw		1.5/13
	Cross traveling speed		m/min		20
	Traveling  motor		kw		0.8*2
	Diameter of wire rope		/		D-6*37+1 15
Crane traveling	Traveling speed		m/min		20
	Cross traveling model		/		YVPEJ90L-4
	Traveling motor power		kw		1.5*2
Total power			kw		17.6
Insulation class			/		H

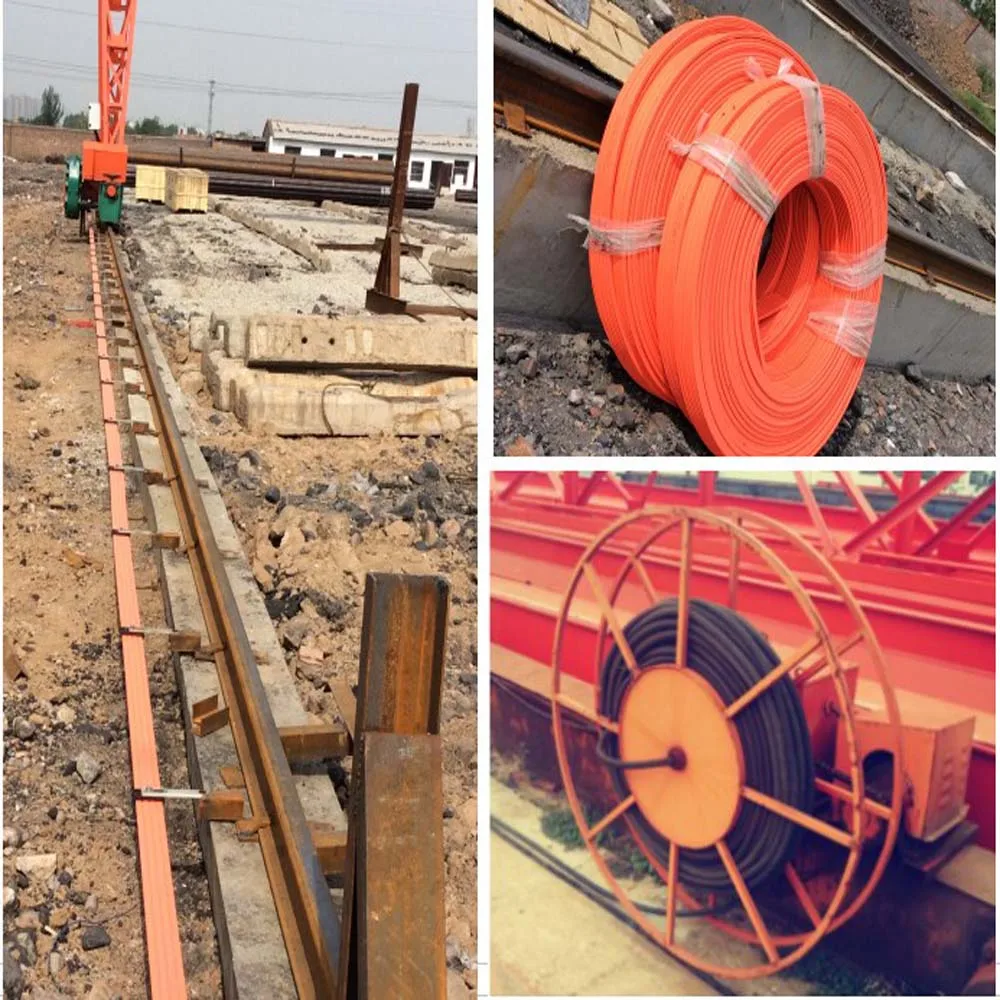

Cable			PVC INSULATED CABLE		YGC3*10+1*2.5

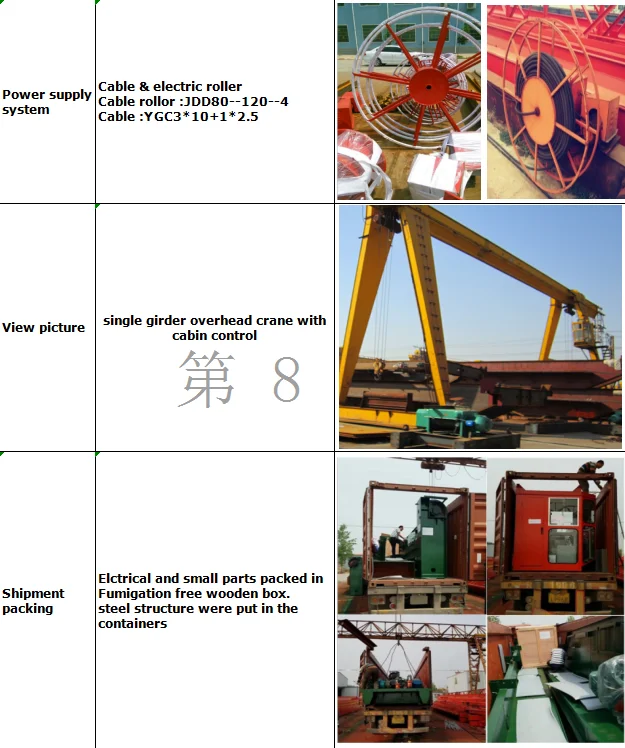

Roller			cable roller		JTC-80-100-4
Power supply			380v 50hz 3phase AC

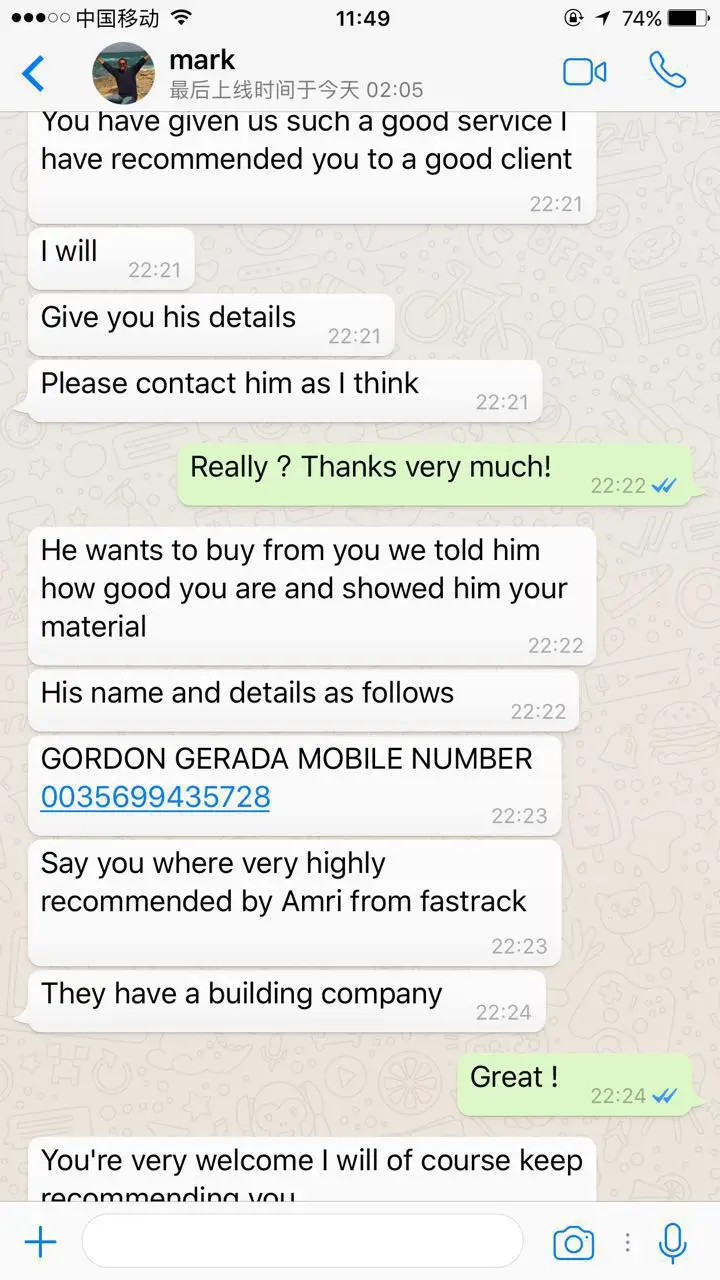

Customers' feedback of  portal gantry crane











In order to offer you most suitable design and best solution, please confirm following information when you send inquiry.



Expect your inquiry to give us the opportunity to serve you!

1.Pleas kindly confirm these information in order to offer you an exact quotation when you inquiry .

For gantry crane type : single girder gantry crane or double girder ?

1. Lifting capacity ?

2. Span ?do you request cantilever on both of sides ?

3. Lifting height ?

4. Traveling length ?

5. Power supply  __v  ____hz ___phase ?

6. What is the crane working condition ?

How many hours for continuous working of the crane on day ?

7. Operation method ?

A: pendent controller with push buttons.

B: remote control

C: cabin

8.FOB or CFR price ? Your port of destination ?



2. Can this type work in hazardous environment?

Sure! Can customize for you, acid proof or explosion proof, no problem for that.



3. How long is your warranty?

12 months after commissioning at site or 18 months after delivery, what occurs first. During this period, we will bear all repair and maintenance expenses including broken spare parts and man power if it is caused by the defects of products itself.



4. Can you provide the lifting tools?

Sure, we can provide any lifting tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

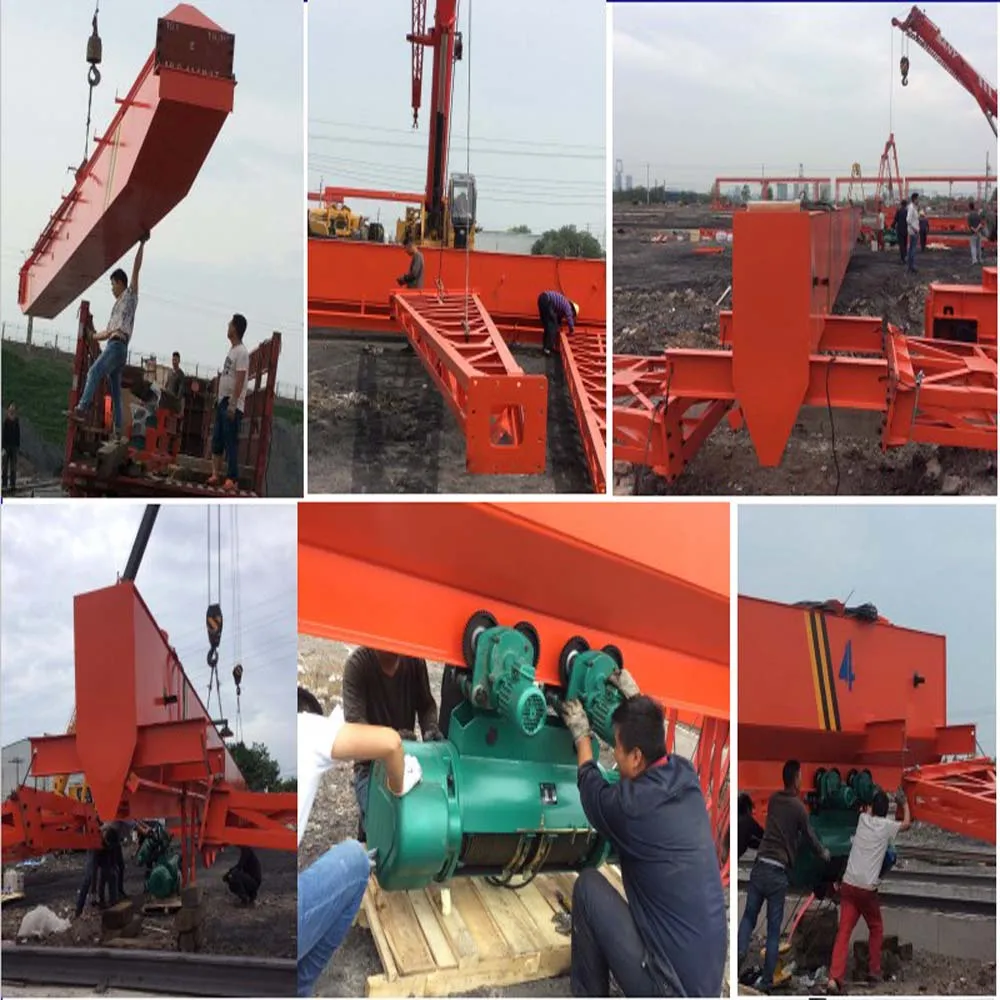

 5. How can we install the crane?

Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.



6. Safety device

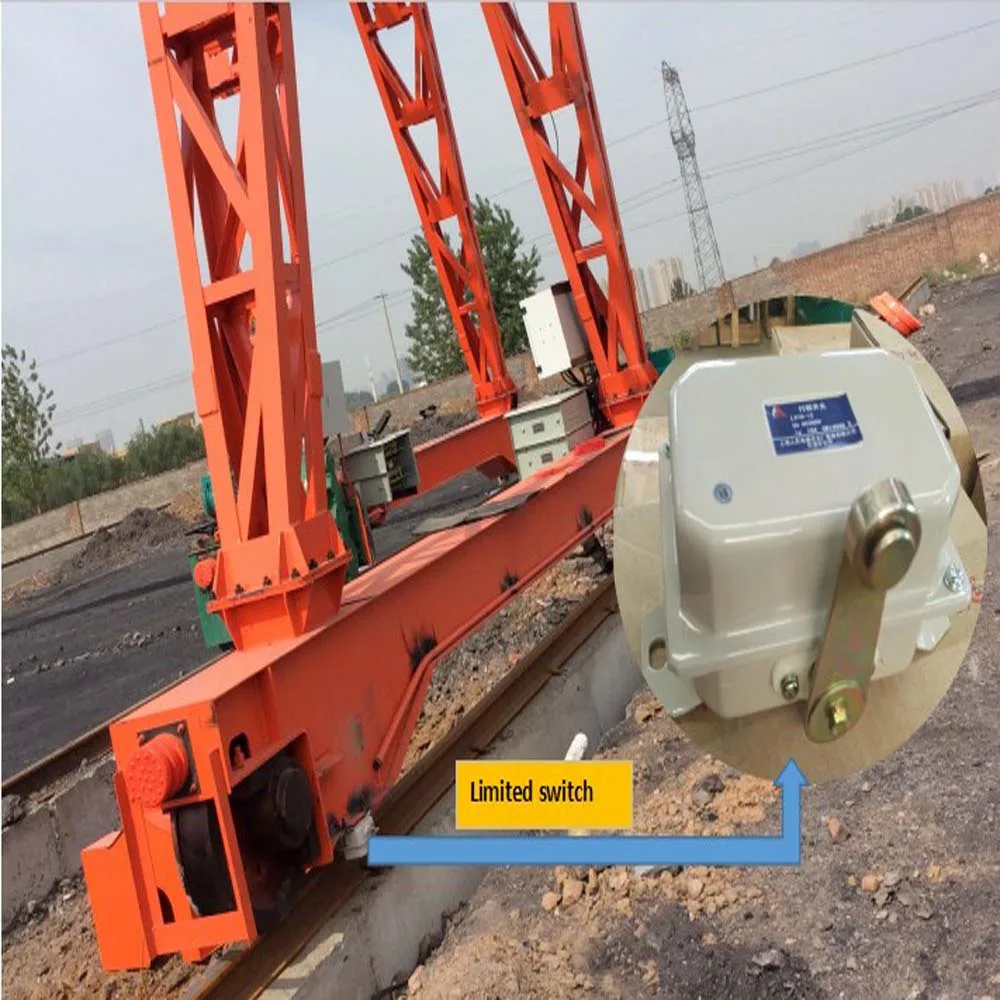

Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover,  Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.
