single phase industrial high pressure side channel air blower
- Category: Blowers >>>
- Supplier: Wuxi,Gezhiling,Machanical&Electrical,Co.,Ltd.
Share on:
Product Overview
Description
Specification:
1.IP55 Insulations class H
2.Bearing continuously works 130000 hours without maintenance 18-month warranty
3.Regenerative blower adopts ADC12 aluminium alloy materials (Benz wheel material)
4.High precision high temperature Sweden SKF bearings.

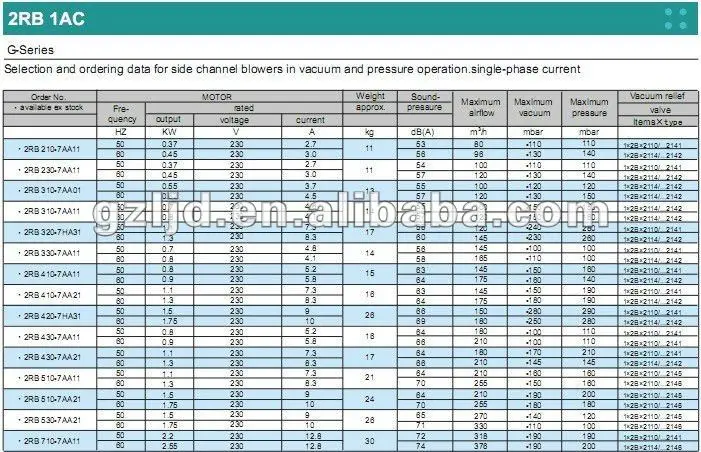

Parameters:
Item NO. | Stage (S/D/3) | Frequency (HZ) | Power (KW) | Voltage (V) | Current (A) | Air Flow (m³/h) | Vacuum (mbar) | Pressure (mbar) | Sound dB(A) | Weight (KG) |
2RB 430 A11 | Single | 50 | 0.85 | 200-240V | 5 | 145 | -160 | 160 | 63 | 17 |
60 | 0.95 | 200-240V | 5.8 | 175 | -160 | 160 | 64 |
Size:
Explosion view:
Applications:
1.Pneumatic conveying systems
2.Lifting and holding of parts by vacuum
3.Packing machines
4.Aeration of sewage-treatment plants
5.Filling of bags/bottles/hoppers
6.Soil remediation
7.Thermoforming
8.Sorting/enveloping of letters
9.Food-processing
10.Laser printers
11.Dental suction equipments
12.Paper processing
13.Printers/copiers
14.Textile machines
15.Aeration of fish ponds
16.Gas analysis
17.Swimming pool equipment/whirlpools
Features:
1. Beautiful surface
2. Easy installation
3. Low noise level
4. No vibration, and therefore complete dynamic stability
5. Pulsation-free discharge
6. Minimal maintenance
7. Higher pressure ratio
8. Cooler running bearings
9. Longer grease life
10. Simple maintenance
11. 100%oil-free air
12. Suitable for environmental protection
13. Small dimensions
14 continuous duty
Performance curves:
Certificate:

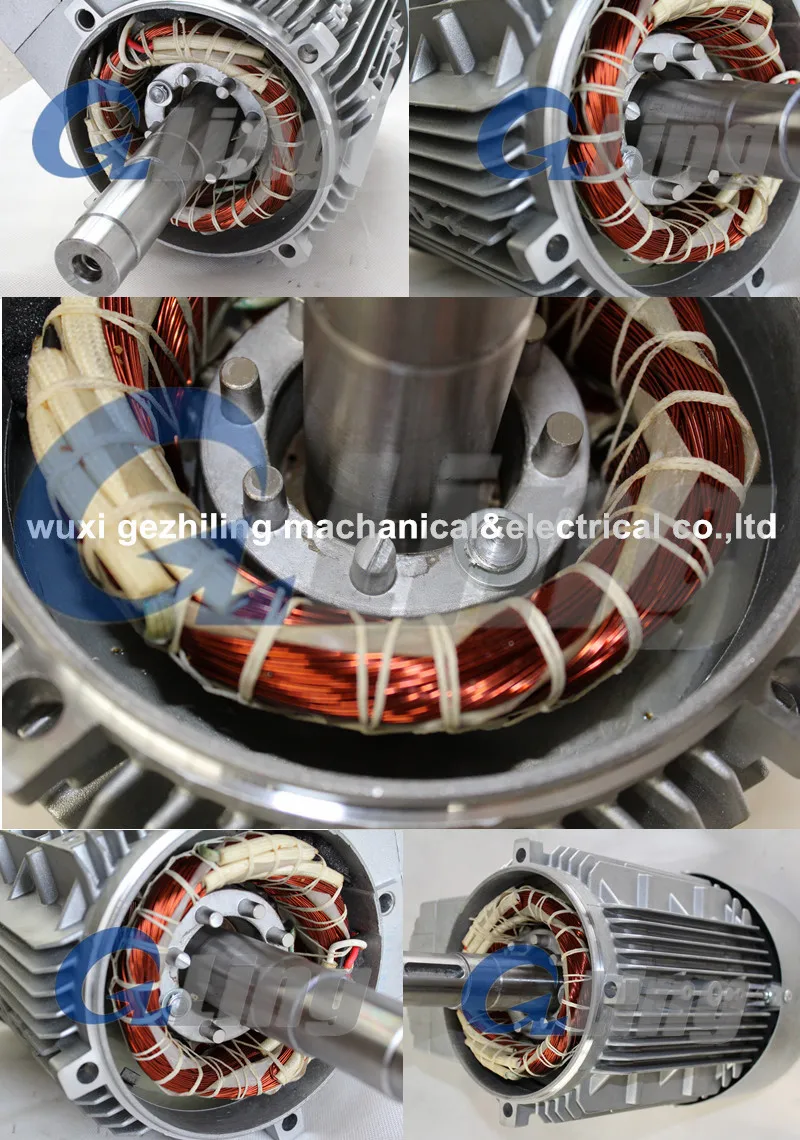

Production Line:
