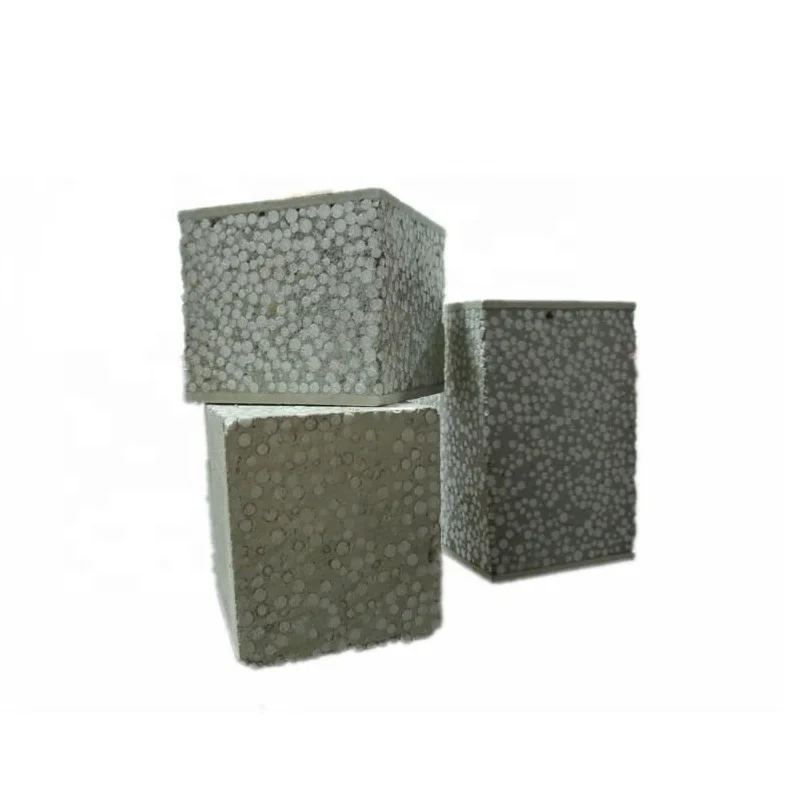

Styrofoam block concrete lightweight exterior eps sandwich wall panels

Product Overview

Description

Styrofoam block concrete lightweight exterior eps sandwich wall panels

Composition

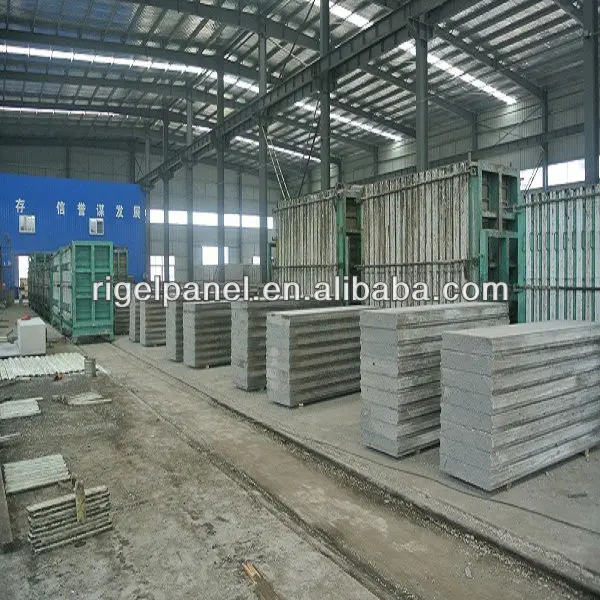

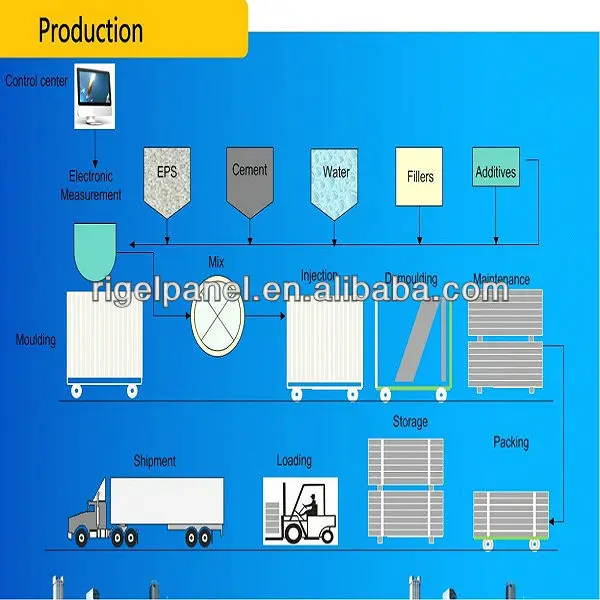

Production



We also supply the full production line for the light weight wall panel.



For more details,pls feel free to contact me.



Standard specification



No.	Size	Weight	Loading in 20GP
1	2270*610*60mm	45kg/sq meter	315pcs
2	2270*610*75mm	50kg/sq meter	252pcs
3	2270*610*90mm	60kg/sq meter	207pcs
4	2270*610*120mm	75kg/sq meter	153pcs
5	2270*610*150mm	85kg/sq meter	126pcs



Advantages

1.Energy saving,Green,Environmental friendly

The raw materials do not include harmful substances.Energy-saving effects of the building is greatly improved It is highly recommended by the government.

2.Durable

70+ years building life span.

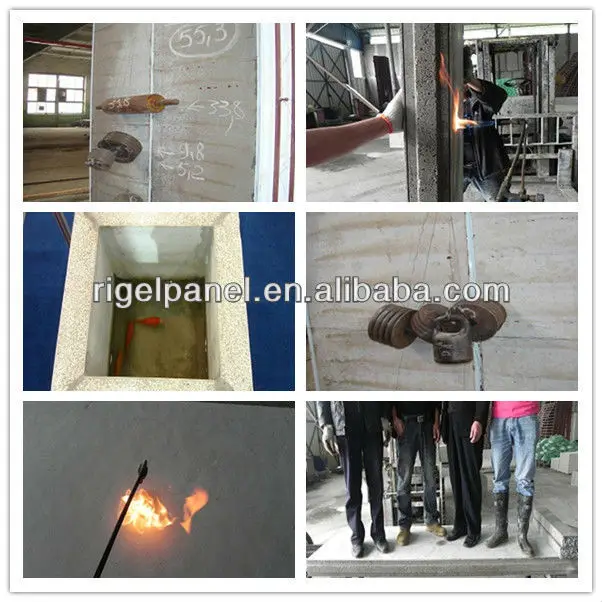

3. Strong

Hard surface and no damage after impacting.The hanging strength of single spot is 100kg, can nail and affix tile.

4.Fireproof

Panels have a fire rating of 60 minutes.Grade A of National standard.

5.Sound insulation

The sound insulation capacity in the air is 39db-50db (according to National standard:GBJ121-88).

6.Waterproof, dampproof

No bead on wall panel surface in wet climate.
7.Quakeproof

More suitable for seismic & cyclone prone zones.

8.Unique tongue and groove

Specially designed tongue and groove arrangement ensures a perfect joint and makes construction faster.

9.Rapid installation

Being light in weight,handling and installation become very easy.One worker can do 20 sqm every day.

10.Dry working

It is very convenient, less building rubbish left after installation and clean up easily.

11. Excellent surface finish

The wallboard surface is level.You can plaster directly for inner decoration.It also can take all decorative treatment.

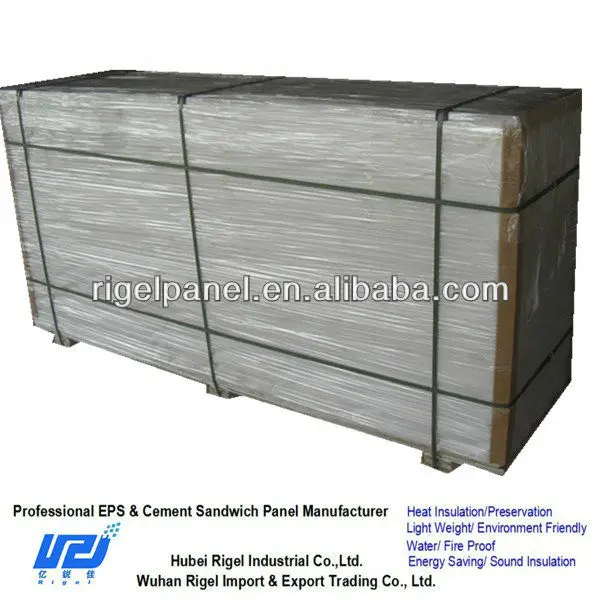

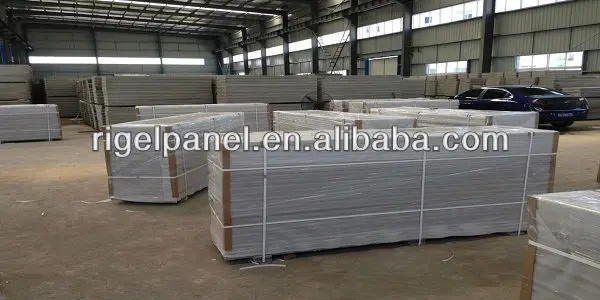

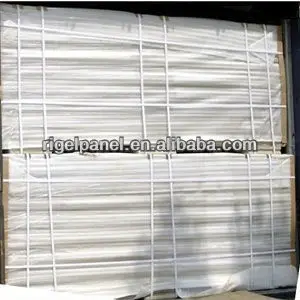

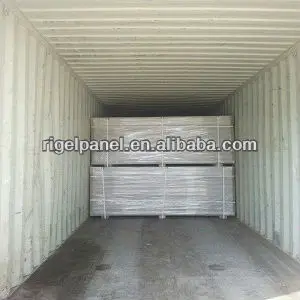

Packing and loading



Usage and Application

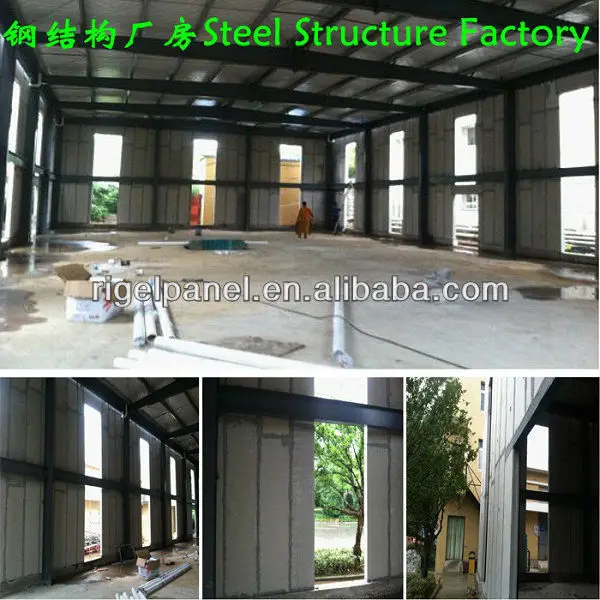

Widely used in the frame structure, ,concrete structure,steel structure, e.g.

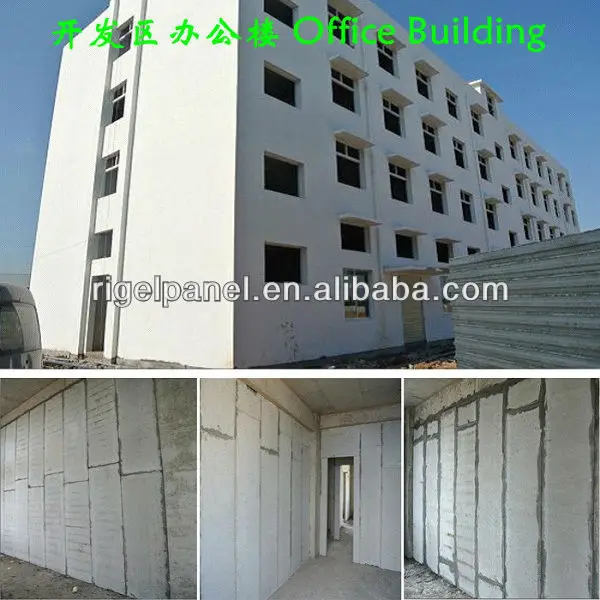

Used as exterior, interior and decorative partition of office building, hotel, motel, school, hospital, dormitory, supermarket, industry workshop, warehouse, etc.

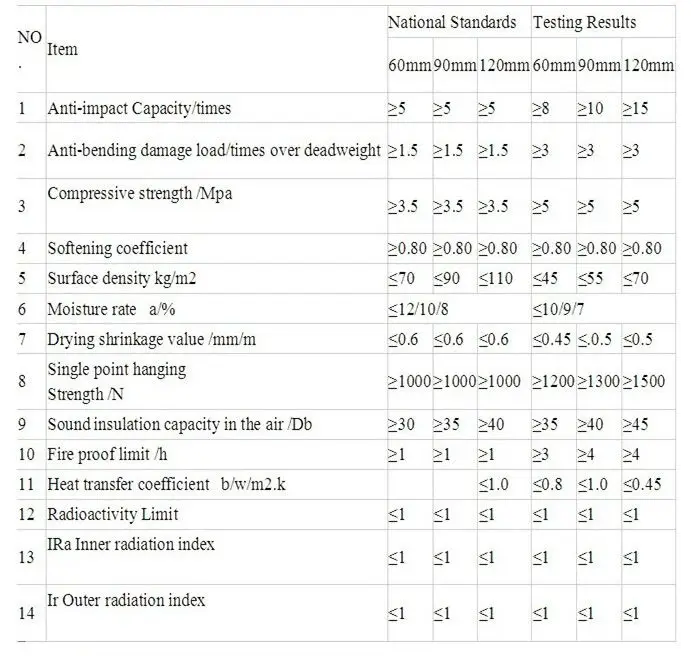

Performance Index
