SRH bonnell spring coiling mattress spring making machine

Product Overview

Description



SRH bonnell spring coiling mattress spring making machine



SRH bonnell spring coiling mattress spring making machine is an automatic equipment in making mattress spring (bonnell springs).It combines coiling, knotting,heat treatment and out put total four procedures. It is a fully automatic mattress spring making machine, which adopts mechatronics design, worm and gear decelerator, regulation of speed can be controlled by frequency transformer, lubricating system can be controlled by computer. It is characterized with nice structure, easy adjusting, stable performance, high productivity.



  Technical data:

Spring end diameter	Φ70mm;  Φ75mm;  Φ80mm;  Φ85mm;  Φ90mm
Spring turns	4~7(turns)
Spring height	Short shaft	4 (turns)····90 ~ 110mm
		4 (turns)····100 ~ 120mm
	Standard shaft	5 (turns)····135 ~ 150mm
		7 (turns)····170 ~ 180mm
	Long shaft	6 (turns)····150 ~ 160mm
		6 (turns)····165 ~ 175mm
Applicable wire diameter	Φ2.0 ~ 2.4mm
Productivity	60(pcs/min)
Main motor power	4KW
Swift power	1.5KW
Heat treatment power	10KW

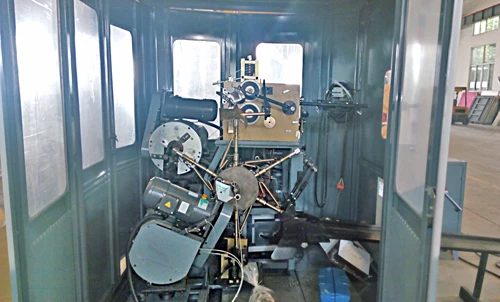

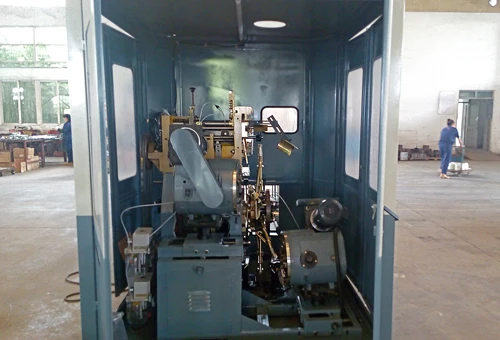

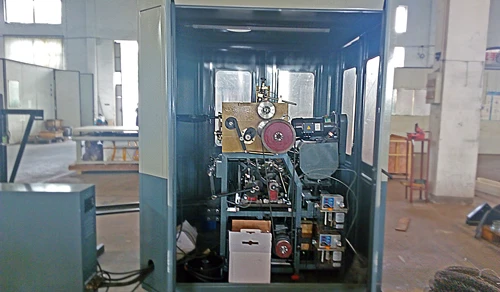

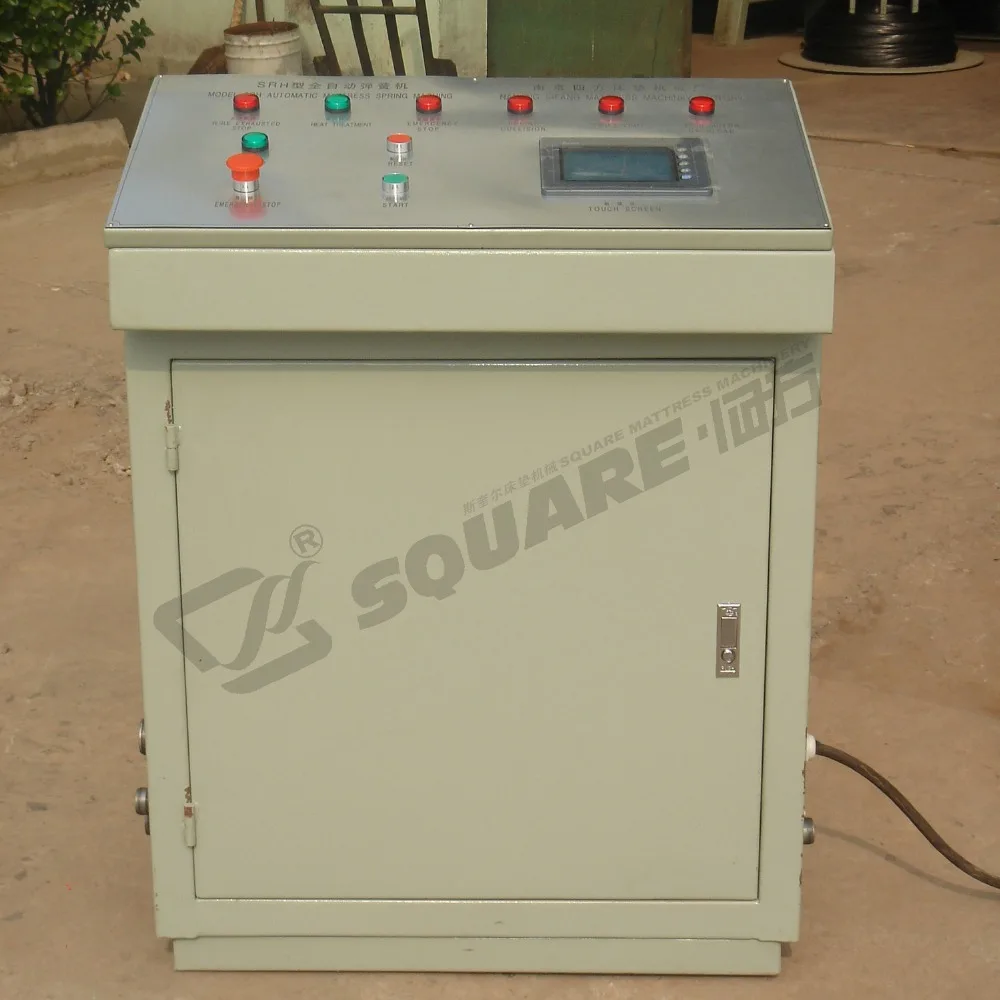

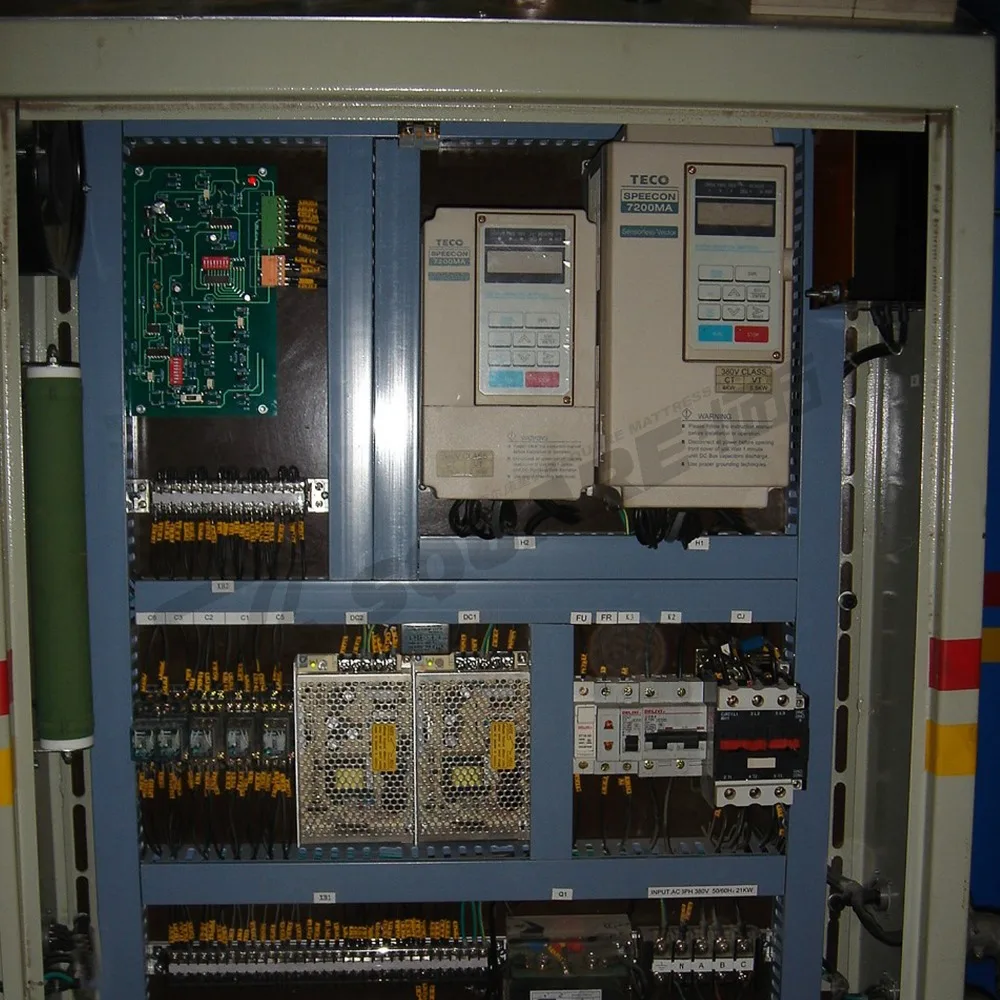

Inside pictures of SRH bonnell spring coiling mattress spring making machine:

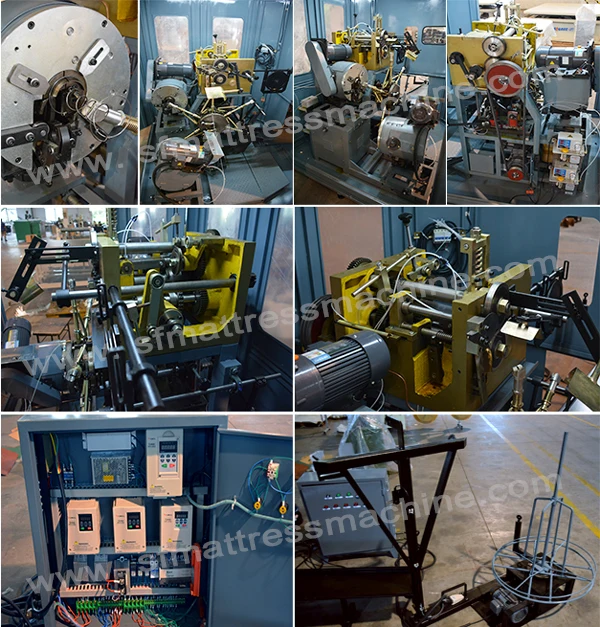

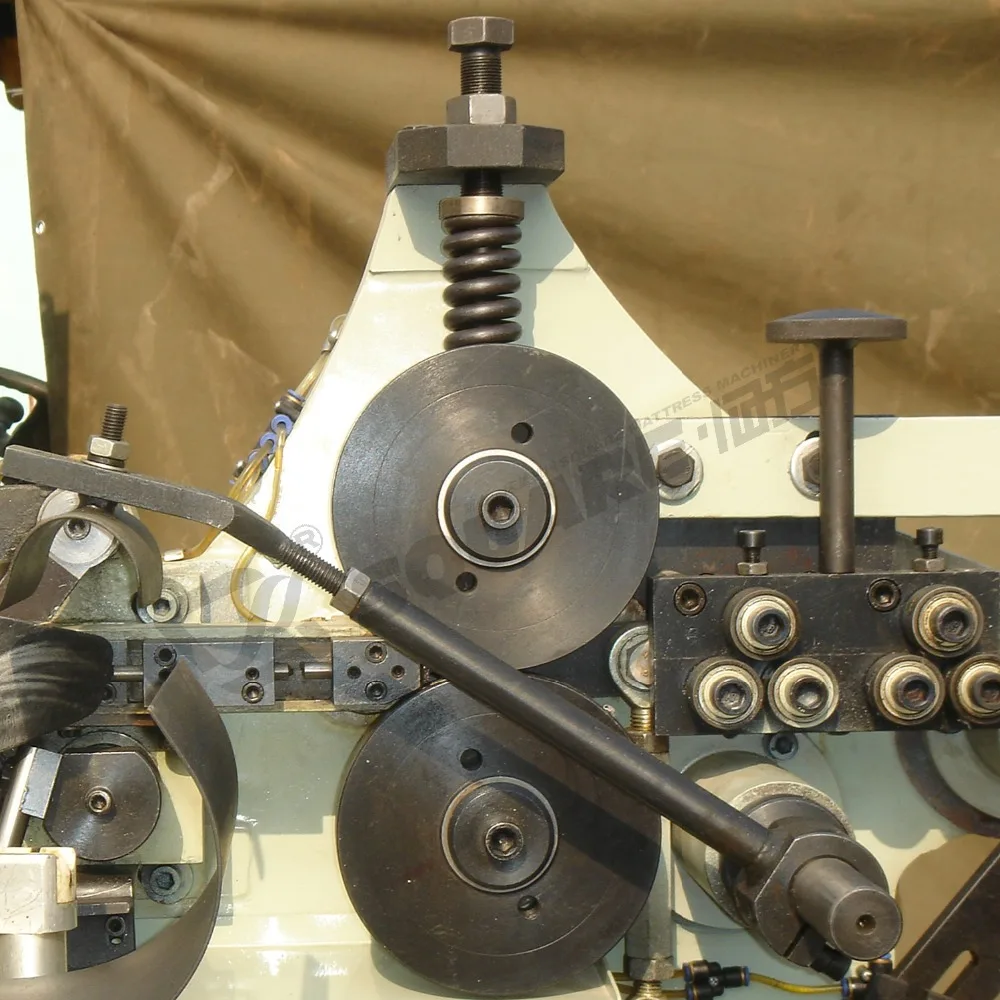

Detailed parts pictures of SRH bonnell spring coiling mattress spring making machine:
