Product Overview
Description
Product Description
BEL - Sensor is compact vibration sensor fully enclosed within a junction box with a clip-on cover. It is highly reliable and will respond to shock waves generated by attempted intrusion. Its sensitivity is fully adjustable between high, medium and low-level vibration of disturbance. The sensors has been designed for internal and external (outdoor, in suitable housing) perimeter defense systems. Normally it is electrically closed - circuit, but under shock conditions, go open circuit momentarily. As such, any forcible attack upon the surface to which it is attacked, is instantly detected. A number of sensors can be series - connected to form a sensor loop which is connected to an analyzer/ loop monitor circuit located at or within the alarm control panel.
The sensors are compliance to CE and manufactured under the highest quality control to achieve the commitment to customer who always satisfied with maximum quality and reliability.
Detailed Images

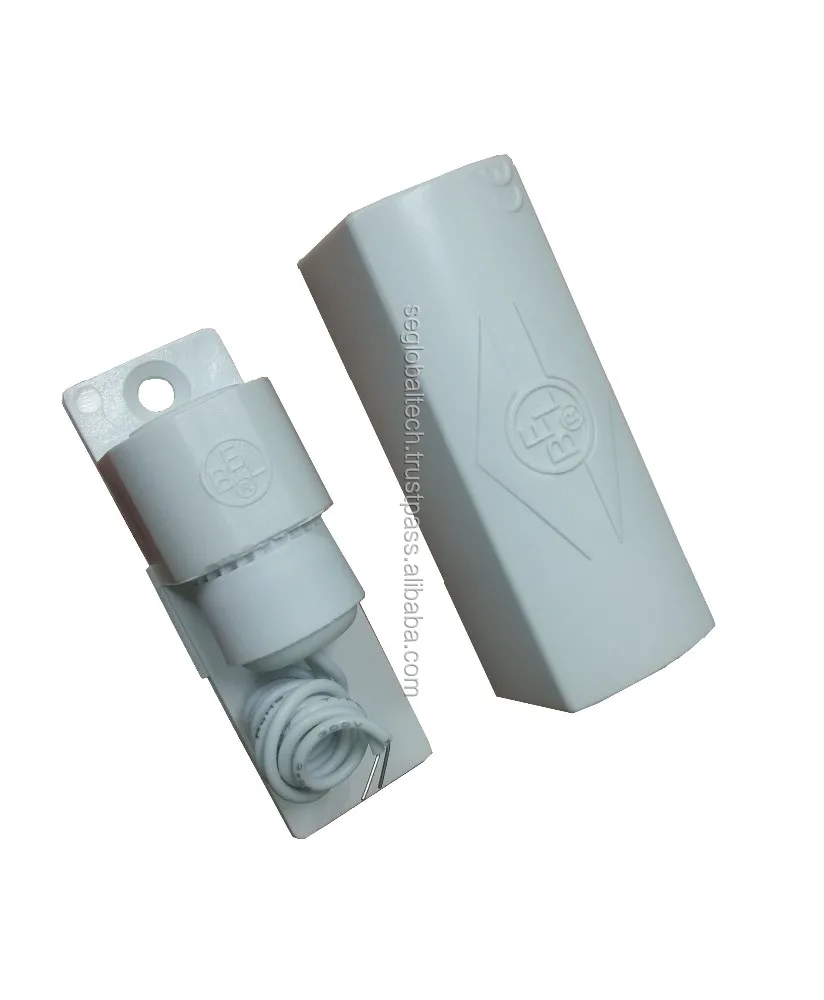

M5 Vibration Sensor
- beige ABS, 24ct cobalt gold plated, 7/0.2mm cables
- L (low vibration) ; M (medium vibration) ; H (high vibration)
- -10°C to +60°C operating temperature
- 0 ~ 95% (non-condensing) operating humidity
- highest conductivity with 24ct cobalt gold plated
- sensor head complete sealed with epoxy for water resistance
- can be installed at glass, fences, walls, windows, doors, air
conditioner dusts, manholes and etc

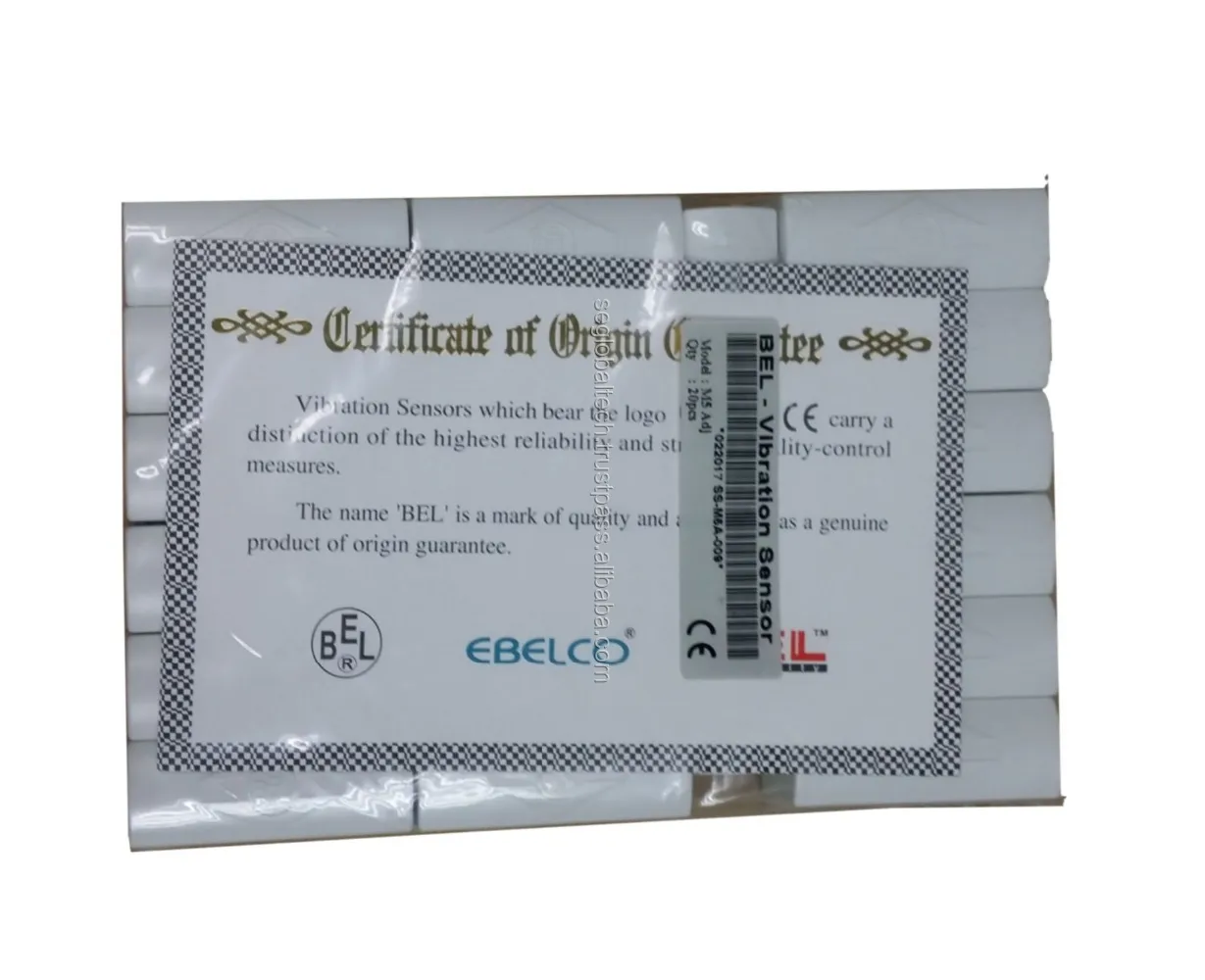

Packing & Delivery
